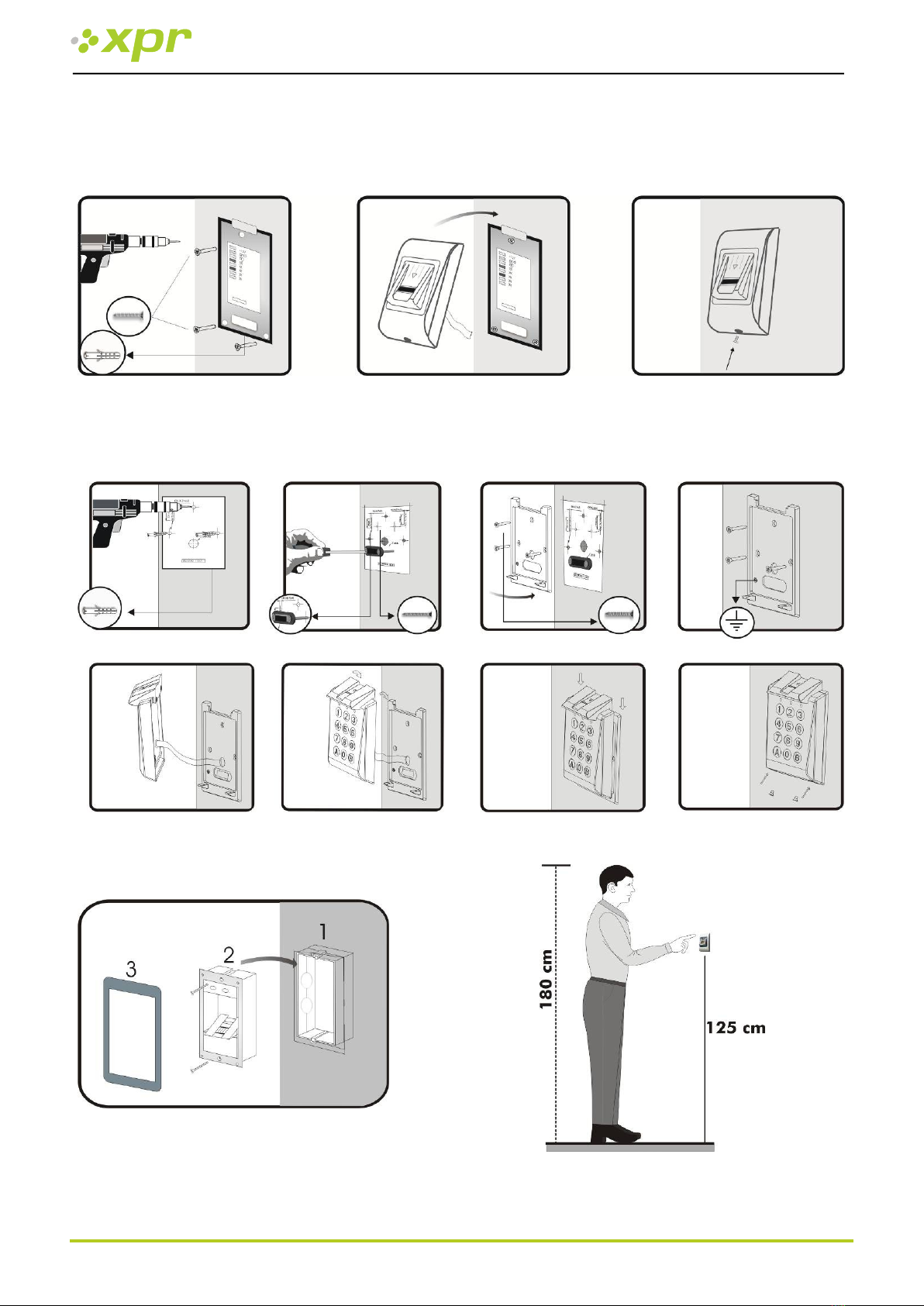

5 Mounting .................................................................................................................................................10

5.1 BIOC-SW................................................................................................................................................10

5.2 BIOXR-SW..............................................................................................................................................10

5.3 BIOIN PROX-SW ....................................................................................................................................10

6 Connecting Biometric readers to EWS Controller ..................................................................11

6.1 Biometric readers in network with EWS controllers ............................................................................12

6.2 RS 485 termination resistors ................................................................................................................12

7 Configuring the Biometric readers in PROS Software...........................................................13

7.1 Adding Biometric reader.......................................................................................................................13

7.2 Check Firmware version........................................................................................................................13

7.3 Firmware Update ..................................................................................................................................14

7.4 Read reader settings .............................................................................................................................14

7.5 Upload configuration to a reader .........................................................................................................14

7.6 Sensor calibration .................................................................................................................................14

7.7 Selecting a finger for fingerprint enrollment........................................................................................14

7.8 Enrolling Fingerprints from a reader ....................................................................................................15

7.9 Enrolling Fingerprints from a Desktop Reader .....................................................................................15

7.10 Uploading the fingerprints to the Biometric readers ...........................................................................16

7.11 Deleting Fingerprints ............................................................................................................................16

7.12 Deleting one user from the biometric reader ......................................................................................16

7.13 Deleting all users from the biometric reader .......................................................................................16

7.14 Deleting user finger templates from the Software...............................................................................16

7.15 Complex upload ....................................................................................................................................17

8 Connecting Biometric Readers to Third Party Controller....................................................18

8.1 Converters PIN description...................................................................................................................19

Biometric Readers with swipe capacitive sensor v2.0

a Company

Visual CorporationPlus

9 Configuring the Biometric Readers in BioManager................................................................20

9.1 Add Reader ...........................................................................................................................................20

9.2 Edit Reader............................................................................................................................................22

9.3 Delete Reader .......................................................................................................................................22

9.4 Calibrate sensor ....................................................................................................................................23

9.5 Add user................................................................................................................................................23

9.6 Edit user ................................................................................................................................................23

9.7 Delete users ..........................................................................................................................................23

9.8 Enroll fingers.........................................................................................................................................24

9.9 Upload fingerprint to readers...............................................................................................................24

9.10 Delete fingerprints................................................................................................................................25

9.11 Deleting one user from the biometric reader ......................................................................................25

9.12 Deleting all users from the biometric reader .......................................................................................25

9.13 Complex user upload ............................................................................................................................26

9.14 Custom Wiegand...................................................................................................................................26

10 Wiegand protocol description ........................................................................................................28

11 Connecting the Biometric Readers with EX8 controller.......................................................29

12 Safety precautions ...............................................................................................................................30

13 Troubleshooting....................................................................................................................................30

Biometric Readers with swipe capacitive sensor v2.0

a Company

Visual CorporationPlus

1Product concept

BIOC-SW, BIOXR-SW and BIOINPROX-SW are Biometric readers with adjustable Wiegand Output and can be

connected to most Access Controllers with Wiegand interface.

BIOE is a desktop USB biometric reader used for fingerprint enrollment.

BIOXR-SW and BIOC-SW are surface mount products and BIOINPROX-SW is a flush mount.

BIOXR-SW can operate with Finger or Pin Code, BIOC-SW with finger only and BIOINPROX-SW with finger or

proximity card.

They can all be mixed in the same network.

Connection between the biometric readers is RS485 and it is used for fingerprint transfer and configuration.

When used with third party controllers, the connection between the Biometric readers and the PC is done

through a converter (CNV100-RS485 to RS232 or CNV200-RS485 to USB or CNV300-RS485 to TCP/IP). Only one

converter is needed per system (one converter for 1, 2, 3...30, 31 Biometric readers)

Configuration of the readers and fingerprint enrollment is done through PC Software.

The Biometric Readers can be used with EX8 as standalone access control system, or as readers with access

control panels

BIOC-SW

BIOXR-SW

BIOE

BIOIN PROX- SW

Biometric Readers with swipe capacitive sensor v2.0

a Company

Visual CorporationPlus

2Product Description

2.1 BIOXR-SW

Features

Surface Mount Fingerprint/Keypad Reader for outdoor and indoor use

Authentication: Fingerprint, Fingerprint or PIN code, Fingerprint and PIN code

Storage capacity: 9000 Users with fingerprint and 1000 with PIN Codes(1 to 8 digis) (unlimited PIN Codes with

EWS)

All Metal

Identification time < 1 sec

2 free tension LED (red and green)

Adjustable Wiegand protocol (8 to 128 bit) is utilized in the biometry reader which makes it compatible with

controllers with Wiegand interface

Configuring the system and fingerprint enrollment are done through PC, locally or remotely

Enrollment can be also done from Desktop Reader BioE

Buzzer sound level adjustment through PC

Separate BioManager Software available free when used with third party controllers

Fingerprints and PIN Codes stored in the reader and backup copy kept in the software

Technical Specifications

Authentication

Finger or PIN code or Finger and PIN Code

Template capacity

9000

PIN code capacity

1000 or unlimited with EWS

Finger enrollment time

< 1 second for each finger

Recognition and matching time

< 1 second for each finger

Number of templates for each user

1-10 Templates (Fingers)

Free tension LED

yes

Output

Wiegand (8-128bit), default: Wiegand 26bit

Communication

RS485

Power Supply

12Vdc

Consumption

150mA max.

Weight

750g

IP factor

IP65

Operating temperature

-20oC - +50oC

A. Fingerprint Swipe Capacitive Sensor

B. Tricolour LED (idle mode - orange, finger not accepted-red and finger accepted-green)

C. Green LED (Free Tension LED)

D. Yellow LED for Data Transfer and key confirmation

E. Red LED (Free Tension LED)

F. Special Function Key

G. Special Function Key

Biometric Readers with swipe capacitive sensor v2.0

a Company

Visual CorporationPlus

2.2 BIOC-SW

Features

Surface mount biometric reader with swipe capacitive sensor

Adjustable Wiegand protocol (8 to 128-bit) is utilized in the biometry reader which makes it compatible with

other controllers with a Wiegand interface

Only Fingerprint operation

Storage capacity: 9000 Fingerprints

Configuring the system and Fingerprint enrollment is done through PC, locally or remotely

Enrollment can be also done from a Desktop Reader BIOE

Buzzer sound level adjustment through PC

2 free tension LED

Wiegand Protocol adjustment is done through PC

Separate BioManager Software available free when used with third party controllers

The Fingerprints are stored in the reader and a backup copy is kept in the software

New elegant aluminium housing in different colours

Technical Specifications

A. Tricolour LED (idle mode - orange, finger not accepted-red and finger accepted-green)

B. Fingerprint Swipe Capacitive Sensor

C. Free Tension LED (Red/Green)

Authentication

Finger

Template capacity

9000

Finger enrollment time

< 1 second for each finger

Recognition and matching time

< 1 second for each finger

Number of templates for each user

1-10 Templates (Fingers)

Output

Wiegand (8-128bit), default: Wiegand 26bit

Communication

RS485

Power Supply

12Vdc

Consumption

70mA max.

Weight

200g

IP factor

IP 65

Operating temperature

-20oC - +50oC

BIOC-SW

Biometric Readers with swipe capacitive sensor v2.0

a Company

Visual CorporationPlus

In idle mode the free tension LED is orange.

When access is granted the free tension LED is Green.

When Access is denied the free tension LED is red.

Orange(Idle Mode): LG- and LR- not connected

Green: LG-(green wire) connected to GND

Red: LR-(orange wire) connected to GND

No light: LG-(green wire) and LR-(orange wire) connected to GND

Refer to Chapter 6 for the connection of the free tension LED, when the reader is connected to EWS controller.

Note: There are no terminal blocks in EX8 for the free tension LED. When BIOC SW is connected to EX8, the tricolor

triangle LED gives the access status.

2.3 BIOINPROX-SW

Features

Flush Mount biometric reader with integrated proximity

Adjustable Wiegand protocol (8 to 128-bit) is utilized in the biometry reader which makes it compatible with

other controllers with a Wiegand interface

Authentication: Fingerprint or Proximity Cards, Tags and Fobs

Storage capacity: 9000 Fingerprints

1 Free tension LED (Central Alarm)

Configuring the system and Fingerprint enrollment are done through PC, locally or remotely

Enrollment can be also done from a Desktop Reader BioE

Buzzer sound level adjustment through PC

Wiegand Protocol adjustment is done through PC

Separate BioManager Software available free when used with third party controllers

The Fingerprints are stored in the reader and a backup copy is kept in the software

Housing frames in different colours

Blue front illumination can be permanent or switched off

Technical Specifications

Authentication

Finger or Proximity Card

Template capacity

9000

Finger enrollment time

< 1 second for each finger

Recognition and matching time

< 1 second for each finger

Number of templates for each user

1-10 Templates (Fingers)

Free tension LED

yes

Output

Wiegand (8-128bit), default: Wiegand 26bit

Communication

RS485

Power Supply

12Vdc

Consumption

200mA max.

Weight

500g

IP factor

IP 65

Operating temperature

-20oC - +50oC

Biometric Readers with swipe capacitive sensor v2.0

a Company

Visual CorporationPlus

A. Tricolour LED (idle mode - orange, finger not accepted-red and finger accepted-green)

B. Fingerprint Swipe Capacitive Sensor

C. Proximity Antenna

2.4 BIOE

Features

Desktop Biometric reader

USB powered

Used only for fingerprint enrollment

BIOE is used when the enrollment needs to be done from

somebody’s desk. It is not necessary to have BIOE in the

system. The enrollment can be done from any installed

biometric reader.

BIOE

Biometric Readers with swipe capacitive sensor v2.0

a Company

Visual CorporationPlus

3Enrollment

4Authentication

There are 5 user authentication modes that can be assigned by the software: Only “Finger” (BIOXR-SW, BIOC-SW),

“Finger OR Code”, “Finger AND Code” (BIOXR-SW), “Finger AND Card”, “Finger OR Card” (BIOIN PROX-SW)

The tricolour LED has three colour statuses; Orange, Green & Red. It operates only on fingerprint enrollment and stays in

an orange state before authentication.

Important Note: During user authentication the finger must be swiped in the same way as it was during the enrollment

process. This increases the chance of a successful authentication.

4.1 Authentication of a user by a fingerprint

When swiping a finger, the tricolour LED turns green for one second and beeps twice if the user is valid. For an invalid

user or a misread authentication for a valid user, the tricolour LED turns red for three seconds together with multiple

beeps.

4.2 Authentication of a user by PIN code (only BIOXR-SW)

Enter the user's PIN code (1 to 8 digits). If the PIN code entered is valid, the orange LED is lit, together with 2 audio beeps

and access is granted. If the PIN code is invalid, the red LED blinks for 3 seconds together with multiple beeps.

After 15 successive invalid PIN codes, or 15 successive invalid fingers, the system blocks for 30 seconds and the orange

LED blinks with continuous audible beeps.

The orange LED will stop blinking with the first accepted finger or PIN Code.

4.3 Authentication of a user by Fingerprint AND PIN code (only BIOXR-SW)

Enter the user's PIN code wait for 2 beeps, the tricolour LED will blink in orange and then swipe the finger within 8

seconds.

Note: For using this authentication, go to Readers/Properties and select Finger and Keycode entry mode.

4.4 Authentication of a user by Fingerprint AND Card (only BIOIN PROX)

Present the card and wait for 2 beeps, the tricolour LED will blink in orange and then present the finger within 8 seconds.

Note: For using this authentication go to Readers/Properties and select Card AND Finger entry mode.

Biometric Readers with swipe capacitive sensor v2.0

a Company

Visual CorporationPlus

5Mounting

5.1 BIOC-SW

5.2 BIOXR-SW

5.3 BIOIN PROX-SW

Mounting Position

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels VISUAL PLUS Système d'interphone

VISUAL PLUS

VISUAL PLUS XPR EX5 Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques

Bticino

Bticino LINEA 3000 Manuel utilisateur

MSI

MSI MSI-140 Manuel utilisateur

golmar

golmar Stadio Plus Manuel utilisateur

CyberData

CyberData 011211 series Manuel

Vidos

Vidos duo M1021 Manuel utilisateur

Vimar

Vimar ELVOX 7539/E Manuel utilisateur

SSS Siedle

SSS Siedle BTSV 850-03 Manuel utilisateur

Dahua

Dahua VTO Series Manuel utilisateur

Elvox

Elvox 5651 Manuel utilisateur

Videx

Videx VIDEOKIT Series Manuel utilisateur

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuel utilisateur

Viking

Viking E-35-EWP Manuel utilisateur

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuel utilisateur

SSS Siedle

SSS Siedle BFCV 850 Series Manuel utilisateur

GRD

GRD MAX V2 Manuel utilisateur

Alecto

Alecto ADI-250 Manuel utilisateur

Aiphone

Aiphone IE-8MD Manuel utilisateur

Perel

Perel EDB4 Manuel utilisateur

VISUAL PLUS xpr BIOXR-SW Manuel utilisateur

Manuels Système d'interphone populaires d'autres marques
