Vista VK2-4KXDECODER Manuel utilisateur
1
VK2-4KXDECODER
User manual
2
Please read this manual thoroughly before use and keep it handy for future reference.
3
Contents
1. Overview..................................................................................................................................................8
1.1 Package Contents .........................................................................................................................8
1.2 Decoder Description ......................................................................................................................8
2. Installation .............................................................................................................................................10
2.1 Starting System .......................................................................................................................... 10
2.2 Quick Setup................................................................................................................................ 11
2.2.1 Account ............................................................................................................................. 11
2.2.2 System............................................................................................................................... 11
2.2.3 Network ............................................................................................................................. 12
2.2.4 Time/Date.......................................................................................................................... 12
2.2.5 Easy Installation Wizard....................................................................................................... 13
3. Live Screen Configuration ........................................................................................................................ 14
3.2 Quick menu................................................................................................................................ 15
3.2.1 Channel Assign ...................................................................................................................16
4. Setup menu............................................................................................................................................ 17
4.1 Main standard buttons in Setup menu........................................................................................... 18
4.2 SYSTEM ..................................................................................................................................... 19
4.2.1 System............................................................................................................................... 19
4.2.2 Time/Date.......................................................................................................................... 21
4.2.3 Account > User................................................................................................................... 22
4.2.4 Configuration (Config) ......................................................................................................... 24
4.3 CAMERA..................................................................................................................................... 26
4.3.1 Channel ............................................................................................................................. 26
4.4 DEVICE...................................................................................................................................... 27
4.4.1 Display............................................................................................................................... 27
4.4.2 Serial Device > Serial Device................................................................................................ 29
4.5 NETWORK.................................................................................................................................. 30
4.5.1 Basic > WAN Port ...............................................................................................................30
5. Displaying Media files .............................................................................................................................. 31
5.1 AVI Conversion program ..............................................................................................................31
5.2 Adding Media file to the Decoder..................................................................................................32
6. Product Specfication ................................................................................................................................ 33
4
Before You Begin
Read these instructions before installing or operating this product.
Note: This installation should be made by a qualified service person and should conform to
local codes.
This manual provides installation and operation information. To use this document, you must
have the following minimum qualifications:
A basic knowledge of CCTV systems and components
A basic knowledge of electrical wiring and low-voltage electrical connections
Intended use
Only use this product for its designated purpose; refer to the product specification and user
documentation.
Customer Support
For assistance in installing, operating, maintaining and troubleshooting this product refer to this
document and any other documentation provided. If you still have questions, please contact
Norbain Technical Support and Sales:
Norbain SD, Inspired, Easthampstead Road, Bracknell RG12 1YQ.
UK +44 (0) 118 912 5000
Note: You should be at the equipment and ready with details before calling Technical Support.
Conventions Used in this Manual
Boldface or button icons highlight command entries. The following WARNING, CAUTION
and Note statements identify potential hazards that can occur if the equipment is not handled
properly:
* WARNING:
Improper use of this equipment can cause severe bodily injury or equipment
damage.
** Caution:
Improper use of this equipment can cause equipment damage.
Note: Notes contain important information about a product or procedure.
5
This apparatus is manufactured to comply with the radio interference.
A Declaration of Conformity in accordance with the following EU standards has been
made. The manufacturer declares that the product supplied with this document is
compliant the provisions of the EMC Directive 2004/108/EC, the CE Marking
Directive 93/68 EEC and all associated amendments.
All lead-free products offered by the company comply with the requirements of
the European law on the Restriction of Hazardous Substances (RoHS) directive:
2011/65/EU, which means our manufacture processes and products are strictly
“lead-free” and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the
product must be collected separately at the product end-of-life. This applies to
your product and any peripherals markedwith this symbol. Do not disposeof these
products as unsorted municipal waste.
* This symbol indicates electrical warnings and cautions.
** This symbol indicates general warnings and cautions.
NORBAIN SD reserves the right to make changes to the product and specification of the product
from time to time without prior notice.
WARNINGS AND CAUTIONS:
To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation
grills or other openings on the equipment.
6
IMPORTANT SAFEGUARDS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that product heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods
of time.
13. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
14. CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN
THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU ARE
QUALIFIED TO DO SO.
15. IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.
7
CE COMPLIANCE STATEMENT
WARNING
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
8
1. Overview
1.1 Package Contents
The device package contents consist of the following:
Note
Please check all components involved.
Table 1-1 Package contents
No
Name
번호
Name
1
Decoder
2
Mounting Bracket
3
DC 12V Adaptor
4
Bracket fixing screws
5
Quick guide
6
Program CD
1.2 Decoder Description
Each part is listed in the below:
Figure 1-1 Name and Connection of each front section
Table 1-2 Name and Function of each front section
No.
Name
Function
1
USB port
USB port for mouse connection and Firmware upgrade
2
Micro SD
Store media file.
3
LAN LED
Network connection indicator
4
Power status LED
Power indicator
9
Figure 1-2 Name and Connection of rear section
Table 1-3 Name and Function of rear section
No.
Name
Function
1
NETWORK
Network connection
2
AUDIO OUT
Audio output port.
3
CVBS
CVBS (Spot Video) output port.
4
HDMI
HDMI output port.
5
ALARM OUT
Alarm output connector.
6
DC12V
Power supply connector.
10
2. Installation
You can fix the product on the wall using the supplied bracket.
Refer to the drawing below for the hole position of the bracket.
Figure 2-1 Dimension
2.1 Starting System
On power up the following icons will appear sequentially:
1 Switching on initialize with below icons in order.
2 When the buzzer sounds, the start screen will be presented.
3 In Log in screen, enter the ID, Password and press OK.
Note
Default ID & Password is admin/admin.
Attention
Please change password after login due to security.
Autres manuels pour VK2-4KXDECODER
1
Table des matières
Autres manuels Vista Convertisseur de média
Vista

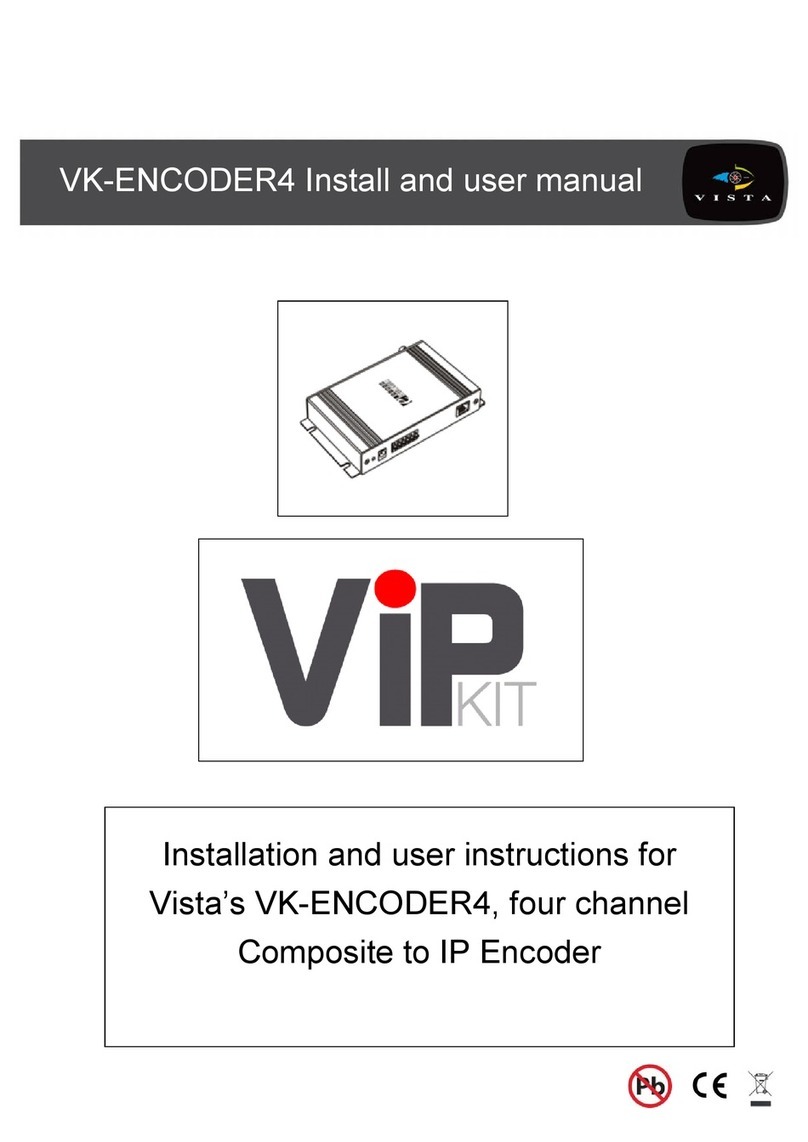

Vista VK-ENCODER4 Manuel utilisateur
