UltraDecoder Operators Manual

Contents

Issue : 3 (23/12/2015) i

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

Contents

Introduction ........................................................................................................................................ 1

Read Me First ..................................................................................................................................... 2

Quick Start Guide ............................................................................................................................. 3

3.1. Connectivity Configuration ................................................................................................................... 3

3.2. Input Configuration ................................................................................................................................. 3

3.3. Output Configuration .............................................................................................................................

Specifications ...................................................................................................................................... 7

4.1. Physical ....................................................................................................................................................... 7

4.2. Inputs .......................................................................................................................................................... 7

4.3. Outputs ...................................................................................................................................................... 7

4.4. Remote Control/Monitoring ................................................................................................................. 7

4. . Performance .............................................................................................................................................. 7

Front Panel .......................................................................................................................................... 9

.1. Buttons ....................................................................................................................................................... 9

.2. Menu Screen.............................................................................................................................................. 9

.3. USB ............................................................................................................................................................ 10

Rear Panel ......................................................................................................................................... 11

6.1. IP Video .................................................................................................................................................... 11

6.2. Ethernet Control ................................................................................................................................... 11

6.3. ASI In ......................................................................................................................................................... 12

6.4. Data ........................................................................................................................................................... 12

6. . USB ............................................................................................................................................................ 12

6.6. Eth. 1 ......................................................................................................................................................... 12

6.7. Eth. 2 ......................................................................................................................................................... 13

6.8. ASI Out ..................................................................................................................................................... 13

6.9. 3G SDI ...................................................................................................................................................... 13

6.10. 4K HDMI .................................................................................................................................................. 13

6.11. AC Power ................................................................................................................................................ 13

IP Setup .............................................................................................................................................. 14

7.1. Basic .......................................................................................................................................................... 14

7.2. Web Browser control .......................................................................................................................... 14

7.3. IP Video In ............................................................................................................................................... 1

7.4. Complete Configuration ...................................................................................................................... 1

7. . Decoder Communications Recovery Procedure ........................................................................... 16

Menu Navigation .............................................................................................................................. 18

8.1. Decoder Setup ........................................................................................................................................ 18

8.2. Unit Setup ................................................................................................................................................ 20

8.3. System ....................................................................................................................................................... 24

Remote Control .............................................................................................................................. 29

9.1. SNMP ........................................................................................................................................................ 29

9.2. Web Browser ......................................................................................................................................... 30

10.

Appendices ........................................................................................................................................ 33

10.1. Appendix A – Upgrade Procedure .................................................................................................... 33

10.2. Appendix B – Maintenance & Fault Finding ..................................................................................... 3

10.3. Appendix C – Declarations of Conformity ..................................................................................... 36

10.4. Appendix D – Full Menu Tree ............................................................................................................ 38

All manuals and user guides at all-guides.com

UltraDecoder Operators Manual

Document Disclaimer

Issue : 3 (23/12/2015) ii

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

Document Disclaimer

The information contained in this manual remains the property of Vislink and may not be used,

disclosed or reproduced in any other form whatsoever without the prior written permission of

Vislink.

Vislink reserves the right to alter the equipment and specification appertaining to the equipment

described in this manual without notification.

All manuals and user guides at all-guides.com

UltraDecoder Operators Manual

Document History

Issue : 3 (23/12/2015) iii

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

Document History

Version Date Modification Firmware Version Valid From

(or greater)

1 26/11/2015 Initial release

2 14/12/2015 Added IP Setup and Decoder communications recovery

procedure

3 21/12/2014 Added Read Me First, Quick Start Guide and full Menu

Tree. Upgrade procedure modified. Miscellaneous

corrections.

AUTOBOOT P00016 Vt00

All manuals and user guides at all-guides.com

UltraDecoder Operators Manual

Introduction

Issue : 3 (23/12/2015) 1

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

1. Introduction

Being the lightest in the world, the Vislink UltraDecoder is the new RU, half-rack width HEVC & 4K

UHD capable decoder. The product uses the latest advanced HEVC decoding techniques to offer up

to 50% bit rate reduction compared to H.264, resulting in the delivery of high quality video at low bit

rates.

Along with Vislink's UltraCoder this product provides a complete end to end HEVC & 4K UHD encode

and decode solution.

Full remote control can be made either by SNMP or by accessing the internal web server from a web

browser. A clear graphical routing page in the web-browser interface gives total control of all the

possible combinations. This common control page also contains links to all adjustable parameters of

the unit at a single click.

This manual provides information on the complete range available; note that not all options are

fitted at time of manufacture, and may require a return to factory for future hardware upgrades.

Purchases of additional licence keys to enable functions not initially ordered may be entered in the

field.

Firmware upgrades may be offered from time to time for the customer to download into the unit to

add additional features as they become available.

All manuals and user guides at all-guides.com

UltraDecoder Operators Manual

Read Me First

Issue : 3 (23/12/2015) 2

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

2. Read Me First

The UltraDecoder is composed of two subsystems integrated within the chassis; a control assembly

and a decoder assembly. These subsystems communicate by ethernet using the four RJ45

connectors on the rear panel. Before the unit is powered on it is vital that these connectors are

configured in such a way that the subsystems can communicate. This can be acheived by either

linking Eth. to IP Video and Eth. 2 to Ethernet Control using the supplied cables or by connecting all

four to an external ethernet switch. This is shown in more detail in Chapter 7.

It is recommended that the initial configuration of the port addresses is done with the connections

made directly using the supplied cables.

If the unit is to be connected to an external network with more than one UltraDecoder unit present

then the default IP addresses of the ports must be changed prior to connection to the network in

order to prevent IP Address clashes.

In the case that an UltraDecoder is inadvertantly powered on without the correct network

connections in place then the control and decoder subsystems may loose communications. If this

happens then please follow the recovery procedure in Section 7.5.

All manuals and user guides at all-guides.com

all-guides.com

UltraDecoder Operators Manual

Quick Start Guide

Issue : 3 (23/12/2015) 3

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

3. Quick Start Guide

3.1. Connectivity Con iguration

It is recommended to configure the unit using the Web Interface. The procedure for configuring the

web interface is as follows:

•The direct Ethernet connections must first be made on the rear panel using the supplied

cables, as described in the previous section.

•The Ethernet Control port must then be configured with the appropriate IP Address, Mask

and Gateway to match your network settings. The settings for this can be found by selecting

Menu | System | Remote Interfaces | Ethernet Port from the front panel.

•The IP Video port can then be similarly configured by selecting Menu | Unit Setup | IP

Options | IP Port Setup if the IP Video port and Eth. are to be connected to your network,

or can be left as default if a direct connection is to be used. Note that if a direct connection

is used between the IP Video and Eth. ports then the unit can only be used in ASI input

mode.

•The unit can now be powered off and supplied cables safely removed. Be sure to connect

the Ethernet ports to your network before powering back on.

The Web Interface accessed using the IP address of the Ethernet Control port.

3.2. Input Con iguration

•To select the correct source signal for the decoder use the switches on the routing page

shown below to select either the ASI input or the IP input. Press “Accept Changes” to save.

Only one change can be made at a time.

•If the ASI input is selected then no further input configuration is required.

All manuals and user guides at all-guides.com

UltraDecoder Operators Manual

Quick Start Guide

Issue : 3 (23/12/2015) 4

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

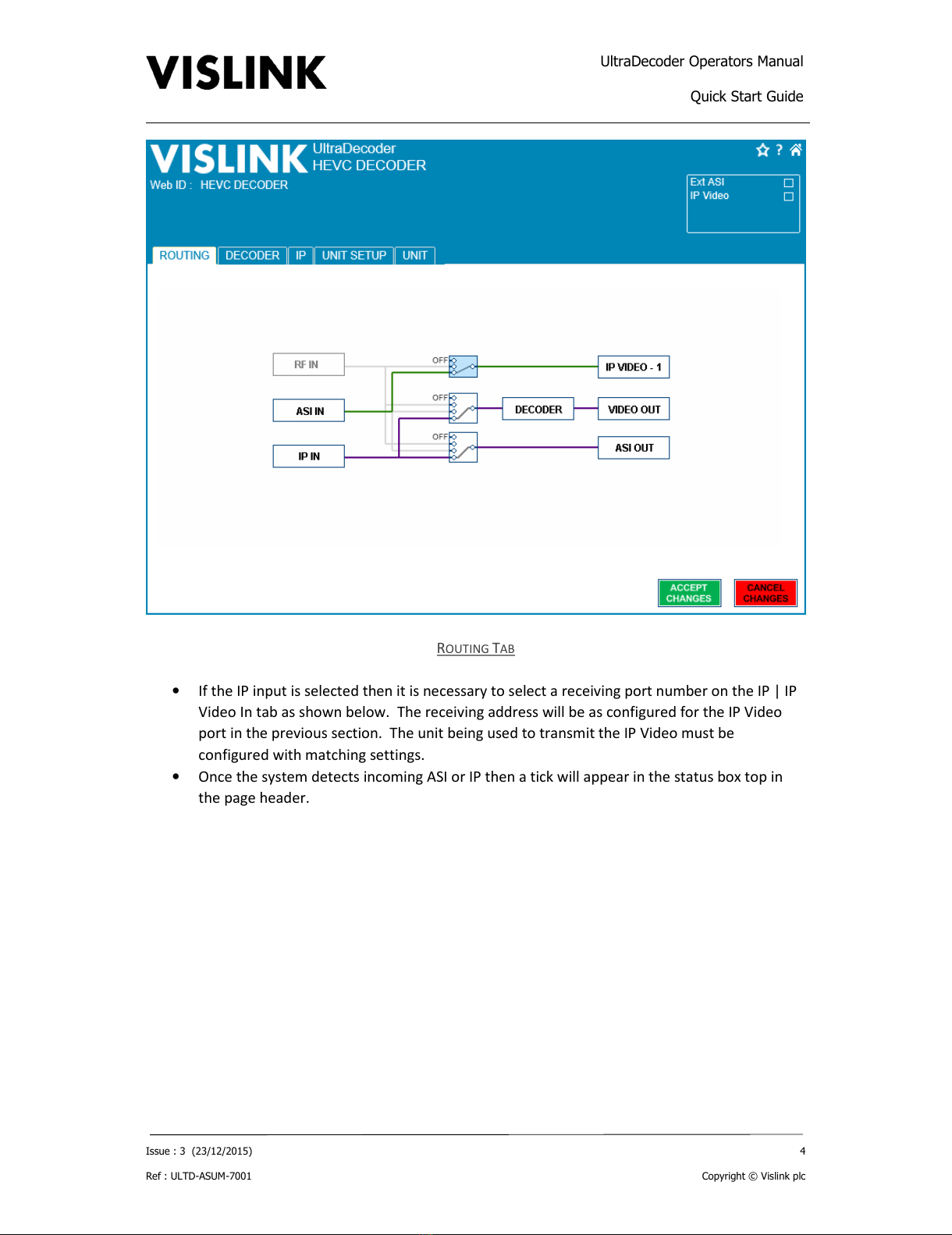

OUTING

•If the IP input is selected then it is necessary to select a receiving port number on the IP | IP

Video In tab as shown below. The receiving address will be as configured for the IP Video

port in the previous section. The unit being used to transmit the IP Video must be

configured with matching settings.

•Once the system detects incoming ASI or IP then a tick will appear in the status box top in

the page header.

All manuals and user guides at all-guides.com

UltraDecoder Operators Manual

Quick Start Guide

Issue : 3 (23/12/2015) 5

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

IDEO

3.3. Output Con iguration

•In the Decoder tab, as shown below, select the desired program number from the dropdown

list if the incoming ASI stream contains more than one program.

•Select the output video format. The decoder will automatically recognise the format of the

incoming ASI stream and will up-scale or down-scale to the selected format. Note that it is

important to select the same frame rate as the incoming ASI stream as this cannot be

changed by the decoder.

•If not already selected, change the Play control to Play.

All manuals and user guides at all-guides.com

UltraDecoder Operators Manual

Quick Start Guide

Issue : 3 (23/12/2015) 6

Ref : ULTD-ASUM-7001 Copyrig t © Vislink plc

ECODER

Video should now be displayed if a monitor is connected to the HDMI (All formats) or SDI ports (HD

and SD only).
