IR Receiver Modules for Remote Control Systems

ORDERING CODE

Taping:

TSOP57...TT1 - top view taped

TSOP57...TT2 - top view taped

FEATURES

• Height of 0.8 mm

• ± 75° half angle sensitivity

• Low supply current

• Photo detectors and preamplifier in one package

• Internal filter for PCM frequency

• Supply voltage: 2.5 V to 5.5 V, typically even

2.0 V to 5.5 V is possible

• Improved immunity against ambient light

• Insensitive to supply voltage ripple and noise

• Material categorization: for definitions of compliance

please see www.vishay.com/doc?99912

DESCRIPTION

The TSOP57... series are miniaturized SMD IR receiver

modules for infrared remote control systems. A PIN diode

and a preamplifier are assembled on a PCB, the epoxy

package contains an IR filter.

The demodulated output signal can be directly connected to

a microprocessor for decoding.

The TSOP572.., TSOP574.. are optimized to suppress

almost all spurious pulses from energy saving lamps like

CFLs. The AGC4 used in the TSOP574.. may suppress

some data signals. The TSOP572.. is a legacy product for all

common IR remote control data formats. Between these

two receiver types, the TSOP574.. is preferred. Customers

should initially try the TSOP574.. in their design.

These components have not been qualified according to

automotive specifications.

Note

(1) We advise try AGC4 first if the burst length is unknown.

22531-1

PARTS TABLE

AGC LEGACY, FOR

LONG BURST REMOTE CONTROLS (AGC2)

RECOMMENDED FOR

LONG BURST CODES (AGC4) (1)

Carrier

frequency

36 kHz TSOP57236 TSOP57436 (2)(3)(4)

38 kHz TSOP57238 TSOP57438 (5)(6)

40 kHz TSOP57240 TSOP57440

56 kHz TSOP57256 TSOP57456 (7)(8)

Package Belobog

Pinning 1= OUT, 2, 3, 6, 7, 8 = GND, 4, 5 = VS

Dimensions (mm) 3.95 W x 3.95 H x 0.8 D

Mounting SMD

Application Remote control

Best remote control code (2) RC-5 (3) RC-6 (4) Panasonic (5) NEC (6) Sharp (7) r-step (8) Thomson RCA

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 2Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

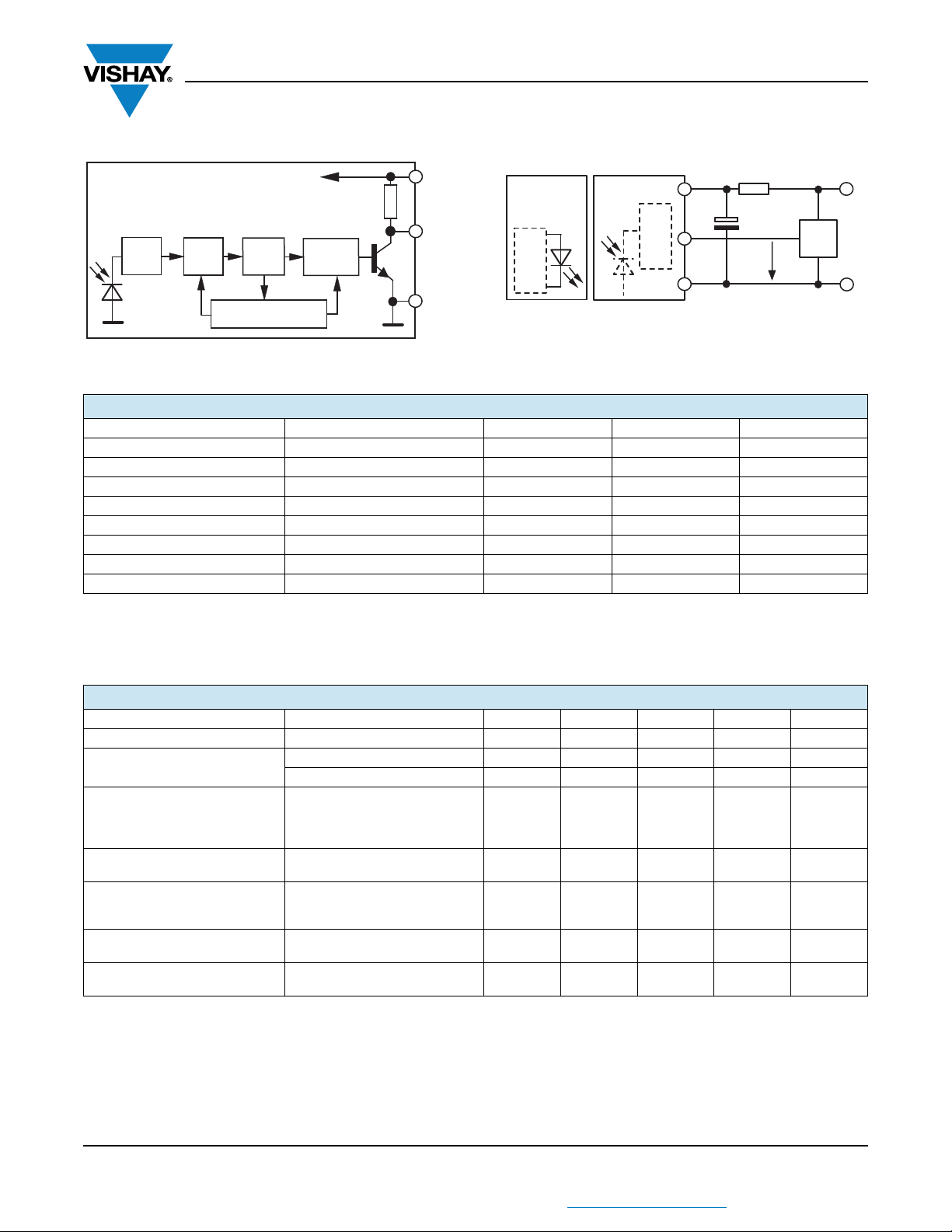

BLOCK DIAGRAM APPLICATION CIRCUIT

Note

• Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only

and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification

is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability.

33 kΩ

OUT

Demo-

GND

pass

AGCInput

Band dulator

Control circuit

4, 5

2, 3,

6, 7, 8

20445-6

IR receiver

GND

Circuit

µC

+ V

GND

Transmitter

with

TSALxxxx V

17170-10

OUT

The external components R1and C1are optional

to improve the robustness against electrical overstress

(typical values are R1= 100 Ω, C1= 0.1 µF).

ABSOLUTE MAXIMUM RATINGS

PARAMETER TEST CONDITION SYMBOL VALUE UNIT

Supply voltage VS-0.3 to +6 V

Supply current IS5mA

Output voltage VO-0.3 to (VS+ 0.3) V

Output current IO5mA

Junction temperature Tj100 °C

Storage temperature range Tstg -25 to +85 °C

Operating temperature range Tamb -25 to +85 °C

Power consumption Tamb ≤85 °C Ptot 10 mW

ELECTRICAL AND OPTICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)

PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT

Supply voltage VS2.5 5.5 V

Supply current VS= 5 V, Ev= 0 ISD 0.55 0.7 0.9 mA

Ev= 40 klx, sunlight ISH 0.8 mA

Transmission distance

Ev= 0,

IR diode TSAL6200,

IF= 250 mA,

test signal see fig. 1

d40m

Output voltage low IOSL = 0.5 mA, Ee= 0.7 mW/m2,

test signal see fig. 1 VOSL 100 mV

Minimum irradiance

Pulse width tolerance:

tpi - 5/fo< tpo < tpi + 6/fo,

test signal see fig. 1

Ee min. 0.2 0.4 mW/m2

Maximum irradiance tpi - 5/fo< tpo < tpi + 6/fo,

test signal see fig. 1 Ee max. 50 W/m2

Directivity Angle of half transmission

distance ϕ1/2 ± 75 deg

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 3Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)

Fig. 1 - Output Active Low

Fig. 2 - Pulse Length and Sensitivity in Dark Ambient

Fig. 3 - Output Function

Fig. 4 - Output Pulse Diagram

Fig. 5 - Frequency Dependance of Responsivity

Fig. 6 - Sensitivity in Bright Ambient

16110

tpi *

* tpi 10/f0is recommended for optimal function

VOH

VOL t

Optical Test Signal

(IR diode TSAL6200, IF= 0.4 A, 30 pulses, f = f0, t = 10 ms)

Output Signal

td1) tpo 2)

1) 7/f0< td< 15/f0

2) tpi - 5/f0< tpo < tpi + 6/f0

1.0

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

0.1 1 10 10

- Irradiance (mW/m

)

- Output Pulse Width (ms)

Input Burst Length

Output Pulse Width

λ= 950 nm,

Optical Test Signal, Fig.1

0.1

600 µs 600 µs

t = 60 ms

off

94 8134

Optical Test Signal

Output Signal, (see fig. 4)

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.1 1 10 10

Ee- Irradiance (mW/m2)

ton, toff - Output Pulse Width (ms)

λ= 950 nm,

Optical Test Signal, Fig. 3

off

0.0

0.2

0.4

0.6

0.8

1.0

1.2

0.7 0.9 1.1 1.3

f/f0- Relative Frequency16925

f = f0± 5 %

Δf(3 dB) = f0/10

E /E - Rel. Responsivity

e min. e

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

0.01 0.1 1 10 100

Ee- Ambient DC Irradiance (W/m2)

Ee min. - Threshold Irradiance (mW/m2)

Correlation with Ambient Light Sources:

10 W/m2= 1.4 kLx (Std. illum. A, T = 2855 K)

10 W/m2= 8.2 kLx (Daylight, T = 5900 K)

Wavelength of Ambient

Illumination:

= 950 nm

4.5

5.0

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 4Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Fig. 7 - Sensitivity vs. Supply Voltage Disturbances

Fig. 8 - Max. Envelope Duty Cycle vs. Burst Length

Fig. 9 - Sensitivity vs. Ambient Temperature

Fig. 10 - Relative Spectral Sensitivity vs. Wavelength

Fig. 11 - Horizontal Directivity

Fig. 12 - Sensitivity vs. Supply Voltage

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1 10 100 1000

ΔVsRMS - AC Voltage on DC Supply Voltage (mV)

Ee min. - Threshold Irradiance (mW/m2)

f = f

f = 20 kHz

f = 30 kHz

f = 100 Hz

f = 10 kHz

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0 20 40 60 80 100 120

Burst Length (number of cycles/burst)

Max. Envelope Duty Cycle

f = 38 kHz, Ee= 2 mW/m2

TSOP572..

TSOP574..

21396_15

Tamb - Ambient Temperature (°C)

Ee min. - Sensitivity (mW/m2)

0.05

0.10

0.15

0.20

0.40

-30 -10 10 30 50 70 90

0.30

0.25

0.35

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

750 800 850 900 950 1000 1050 1150

λ- Wavelength (nm)

S(λ)

rel

- Relative Spectral Sensitivity

1100

0.1 0.3 0.5 0.7 0.9

80°

70°

60°

50°

40°

30°

20°

10°

0°

-10°

-20°

-30°

-40°

-50°

-60°

-70°

-80°

21947

0.1

0.2

0.3

0.4

0.5

0.8

1.5 2.5 3.5 4.5 5.52.0 3.0 4.0 5.0

VS- Supply Voltage (V)

Ee min. - Sensitivity (mW/m2)

0.6

0.7

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 5Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

SUITABLE DATA FORMAT

The TSOP572.., TSOP574.. series is designed to suppress

spurious output pulses due to noise or disturbance signals.

The devices can distinguish data signals from noise due to

differences in frequency, burst length, and envelope duty

cycle. The data signal should be close to the device’s

band-pass center frequency (e.g. 38 kHz) and fulfill the

conditions in the table below.

When a data signal is applied to the TSOP572.., TSOP574..

in the presence of a disturbance, the sensitivity of the

receiver is automatically reduced by the AGC to insure that

no spurious pulses are present at the receiver’s output.

Some examples which are suppressed are:

• DC light (e.g. from tungsten bulbs sunlight)

• Continuous signals at any frequency

• Strongly or weakly modulated patterns from fluorescent

lamps with electronic ballasts (see figure 12 or figure 13)

Fig. 13 - IR Signal from Fluorescent Lamp

with Low Modulation

Fig. 14 - IR Signal from Fluorescent Lamp

with High Modulation

Notes

• For data formats with short bursts please see the datasheet for TSOP573..

• Best choice of AGC for some popular IR-codes:

TSOP57436: RC-5, RC-6, Panasonic;

TSOP57438: NEC, Sharp, r-step;

TSOP57456: r-step, Thomson RCA

0101520

Time (ms)

16920

IR Signal

0101520

Time (ms)

16921

IR Signal

TSOP572.. TSOP574..

Minimum burst length 10 cycles/burst 10 cycles/burst

After each burst of length

a minimum gap time is required of

10 to 70 cycles

≥10 cycles

10 to 42 cycles

≥10 cycles

For bursts greater than

a minimum gap time in the data stream is needed of

70 cycles

> 4 x burst length

42 cycles

> 10 x burst length

Maximum number of continuous short bursts/second 800 1300

NEC code yes preferred

RC5/RC6 code yes preferred

Thomson 56 kHz code yes preferred

Suppression of interference from fluorescent lamps Most common disturbance

patterns are suppressed

Even extreme disturbance

patterns are suppressed

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 6Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

PACKAGE DIMENSIONS in millimeters

0.8

0.15

3.95

(2.75)

0.55

(0.95)

0.55

(1.8)

Pinning from Topview

GND

Out

(Vs)

(GND)

(GND) (GND)

0.75± 0.05

4 x 0.75 = 3

0.35± 0.05

(8 x)

1.5

(0.3)

(0.7)

(1.9)

(3.4)

Not indicated tolerances ± 0.1

specifications

according to DIN

technical drawings

All dimensions in mm

Drawing-No.: 6.550-5315.01-4

Issue: 2; 12.02.14

marking area

Drawing refers to following types: TSOP37... / TSOP57...

Proposed pad layout from

component side

(dim. for reference only)

(3.95)

(0.35)

(0.8)

(2.75)

(3)

(4 x)

(4x)

1 2 3 4 5

8 7 6

0.475

(0.4)

Pin 1 Identification

optically effective area

(1)

(2)

(2) (2) (2)

(2) Pins connected internally.

It is not necessary to

connect externally.

(1)

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 7Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

ASSEMBLY INSTRUCTIONS

Reflow Soldering

• Reflow soldering must be done within 168 h while stored

under a max. temperature of 30 °C, 60 % RH after

opening the dry pack envelope

• Set the furnace temperatures for pre-heating and heating

in accordance with the reflow temperature profile as

shown in the diagram. Exercise extreme care to keep the

maximum temperature below 260 °C. The temperature

shown in the profile means the temperature at the device

surface. Since there is a temperature difference between

the component and the circuit board, it should be verified

that the temperature of the device is accurately being

measured

• Handling after reflow should be done only after the work

surface has been cooled off

Manual Soldering

• Use a soldering iron of 25 W or less. Adjust the

temperature of the soldering iron below 300 °C

• Finish soldering within 3 s

• Handle products only after the temperature has cooled off

VISHAY LEAD (Pb)-FREE REFLOW SOLDER PROFILE

Note

(1) MOQ: minimum order quantity

ORDERING INFORMATION

ORDERING CODE PACKAGING VOLUME (1) REMARKS

TSOP57..TT1 Tape and reel MOQ: 1800 pcs 3.95 mm x 3.95 mm x 0.75 mm

TSOP57..TT2 MOQ: 7000 pcs

100

150

200

250

300

0 50 100 150 200 250 300

t (s)

T (°C)

255 °C

240 °C

245 °

max. 260 °C

max. 120 s max. 100 s

217 °C

max. 20 s

max. Ramp Up 3 °C/s max. Ramp Down 6 °C/s

max. 2 cycles allowed

19800

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 8Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

TAPING VERSION TSOP57... DIMENSIONS in millimeters

Leader and trailer tape:

Partsmounted

Empty trailer 200 mm min.

Empty leader 400 mm min.

Direction of pulling out

Unreel direction

Ø 60 min.

Ø Y

2 ± 0.5

Label posted here

coming out from reel

Tape position

(12.4)

18.4 max.

Ø 13 ± 0.2

Ø 21 ± 0.8

100 mm min. with cover tape

X 2:1

Tape and reel dimensions:

(2)

(1.75)

(5.5)

12 ± 0.3

(8) (4)

(Ø 1.5)

(0.3)

Reel size "Y"

TT1 Ø 180 ± 2 = 1800 pcs.

TT2 Ø 330 ± 2 = 7000 pcs.

(1.2)

Technical drawings

according to DIN

specications

Not indicated tolerances± 0.1Drawing-No.: 9.700-5347.01-4

Issue: 1; 14.11.11

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 9Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

LABEL

Standard bar code labels for finished goods

The standard bar code labels are product labels and used

for identification of goods. The finished goods are packed in

final packing area. The standard packing units are labeled

with standard bar code labels before transported as finished

goods to warehouses. The labels are on each packing unit

and contain Vishay Semiconductor GmbH specific data.

DRY PACKING

The reel is packed in an anti-humidity bag to protect the

devices from absorbing moisture during transportation and

storage.

FINAL PACKING

The sealed reel is packed into a cardboard box. A secondary

cardboard box is used for shipping purposes.

RECOMMENDED METHOD OF STORAGE

Dry box storage is recommended as soon as the aluminum

bag has been opened to prevent moisture absorption. The

following conditions should be observed, if dry boxes are

not available:

• Storage temperature 10 °C to 30 °C

• Storage humidity ≤60 % RH max.

After more than 168 h under these conditions moisture

content will be too high for reflow soldering.

In case of moisture absorption, the devices will recover to

the former condition by drying under the following condition:

192 h at 40 °C + 5 °C / - 0 °C and < 5 % RH (dry air /

nitrogen) or

96 h at 60 °C + 5 °C and < 5 % RH for all device containers

24 h at 125 °C + 5 °C not suitable for reel or tubes.

An EIA JEDEC®standard J-STD-020 level 3 label is included

on all dry bags.

VISHAY SEMICONDUCTOR GmbH STANDARD BAR CODE PRODUCT LABEL (finished goods)

PLAIN WRITING ABBREVIATION LENGTH

Item-description -18

Item-number INO 8

Selection-code SEL 3

LOT-/serial-number BATCH 10

Data-code COD 3 (YWW)

Plant-code PTC 2

Quantity QTY 8

Accepted byACC -

Packed byPCK -

Mixed code indicator MIXED CODE -

Origin xxxxxxx+ Company logo

Long bar code top Type Length

Item-number N8

Plant-code N2

Sequence-number X3

Quantity N8

Total length -21

Short bar code bottom Type Length

Selection-code X3

Data-code N3

Batch-number X10

Filter -1

Total length -17

Aluminum bag

Label

Reel

15973

TSOP572.., TSOP574..

www.vishay.com Vishay Semiconductors

Rev. 1.8, 27-Feb-15 10 Document Number: 82434

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

EIA JEDEC standard J-STD-020 level 3 label

is included on all dry bags

ESD PRECAUTION

Proper storage and handling procedures should be followed

to prevent ESD damage to the devices especially when they

are removed from the antistatic shielding bag. Electrostatic

sensitive devices warning labels are on the packaging.

VISHAY SEMICONDUCTORS STANDARD

BAR CODE LABELS

The Vishay Semiconductors standard bar code labels are

printed at final packing areas. The labels are on each

packing unit and contain Vishay Semiconductors specific

data.

BAR CODE PRODUCT LABEL (example)

1. Calculated shelf life in sealed bag: 12 months at <40°C and <90%

relative humidity (RH)

3. After bag is opened, devices that will be subjected to reflow solder or other high

temperature process must be

4. Devices require bake, before mounting, if:

a) Humidity Indicator Card reads > 10% for level 2a - 5a devices or >60% for

level 2 devices when read at 23±5°C

b) 3a or 3b are not met

5. If baking is required, refer to IPC/JEDEC J-STD-033 for bake procedure

2. Peak package body temperature:_______________________°C

If blank, see adjacent bar code label

a) Mounted within:___________________hours of factory conditions

≤30°C/60% RH, or

b) Stored per J-STD-033

If blank, see adjacent bar code label

Bag Seal Date:_________________________________________

If blank, see adjacent bar code label

Note: Level and body temperature defined by IPC/JEDEC J-STD-020

This bag contains

MOISTURE-SENSITIVE DEVICES

Caution

If blank, see adjacent

bar code label

LEVEL

260

168

22650

22178

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vishay Récepteur

Vishay

Vishay TSOP61 Series Manuel utilisateur

Vishay

Vishay TSOP63 Series Manuel utilisateur

Vishay

Vishay TSOP351 Series Manuel utilisateur

Vishay

Vishay TSSP57038H Manuel utilisateur

Vishay

Vishay TSOP61 Series Manuel utilisateur

Vishay

Vishay PICA93LV Manuel utilisateur

Vishay

Vishay TSOP361 Series Manuel utilisateur

Vishay

Vishay TSOP362 Series Manuel utilisateur

Vishay

Vishay TSOP373 Series Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
