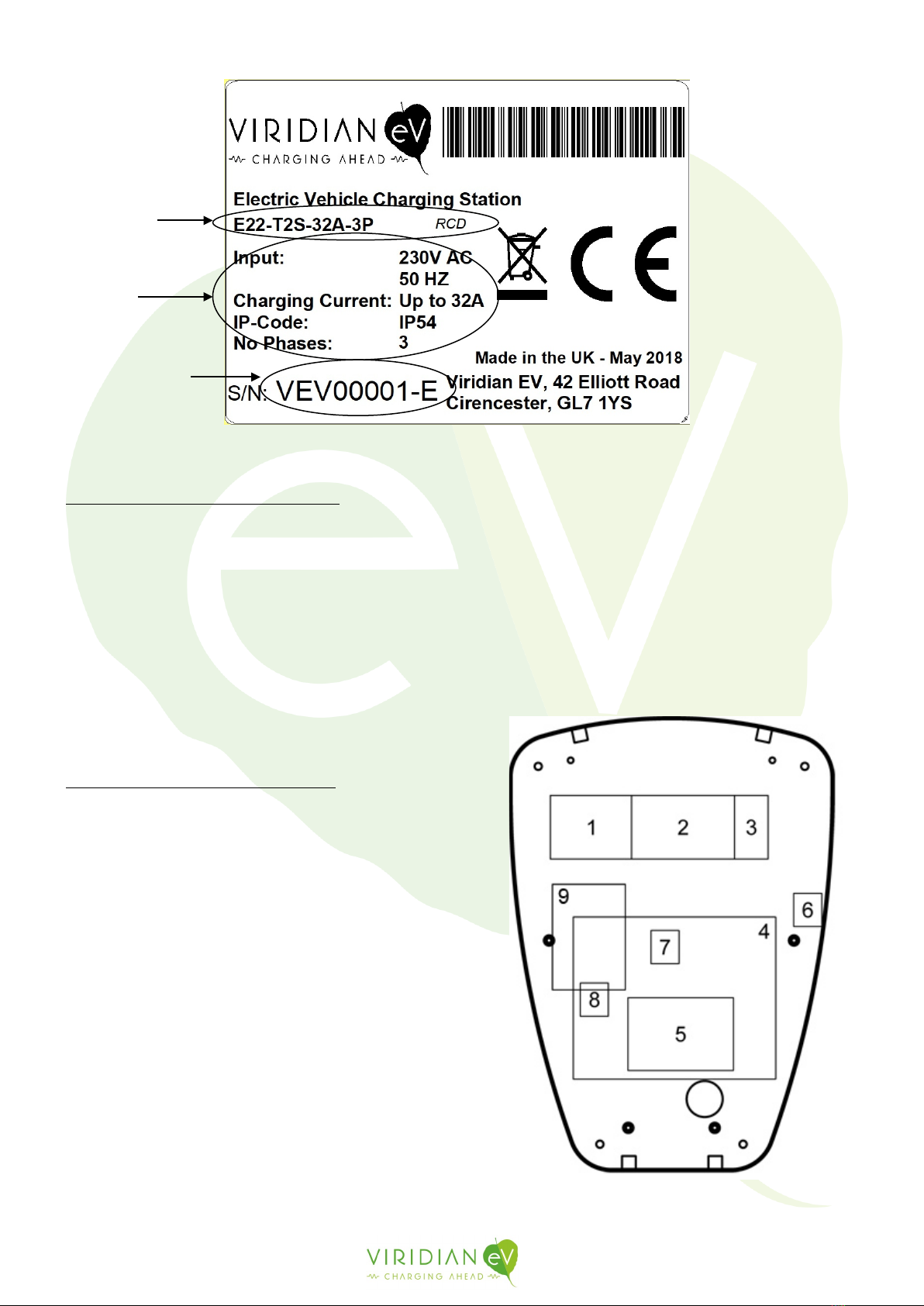

•Connect the LIVE(s) and NEUTRAL to the correct terminals of the fitted electrical protection or
mains terminal block (Fig. C - 2), observing colours and/or markings on the electrical protection.
The terminals should be tightened to 2Nm (ensure correct orientation of crimp if using crimps
with orientation).
If using 3-phase electrical protection for a single phase install, ensure the test button on
any electrical protection is wired in and functioning
*If you are carrying out an OLEV approved install for WCS, then considerations may need to be made
for installation of WCS supporting hardware
•Connect the EARTH to the mains input earth terminal (Fig. C - 3). THE INSTALLER MUST
ENSURE THE CHARGE POINT IS CORRECTLY EARTHED.
•Inspect all other connections as these may have become loose in transit.
•Replace enclosure lid (ensuring earth leads are reconnected to lid) and secure using the four
supplied screws being careful not to cross thread. Apply force to the lid, compressing the gaskets,
whilst inserting the screws.
•Ensure all cables connected to the charge point are suitably secured.
•Re-establish the electrical connection and, if fitted, test the RCBO/RCD for correct operation.
•After an initial start-up sequence, the LED arrangement should settle and indicate that the charge
point is ready to charge; Halo = blue, Text = white
•Test the operation of the charge point on an EV simulation box/tester and an EV if available.
(Observe Status LED arrangements as below)
•It is recommended that you notify the local DNO that you have completed a charge point install.
This MUST however be done for an install under any OLEV schemes as the guidance for installers
indicates.
•If at any time during the install the charge point and/or its internal components are damaged, you
must stop the current installation and restart it using a new charge point.
•On completion of the install, please ensure
oThe customer receives or is made aware of where to obtain a User Guide.
oThe customer receives a demonstration on how to use the charge point and its features.
oIf fitted, the RCBO/RCD test function is demonstrated and an instruction to test
monthly is passed on.
oThe customer knows how to isolate the power to the charge point in the event of an
electrical fault.
oThe customer receives information on the warranty and what to do in the event of a
claim.
oThe customer receives your contact details in case of any issues that may arise within
the warranty period.
oFor WCS installations please follow additional steps outlined in the addendum for WCS.
