Viper 1002 Manuel utilisateur

NOTE: This product is intended for installation by a professional installer only!

Any attempt to install this product by any person other than a trained professional

may result in severe damage to a vehicle’s electrical system and components.

N3102V 11-06

1002 Model

Installation Guide

Bitwriter

, Code Hopping

, Doubleguard

, ESP™, FailSafe

, Ghost Switch™, Learn Routine™,

Nite-Lite

, Nuisance Prevention

Circuitry, NPC

, Revenger

, Silent Mode™, Soft Chirp

Stinger

, Valet

, Vehicle Recovery System

, VRS

, and Warn Away

are all Trademarks or Registered

Trademarks of Directed Electronics, Inc.

The Bitwriter®(p/n 998T)

requires chip version 2.4 or

newer to program this unit.

wwwwww..ddiirreecctteecchhss..ccoomm

DDiirreeccttFFaaxx880000--999999--11332299TTeecchhnniiccaallSSuuppppoorrtt880000--775533--00880000

These resources are for authorized Directed Dealer use only.

2006

Directed Electronics

Table of Contents

PPrriimmaarryyHHaarrnneessss((HH11))WWiirreeCCoonnnneeccttiioonnGGuuiiddee........................................................................................................................................................11

Primary Harness Wiring Diagram.............................................................................................1

Primary Harness Wiring Instructions........................................................................................1

AAuuxxiilliiaarryyHHaarrnneessssWWiirreeCCoonnnneeccttiioonnGGuuiiddee.............................................................................

.........................................................................................66

Auxiliary Harness Wiring Diagram ...........................................................................................6

Auxiliary Harness Wiring Instructions ......................................................................................6

DDoooorrLLoocckkHHaarrnneessssWWiirreeCCoonnnneeccttiioonnGGuuiiddee.........................

.......................................................................................................................................88

Relay Harness Wiring Diagram.................................................................................................8

Relay Harness Wiring Instructions............................................................................................9

Power Door Lock Diagrams......................................................................................................9

IImmmmoobbiilliizzeerrWWiirreeCCoonnnneeccttiioonnG

Guuiiddee..................................................................................................................................................................................1177

Immobilizer Wiring Diagram..................................................................................................17

Immobilizer Wiring Guide......................................................................................................17

PPeerriipphheerraallPPlluugg--IInnHHaarrnneesssseess..............................................................................................................................................................................................................1188

Super Bright LED, 2-Pin WHITE Plug..................................................................................18

Valet/Program Button, 2-Pin BLUE Plug ...............................................................................18

Programmer Interface, 3-Pin BLACK Plug .............................................................................19

Mounting the Receiver/Antenna .............................................................................................19

Optional Sensors, 4-Pin White Plug .......................................................................................20

PPrrooggrraammmmiinnggJJuummppeerr...............................................................................................

...................................................................................................................................2211

Light Flash Jumper..................................................................................................................21

BByyppaassssiinnggSSeennssoorrIInnppuuttss.............

...............................................................................................................................................................................................................2211

SSyysstteemmFFeeaattuurreessLLeeaarrnnRRoouuttiinnee.................................................................................................................................

.....................................................................2222

SSyysstteemmFFeeaattuurreessMMeennuuss...................................................................................

...........................................................................................................................................2244

Menu #1 - Basic Features ........................................................................................................24

Menu #2 - Advanced Features.................................................................................................25

Menu #3 - Advanced Features.................................................................................................26

Bitwriter Features ....................................................................................................................26

FFeeaattuurreeDDeessccrriippttiioonnss.......

Menu #1 - Basic Features ........................................................................................................27

Menu #2 - Advanced Features.................................................................................................28

Menu #3 - Advanced Features.................................................................................................31

TTrraannssmmiitttteerr//RReecceeiivveerrLLeeaarrnnRRoouuttiinnee.................................................................................................

.....................................................................................3333

TTrraannssmmiitttteerrCCoonnffiigguurraattiioonnss.........................................................

.........................................................................................................................................................3355

Standard Configuration...........................................................................................................35

SShhoocckkSSeennssoorrAAddjjuusst

tmmeenntt......................................................................................................................................................................................................................3366

Enter Shock Sensor Adjustment Mode....................................................................................36

Adjusting the Shock Sensor Setting.........................................................................................36

Exit Shock Sensor Adjustment Mode......................................................................................37

Reset Shock Sensor to Default Setting ....................................................................................37

DDiiaaggnnoossttiiccss.................................................................................................................................................

.................................................................................................................3377

2006

Directed Electronics, Inc.

Arm/Disarm Diagnostics.........................................................................................................37

System Status Chirps...............................................................................................................38

Table of Zones ........................................................................................................................38

LLoonnggTTeerrmmEEvveennttHHiissttoorryy.............................................................................................................................................

.........................................................................3399

MMuullttii--LLeevveellSSeeccuurriittyyAArrmmiinngg...................................................................

...........................................................................................................................................3399

OOppttiioonnaallVVeehhiicclleeRReeccoovveerryySSy

ysstteemm((VVRRSS®®))..............................................................................................................................................................3399

NNuuiissaannc

ceePPrreevveennttiioonn®®CCiirrccuuiittrryy..................................................................................................................................................................................................4400

RRaappiiddRReessuummeeLLooggiicc.....................................................................................................................

.................................................................................................................4400

TTrroouubblleesshhoooottiinngg...................................................

.................................................................................................................................................................................................4400

WWiirriinnggQQuuiicckkRReeffeerreenncceeGGuuiiddee......................................................................................................................................................................................................4422

2006

Directed Electronics

Primary Harness (H1) Wire Connection Guide

Primary Harness Wiring Diagram

___

Primary Harness Wiring Instructions

This guide describes in detail the connection of each wire. Also included are possible applications

of each wire. This system was designed with the ultimate in flexibility and security in mind. Many

of the wires have more than one possible function. Please read carefully to ensure a thorough under-

standing of this unit.

H1/1 RED/WHITE 200 mA output channel 2 (trunk release)

This output is often used for trunk release. Whenever the button(s) controlling channel two is

pressed for 1.5 seconds, this output is activated and will stay activated as long as the transmission

continues. Use an external relay to drive circuits requiring more current.

ORANGE (-) 500 mA Ground-When-Armed Output

WHITE (+)/(-) Selectable Light Flash Output

WHITE/BLUE (-) 200 mA Channel 3 Programmable Output

BLACK/WHITE Domelight Supervision Relay Output #30

GREEN (-) Door Trigger Input, Zone 3

BLUE (-) Instant Trigger Input (trunk input/shunt), Zone 1

VIOLET (+) Door Trigger Input, Zone 3

BLACK (-) Chassis Ground Input

YELLOW (+) Switched Ignition Input, Zone 5

BROWN (+) Siren Output

RED (+) Constant 12V Power Input (15A fused)

RED/WHITE (-) 200 mA Channel 2 Output

H1/1

H1/2

H1/3

H1/4

H1/5

H1/6

H1/7

H1/8

H1/9

H1/10

H1/11

H1/12

2006

Directed Electronics, Inc.

H1/2 RED (+)12V constant power input

Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or

the constant 12V supply to the ignition switch.

NOTE: Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use the 15 A

fuse in the harness for this purpose. This fuse protects the module itself.

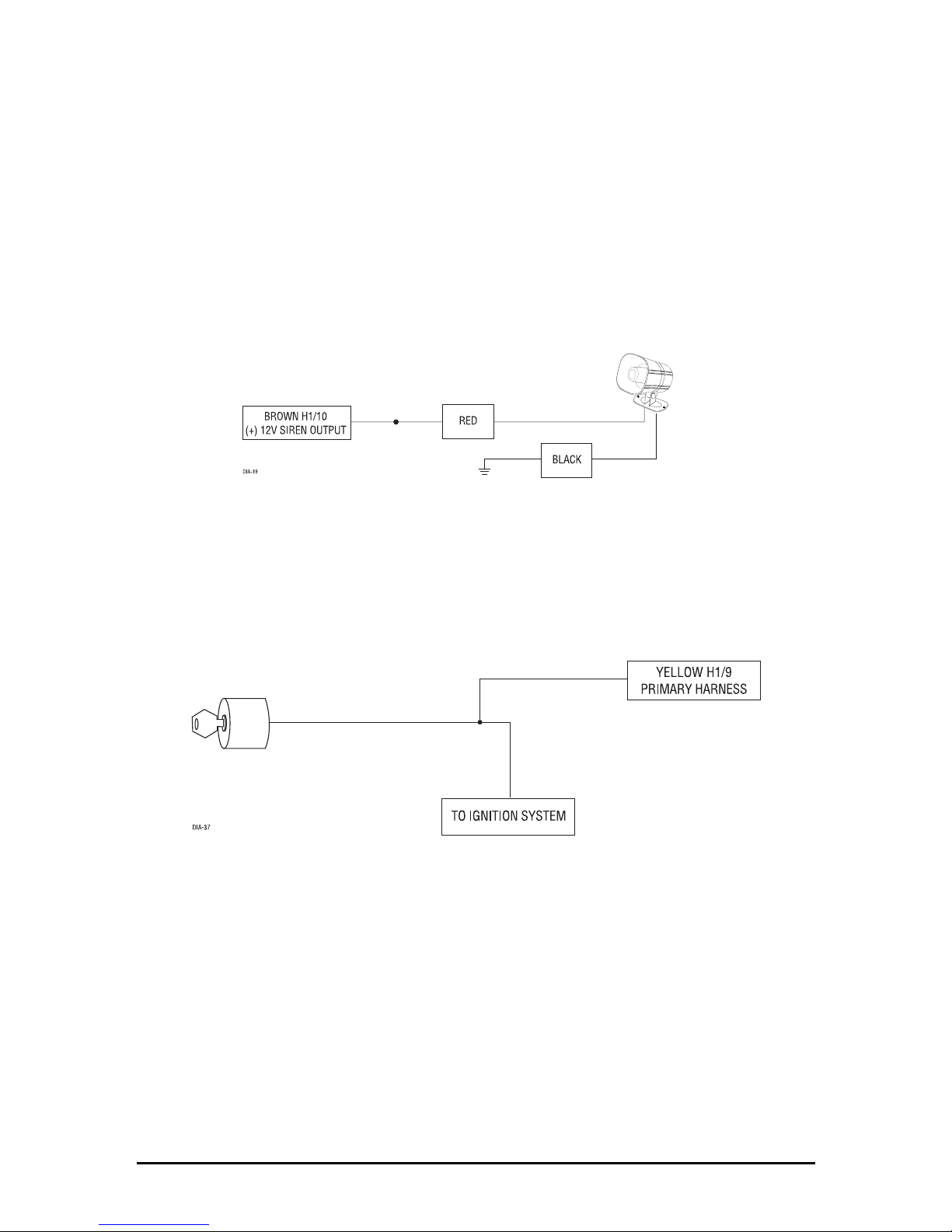

H1/3 BROWN (+) siren output

Connect this to the RED wire of the Revenger

siren. Connect the BLACK wire of the siren to (-)

chassis ground, preferably at the same point you connect the control module’s BLACK ground wire.

H1/4 YELLOW (+) ignition input

Connect this wire to the (+) 12 volts ignition wire. This wire must show (+) 12 volts with the key

in RUN position and during cranking. Take great care to ensure that this wire is not shorted to the

vehicle’s chassis at any point.

H1/5 BLACK (-) chassis ground connection

Connect this wire to a clean, paint-free sheet metal location (driver kick panel) using a factory bolt

that DOES NOT have any vehicle component grounds attached to it. A screw should only be used

when in conjunction with a two-sided lock washer. Under dash brackets and door sheet metal are

not acceptable ground points. It is recommended that all security components be grounded at the

same location.

2006

Directed Electronics

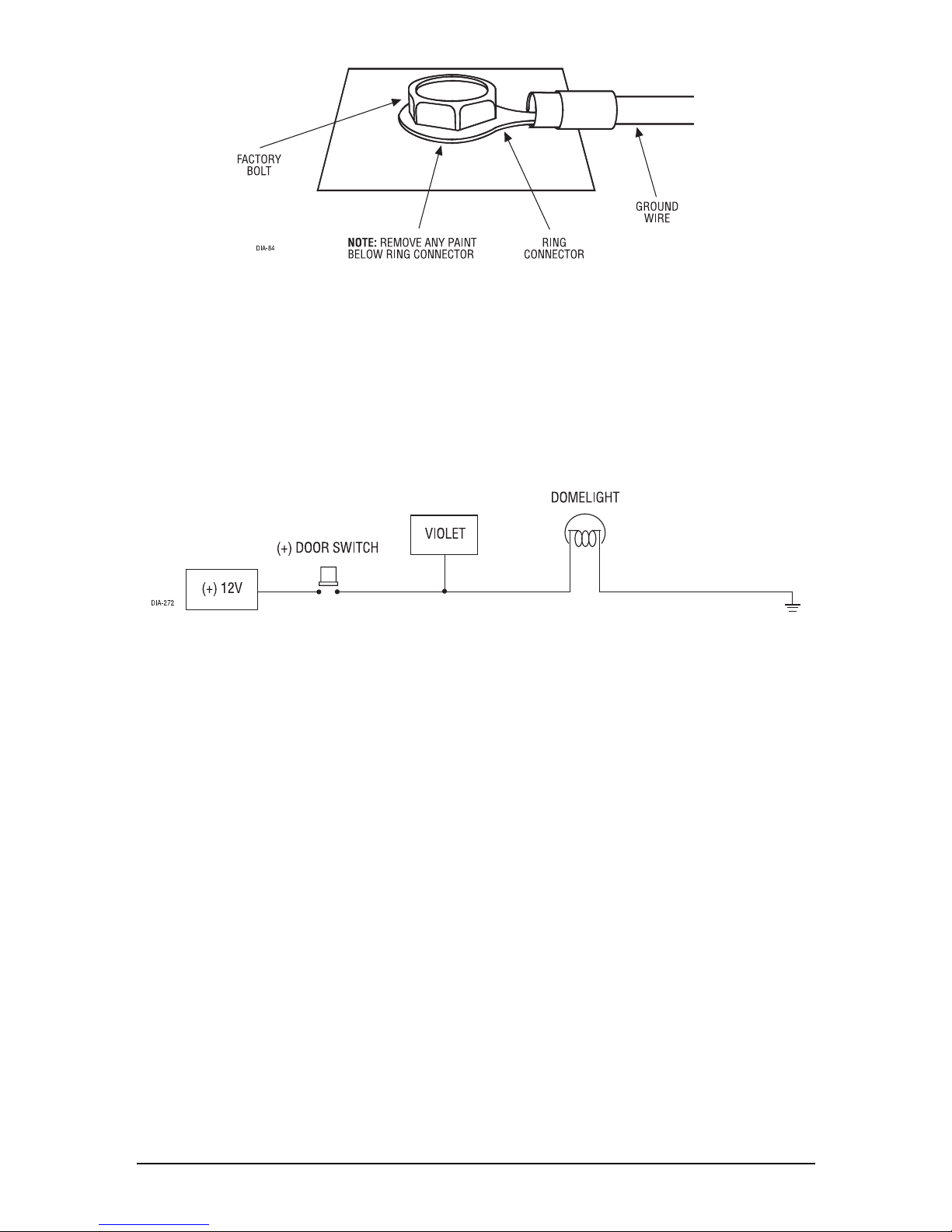

H1/6 VIOLET (+) door trigger input

This type of dome circuit is used in many Ford products. Connect the VIOLET wire to a wire that

shows (+)12V when any door is opened. This wire will report Zone 3.

NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T

Bitwriter

can be used to turn Bypass Notification off.

H1/7 BLUE (-) instant trigger input

This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk

pins and will report on Zone 1. It can also be used with Directed single-stage sensors. The H1/7

BLUE instant trigger wire can also be used to shunt sensors during operation of auxiliary channels

or remote start. (See Bypassing Sensor Inputs section of this guide.)

2006

Directed Electronics, Inc.

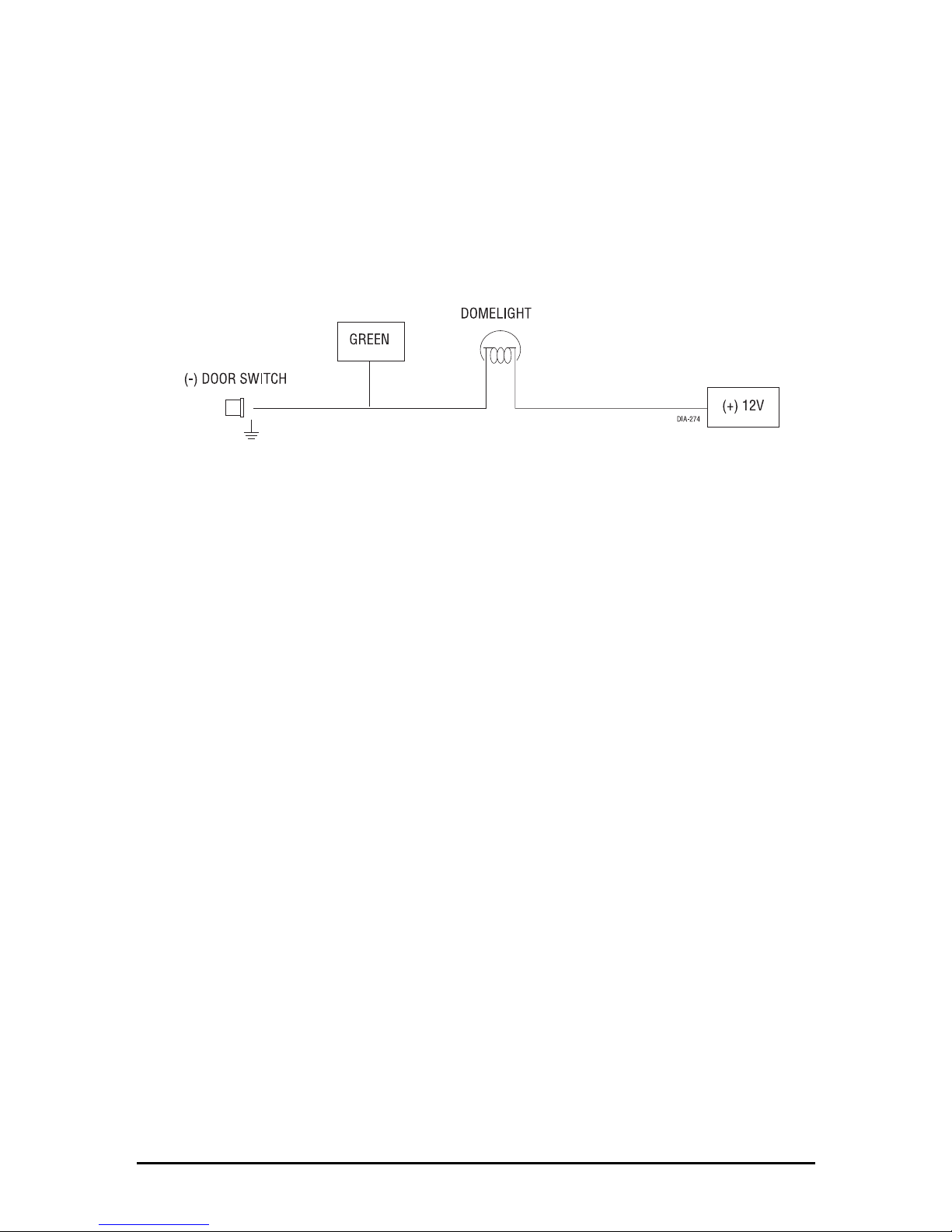

H1/8 GREEN (-) door trigger input

Most vehicles use negative door trigger circuits. Connect the GREEN wire to a wire showing

ground when any door is opened. When connecting to newer model vehicles there is generally a

need to use individual door triggers. See DirectFax document 1076 for wiring instructions. This

wire will report Zone 3.

NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T

Bitwriter

can be used to turn Bypass Notification off.

H1/9 BLACK/WHITE high current output from on-board domelight supervision relay

Connect this wire directly to the domelight circuit in the vehicle. The on-board relay will drive

circuits up to 20 amperes. The polarity of this output is determined by the connection of the input

wire H2/A in the Relay Harness.

NOTE: If the input wire H2/A is not connected, there will be no output on this wire.

H1/10 WHITE/BLUE 200 mA (-) channel 3 output

This wire provides a (-) 200 mA output whenever the transmitter button(s) controlling Channel 3

is pressed. This output can be programmed to provide the following types of output (see System

Features Learn Routine section of this guide):

➤➤A vvaalliiddiittyyoutput will send a signal as long as the transmission is received.

➤➤A llaattcchheeddoutput will send a signal continuously when the Channel 3 button(s) is pressed and

released. The signal will continue until channel three is pressed again.

➤➤A llaattcchheedd//rreesseettwwiitthhiiggnniittiioonnoutput works similar to the latched output, but will also reset

(output will stop) when the ignition is turned on and then off.

➤➤A 3300((6600,,9900))sseeccoonnddttiimmeeddoutput will send a signal for 30 seconds when channel three is

pressed. This output can be shut off during the 30-second period by pressing Channel 3 again.

The Bitwriter

can program from 1 to 180 seconds.

➤➤RReemmootteessttaarrttoutput (refer to System Features Menu description for additional information).

2006

Directed Electronics

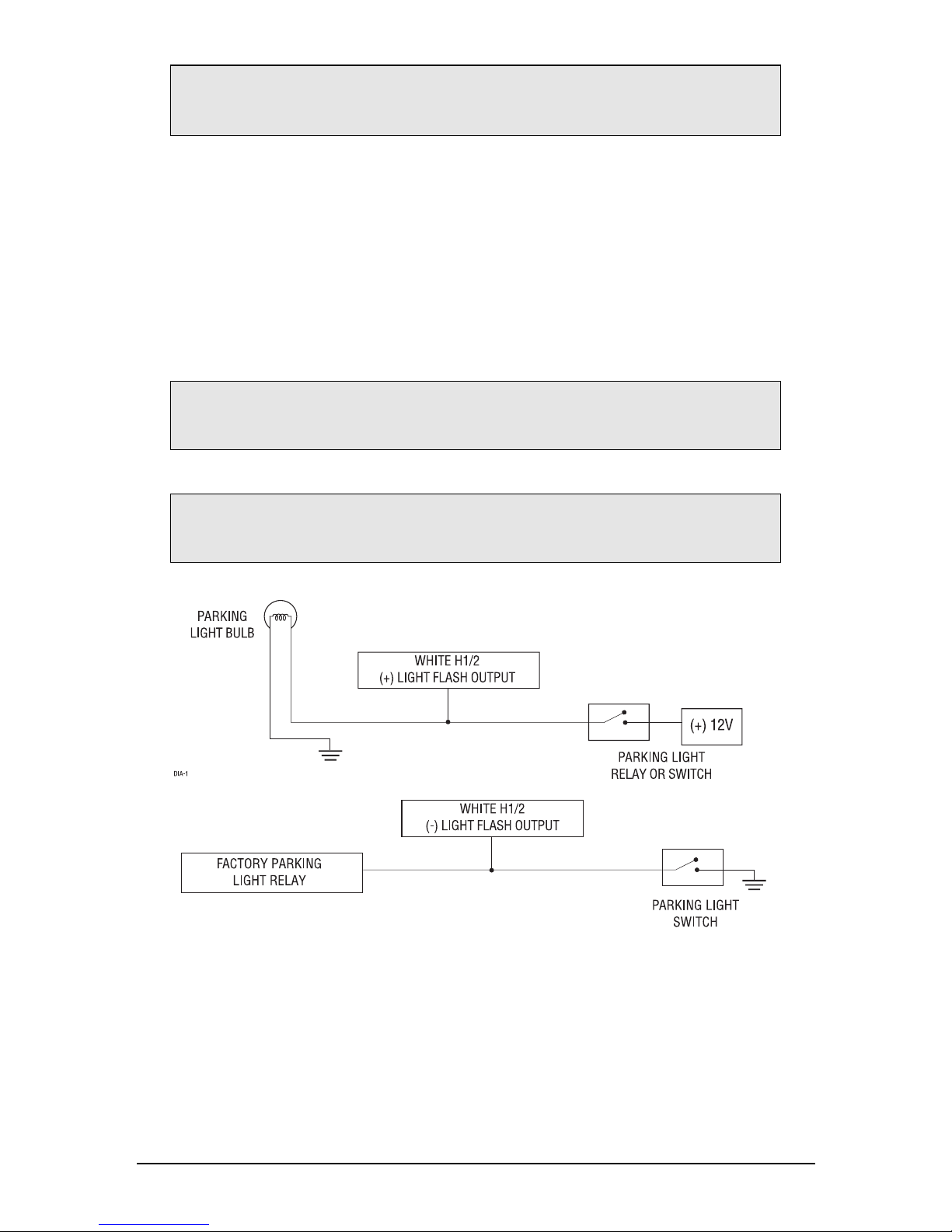

H1/11 WHITE (+/-) 10 A parking light flash output

The H1/11 WHITE wire is factory configured for (+) parking lights. Refer to the Programming

Jumper section of this installation guide for changing configuration for (-) parking light.

NOTE: For parking light systems that draw 10 amps or more, the jumper must be switched to a

(-) light flash output (see the Programming Jumpers section of this guide). P/N 8617 or a standard

automotive SPDT relay must be used on the H1/11 light flash output wire.

H1/12 ORANGE (-) ground-when-armed output

This wire supplies a (-) ground as long as the system is armed. This output ceases as soon as the

system is disarmed. It can supply up to 500 mA of current. This wire is affected by one time bypass,

if One Time Bypass is programmed On.

NOTE: A dual diode harness assembly is provided (Viper model only) for European

vehicles which have parking light capability for illumination of only the parking lights on

the side of the vehicle to the road when parked.

IMPORTANT! DO NOT connect this wire to a negative vehicle light flash wire before

changing the programming jumper to the negative polarity position or damage to

vehicle light circuit may occur.

IMPORTANT! Never use this wire to drive anything but a relay or a low-current input!

This transistorized output can only supply 200 mA, and connecting directly to a

solenoid, motor, or other high-current device will cause the module to fail.

2006

Directed Electronics, Inc.

Auxiliary Harness Wire Connection Guide

Auxiliary Harness Wiring Diagram

___

Auxiliary Harness Wiring Instructions

H2/1 LIGHT BLUE (-) second unlock output (200mA)

This wire produces a (-) 200mA output for progressive locks in which the driver door unlocks first

and the remaining locks unlock with a second press of the unlock button.

H2/2 GREY (-) hood pin input, zone 6 This wire is connected to hood pinswitch. This will trigger

the security system if the hood is opened while the system is armed and report Zone 6. This input

can be programmed for N.O. or N.C. contact, refer to Systems Features Menus.

H2/3 ORANGE/BLACK (-) retained accessory output

NNOOTTEE: An additional relay (not supplied) is required for most applications.

Connect this wire to the accessory wire in the vehicle that powers the accessories in the vehicle. This

wire will retain power after the ignition key is turned off. This output ceases when a door is

open/closed or the system is armed.

H2/4 GRAY/BLACK (-) channel 6 output

This wire provides a (-) 200mA output whenever the transmitter button(s) controlling Channel 6

is pressed. This output can be programmed to provide the following types of outputs (see also the

Feature Menus section):

LIGHT GREEN/BLACK (-) Factory Disarm Output

LIGHT BROWN (-) Horn Honk Output

VIOLET/BLACK (-) Channel 4 Output

WHITE/BLACK (-) Channel 5 Output

GREY/BLACK (-) Channel 6 Output

ORANGE/BLACK Retained Accessory Output

GREY (-) Hood Pin Input, Zone 6

LIGHT BLUE (-) Second Unlock

H2/1

H2/2

H2/3

H2/4

H2/5

H2/6

H2/7

H2/8

Autres manuels pour 1002

Table des matières

Autres manuels Viper Alarme de voiture

Viper

Viper SmartStart 5000 Series Manuel utilisateur

Viper

Viper 310V Manuel utilisateur

Viper

Viper 4606V Manuel utilisateur

Viper

Viper 130XV Manuel utilisateur

Viper

Viper 3606V Manuel utilisateur

Viper

Viper 4806V Manuel utilisateur

Viper

Viper 591XV Manuel utilisateur

Viper

Viper Responder 350 Manuel utilisateur

Viper

Viper 5900 Manuel utilisateur

Viper

Viper 3102V Manuel utilisateur

Viper

Viper 3305V Manuel utilisateur

Viper

Viper 420ESP Manuel utilisateur

Viper

Viper 7900 Manuel utilisateur

Viper

Viper 3303 Manuel utilisateur

Viper

Viper 5906V Manuel utilisateur

Viper

Viper 791 XV Manuel utilisateur

Viper

Viper 4108V Manuel utilisateur

Viper

Viper 426FS Manuel utilisateur

Viper

Viper SmartStart 3000 Series Manuel utilisateur

Viper

Viper 1000 Manuel utilisateur

Viper

Viper 480XV Manuel utilisateur

Viper

Viper 106V Manuel utilisateur

Viper

Viper 600 ESP Manuel utilisateur

Viper

Viper SmartStart VSM50BTP1 Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur

Clifford

Clifford Nova 3 Manuel utilisateur
