VIORE LE24VF20 Manuel utilisateur

Ver. 111229-1

24” 1080p LCD Television with LED Backlight

LE24VF20

Contents

Caution

Safety Information

Unit and Accessories

Product Feature

Introduction

1. Front View

2. Rear View

4. Remote Control

Basic Operation

OSD Menu

1. Picture menu

2. Sound menu

3. Channel menu

4. Parental Control menu

5. Setup menu

6. Others menu

Simple Troubleshooting

5-9

8-9

11-18

11-12

15-16

3. Instruction for Wall Mount 7

Caution

is intended to alert the user to the presence of un-insulated "dangerous

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-

of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/

recycling centre.

In the USA there are separate collection systems for used electrical and

electronic products. Please help us to conserve the environment we live

in!

This unit complies with America Safety directives.

This unit complies with FCC directives.

Safety Information

Electrical safety

Physical safety

the power cable

Unit and Accessories and Product Feature

Unit and Accessories

Product Feature

HDMI inputs for true digital connections

HDMI is a trademark of HDMI Licensing LLC in the United States and other countries.

1920 x 1080 native resolution for Full-HD(1080p) performance

Mains adaptor

TV set

User's Manual

Remote Control and

Batteries (AAA x2)

Quick Start Guide

Stand Installation Guide

Stand Base

Warranty

Introduction

1. Front View

1). (IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press POWER to turn on and off.

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

2). The functions of the buttons:

INPUT: Press to display the input source menu.

MENU: Press to display the OSD menu,

press again to exit the menu.

CH+/-: Press to scan through channels.

VOL+/-: Press to adjust the volume.

POWER: Turn on/standby the TV set.

The effective receiving range for the signal is 5-8 metres from the front of the remote

control window, and 300to the left or right side and 200above or below the remote control

window.

Press INPUT button on the TV set or remote control to

display the input source menu, and use CH+/- button on

the TV set or / button on remote control to select the

input source, press OK button on the remote control to

enter.

Note: Before you select the input source, make sure the

connections are prepared.

Power Indicator

Remote Control window (Keep clear)

INPUT MENU CH+ CH- VOL+ VOL - POWER

Introduction

2. Rear View

1). Headphone out : Connect it to your headphone or audio equipments.

4).

3). RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

11). COAX : Digital audio output.

10). YPbPr : Connect them to the component video output of video device.

: Connect it to the HDMI output of video device.

7). HDMI

: Connect to power supply with the mains adaptor.

8). POWER

VIDEO : Connect it to video output of video device.

5).

L/R in : Connect them to audio output of video device. (Shared with YPbPr)

6).

9). Service : For service use only.

2).

Coax

RF VGAPC-audio HDMI

Service

POWERVideo R in L in

YPbPr

1 2 3 4 5 6 7 8

Introduction

3. Instruction for Wall Mount

Dimensions for Mounting Hole Pattern

A wall mount kit (purchased separately) would allow you to mount your VIORE

TV on the wall. For detailed information on installing the wall mount, refer

to the instructions provided by the wall mount manufacturer. It is strongly

recommended to contact a technician for professional assistance for wall mount

installation. VIORE is not responsible for any damage to the product or injury to

yourself or others resulting from the wall-mounting.

-This VIORE TV is compatible with a 100mm x 100mm mounting hole pattern.

- Do not mount your VIORE TV at more than a 15 degree tilt.

- Always use two people to mount the TV to a wall.

- Do not install your Wall Mount Kit while your TV is turned on. It may result in

personal injury due to electric shock.

- 4 pcs of type M4 screws are required for installing the wall mount bracket to

your VIORE TV. Do not use screws that are longer than 10 mm. Screws that

are too long may cause damage to the inside of the TV set.

- Do not fasten the screws too tight for this may damage the TV or cause the

TV to fall, resulting in personal injury. VIORE is not liable for these kinds of

incidents

100mm

Introduction

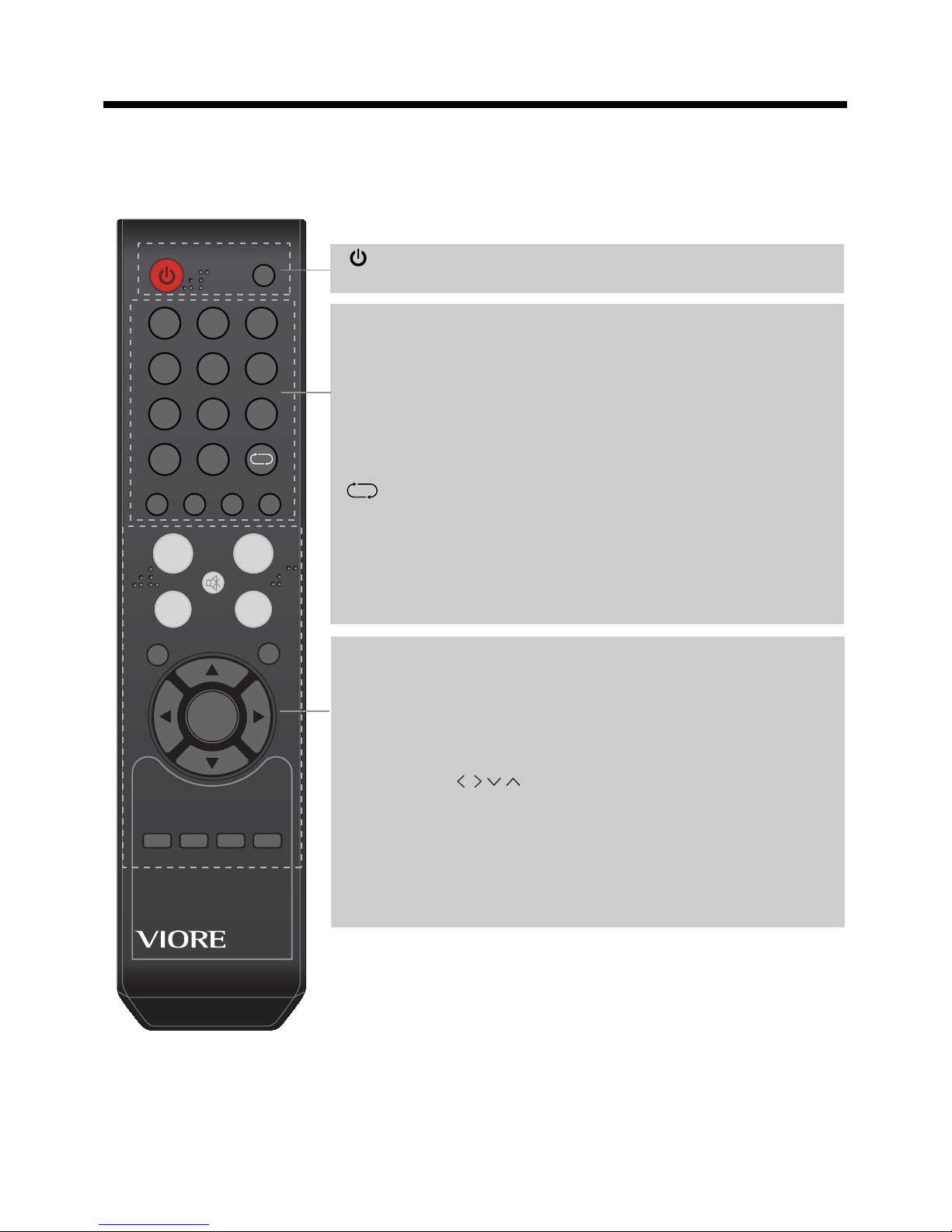

4. Remote Control

The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote

control may not work correctly if it is operated out of range or out of angle.

CC: Press to display the closed caption.

MTS: Press to select the audio channels.

FAV: Press to add or remove favorite channel.

EPG: Press to enter the EPG menu directly.

DISPLAY: Display the information of current mode.

Thumbstick( ): Allows you to navigate the on-screen

menus and adjust the system settings to your preference.

OK: CONFIRM button.

MENU: Press to display the OSD menu.

EXIT: Press to exit the OSD menu.

MUTE: Press to mute the sound, press again or press VOL+ to

unmute.

VOL+/-: Press to adjust the volume.

CH+/-: Press to scan through channels.

SLEEP : Shutdown timer.

Number Buttons: Choose channel directly.

Select channel 5, Press button "5";

Select channel 62, Press button "6", then press button "2" in 2

seconds;

Select channel 151, Press button "1", and press button "5" in 2

seconds, and press button "1" in 2 seconds;

Select channel 5-1, Press button "5", and press button "- / - -"

in 2 seconds, and press button "1" in 2 seconds;

PICTURE: Press repeatedly to cycle through the available

video picture modes.

SOUND: Press to cycle through the different sound settings.

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

0 -/--

FAV

CC EPGMTS

(RETURN): Return to the previous channel viewed.

POWER(red button): Turn the TV on/standby.

INPUT: Press to display the input source menu.

5&9
