Contents

Caution

Safety Information

Instructions for fixing stand

Unit and Accessories

Product Feature

Introduction

1. Front View

2. Rear View

3. Remote Control

Basic Operation

OSD Menu

1. Picture menu

2. Audio menu

3. Time menu

4. Setup menu

5. Lock menu

6. Channel menu

Simple

Specialty Hotel and Commercial Features

Troubleshooting

THFKQLFDO6SHFL¿FDWLRQV

6-9

8-9

10-11

12-20

17-18

19-24

Caution

is intended to alert the user to the presence of un-insulated "dangerous

to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and

components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-

of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/

recycling centre.

In the USA there are separate collection systems for used electrical and

electronic products. Please help us to conserve the environment we live

in!

This unit complies with America Safety directives.

This unit complies with FCC directives.

Safety Information

To ensure reliable and safe operation of this equipment, please read carefully all the

instructions in this user guide, especially the safety information below.

Electrical safety

• The TV set should only be connected to a mains supply which matches that stated on

the label on the mains adaptor

• To prevent overload, don't share the same mains supply socket with too many other

items of equipment.

-Do not place any connecting wires where they may be stepped on or tripped over.

-Do not place heavy items on the leads, which may damage them.

-Hold the Mains plug, not the wires, when removing from a socket.

fi(laireaehttcennocsid,sdoirepgnolrofVTehtgnivaelelihwromrotsrednuhtagniruD-

outdoor) and mains adaptor from the supply.

-Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet

or moist areas such as Bathrooms, steamy kitchens or near swimming pools.

• Pull the plug out immediately, and seek professional help if:

-the mains plug or cable is damaged

-liquid is spilt onto the set, or if it is accidentally exposed to water or moisture

-anything accidentally penetrates the ventilation slots

-the set does not work normally.

-Do NOT remove the safety covers. There are no user serviceable parts inside.

apparatus.

-To avoid battery leakage, remove exhausted batteries from the remote control

handset, or when not using for along period.

Physical safety

• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet, but

ensure at least 5cm (2") clearance all around the unit.

• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good

care of the remote control, do not drop it or allow it to come into contact with liquids.

stubborn stains, you may use a damp soft cloth with diluted detergent.

Instructions for fixing stand

Note: the pictures below are only for reference

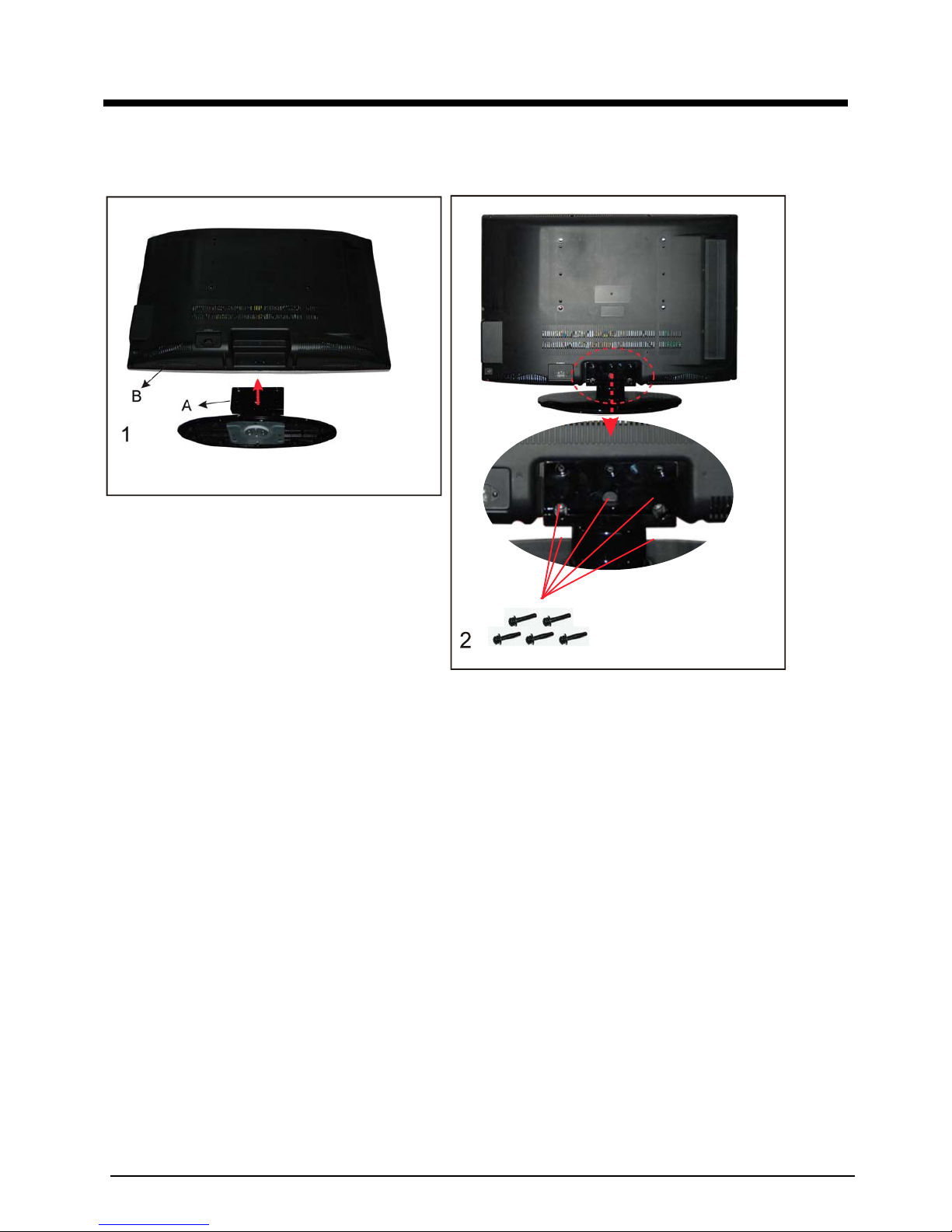

1. Insert stand(part A) into unit(part B).

2. Screw the stand in the position as

the picture shows.

Screws (5 x 2836/M4 x 20) are

provided with stand.

5 x M4 x 15

Instructions for fixing stand

Unit and Accessories and Product Feature

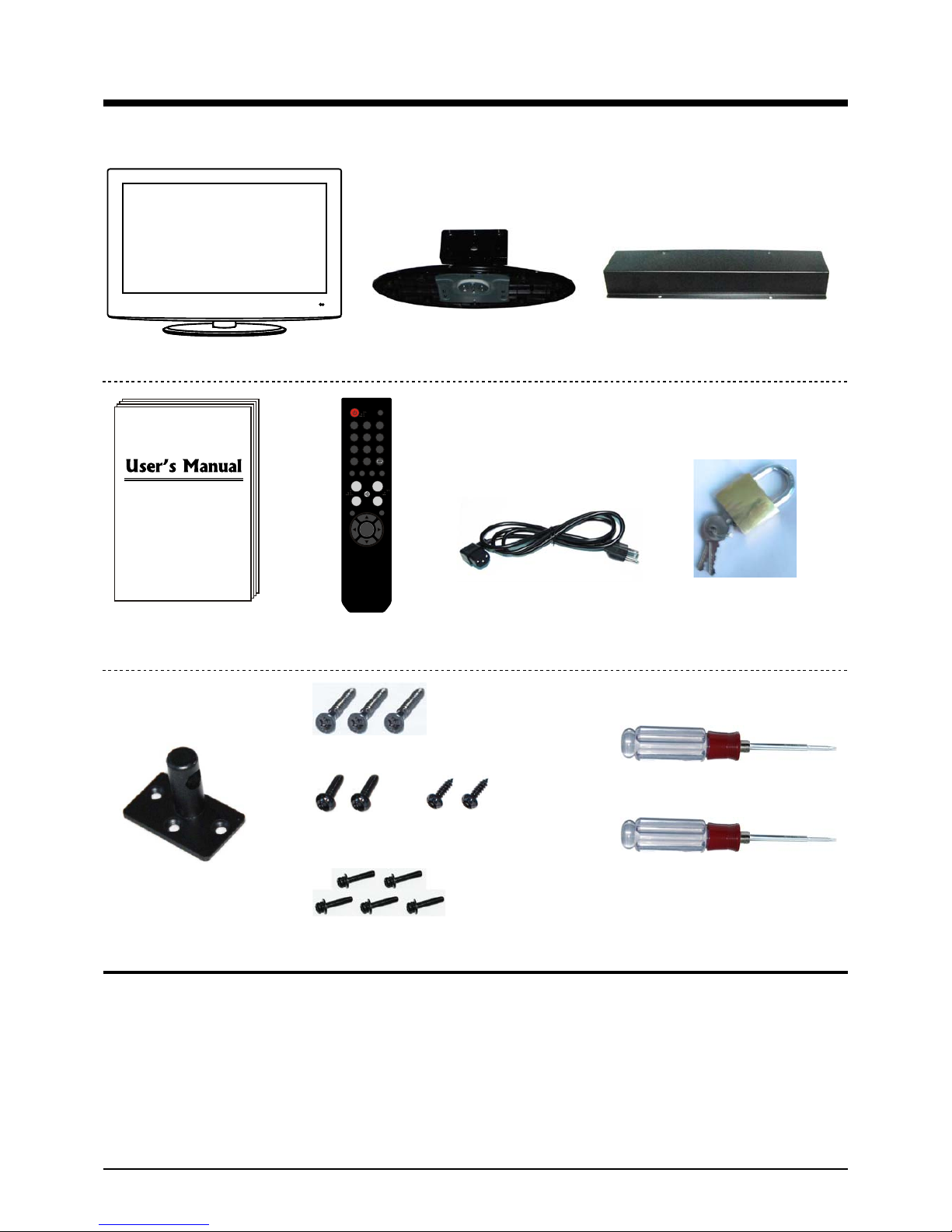

Unit and Accessories

TV set

User's manual Remote control

Batteries: 2xAAA

Product Feature

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

0 -/--

FAV

CC EPGMTS

Mains cable Lock

Stand

• Integrated ATSC TV tuner for HDTV broadcast reception

• Dual HDMI input for true digital connections

• VGA port for connection to PC

• Cloning Support

• Swivel Stand

• Lockable Base

Security Plate

Security Cover

Screws for security plate(3xST4x20C)

Screws for security cover

Screws for stand

(5 x M4 x 15)

Screw driver˖T20

Screw driver˖T15

(2xM3x10) (2xST4x12C)

Introduction

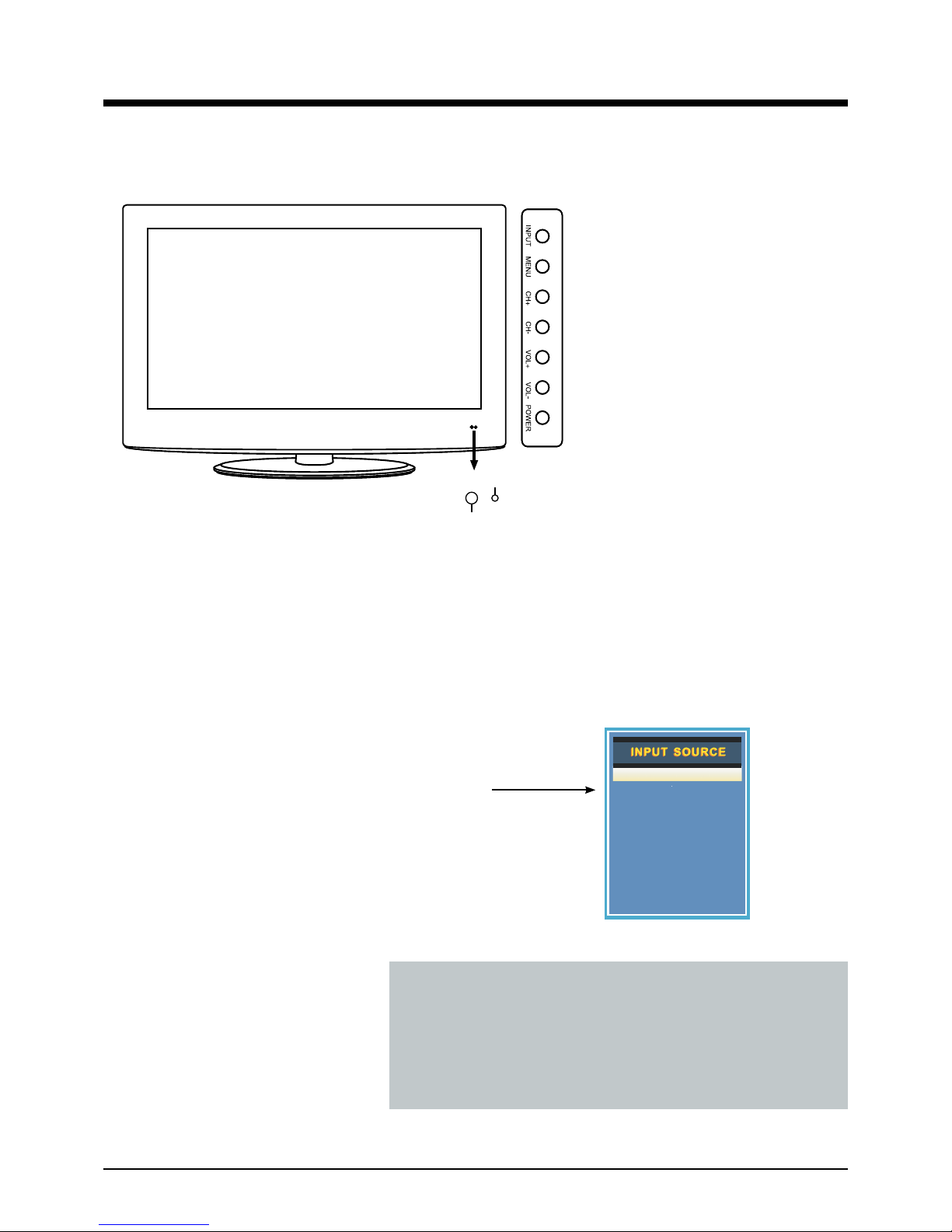

1. Front View

1. (IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby)LED Indicator: Press Power Button to turn on and off.

Indicator on(Red) Standby mode

Indicator on(Green) Power on mode

2. The functions of the buttons:

INPUT:Press to display the input source menu.

MENU: Press to display the OSD menu,

press again to exit the menu.

CH+/-: Press to scan through channels.

VOL+/-: Press to adjust the volume.

POWER: Turn on/standby the TV set.

The effective receiving range for the signal is 5-8 metres from the front of the remote

control window, and 300to the left or right side and 200above or below the remote control

window.

Press INPUT button on the TV set or remote control to

display the input source menu, and use CH+/- button on

the TV set or ġ/Ģbutton on remote control to select the

input source, press OK button on the remote control to

enter.

Note: Before you select the input source, make sure the

connections are prepared.

Power Indicator

Remote Control window

(Keep clear)

AV1

AV2

S-Video

Component

HDMI1

HDMI2

VGA

Introduction

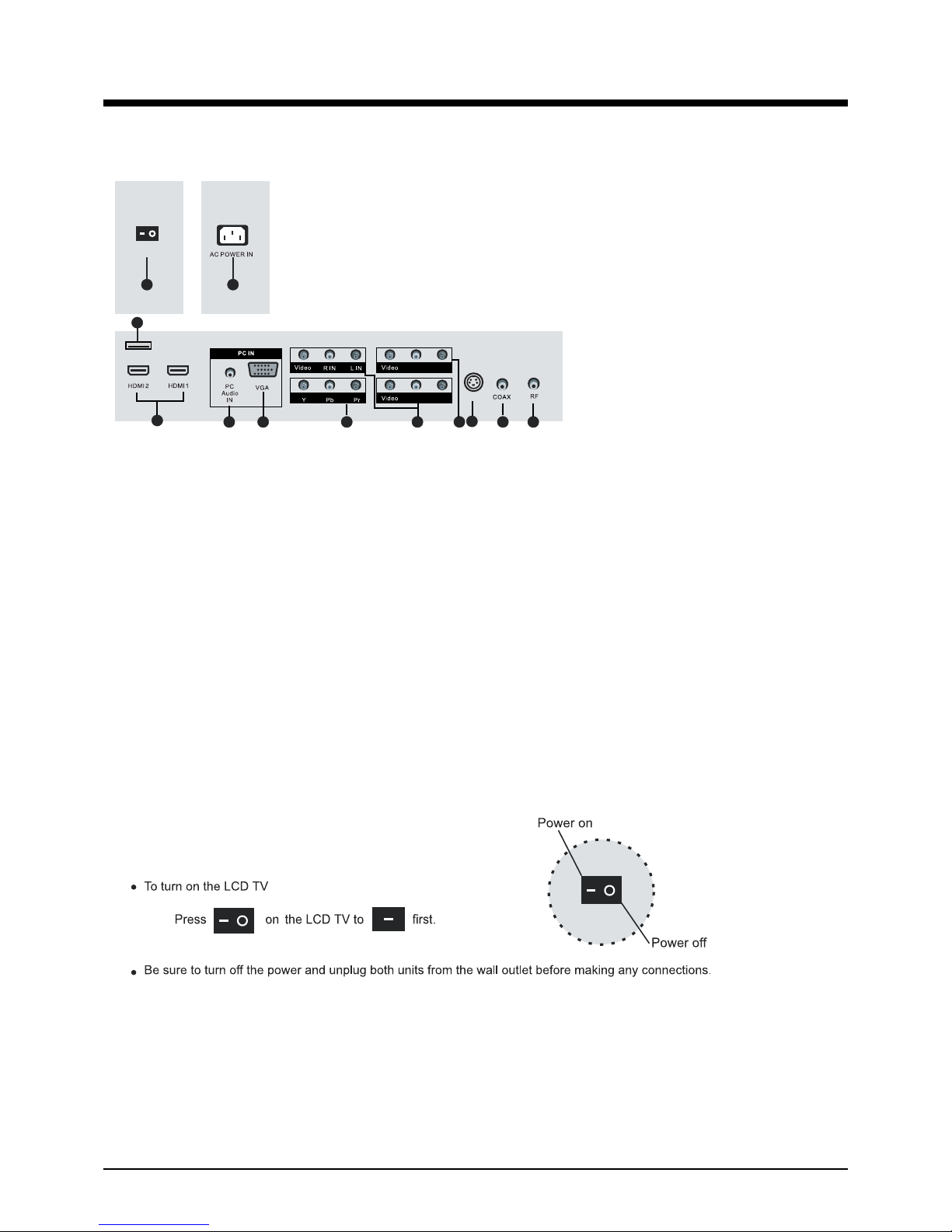

2. Rear View

POWER SWITCH

34 5 76 9

8 10 11

S-VIDEO

R OUT L OUT

R IN L IN

AC POWER IN: Connect to an earth 100-240V, 50/60Hz AC outlet with the PowerCable.

POWER SWITCH: Switch on or off the power suply.

HDMI1/2: Connect them to the video output terminal of DVD.(used in HDTV1 mode)

PC AUDIO IN: Connect it to the audio output terminal of PC.

VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC.

YPbPr : Connect them to the video output terminal of DVD.(used in HDTV mode).

VIDEO IN 1/2: Connect it to video output terminal of DVD.

VIDEO L/R in 1/2: Connect them to audio output terminal of DVD.

VIDEO out: Connect it to other TV’S video intput .

VIDEO L/R out: Connect them to other TV’S audio input.

S-VIDEO: S-Video signal input.

COAX: Digital coaxial output.

RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

Service: USB port for service.

10.

11.

12.

Service

Introduction

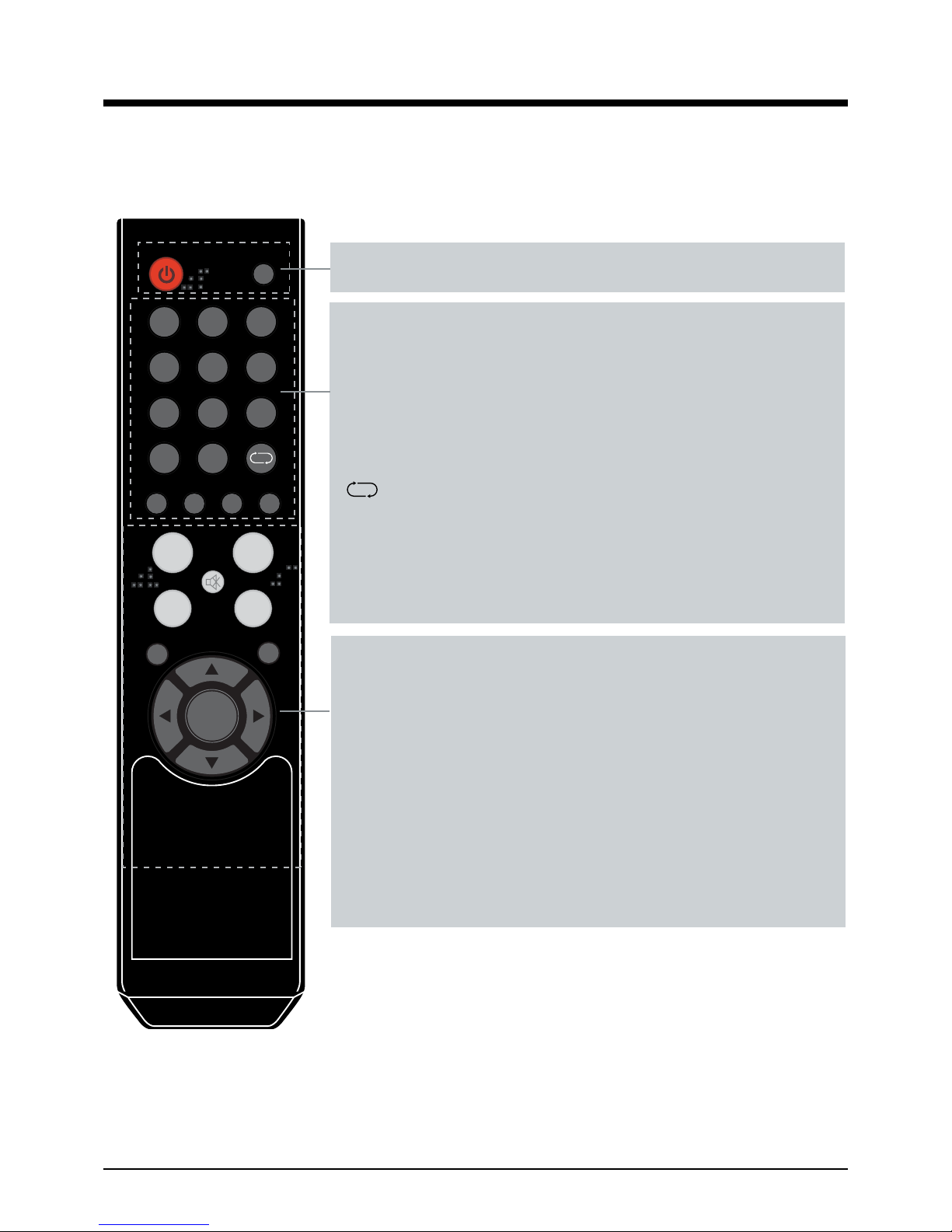

3. Remote Control

The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote

control may not work correctly if it is operated out of range or out of angle.

CC: Press to display the closed caption.

MTS: Press to select the audio channels.

FAV: Press to add or remove favorite channel.

EPG: Press to enter the EPG menu directly.

DISPLAY: Display the information of current mode.

Thumbstick(! ġĢ ): Allows you to navigate the on-screen

menus and adjust the system settings to your preference.

OK: CONFIRM button.

MENU: Press to display the OSD menu.

EXIT: Press to exit the OSD menu.

MUTE: Press to mute the sound, press again or press VOL+ to

unmute.

VOL+/-: Press to adjust the volume.

CH+/-: Press to scan through channels.

SLEEP : Shutdown timer.

Number Buttons: Choose channel directly.

Select channel 5, Press button "5";

Select channel 62, Press button "6", then press button "2" in 2

seconds;

Select channel 151, Press button "1", and press button "5" in 2

seconds, and press button "1" in 2 seconds;

Select channel 5-1, Press button "5", and press button "- / - -"

in 2 seconds, and press button "1" in 2 seconds;

PICTURE: Press repeatedly to cycle through the available

video picture modes.

SOUND: Press to cycle through the different sound settings.

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

0 -/--

FAV

CC EPGMTS

(RETURN): Return to the previous channel viewed.

POWER(red button): Turn the TV on/standby.

INPUT: Press to display the input source menu.

Introduction

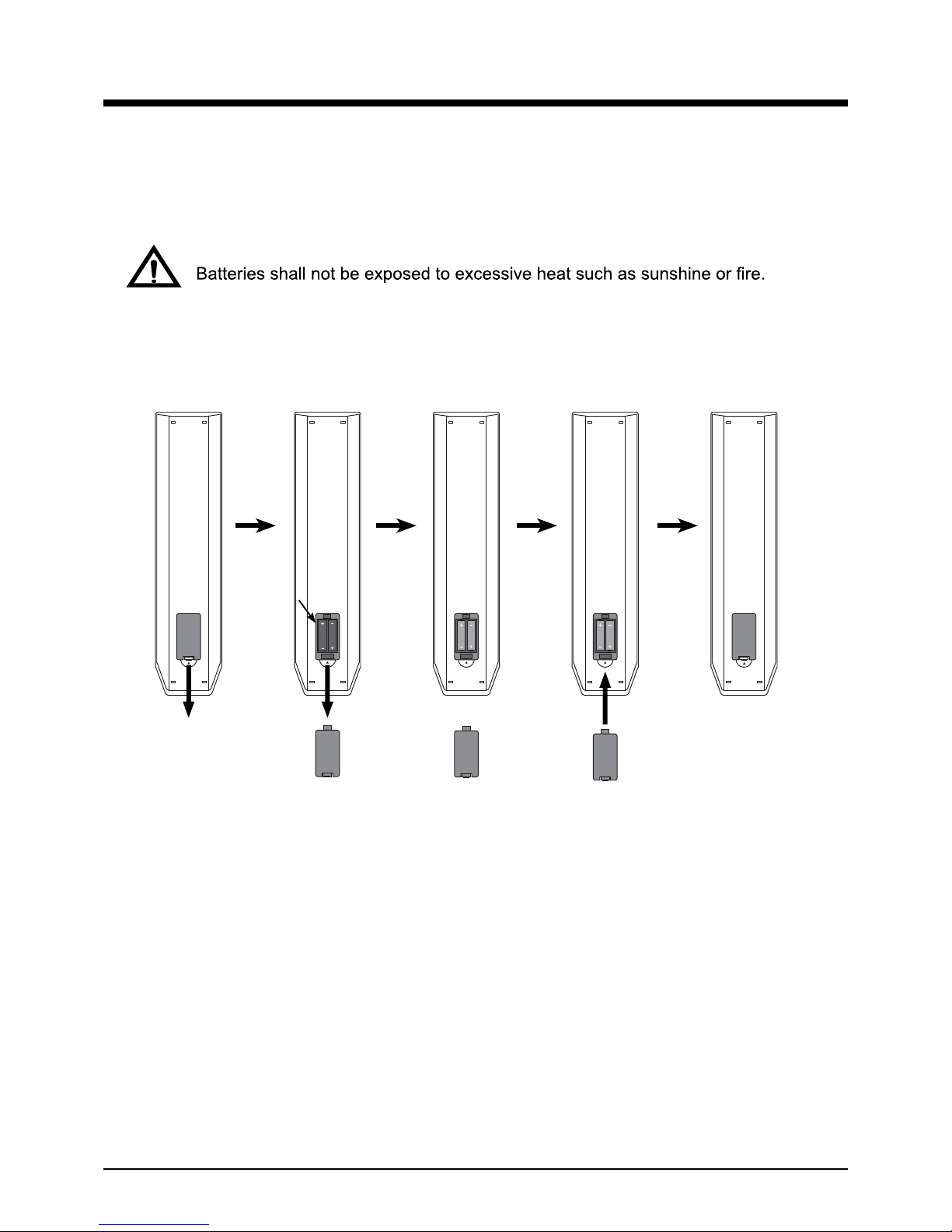

Installing Batteries

1. Open the battery compartment cover on the back of the remote control.

2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery

compartment. Don’t mix different types or used batteries with new ones.

3. Close the cover.

- The remote control should be operated within 30 feet(7m) and 300to the left and right of the

IR receive at the front of the LCD TV.

- Used batteries should be disposed properly.
