OWNER ’ S M A NUA L

B E V E R A G E C OOL E R

VT-BC34TS

General Operating Instructions

Remove all external and internal packaging from your beverage cooler. Be

sure that all parts have been included before discarding any packaging

materials. You may want to keep the box and packing materials for use at a

later date.

Upon receipt and inspection of unit, the supply cord must be replaced if it is

damaged. Contact our customer service at 1-800-777-8466 or

[email protected].

•Let the unit rest UNPLUGGED for 24 hours once you have it placed in

your home.

•Please fully read the instruction manual.

•Save these instructions.

Please read and follow all safety rules

and operating instructions before using.

To register your product, visit:

http://www.vinotemp.com/Warranty.aspx

Please be sure to retain your proof of purchase.

Table of Contents

PARTS AND SPECIFICATIONS............................................................ 6

IMPORTANT SAFETY INSTRUCTIONS .................................................. 4

BEVERAGE COOLER INSTALLATION.................................................... 7

OPERATING INSTRUCTIONS.............................................................. 7

TEMPERATURE CONTROL.................................................................. 7

INSTALLING AND REMOVING SHELVES .............................................. 8

CLEANING AND CARE....................................................................... 9

MOVING YOUR BEVERAGE COOLER.................................................... 9

TROUBLESHOOTING ...................................................................... 10

TERMS OF SALE AND WARRANTY..................................................... 11

SERVICE & IMPORTANT NOTICE ...................................................... 12

732 S o u t h R a c e t r a c k R oad , H e n d e r s o n , N eva d a 8901 5

i n f o @ v i n o t e m p . c o m

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock or injury when using

your appliance, follow these basic precautions:

•Use this appliance only as described in this manual. Other uses are not recommended and may cause

fire, electric shock or injury.

•This product is intended for indoor, household use.

•To protect against electric shock, do not immerse unit, plug or cord in water or other liquids. Avoid

locating the unit in moist areas.

•Never allow children to operate, play with, or crawl inside the unit.

•Unplug from the outlet when not in use, when moving from one location to another, or before cleaning.

•To disconnect the appliance, grip the plug and pull it from the wall outlet. Never pull by the cord.

•Do not operate the appliance in the presence of explosive and/or flammable fumes.

•Do not place the appliance or any of its parts near an open flame, cooking or other heating appliance.

•Do not operate the appliance with a damaged cord or plug. If the product malfunctions, or if it is dropped

or damaged in any manner, do not use.

•The use of attachments is not recommended and may be hazardous.

•Do not operate if the housing is removed or damaged.

•A loose fit plug may cause overheating and a distortion of the plug. Contact a qualified electrician to

replace loose or worn outlet.

•This appliance is designed for free standing use only (not meant for built-in installation).

•The beverage cooler is intended for use in a controlled ambient location such that the ambient

temperature does not exceed 90°F.

•Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct

sunlight may affect/alter the outside color of the appliance.

WARNING: To reduce the risk of fire, electric shock or personal injury, unplug or disconnect the appliance

from the power supply before servicing.

WARNING:Risk of child entrapment. Before you throw away yourold beverage cooler, take off the door and

leave the shelves in place so that children may not easily climb inside.

ELECTRICAL CONNECTION

Improper use of the grounded plug can result in the risk of electrical shock.

If the power cord is damaged, frayed or shows cracks or abrasions across

itslength, have it replaced at an authorized service center.

For your protection,this unit is equipped with a 3-conductor cord set that has a molded 3-prong grounding-

type plug, and should be used in combination with a properly connected grounding-type outlet.

•Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

For personal safety, this appliance must be properly grounded.

•The cord should be secured behind the unit and notleft exposed or dangling to prevent accidental

injury.

•A standard electrical supply (120V AC only, 60Hz), properly grounded in accordance with the

National Electrical Code and local codes and ordinances, is required.

•Never unplug the unit by pulling the power cord. To disconnect the appliance, always grip the plug

firmly and pull straight out from the wall outlet. When moving the unit, be careful not to damage the

power cord.

•The unit should always be plugged into its own individual electrical outlet with a voltage rating that

matchesthe rating label on the unit.

Extension Cord

CAUTION: It is strongly recommended that you do not use an adapter

or an extension cord with this unit.

732 S o u t h R a c e t r a c k R oad , H e n d e r s o n , N eva d a 8901 5

i n f o @ v i n o t e m p . c o m

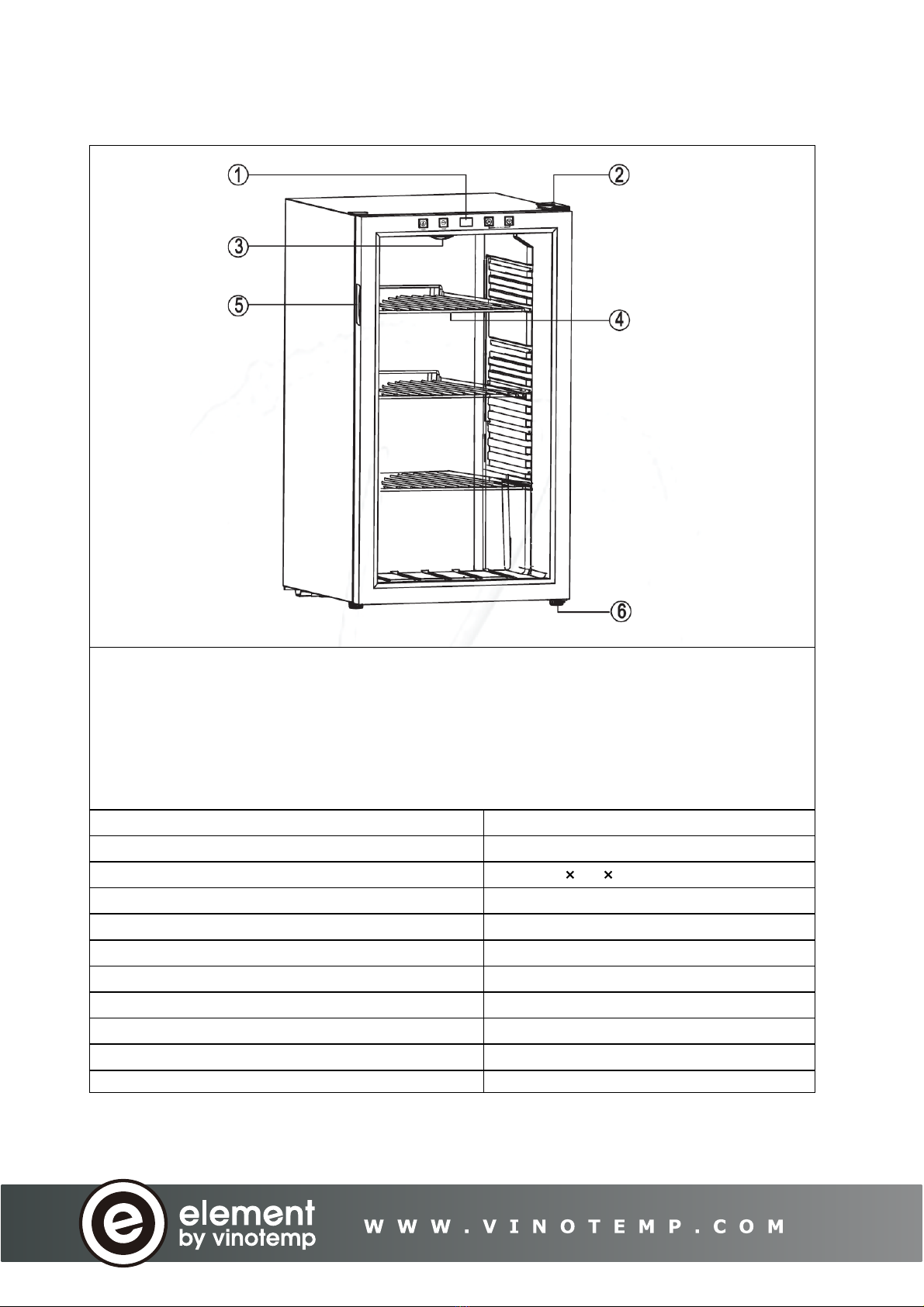

PARTS AND SPECIFICATIONS

1. Control Panel

2. Hinge Cover

3. Light

4. Standard Shelf

5. Recessed Handle

6. Foot

Type

1 Temp.

Item Number

VT-BC34 TS

Dimension (HxWxD)

32 3/4" 19" 18 1/2"

Weight

59 Lbs

Power Consumption

0.0858 kW.h/24h

Cooling System

R134a

Ambient Temp. Range

60-90°F

Temperature Range

34-43°F

Rated Voltage

120V

Rated Frequency

60Hz

Input Power

85W

*Note: This beverage cooler is designed to store up to 80 12 oz cans. Storing large and/or oddly shaped

cans or bottles will decrease the capacity of your beverage cooler.

BEVERAGE COOLER INSTALLATION

•Removetheexterior and interior packagingbefore use.

•Check to be sure you have allof theparts and 1 owner’s manual.

•Place your beverage cooler on a flat, dry surface that is strong enough to support theunit when fully

loaded.

•This unit is designed for freestanding installationonly.

•Do not place heavy objects on topof the unit.

•Unit is not designed for installationin a garage, basement, or any other locationwhere a controlled

ambient environment between 60° and 90°F cannot be maintained.

•Do not place theunit in direct sunlight or near sources of heat. Extreme hot and cold ambient

temperatures may cause theunit not to perform properly or increase electrical consumption.

•Do not place theunit next to a major appliance that emits largeamounts of heat, such as a dishwasher,

microwave, oven, etc.

•Do not plugunit into thesame outlet as a refrigerator or microwave.

•Before connectingtheappliance to thepower source, let it stand upright for approximately 24 hours.

This will reduce thepossibility of a malfunctionin thecooling system from handling duringtransportation.

•Clean theinterior surface with lukewarm water usinga softcloth before first use.

OPERATING INSTRUCTIONS

1. Gently place/slide the racks into the beverage cooler.

2. Determine the best temperature setting to use.

3. Place beverage containers inside the cooler.

4. Plug the power cord into a standard grounded electrical outlet.

5. Limit the frequency of opening the doorto conserve energy and maintain proper storage temperature.

6. You can turn the interior light on and off by touching the button labeled with a light on the control panel.

Important: When using the beverage cooler for the first time, allow at least 24 hours for the internal

temperature to adjust properly. Make sure there are at least 3to 5 beverage containers in the unit.

TEMPERATURE CONTROL

Your beverage cooler has a touch screen control panel located on the upper part of the glass door.

Setting the temperature:

You can manually adjust the temperature. Simply press the down arrow button on the control panel to

decrease the temperature and the up arrow button to increase the temperature by 1 degree increments

inside the beverage cooler. The temperature range for this unit is from 34°F (1°C) to 43°F (6°C).

To switch the temperate display from showing Celsius and Fahrenheit, press the C/F button.

732 S o u t h R a c e t r a c k R oad , H e n d e r s o n , N eva d a 8901 5

i n f o @ v i n o t e m p . c o m

Noted: Control Panel Lock

1. Your beverage cooler is equipped with an AUTOMATIC control panel lock function. This function will

prevent any unwanted changesto yourtemperature or power settings.

2. The lock function will activate automatically 12 seconds after the last time a button is pushed on the

control panel will beep and blink that indicates the control panel is active and the settings can be

changed.

Important: In order to operate efficiently, this product should be in an environment with an ambient

temperature of less than 90°F.

INSTALLING AND REMOVING SHELVES

To prevent damaging the door gasket, make sure to have the door completely opened when pulling the

shelves out of the rail compartment.

•For easy access to the storage content, you must pull the shelf conservatively out of the rail

compartment; however this unit was designed with a plastic post on each side of the shelf track to

prevent bottles from falling.

•When removing the shelf out of the inner rail, make sure to remove all items first. Then move the

shelf tothe position where the notch of the shelf is exactly underthe plastic post and lift the shelf. In

orderto replace the shelf, repeat these directionsin reverse.

CLEANING AND CARE

•Always unplug the beverage cooler before cleaning.

•Do not use benzene, scrubbing brushes or chemical cleaners as these will damage the unit.

•Use only a mild, nonabrasive cleanser to clean the exterior of the cabinet.

•Clean the stainless steel door and handle by wiping with a warm water and baking soda solution. The

solution should be about 2tablespoons of baking soda to a quart of water.

•Wash the racks with a mild detergent solution.

•Always dry all parts with a clean dry cloth before plugging the beverage cooler back into the receptacle.

MOVING YOUR BEVERAGE COOLER

•Always unplug the beverage cooler before moving.

•Always remove all beverage cans before moving the beverage cooler.

•Securely tape down all loose items (shelves) inside your appliance.

•Tape the door shut.

•Be careful of cabinetlegs to avoid damage when moving.

•Be sure the beverage cooler stays in the upright position during transportation

•Protect the outside of appliance with a blanket or similar item when moving as needed.

732 S o u t h R a c e t r a c k R oad , H e n d e r s o n , N eva d a 8901 5

i n f o @ v i n o t e m p . c o m

TROUBLESHOOTING

You can solve many common beverage cooler problems easily, saving you the cost of a

possible service call. Try the suggestions below to see if you can solve the problem before

contacting Vinotemp at [email protected].

SYMPTOM

POSSIBLE CAUSE

Door will not close

properly.

•

The beverage cooler is not level.

•The shelves are out of position.

•The door was reversed and not properly installed.

•The door gasket is dirty.

•A beverage container in the cellar is not the correct size.

Unit does not

operate—does not

have power

•

Check that unit is plugged into the wall socket.

•Make sure the wall socket has power. If outlet is controlled by a

wall switch, make sure switch is set to on. Test wall socket

functionality by testing another electrical appliance in the power

socket.

Power is ON but the

unit will not cool. •Make sure there are at least 3to 5 beverage containers in the unit.

When using the unit for the first time, it can take up to 24 hours to

reach the desired temperature.

•If the roomtemperature is at the high end of the ambient

temperature range, it may have more difficulty achieving a low

internaltemperature.

•To achieve accurate temperature control, the unit should not be

used or operated in any of the following locations:

oIn a sunny place, a room with poor air circulation such as a

garage or near another heat-producing appliance such as a

dishwasher, oven or refrigerator.

oWith an outlet shared with a refrigerator, as the refrigerator will

drain power from the beverage cooler.

•Make sure the cooler has proper clearances at side and rear and is

located in a well-ventilated area.

•Dooris not closed tightly or is being opened too frequently.

Fan is always

running.

•

This is simply a function of the cooling system. The lower the

setting, the more the fan will run. If the room is very warm, the

cooler will run more.

•The unit has been designed to run continuously when operating at

the lower temperatures.

Vibrations

•

Check to make sure the beverage cooler is level.

Frost appears in

cabinet (on back).

•

Eithertoo much humidity or too low of temperature inside cabinet.

Unplug cooler and allow to manually defrost. Reconnect when ice

has melted. If problem persists, contact for service instructions.

Inside light flashes.

•

In some instances, this is normal. The light may flash whenthe

automatic defrost function starts to work.

•Set temperature is higherthan the interior temperature. Adjust

temperature toresolve.

Table des matières

Autres manuels Vinotemp Accessoires

Vinotemp

Vinotemp WINE-MATE WM-2500SSVWC Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-2500SSA Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-2500SSLWC Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-2500SSH-LA Guide d'installation

Vinotemp

Vinotemp element EL-46WCBC-L Manuel utilisateur

Vinotemp

Vinotemp VT-OUTDR15GD Manuel utilisateur

Vinotemp

Vinotemp WINE-MATE WM-2500SSIWC Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-2500SSR Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-1500SSW-LA Guide d'installation

Vinotemp

Vinotemp WM-2500SSRWC Guide d'installation

Vinotemp

Vinotemp WINE-MATE VINO3500HZD Manuel utilisateur

Vinotemp

Vinotemp WINE-MATE WM-2500SSV-LA Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-2500SSO Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-1500SSL WINE-MATE WM-1500SSL-LA Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-2500SSD-LA Guide d'installation

Vinotemp

Vinotemp Element EL-BWC108-SS Manuel utilisateur

Vinotemp

Vinotemp WINE-MATE WM-2500SSV Manuel utilisateur

Vinotemp

Vinotemp Element EL-BWC102-02 Manuel utilisateur

Vinotemp

Vinotemp WINE-MATE WM-2520SSH Guide d'installation

Vinotemp

Vinotemp element EL-54BCCOMM-L Manuel utilisateur

Vinotemp

Vinotemp WINE-MATE WM-2520SSD Guide d'installation

Vinotemp

Vinotemp WINE-MATE WM-1520SSL Manuel utilisateur

Vinotemp

Vinotemp element EL-40WCBC Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur

Vinotemp element VT-BC34TS Manuel utilisateur

Manuels Accessoires populaires d'autres marques
