Viking DrawerMicro DMOD241SS Manuel utilisateur
FINISH DETAILS FOR ALL MODELS
• Stainless Steel (SS)
VMOD240
Professional
DMOD240
Designer
PLANNING AND DESIGN GUIDE
V I K I N G R A N G E . C O M • 1 - - V I K I N G 1
R E V I S E D 4 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
All models include
• Capacity—1.0 cu. ft.
o 17-11/32"W. x 5-7/ "H. x 17-1/ "D.
• Commercial type-styling and design
• Digital LCD display
• 11 Sensor settings
• Sensor popcorn/sensor reheat
• Automatic defrost
• Add-a-minute allows you to add a
minute to cooking time by simply
touching a button
• Warm/hold feature allows you to keep
food warm for up to 30 minutes
• Child lock safety feature locks the
control panel to prevent unwanted
operation
• Timer function
• Place undercounter below cooktop,
rangetop, or as stand-alone unit
Standard Features & Accessories
Model Options
COOKING
Undercounter DrawerMicro™ Oven
23-7/8”
(60.6cm)
15-5/8”
(39.7cm)
14-19/32”
(37.1cm)
4-11/16”
(11.9cm)21-19/32”
(54.8cm)
1-23/32”
(4.4cm)
23-3/8”
(59.4cm)
25-1/8”
(63.8cm)
1-3/4”
(4.4cm)
23-7/8”
(60.6cm)
15-5/8”
(39.7cm)
14-19/32”
(37.1cm)
4-11/16”
(11.9cm)21-19/32”
(54.8cm)
1-23/32”
(4.4cm)
23-3/8”
(59.4cm)
25-1/8”
(63.8cm)
1-3/4”
(4.4cm)
VMOD240
Professional
DMOD240
Designer
COOKING
Undercounter DrawerMicro™ Oven
PLANNING AND DESIGN GUIDE
V I K I N G R A N G E . C O M • 1 - - V I K I N G 1
R E V I S E D 4 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
VMOD240 DMOD240
Overall width 23-7/8” (60.6 cm)
Overall height (from bottom) 1 - /8” (39.7 cm)
Overall depth (from rear) 2 -1/8 (63.8 cm)
Interior
Width 17-11/32” (44.1 cm)
Height -7/8” (14.9 cm)
Depth 17-1/8” (43. cm)
Appro . ship weight 103 lb. (46.7 kg)
Dimensions & Specifications
PRODUCT DIMENSIONS & DRAWER EXTENSION
PROFESSIONAL
DESIGNER
40-1/8”
(101.9 cm)
25-1/8”
(63.8 cm)
23-3/8”
(59.4 cm)
1-3/4”
(4.4 cm)
15”
(38.1 cm)
40-1/8”
(101.9 cm)
25-1/8”
(63.8 cm)
23-3/8”
(59.4 cm)
1-3/4”
(4.4 cm)
15”
(38.1 cm)
VMOD240
Professional
DMOD240
Designer
COOKING
Undercounter DrawerMicro™ Oven
PLANNING AND DESIGN GUIDE
V I K I N G R A N G E . C O M • 1 - - V I K I N G 1
R E V I S E D 4 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
All models
Cutout width 22-1/8” ( 6.2 cm)
Cutout height 14-13/16” (3 .1 cm)
Cutout depth 23-1/2” ( 9.7 cm) min.
GAS
•Not applicable
ELECTRICAL
• 120 VAC/60 Hz
•Three-pronged
grounding plug
• Maximum amp
usage—
oVMOD—
14.5 (31.7 kW)
o DMOD—
14.5 (31.7 kW)
PLUMBING
• Not applicable
Installation Requirements
ACCESS REQUIREMENTS
UTILITY
REQUIREMENTS

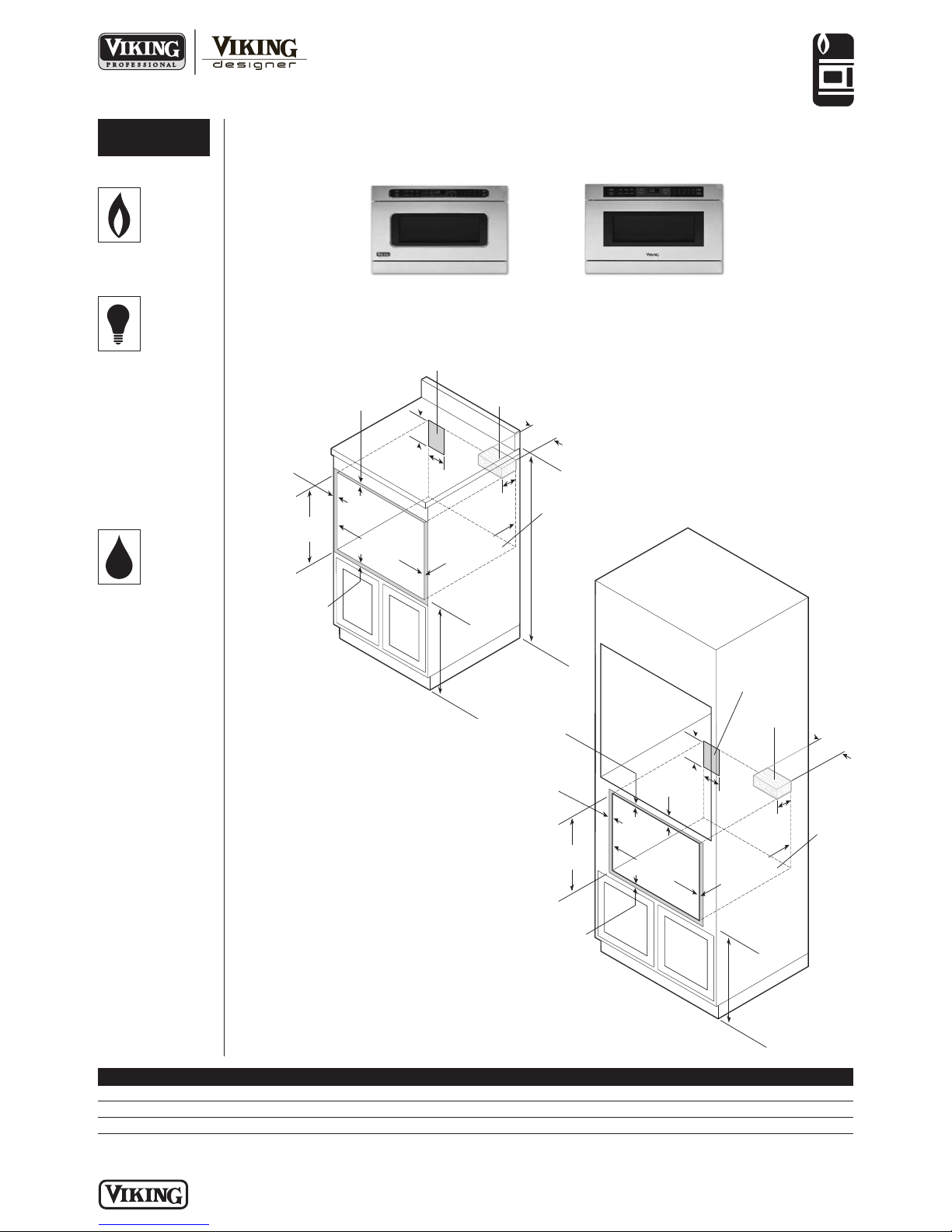

36”
(91.4cm)
14-13/16”
(37.6cm)
22-1/8”
(56.2cm)
4”
(10.2cm)
4”
(10.2 cm)
4”
(10.2cm)
Allow 3/4” (1.9 cm)
overlap (each side)
Allow 3/4” (1.9 cm)
overlap (each side)
Allow 3/4” (1.9 cm)
overlap (each side)
Allow 3/16” (0.5 cm)
overlap
Allow 7/16” (1.1 cm)
overlap
Allow 7/16” (1.1 cm)
overlap
Allow 7/16” (1.1 cm)
overlap
Anti-tip
block
Anti-tip
block
Floor must
support 100 lbs
(45.4 kg)
Floor must
support 100 lbs
(45.4 kg)
5”
(12.7cm)
23-1/2”
(59.7cm)min.
19”
(48.3cm)
19”
(48.3 cm)
19”
(48.3cm)
6”
(15.5cm)
6”
(15.5 cm)
6”
(15.5cm)
3-1/2”
(8.9cm)
3-1/2”
(8.9 cm)
3-1/2”
(8.9cm)
Outlet
location
Outlet
location
14-13/16”
(37.6cm)
22-1/8”
(56.2cm)
4”
(10.2cm)
4”
(10.2 cm)
4”
(10.2cm)
Allow 3/4” (1.9 cm)
overlap (each side)
Allow 3/4” (1.9 cm)
overlap (each side)
Allow 3/4” (1.9 cm)
overlap (each side)
Allow 7/16” (1.1 cm)
overlap
Allow 7/16” (1.1 cm)
overlap
Allow 7/16” (1.1 cm)
overlap
Anti-tip
block
Anti-tip
block
Floor must
support 100 lbs
(45.4 kg)
Floor must
support 100 lbs
(45.4 kg)
5”
(12.7cm)
2”
(5.1cm)min.
23-1/2”
(59.7cm)min.
19”
(48.3cm)
19”
(48.3 cm)
19”
(48.3cm)
6”
(15.5cm)
6”
(15.5 cm)
6”
(15.5cm)
3-1/2”
(8.9cm)
3-1/2”
(8.9 cm)
3-1/2”
(8.9cm)
Outlet
location
Outlet
location
Allow 3/16” (0.5 cm)
overlap
Allow 3/16” (0.5 cm)
overlap
Allow 3/16” (0.5 cm)
overlap
Undercounter
Stac Configuration
COOKING
Undercounter DrawerMicro™ Oven
PLANNING AND DESIGN GUIDE
V I K I N G R A N G E . C O M • 1 - - V I K I N G 1
R E V I S E D 4 / 2 / 1 1
© 2 0 1 1 V R C — I N F O R M AT I O N S U B J E C T T O C H A N G E
Compliance Information
WARRANTY INFORMATION*
• Three-year full – covers complete unit (Professional Series)
• One-year full warranty—complete product (Designer Series)
• Five-year limited – magnetron tube (Professional and Designer)
• Ninety-day limited – cosmetic parts such as glass, painted items, and decorative items (Professional and Designer)
* For complete warranty see
Use & Care Guide
. Warranty valid on Viking products shipped within the United States and Canada.
