VigilLink VL-IPSC-1 Manuel utilisateur
VL-IPSC-1
AVoIP controller for EB100AT
VER 1.0
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction..........................................................................................
1
2. Features................................................................................................
1
3. Package Contents...............................................................................
1
4. Specifications. .....................................................................................
2
5. Operation Controls and Functions. ....................................................
2
5.1 Front Panel......................................................................................
2
5.2 Rear Panel. .....................................................................................
3
5.3 IR Pin Definition...............................................................................
4
6. Rack Mounting Instruction. .................................................................
4
6.1 6U Rack Mounting..........................................................................
4
6.2 1U Rack Mounting..........................................................................
6
7. Web GUI User Guide............................................................................
7
7.1 Preparation before Entering the System.......................................
7
7.2 Functions and Operation. .............................................................
11
8. Application Example...........................................................................
26
1/29
1. Introduction
This Video over IP Controller is used to control and manage IP products. It
supports dual 1G network ports, which can realize dual-network isolation of
Control network and Multicast video distribution network. It supports Web
GUI/TCP/RS-232/IR/GPIO controls, POE function and IR control signal pass
through as well. Since the demand of IP products is daily increased in the
current market, the IP Controller will be widely applied in more and more
different scenarios.
2. Features
☆Easy to create project, control and manage the system
☆HTTPS, SSH, SFTP security compatible
☆Built-in Web GUI control interface, supporting Drag & Drop operations
☆Support image preview
☆Support video, audio, RS-232, IR, KVM control and management of the
distributed system
☆Dual network ports (VIDEO LAN port supports POE function) to isolate
Controls and Multicast networks.
☆Support LAN/RS-232 port control and third-party central control
☆Support IR signal receiving (3.5mm audio jack, 12V level)
☆4 channel GPIO control ports (5V/12V optional level)
☆Multiple circuits protection, lightning protection and ESD design
☆Reliable system design, ensuring 7*24 hours reliable and stable work
3. Package Contents
①1 ⅹVideo over IP Controller
②1 ⅹ20kHz-60kHz 12V IR Receiver Cable (1.5 meters)
③1 ⅹIR Blaster Cable (1.5 meters)
④2 ⅹ3-pin 3.81mm Phoenix Connector (Male)
⑤1 ⅹ6-pin 3.81mm Phoenix Connector (Male)
⑥ 2 ⅹ Mounting Ears
⑦ 4 ⅹ Machine Screws (KM3*6)
⑧1 ⅹ12V/1A Locking Power Adaptor
⑨1 ⅹUser Manual
2/29
4. Specifications
Technical
Network Video
Bandwidth Up to 1G
Transmission
Distance 100m CAT 5E/6/6A/7
Control Ports
2 x 1G LAN [RJ45 connector] [VIDEO LAN support POE]
1 x IR IN [3.5mm audio jack, 12V level]
1 x IR OUT [3.5mm audio jack]
1 x DIGITAL I/O [6-pin 3.81mm phoenix connector]
2 x RS-232 [3-pin 3.81mm phoenix connector]
1x USB Host [Micro USB, 5-pin female]
Dimensions
204mm(W)×98.5mm(D)×21.5mm(H)
Housing
Metal Enclosure
Color
Black
Weight
508g
Power Supply 12V/1A
Power Consumption
8.4W
Operating
Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20~90% RH (non-condensing)
5. Operation Controls and Functions
5.1 Front Panel
3/29
No.
Name
Function Description
1RESET Button
Press and hold this button (about 10 seconds) until Status
LED starts flashing, Controller will be reset automatically.
2
POWER LED
The red LED will light on when the Controller is powered on.
3
STATUS LED
The status LED will flash in yellowish-green every 1 second
until Controller boots up completely and Control LAN is
ready, then it becomes solid.
4
UPDATE
Firmware update port.
Note: Must keep no connection on this port when Controller
works in normal mode.

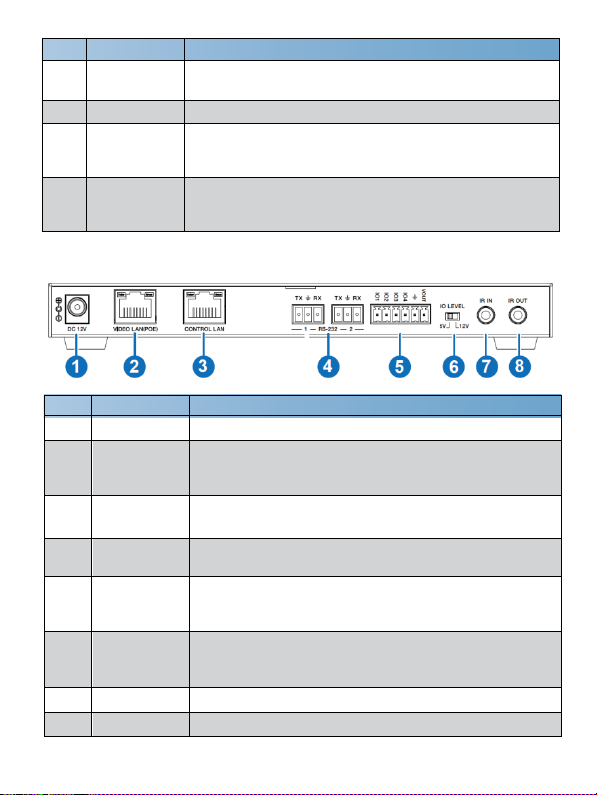

5.2 Rear Panel
No.
Name
Function Description
1
DC 12V
DC 12V/1A power input port.
2VIDEO LAN
(POE)
1G Video LAN port, supporting POE function.
Note: When POE is enabled, DC 12V/1A power supply is
not required.
3CONTROL
LAN
The TCP/IP control network port.
4
3-pin Phoenix
Connectors Two identical RS-232 serial communication ports.
56-pin Phoenix
Connector
4 channel I/O level outputs, 1 channel grounding,
1 channel power supply (supports up to 12V/0.5A) to the
outside.
6IO LEVEL
DIP Switch
Used to control I/O level output and VOUT voltage.
Switch to left: 5V I/O level output, VOUT is 5V.
Switch to right: 12V I/O level output, VOUT is 12V.
7
IR IN 12V IR signal input port.
8IR OUT IR signal output port. (Reserved for future use.)
4/29
5.3 IR Pin Definition
6. Rack Mounting Instruction
6.1 6U Rack Mounting
This Controller can be mounted in a standard 6U rack (Please contact your
supplier for 6U rack sale). The mounting steps are as follows:
Step 1: Use included screws to fix two mounting ears on the Controller, as
shown in the figure below:
5/29
Step 2: Insert the Controller with mounting ears into a 6U rack (up to
10units can be installed vertically), as shown in the figure below:
Step 3: Use screws to fix mounting ears on the rack to complete the
mounting, as shown in the figure below:
6/29
6.2 1U Rack Mounting
This Controller also can be mounted in a standard 1U rack (up to 4 units can
be installed horizontally). The mounting steps are as follows:
Step 1: Stack two Controllers on top of each other, then use included screws
to fix two 1U rack panels on the Controllers, as shown in the figure below:
Step 2: Fix two 1U rack panels on another two stacked Controllers in the
same way, then use screws to fix two 1U rack panels together, as shown
in the figure below:
Step 3: Fasten screws between two 1U rack panels, so that four Controllers
are mounted in a 1U rack, as shown in the figure below:
7/29
7. Web GUI User Guide
7.1 Preparation before Entering the System
You can use Controller’s Web GUI to control all IP products at the Switch.
The operation method is shown as below:
Step 1: Input the Controller’s default IP address (192.168.0.225) or the URL
(http://controller.local) into the Web browser address bar on the PC to enter the
Web GUI login interface.
Select the initial username (admin) and input the initial password (1234) on
the above login interface. Then, click “Log In” to enter the Web GUI interface.
For the first time, you need to setup the project, as shown in the following
figure:
8/29
Step 2: Click the “Close” button to load an existing project in web page
directly, or click “Next” button to go to the next step.
On this interface, you need to set the IP mode of Video LAN.
Mode 1: Automatically managed by Controller Box.
Please connect all the devices according to the following diagram.
