ViewZ VZ-185RCR Manuel utilisateur

18.5-INCH RACK

TFT-LED MONITOR

USER MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

SAFETY INSTRUCTION ………………………………………………………….……

2 ~ 3

CAUTIONS………………………………………………………………..........................

FCC RF INTERFERENCE STATEMENT …………………………….......................

CONNECTING WITH EXTERNAL EQUIPMENT………………………………………

CONTROLS AND FUNCTIONS …………………………………………………………

7 ~ 12

MOUNTING GUIDE………………………………………………………………………..

D-SUB CONNECTOR PIN ASSIGNMENTS …………………………………………

POWER MANAGEMENT ………………………………………………………………

SPECIFICATIONS ………………………………………………………………………

TROUBLE SHOOTING GUIDE ………………………………………………….........

- 1 -

This Monitor was

Manufactured by ISO 9001

Certified Factory

Important Safety Instruction

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers,stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

Apolarized plug has two blades with one wider than the other.

Agrounding type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement

of the bsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles and the point where they exit from the apparatus.

11. Only use attachment/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or

sold with the apparatus. When a cart is used, use caution when moving

the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused

for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus the apparatus has been exposed to

rain or moisture does not operate normally or has been dropped.

- 2 -

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,

such as vases, shall be placed no the apparatus.

14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.

“WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”

“The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,

such as vases, shall be placed on the apparatus.”

This symbol is intended to alert the user to the presence of uninsulated:

dangerous voltage with in the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating

and maintenance(servicing) instructions in the literature accompanying the

appliance.

- 3-

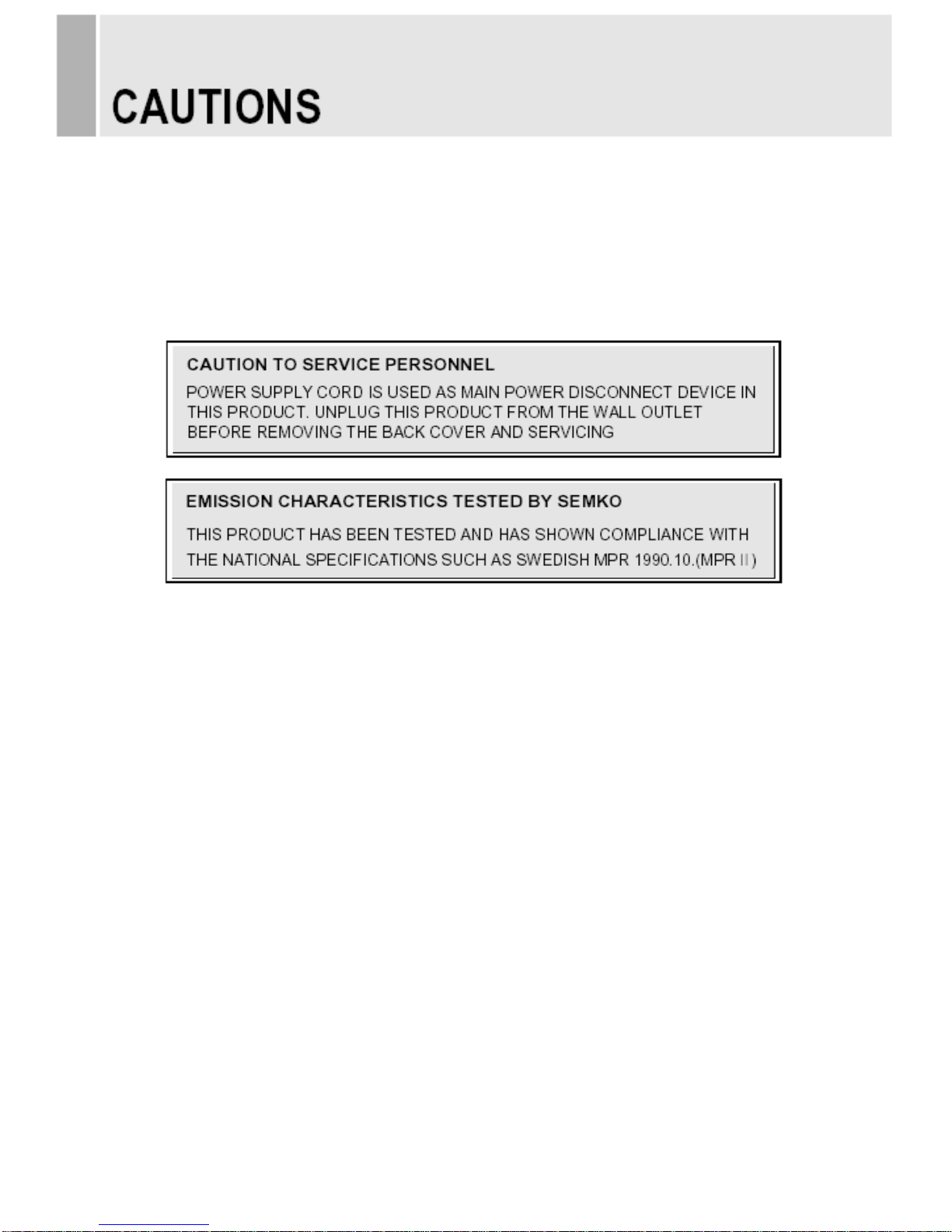

CAUTION

The power supply cord is used as the main disconnect device, ensure that the socket-outlet is

located/installed near the equipment and is easily accessible.

ATTENTIONN

Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être

située ou installée à proximité du matériel et être facile d`accès

▶NEVER REMOVE THE BACK COVER

Removal of the back cover should be carried out only by qualified personnel.

▶DO NOT USE IN HOSTILE ENVIRONMENTS

To prevent shock or fire hazard, do not expose the unit to rain or moisture.

This unit is designed to be used in the office or home. Do not subject the unit to vibrations,

dust of corrosive gases.

▶KEEP IN A WELL VENTILATED PLACE

Ventilation holes are provided on the cabinet to prevent the temperature from rising.

Do not cover the unit or place anything on the top of unit.

▶AVOID HEAT

Avoid placing the unit in direct sunshine or near a heating appliance.

▶TO ELIMINATE EYE FATIGUE

Do not use the unit against a bright back ground and where sunlight or other light sources will

shine directly on the monitor.

▶BE CAREFUL OF HEAVY OBJECT

Neither the monitor itself nor any other heavy object should rest on the power cord.

Damage to a power cord can cause fire or electrical shock.

- 4 -

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio, TV technician for help.

- Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by

the grantee or manufacturer could void the users authority to operate such equipment.

▶DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital

apparatus set out in the radio interference regulation of Canadian Department of

communications.

- 5 -

Rear Connection

1. DC 12V

2. HDMI IN

3. DVI IN

4. VGA IN

5. PC STEREO IN (VGA and DVI In)

6. UPGRADE

- 6 -

Front Key Control

1. SOURCE/SELECT

Selects VGA, DVI and HDMI inputs.

Selects an option in the OSD.

2. MENU/EXIT

Activates or exits the OSD.

Moves previous menu or status in the OSD.

3, 4. ▼& ▲

Moves another option in the OSD.

The ▲button converts the aspect ratio as 16:9 or 4:3.

The ▼button is auto adjustment function in the VGA input.

5, 6. VOL(◀) & VOL(▶)

Adjusts the volume and menu settings.

The VOL(◀)button is the Sound off function.

7. / I

Turns the power on or off. There will be a few seconds delay before the display appears.

8. LED

Indicates the operating status of the monitor:

- Power On, Standby (Blue color)

- Power Off (LED Off)

- 7 -

OSD Menu Description

All picture, sound settings and setup for the monitor can be adjusted in the OSD menu.

(When you are navigating through the OSD menus, use the SOURCE or ENTER button to select

a menu and use the MENU button to exit a menu.)

To adjust the OSD screen:

1. If required, press the SOURCE or ENTER button and then the and the ▲ and ▼ buttons

until a signal is displayed.

2. Press the Menu button to activate the main menu selections.

3. Press the ▲ and ▼ buttons to select a menu.

4. Press the ▶button to enter the selected menu.

5. Press the ▲ and ▼ buttons to select a sub-menu item.

6. Press the ▲ and ▼ buttons to toggle the OSD values.

7. Press the Menu button to exit the selected menu and to return to the menu bar or to confirm

a selection.

8. Press the Menu button again to exit the OSD menu bar.

On-screen Display Menus

There are four (4) on-screen menus that allow you to customize your settings.

Press the Menu button to access the OSD menu.

Option

Function


Adjusts the Brightness, Contrast, Color Temperature, Zoom and

Information Bar settings.

Display

Adjusts the Auto adjust, Phase, Clock, Display position and Auto color

settings. (PC mode.)

Sound

Adjusts the Volume and Mute settings.

System

Resets the factory default settings and adjusts the Language, Key

Lock, Image Rotation and OSD settings.

- 8 -
