VG712s LCD Display

Full 17" Diagonal Viewable Screen

Contents

Product Registration .................................................. 2

For Your Records ...................................................... 2

Getting Started ..................................................... 3

Package Contents ..................................................... 3

Precautions ............................................................... 3

Quick Installation ....................................................... 4

Installation of Wall Mount (Optional) .........................5

Using the LCD Display ......................................... 6

Setting the Timing Mode ...........................................6

OSD and Power Lock Settings .................................. 6

Adjusting the Screen Image ...................................... 7

Main Menu Controls .................................................. 9

Other Information ............................................... 13

Specifications .......................................................... 13

Troubleshooting ...................................................... 14

Customer Support ................................................... 15

Cleaning the LCD Display .......................................16

Limited Warranty ..................................................... 17

Compliance Information for U.S.A. .......................... 18

CE Conformity for Europe ....................................... 19

03/11/04 C ViewSonic VG712s 1

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of

ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC

are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR®partner, ViewSonic Corporation has determined that this product meets the

ENERGY STAR®guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this mate-

rial, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to

change product specifications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available,

please register your product on the Internet at: www.viewsonic.com. The ViewSonic®Wizard CD-

ROM also provides an opportunity for you to print the registration form, which you may mail or fax

to ViewSonic.

Product disposal at end of product life

ViewSonic isconcerned about the preservation of our environment. Pleasedisposeof thisproduct

properly at the end of its useful life.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ViewSonic VG712s

VLCDS23719-6W

A-CD-VG712s-1

______________

ViewSonic VG712s 2

For TCO'03 recycling information, please refer to our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw

Getting Started

Congratulations on your purchase of a ViewSonic®LCD Display®.Important!

Save the original box and all packing material for future shipping needs.

NOTE: The word “Windows” in this user guide refers to the following

Microsoft operating systems: Windows ‘95, Windows NT, Windows ‘98,

Windows 2000, Windows Me (Millennium), and Windows XP.

Package Contents

• LCD display

• VGA cable

•

AC/DC power adapter

•

Power cords

•

Audio cable (for speakers)

ViewSonic Wizard CD-ROM

•NOTE: The CD jacket contains the Quick Start Guide, and the CD includes

the User Guide PDF files and INF/ICM display optimization files. The INF

file ensures compatibility with Windows operating systems, and the ICM file

(Image Color Matching) ensures accurate on-screen colors. ViewSonic

recommends that you install both files

Precautions

• Sit at least 18" from your LCD display.

•Avoid touching the screen. Skin oils are

difficult to remove.

•Never remove the rear cover. Your LCD

display contains high-voltage parts. You may

be seriously injured if you touch them.

• Avoid exposing your LCD display to direct

sunlight or another heat source. Orient your

LCD display away from direct sunlight to

reduce glare.

• Always handle your LCD display with care

when moving it.

• Place your LCD display in a well-ventilated

area. Do not place anything on your LCD

display that prevents heat dissipation.

• Ensure the area around the LCD display is

clean and free of moisture.

• Do not place heavy objects on the LCD

display, video cable, or power cord.

• If smoke, abnormal noise, or strange odor is

present, immediately switch the LCD display

off and call your dealer or ViewSonic. It is

dangerous to continue using the LCD display.

ViewSonic VG712s 3

Quick Installation

1 Connect power cord and AC/DC

adapter

2 Connect video cable

• Make sure both the LCD display and

computer are turned OFF

• Remove rear panel covers if necessary

• Connect the video cable from the LCD

display to the computer

Macintosh users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic Customer Support.

3 Turn ON LCD display and

computer

Turn ON the LCD display, then turn ON the

computer. This sequence (LCD display

before computer) is important.

NOTE: Windows users may receive a

message asking them to install the INF file.

This is on the CD.

4 Insert the ViewSonic Wizard CD

into the computer’s CD drive.

Follow the on-screen instructions

If your computer does not have a CD-ROM

drive, see “Customer Support."

(1) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-start:

double-click on the CD-ROM icon in the

Windows Explorer, then double-click on

viewsonic.exe.

4 Wizard CD (continued)

(2) Follow the on-screen instructions.

5 Audio Installation (optional)

• Speakers Connect the audio cable (lime-colored) to

the AUDIO OUT port of your computer’s sound

card, then to the LCD display’s AUDIO IN port

(see illustration below).

6 Windows users: Set the timing

mode (resolution and refresh

rate)

Example: 1280 x 1024 @ 60 Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete. Enjoy your new

ViewSonic, LCD display.

To be best prepared for any future customer

service needs: print this user guide and write

the serial number in "For Your Records" on

page 2. (See back of LCD display.)

You can register your product online at the

website for your region. See the Customer

Support table in this guide.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print the

registration form which you may mail or fax

to ViewSonic.

DCIN

Power cord

and AC/DC

adapter

Rear panel

covers

Audio

cable

Video

cable

AC outlet

(wall socket) Computer

power cord

ViewSonic VG712s 4

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to

the instructions that come with the base mounting kit. To convert your LCD

display from a desk-mounted to a wall-mounted display, do the following:

1Disconnect Power.

2Lay the LCD display face down

on a towel or blanket. And then

remove the base.

3Attach the mounting bracket

from the VESA compatible wall-

mounting kit (100 mm x 100 mm

distance).

4Attach the LCD display to the

wall, following the instructions in

the wall-mounting kit.

Four screw holes for wall mount

ViewSonic VG712s 5

Using the LCD Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1280 x 1024) and refresh rate (or vertical frequency;

example 60 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

For the best picture quality set your LCD display timing mode to:

VESA 1280 x 1024 @ 60 Hz.

To set the Timing Mode:

1Set the resolution: Right-click on the Windows®desktop > Properties >

Settings > set the resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

WA R N I N G : Do not set the graphics card in your computer to exceed the

maximum refresh rate of 85Hz; doing so may result in permanent damage to

your LCD display.

OSD and Power Lock Settings

•OSD Lock: Press and hold [1] and the up arrow ▲for 10 seconds. If any

buttons are pressed the message OSD Locked will display for a few seconds.

•OSD Unlock: Press and hold [1] and the up arrow ▲again for 10 seconds.

•Power Button Lock: Press and hold [1] and the down arrow ▼for 10

seconds. If the power button is pressed the message Power Button Locked

will display for a few seconds. With or without this setting, after a power

failure, your LCD display’s power will automatically turn on when power is

restored.

•Power Button Unlock: Press and hold [1] and the down arrow ▼again for

10 seconds.

ViewSonic VG712s 6

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView®

controls which display on the screen. The OnView controls are explained at the

top of the next page and are defined in “Main Menu Controls” on page 9.

Scrolls through menu options and

adjusts the displayed control.

Also a shortcut to display the

Contrast adjustment control

screen.

Power

On/Off

Displays the control

screen for the highlighted

control.

Also toggles between two

controls on some

screens.

Also a shortcut to toggle

between analog and

digital connections.

Power light

Green = ON

Orange = Power

Saving

Main Menu with OnView controls

Front Control Panel shown

below

Audio Mute button

turns the sound off.

Displays the Main Menu

or exits the control screen

and saves adjustments

Decreases or

increases volume

Speaker Speaker

ViewSonic VG712s 7

Do the following to adjust the screen image:

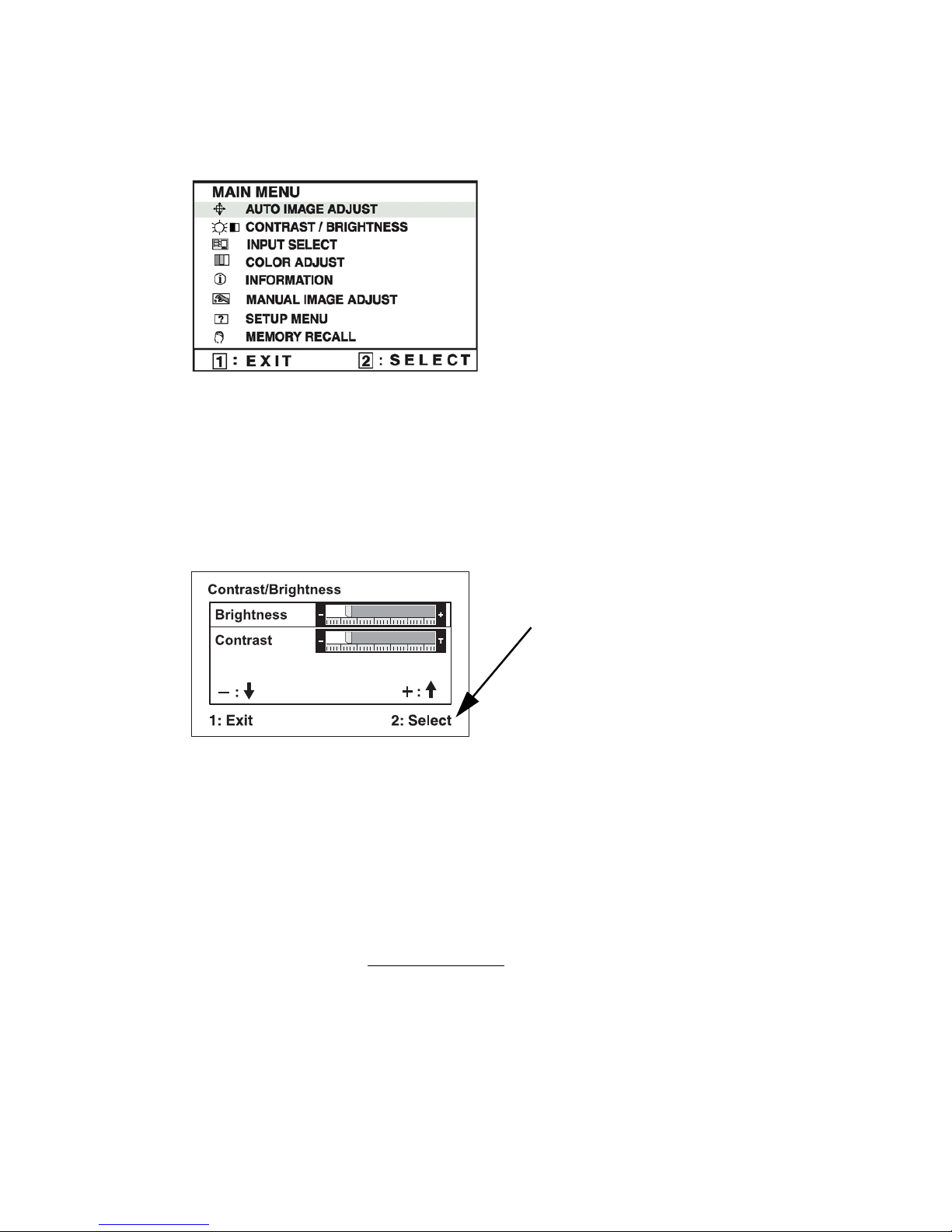

1To display the Main Menu, press button [1].

NOTE: All OnView menus and adjustment screens disappear automatically

after about 15 seconds. This is adjustable through the OSD timeout setting in the

setup menu.

2To select a control you want to adjust, press ▲or ▼to scroll up or down the

Main Menu.

3After the control is selected, press button [2]. A control screen like the one

shown below appears.

4To adjust the control, press the up ▲or down ▼buttons.

5To save the adjustments and exit the menu, press button [1] twice.

The following tips may help you optimize your display:

• Adjust your computer's graphic card so that it outputs a video signal 1280 x

1024 @ 60Hz to the LCD display. (Look for instructions on "changing the

refresh rate" in your graphic card's user guide.)

• If necessary, make small adjustments using H POSITION and V POSITION

until the screen image is completely visible. (The black border around the

edge of the screen should barely touch the illuminated "active area" of the

LCD display.)

The command line at the

bottom of the control screen

tells what to do next from this

screen. You can toggle

between control screens,

adjust the selected option, or

exit the screen.

ViewSonic VG712s 8

Main Menu Controls

Adjust the menu items shown below by using the up ▲ and down ▼ buttons.

Control Explanation

Auto Image Adjust sizes and centers the screen image

automatically.

Contrast adjusts the difference between the image background

(black level) and the foreground (white level).

Brightness adjusts background black level of the screen image.

Input Select toggles between inputs if you have more than one

computer.

Color Adjust provides several color adjustment modes: preset

color temperatures and RGB which allows you to adjust red (R),

green (G), and blue (B) separately. The factory setting for this

product is 6500K (6500 Kelvin).

9300K — Adds blue to the screen image for cooler white (used

in most office settings with fluorescent lighting).

6500K — Adds red to the screen image for warmer white and

richer red.

5400K — Adds green to the screen image for a darker color.

5000K — Adds blue and green to the screen image for a darker

color.

ViewSonic VG712s 9

sRGB —sRGB is quickly becoming the industry standard for color

management, with support being included in many of the latest

applications. Enabling this setting allows the LCD display to

more accurately display colors the way they were originally

intended. Enabling the sRGB setting will cause the Contrast and

Brightness adjustments to be disabled.

Color Adjust

sRGB

9300K

Ԧ6500K

5400K

5000K

User Color

1:EXIT 2:SELECT

Autres manuels pour VG712s

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic VP2655WB - 26" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic TD1630-3 Manuel utilisateur

ViewSonic

ViewSonic VS19437 Manuel utilisateur

ViewSonic

ViewSonic XG270 Manuel utilisateur

ViewSonic

ViewSonic VX2703mh-LED Manuel utilisateur

ViewSonic

ViewSonic VS15560 Manuel utilisateur

ViewSonic

ViewSonic CDP4260-L Manuel utilisateur

ViewSonic

ViewSonic CD6530 Manuel utilisateur

ViewSonic

ViewSonic IFP6552-2F Manuel utilisateur

ViewSonic

ViewSonic Optiquest Z90 Manuel utilisateur

ViewSonic

ViewSonic E50 - 15" CRT Display Manuel utilisateur

ViewSonic

ViewSonic VG2765 Manuel utilisateur

ViewSonic

ViewSonic Optiquest Q190mb Manuel utilisateur

ViewSonic

ViewSonic Q91B - Optiquest - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VS16340A Manuel utilisateur

ViewSonic

ViewSonic G90m Manuel utilisateur

ViewSonic

ViewSonic CDE5530 Manuel utilisateur

ViewSonic

ViewSonic A91f - 19" CRT Monitor Manuel utilisateur

ViewSonic

ViewSonic Z70 Manuel utilisateur

ViewSonic

ViewSonic VCDTS21543 Manuel utilisateur

ViewSonic

ViewSonic VS16510 Manuel utilisateur

ViewSonic

ViewSonic Optiquest Q7 VS10807 Manuel utilisateur

ViewSonic

ViewSonic VX3218-PC-mhd Manuel utilisateur

ViewSonic

ViewSonic VX2433WM - 23.6" LCD Monitor Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
