ViewSonic VG3448 Manuel utilisateur

VG3448

Display

User Guide

Model No. VS17740

P/N: VG3448

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic® !



Please read the following Safety Precautions before you start using the device.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Sit at least 18" (45 cm) away from the device.

• Allow at least 4" (10 cm) clearance around the device to ensure proper

ventilation.

• Place the device in a well-ventilated area. Do not place anything on the device

that prevents heat dissipation.

• Do not use the device near water. To reduce the risk of fire or electric shock, do

not expose the device to moisture.

• Avoid exposing the device to direct sunlight or other sources of sustained heat.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including amplifiers) that may increase the temperature of the

device to dangerous levels.

• Use a soft, dry cloth to clean the external housing. For more information, refer

to the "Maintenance" secon on page 54.

• Oil may collect on the screen as you touch it. To clean the greasy spots on the

screen, refer to the "Maintenance" secon on page 54.

• Do not touch the screen surface with sharp or hard objects, as it may cause

damage to the screen.

• When moving the device, be careful not to drop or bump the device on

anything.

• Do not place the device on an uneven or unstable surface. The device may fall

over resulting in an injury or a malfunction.

• Do not place any heavy objects on the device or connection cables.

• If smoke, an abnormal noise, or a strange odor is present, immediately turn the

device off and call your dealer or ViewSonic®. It is dangerous to continue using

the device.

• Do not attempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide blade and the third prong are provided for your safety. If the plug does not

fit into your outlet, obtain an adapter and do not attempt to force the plug into

the outlet.

• When connecting to a power outlet, DO NOT remove the grounding

prong. Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched,

particularly at the plug, and at the point where it emerges from

the equipment. Ensure that the power outlet is located near the

equipment so that it is easily accessible.

• Only use attachments/accessories specified by the manufacturer.

• When a cart is used, use with caution when moving the cart/equipment

combination to avoid injury from tipping over.

• Disconnect the power plug from the AC outlet if the device is not being

used for a long period of time.

• Refer all servicing to qualified service personnel. Service will be

required when the unit has been damaged in any way, such as:

if the power supply cord or plug is damaged

if liquid is spilled onto or objects fall in the unit

if the unit is exposed to moisture

if the unit does not operate normally or has been dropped

• NOTICE: LISTENING THROUGH EAR-/HEADPHONES AT A HIGH VOLUME FOR

EXTENDED PERIODS CAN CAUSE HEARING DAMAGE/HEARING LOSS. When using

ear-/headphones, adjust the volume to appropriate levels, or hearing damage

may result.

• NOTICE: THE MONITOR MAY OVERHEAT AND SHUTDOWN! If the device shuts

down automatically, please turn on your monitor again. After rebooting, change

your monitor's resolution and refresh rate. For details, please refer to the

graphics card's user guide.

Contents

Safety Precautions....................................................... 3

Introduction ................................................................ 7

Package Contents ...................................................................................................7

Product Overview...................................................................................................8

Initial Setup................................................................. 9

Installing the Stand.................................................................................................9

Wall Mounting......................................................................................................12

Using the Security Slot..........................................................................................14

Making Connections.................................................. 15

Connecting to Power ............................................................................................15

Connecting External Devices ................................................................................16

HDMI Connection.................................................................................................. 16

DisplayPort and miniDP Connection ..................................................................... 17

USB Connection..................................................................................................... 18

Using the Monitor ..................................................... 19

Adjusting the Viewing Angle.................................................................................19

Height Adjustment ................................................................................................ 19

Tilt Angle Adjustment............................................................................................ 20

Swivel Angle Adjustment....................................................................................... 21

Turning the Device On/Off ...................................................................................22

Using the Control Panel Keys................................................................................23

Quick Menu........................................................................................................... 23

Hot Keys ................................................................................................................ 25

Configuring the Settings .......................................................................................27

General Operations............................................................................................... 27

On-Screen Display (OSD) Menu Tree .................................................................... 30

Menu Options ....................................................................................................... 36

Appendix................................................................... 45

Specifications........................................................................................................45

Glossary ................................................................................................................47

Troubleshooting ...................................................................................................52

Maintenance.........................................................................................................54

General Precautions.............................................................................................. 54

Cleaning the Screen............................................................................................... 54

Cleaning the Case.................................................................................................. 54

Regulatory and Service Information .......................... 55

Compliance Information.......................................................................................55

FCC Compliance Statement................................................................................... 55

Industry Canada Statement................................................................................... 55

CE Conformity for European Countries ................................................................. 55

Declaration of RoHS Compliance........................................................................... 56

Indian Restriction of Hazardous Substances ......................................................... 57

Product Disposal at End of Product Life................................................................ 57

Customer Service .................................................................................................. 59

Limited Warranty .................................................................................................. 60

Mexico Limited Warranty...................................................................................... 63



Package Contents

• Monitor

• Power cord

• Video cable

• USB cable

• Quick start guide

The power cord and video cables included in your package may vary

depending on your country. Please contact your local reseller for more

informaon.

Product Overview

Front View

For more informaon about the 1 (ViewMode)/2/3/4/5 key and its

funcons, refer to “Hot Keys” on page 25.

Rear View

Display screen

Power buon

(ViewMode) 3

USB Downstream

DisplayPort

Security Slot

miniDP port

HDMI portsAC IN jack

USB Upstream

USB Downstream



This secon provides detailed instrucons for seng up your monitor.

The monitor comes packaged in a user friendly box to make installaon

easy.

Installing the Stand

1. Place the box on a at, stable surface and open the front ap of the box to reveal

the contents. Remove the top tray.

2. Remove the monitor stand’s base and neck. Align and connect the three (3)

points on the monitor stand’s base with the monitor stand’s neck.

3. Use the captured screw in the monitor stand’s base and secure it to the monitor

stand’s neck.

4. Align and slide the upper hooks of the monitor stand into the stand mounng

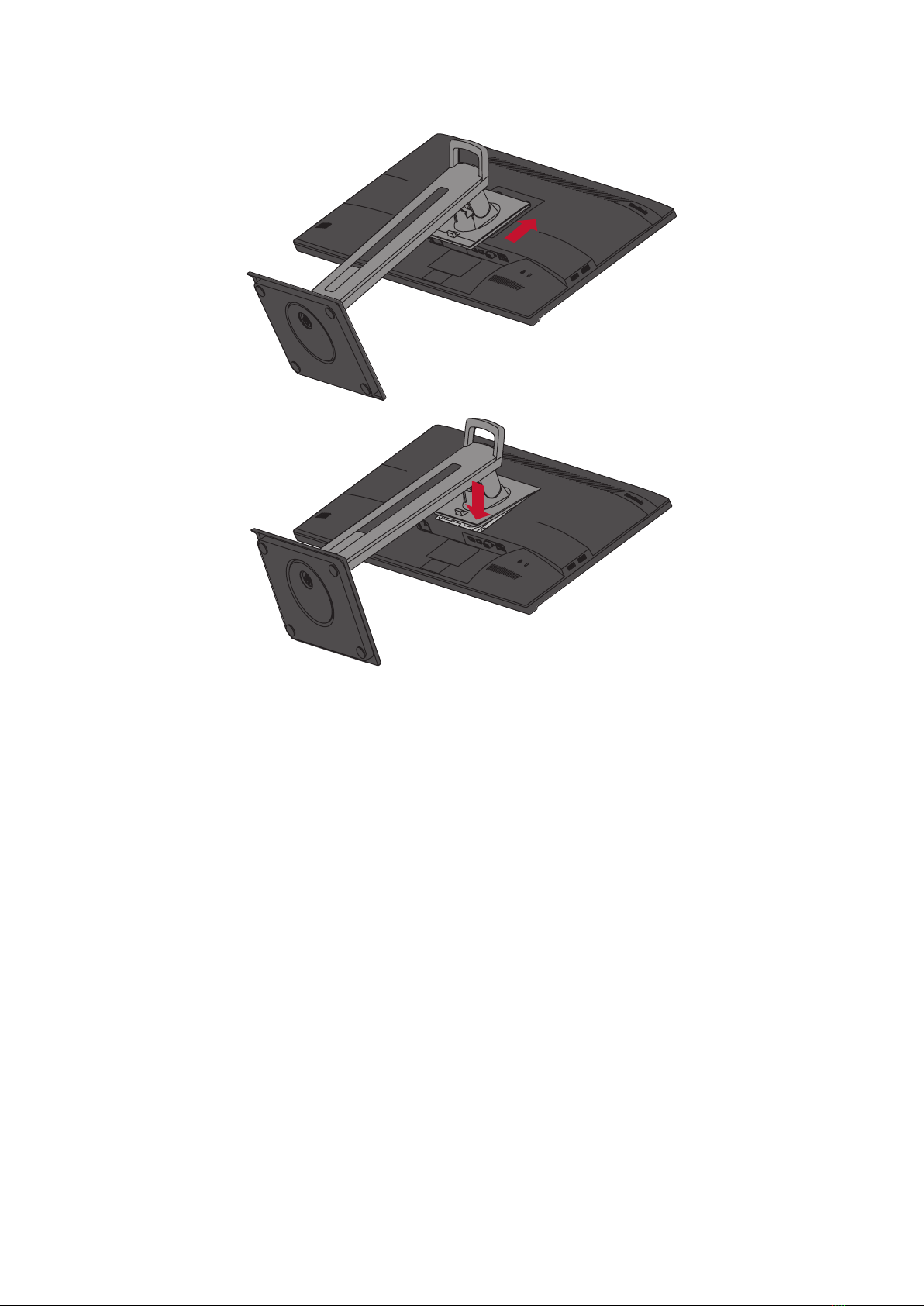

slots as shown in the illustraon below:

Ensure the stand is secure and the quick release tab posively clicks into

place.
