ViewSonic VE710b/VE710s Manuel utilisateur

ViewSonic®

- User Guide

- Guide de l'utilisateur

- Bedienungsanleitung

- Guía del usuario

- Guida dell'utente

- Guia do usuário

- Användarhandbok

- Käyttöopas

- Podręcznik użytkownika

- Használati útmutató

- Pyководство польэователя

- Uživatelská píruka

- ユーザーズガイド

- 使用手冊

- 사용자 안내서

VE710b/VE710s

LCD Display

Contents

ViewSonic VE710b_VE710s 1

Product Registration..............................................................4

For Your Records ..................................................................4

Getting Started

Package Contents ................................................................. 5

Precautions ...........................................................................5

Quick Installation ...................................................................6

Installation of Wall Mount (Optional) .....................................7

Using the LCD Display

Setting the Timing Mode .......................................................8

OSD and Power Button Lock Modes.....................................8

Adjusting the Screen Image ..................................................9

Main Menu Controls .............................................................11

Other Information

Specifications ......................................................................15

Troubleshooting...................................................................16

Customer Support ...............................................................17

Cleaning the LCD Display ...................................................18

Limited Warranty .................................................................19

Compliance Information ............... ............. ............. ............. .. 2

Important Safety Instructions ........ ............. ............. ............. .. 3

ViewSonic VE710b_VE710s 2

Compliance Information

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the

cables which are included with the equipment or specified. Also, any unauthorized changes or

modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate this device.

For Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le

matériel brouilleur du Canada.

For European Countries

CE Conformity

The device complies with the requirements of the EEC directive 89/336/EEC as

amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic

compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to

“Safety.”

ViewSonic VE710b_VE710s 3

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth. If still not clean, see “Cleaning the Display” in this guide for

further instructions.

7. Do not block any ventilation openings. Install the unit in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

devices (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade and the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure that the

power outlet is located near the unit so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the unit. When a cart is used, use caution when moving the cart/unit

combination to avoid injury from tipping over.

13. Unplug this unit when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the unit has

been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid

is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if

the unit does not operate normally or has been dropped.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of

ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC

are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR®partner, ViewSonic Corporation has determined that this product meets the

ENERGY STAR®guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this

material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to

change product specifications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic

Wizard CD-ROM also provides an opportunity for you to print the registration form, which you

may mail or fax to ViewSonic.

Product disposal at end of product life

ViewSonic VE710b_VE710s

ViewSonic is concerned about the preservation of our environment. Please dispose of this product

properly at the end of its useful life. For TCO'03 recycling information, please refer to our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

VE710b/s

ViewSonic 17” LCD Display

VLCDS27998-2W/1W

VE710b/s-1_UG_ENG Rev. 1B 01-21-05

________________________________

Getting Started

Congratulations on your purchase of a ViewSonic®LCD display.

Important! Save the original box and all packing material for future shipping

needs.

NOTE: The word “Windows” refers to Microsoft Windows 95, 98, NT, XP,

2000 and Me (Millennium).

Package Contents

IMPORTANT: Save all packing material.

Your LCD display package includes:

• LCD display

• Power cords

• ViewSonic Wizard CD-ROM

NOTE: The CD jacket contains the Quick Start Guide, and the CD includes User

Guide PDF files and INF/ICM display optimization files. The INF files ensures

compatibility with Windows operating systems, and the ICM file (Image Color

Matching) ensures accurate on-screen colors. ViewSonic recommends that you

install both files.

Precautions

• Sit at least 18" from your LCD display

display.

•Avoid touching the screen. Skin oils are

difficult to remove.

•Never remove the rear cover. Your LCD

display contains high-voltage parts. You may

be seriously injured if you touch them.

• Avoid exposing your LCD display to direct

sunlight or another heat source. Orient your

LCD display away from direct sunlight to

reduce glare.

• Always handle your LCD display with care

when moving it.

• Place your LCD display in a well-ventilated

area. Do not place anything on your LCD

display that prevents heat dissipation.

• Ensure the area around the LCD display is

clean and free of moisture.

• Do not place heavy objects on the LCD

display, video cable, or power cord.

• If smoke, abnormal noise, or strange odor is

present, immediately switch the LCD display

off and call your dealer or ViewSonic. It is

dangerous to continue using the LCD display.

ViewSonic VE710b_VE710s 5

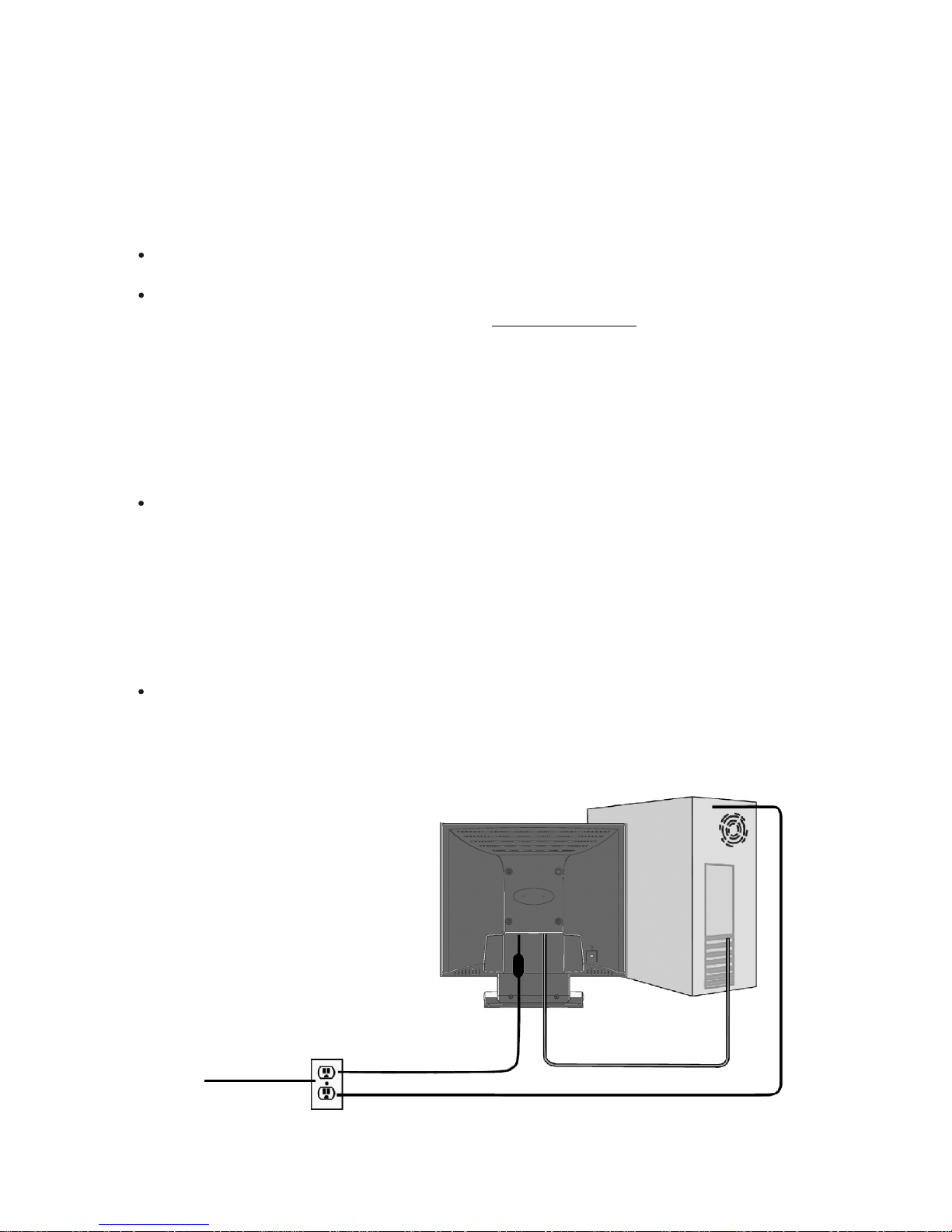

Quick Installation

Optional: For instructions on wall mounting,

1 Connect power cord

2 Connect video cable

Make sure both the LCD display and

computer are turned OFF

Connect the video cable from the LCD

display to the computer

Macintosh users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic Macintosh adapter ,

contact ViewSonic Customer Support.

3 Turn ON LCD display and

computer

Turn ON the LCD display, then turn ON

the computer. This sequence

(LCD display before computer) is

important.

NOTE: Windows 95, 98 or 2000 users may

receive a message asking them to install the

INF file. This is on the CD.

4 Insert the ViewSonic Wizard CD

into the computer s CD drive

Follow the on-screen instructions

If your computer does not have a CD-ROM

drive, see Customer Support.

(1) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-start:

double-click on the CD-ROM icon in the

Windows Explorer, then double-click on

viewsonic.exe.

(2) Follow the on-screen instructions.

5 Windows users: Set the timing

mode (resolution and refresh

rate)

Example: 1280 X 1024 @ 60 Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card s user

guide.

Installation is complete. Enjoy your new

ViewSonic LCD display.

To be best prepared for any future customer

service needs: print this user guide and write

the serial number in on

You can register your product online at the

website for your region. See the Customer

Support table in this guide.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print the

registration form which you may mail or fax

to ViewSonic.

AC outlet

(wall socket)

D-SUB

Computer power cord

AC IN

ViewSonic VE710b_VE710s

For Your Records

see page of this user guide.

page 4.(See back of LCD display.)

ViewSonic VE710b_VE710s

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to

the instructions that come with the base mounting kit. To convert your

LCD display from a desk-mounted to a wall-mounted display, do the following:

1Disconnect Power.

2Push the LCD display back and

down flat against the base as

shown.

3Lay the LCD display face down on

a towel or blanket. Notice the

four screw holes on the back cover.

4Attach the mounting bracket

from the VESA compatible wall-

mounting kit (100 mm x 100 mm

distance).

5Attach the LCD display to the wall,

following the instructions in the

wall-mounting kit.

Four

screw

holes

Mounted

on the wall

Using the LCD Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1024 x 768) and refresh rate (or vertical frequency;

example 60 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

For the best picture quality set your LCD dislay timing mode to:

VESA 1280 x 1024 @ 60 Hz.

To set the Timing Mode:

1Set the resolution: Right-click on the Windows desktop > Properties >

Settings > set the resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

WARNING: Do not set the graphics card in your computer to exceed the

maximum refresh rate of 75Hz; doing so may result in permanent damage to

your LCD dislay.

OSD and Power Button Lock Modes

OSD Lock This mode locks all current control settings and prevents access to

the control menus until this mode is unlocked.

•OSD Lock: Press and hold [1] and the up arrow Ifor 10 seconds. If any

buttons are pressed the message OSD Locked will display for 5 seconds.

•OSD Unlock: Press and hold [1] and the up arrow Iagain for 10 seconds.

Power Button Lock This mode locks the power of the LCD dislay in the ON

position.

•Power Button Lock: Press and hold [1] and the down arrow Jfor 10

seconds. If the power button is pressed the message Power Button Locked

will display for 5 seconds. With or without this setting, after a power failure,

your LCD dislay’s power will automatically turn ON when power is restored.

•Power Button Unlock: Press and hold [1] and the down arrow Jagain for

10 seconds.

ViewSonic VE710b_VE710s 8

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView®

controls which display on the screen. The OnView controls are explained at the

Front Control Panel

shown below in detail

Main Menu

With OnView controls

Scrolls through menu options and

adjusts the displayed control.

Also a shortcut to display the

Contrast adjustment control

screen.

Power

On/Off

Displays the control

screen for the highlighted

control.

Also toggles between two

controls on some

screens.

Also a shortcut to Auto

Image Adjust.

Power light

Green = ON

Orange = Power Saving

Displays the Main Menu

or exits the control screen

and saves adjustments.

ViewSonic VE710b_VE710s 9

top of the next page and are defined in “Main Menu Controls” on page 11.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic TD1655 Manuel utilisateur

ViewSonic

ViewSonic CD4225 Manuel utilisateur

ViewSonic

ViewSonic VX3211-mh Manuel utilisateur

ViewSonic

ViewSonic VX2250W-LED Manuel utilisateur

ViewSonic

ViewSonic Q91B - Optiquest - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VA2436-H-PN Manuel utilisateur

ViewSonic

ViewSonic VG2437mc-LED Manuel utilisateur

ViewSonic

ViewSonic VP930-2 VS10725 Manuel utilisateur

ViewSonic

ViewSonic VS11422 Manuel utilisateur

ViewSonic

ViewSonic VG2236wm-LED Manuel utilisateur

ViewSonic

ViewSonic VP191b-1 Manuel utilisateur

ViewSonic

ViewSonic VG921m Manuel utilisateur

ViewSonic

ViewSonic VG2021WM Manuel utilisateur

ViewSonic

ViewSonic VX2433WM - 23.6" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VX2478-smhd Manuel utilisateur

ViewSonic

ViewSonic VA2241-LED Manuel utilisateur

ViewSonic

ViewSonic PT770 - 17" CRT Display Manuel utilisateur

ViewSonic

ViewSonic VA1938wa-LED Manuel utilisateur

ViewSonic

ViewSonic VG900b-1 Manuel utilisateur

ViewSonic

ViewSonic XG321UG Manuel utilisateur

ViewSonic

ViewSonic E70 - 17" CRT Display Manuel utilisateur

ViewSonic

ViewSonic LDP135-151 Manuel utilisateur

ViewSonic

ViewSonic VA2248-LED Guide de démarrage rapide

ViewSonic

ViewSonic VG2030M - 20.1" LCD Monitor Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
