ViewSonic PD1011 Manuel utilisateur

PD1011

Pen Display

User Guide

Model No. VS16002

IMPORTANT: Please read this User Guide to obtain important information

on installing and using your product in a safe manner, as well as

registering your product for future service. Warranty information contained

in this User Guide will describe your limited coverage from ViewSonic

Corporation, which is also found on our web site at http://www.viewsonic.

com in English, or in specic languages using the Regional selection box

in the upper right corner of our website. “Antes de operar su equipo lea cu

idadosamente las instrucciones en este manual”

Thank you for choosing ViewSonic

With over 25 years as a world leading provider of visual solutions,

ViewSonic is dedicated to exceeding the world’s expectations

for technological evolution, innovation, and simplicity. At

ViewSonic, we believe that our products have the potential to

make a positive impact in the world, and we are condent that

the ViewSonic product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic !

For U.S.A.

This device complies with part 15 of FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interfer-

ence, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radi-

ate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

yReorient or relocate the receiving antenna.

yIncrease the separation between the equipment and receiver.

yConnect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

yConsult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modications not expressly

approved by the party responsible for compliance could void your authority

to operate the equipment.

For Canada

CAN ICES-3 (B)/NMB-3(B)

Compliance Information

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and

Low Voltage Directive 2014/35/EU.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electri-

cal and Electronic Equipment Directive 2012/19/EU (WEEE).

The mark indicates the requirement NOT to dispose the equipment as

unsorted municipal waste, but use the return and collection systems

according to local law.

If the batteries, accumulators and button cells included with this

equipment, display the chemical symbol Hg, Cd, or Pb, then it means

that the battery has a heavy metal content of more than 0.0005%

Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

iii

Important Safety Instructions

1. DO NOT place objects on top of the device, as objects may scratch the

screen.

2. DO NOT expose the device to dirty or dusty environments.

3. DO NOT place the device on an uneven or unstable surface.

4. DO NOT insert any foreign objects into the device.

5. DO NOT expose the device to strong magnetic or electrical eld.

6. DO NOT expose the device to direct sunlight as it can damage the LCD

Screen. Keep it away from heat sources.

7. DO NOT use the device in the rain.

8. Please check with your Local Authority or retailer for proper disposal of

electronic products.

9. The device may produce some heat during normal operation or

charging. To prevent discomfort or injury from heat exposure, DO NOT

leave the device on your lap.

10.POWER INPUT RATING: Refer to the rating label on the device. Only

use accessories specied by the manufacturer.

11.DO NOT use any sharp object to tap the screen.

12.Clean the touch screen with a soft cloth. If needed, dampen the cloth

slightly before cleaning. Never use abrasives or cleaning solutions.

13.Disconnect the device from an electrical outlet and power off before

cleaning the device.

14.DO NOT disassemble the device. Only a certied service technician

should perform repair.

15.Users have to use the connection to USB interfaces with USB 2.0

version or higher.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with

Directive 2011/65/EU of the European Parliament and the Council on

restriction of the use of certain hazardous substances in electrical and

electronic equipment (RoHS2 Directive) and is deemed to comply with

the maximum concentration values issued by the European Technical

Adaptation Committee (TAC) as shown below:

Substance Proposed Maximum

Concentration

Actual

Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers

(PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the

Annex III of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode uorescent lamps and external electrode

uorescent lamps (CCFL and EEFL) for special purposes not exceeding

(per lamp):

(1) Short length (≦500 mm): maximum 3.5 mg per lamp.

(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per

lamp.

(3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.

4. Lead as an alloying element in aluminium containing up to 0.4% lead by

weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys

containing 85% by weight or more lead).

7. Electrical and electronic components containing lead in a glass or

ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic

devices, or in a glass or ceramic matrix compound.

ViewSonic and the three birds logo are registered trademarks of ViewSonic

Corporation.

Disclaimer: ViewSonic Corporation shall not be liable for technical or edito-

rial errors or omissions contained herein; nor for incidental or consequential

damages resulting from furnishing this material, or the performance or use of

this product.

In the interest of continuing product improvement, ViewSonic Corporation

reserves the right to change product specications without notice. Informa-

tion in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any

means, for any purpose without prior written permission from ViewSonic

Corporation.

Product Registration

To meet your future needs, and to receive any additional product informa-

tion as it becomes available, please register your product on the Internet at:

www.viewsonic.com.

For Your Records

Product Name: PD1011

ViewSonic Pen Display

Model Number: VS16002

Document Number: PD1011_UG_ENG Rev. 1C 02-24-17

Serial Number: ____________________________________

Purchase Date: ____________________________________

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living

green. Thank you for being part of Smarter, Greener Computing. Please visit

ViewSonic website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Contents

Compliance Information.............................................................i

Important Safety Instructions................................................... iii

Declaration of RoHS2 Compliance..........................................iv

Product Registration.................................................................v

1. Introduction.......................................................................... 1

1.1 Packing list ...................................................................................... 1

1.2 Product overview............................................................................. 1

2. Installation and Setting ........................................................ 3

2.1 Install driver ..................................................................................... 3

2.2 Set the display area......................................................................... 6

2.3 Handwriting area correspondence .................................................. 7

2.4 More touch settings ......................................................................... 8

3. Troubleshooting................................................................. 10

3.1 Screen problems ........................................................................... 10

3.2 Problems of interactive electromagnetic pen ................................ 11

4. Product Specication......................................................... 12

4.1 Screen ........................................................................................... 12

4.2 Interactive electromagnetic pen ................................................... 13

5. Appendix............................................................................ 14

5.1 Replace the pen tip ....................................................................... 14

Customer Support ................................................................. 15

Limited Warranty ................................................................... 16

1. Introduction

1.1 Packing list

After unpacking, please conrm whether the following contents are

included:

Electromagnetic pen display

USB 2.0 cable

Electromagnetic pen

Pen rope

Pen tip x 3

Pen tip replacement tool

User Guide

Warranty card (only Chinese zone)

For any part aws or defects, please consult the original product dealer.

1.2 Product overview

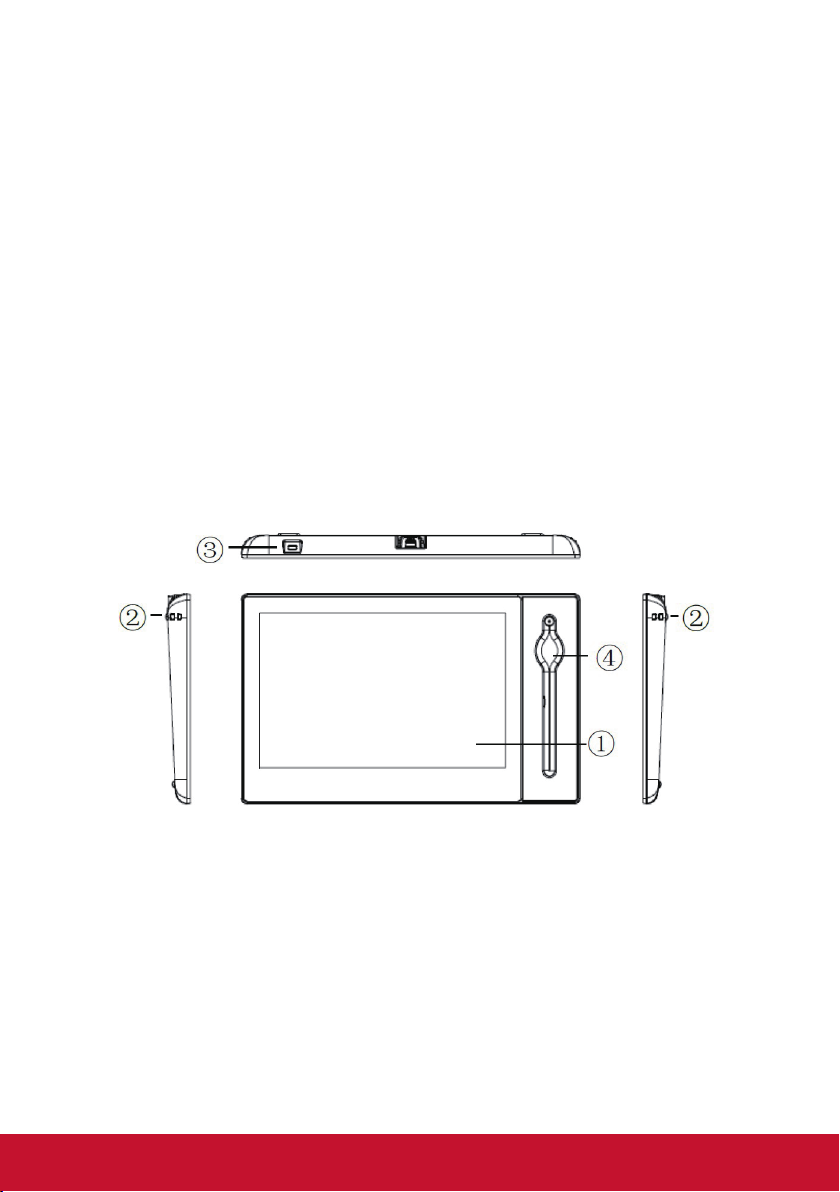

1.2.1 Front view and side view

①Display and electromagnetic pen touch area

② Rope hanging hole

③Kensington lock hole

④Pen slot

1.2.2 Rear view

⑤USB slot: signal input and power supply

⑥ Large and small supports (x2), can be extended or retracted

⑦ Rubber foot pad (x4)

⑧Nameplate sticker

Note: please don't open the enclosure, which exists electric shock hazard.

Please contact with the service personnel for any problem.

1.2.3 Interactive electromagnetic pen

The interactive electromagnetic pen is made with electromagnetic

resonance technology and does not require batteries.

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic VS10773 Guide de référence

ViewSonic

ViewSonic VX2435wm Manuel utilisateur

ViewSonic

ViewSonic VX2033wm Manuel utilisateur

ViewSonic

ViewSonic VX3418-2K-PRO Manuel utilisateur

ViewSonic

ViewSonic PD1013 Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VE700 Manuel utilisateur

ViewSonic

ViewSonic VA905 Manuel utilisateur

ViewSonic

ViewSonic VS17984 Manuel utilisateur

ViewSonic

ViewSonic VX510 Manuel utilisateur

ViewSonic

ViewSonic Q2201wb - Optiquest - 21.6" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic E91fB Manuel utilisateur

ViewSonic

ViewSonic Q72B - Optiquest - 17" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic A75F Manuel utilisateur

ViewSonic

ViewSonic VG2732m-LED Manuel utilisateur

ViewSonic

ViewSonic VA1912-LED Manuel utilisateur

ViewSonic

ViewSonic VX2336s-LED Manuel utilisateur

ViewSonic

ViewSonic VX1962wm - 19" LCD Monitor Guide de démarrage rapide

ViewSonic

ViewSonic Optiquest Q20WB Manuel utilisateur

ViewSonic

ViewSonic VP2130B - 21.3" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VA2447-LED Manuel utilisateur

ViewSonic

ViewSonic EP4220 Manuel utilisateur

ViewSonic

ViewSonic SD-T245 Manuel utilisateur

ViewSonic

ViewSonic VX2753MH-LED VS13918 Manuel utilisateur

ViewSonic

ViewSonic VX2778-smhd Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
