ViewSonic CDE5560T Manuel utilisateur

55’’(54.6’’ viewable) Interactive

Large Format Display

CDE5560T



The ViewSonic CDE5560T 55’’(54.6’’ viewable) Full HD interactive LED display solution is perfect for business

and education. This 10-point touch-enabled display, paired with pre-installed annotation software, allows

multiple users to simultaneously write or draw on the display’s hardness surface using fingers or stylus. A Full

HD screen guarantees crisp and vivid image quality, while 350-nit brightness and wide viewing angles

provide better visual performance in well-lit rooms. With built-in dual core processor and 8GB internal

storage, as well as integrated versatile connectivity including HDMI, VGA, YPbPr, RS232, RJ45 and USB ports,

this display provides powerful computing for annotation and multimedia playback without the need for a PC.

This Energy Star certified display delivers optional slot-in PC (NMP710) capability, offering Windows®8

Professional (64 Bit) OS and ViewBoard annotation software for more computing-intensive interactive

applications. The CDE5560T is VESA mountable (wall mount kit WMK-047 included for Europe region) or

choose the optional trolley cart for flexible installation for classrooms and corporate meeting rooms.

Pre-installed convenient annotation software

ViewSonic’s easy-to-use ViewBoard Lite software is pre-installed on CDE5560T display. This software lets you

write, edit, and transform documents and images on-screen in real-time for convenient, real-time annotation.

Presenters and teachers can now interact with the screen to create lecture notes or amend collaborative

documents that can be instantly saved and shared.

10 point touch interactive capabilities for

collaboration with multiple users

With 10-point simultaneous touch technology, the CDE5560T encourages group interaction. Multiple users

can simultaneously write or draw on this larger-sized display’s 7H hardness surface using styluses or their

fingers – or both at the same time! And its superior touch report rate provides a smoother user touch

experience for both educational and corporate applications.

Easy for presentation without the needs of PCs

Equipped with a powerful dual-core processor, the CDE5560T provides smooth and fast computing for todays

demanding applications. This large format display is able to playback presentation files and multimedia

contents directly from onboard 8GB memory, USB drive, and even surf the Internet via the LAN connection.

Superior screen performance enhances

presentation quality

This large format display features a 1920 x 1080 resolution, 350 nits brightness and 1400:1 contrast ratio,

delivering sharp and crisp image performance for in-door environment. The display also features wide

viewing angles, delivering true and consistent color performance and ensures the audiences at the corners in

the boardroom and classroom can see the presentation files clearly.

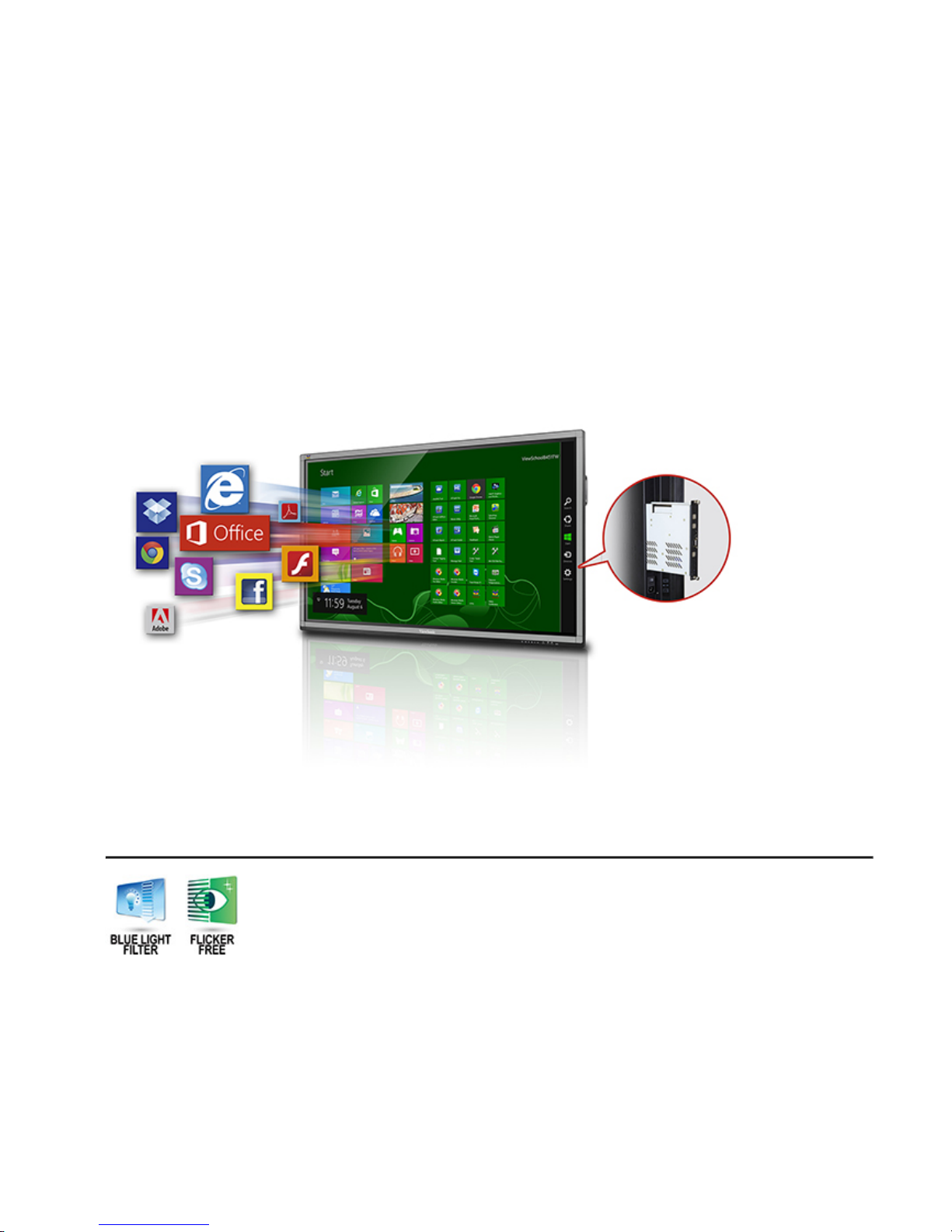

Optional slot-in PC with Windows® 8

Professional (64Bit) OS and ViewBoard 2.0

whiteboard annotation software

Utilizing powerful Intel® i5 processors, ViewSonic’s optional NMP710-P8 slot-in PC provides powerful

computing capabilities. This means smooth, high-speed video and gaming performance, high-definition

graphics and more. It comes with a Windows®8 Professional (64Bit) operating system that also allows you to

browse the Internet, use Office Suite applications, and download all types of time-saving applications. In

addition, with bundled ViewBoard 2.0 whiteboard annotation software, it provides comprehensive tools to

write, take note, and various educational template to enhance teaching efficiency.

Note:

-PC-Module NMP710-P8 needs to be ordered seperately and is not automatically included in CDE5560T.

-ViewBoard 2.0 software is available for download in the download section and can be used with external

Windows 8 computer when connected to ViewBoard.

Eye-Care technologies create comfort viewing

environment

The CDE5560T adopts exclusive Flicker-free and Blue Light Filter eye-care technologies. By nearly eliminating

screen flickering at all brightness levels by providing a constant LED light source and reduce blue light

exposure, the display ensures longer viewing time and increase eye comfort for presentation and multimedia

experience – without eye fatigue.

Flexible Installation through Versatile

Connectivity

The CDE5560T integrates 3 x HDMI, 3 x VGA and component inputs for more flexible installations. In addition,

its PIP (picture in picture) function lets a presenter show more by selecting an additional high-definition input

signal to make presentations more interesting. The display also boasts 4 USB ports for more flexible

connection to an array of peripheral devices. With 3 integrated USB 2.0 ports and 1 USB 3.0 port, you can

leverage faster data transfer speeds, and connect to the rest of your must-have digital devices.

RS232 Connectivity for Easy Multi-device

Management

RS232 connectivity enables computers and laptops to be connected to the CDE5560T. RS232 connectivity

also allows IT personnel to conveniently manage multiple displays, configure devices, and upgrade firmware

from a centralized location. This provides organizations the ability to better maintain and control large

numbers of displays from a single location.

Protective ID design ensures durability

A rounded-corner design provides a safer learning environment for active students by helping to prevent

injuries in the classroom and it features 7H scratch-resistant surface hardness that ensures durability, as well

as a consistent, high-quality touch experience. In addition, an anti-glare film improves screen visibility in

bright environments.

Energy-Saving LED backlight

The CDE5560T utilizes an energy-saving LED backlight that consumes 35% less power than conventional

CCFL backlight displays. This provides for a lower overall cost of ownership, along with a higher ROI, making

this display a great long-term investment.

Accessories for improved usability and mobility

The convenient magnetic pen holder on the bottom-left bezel (see picture) frees up space and keeps the

styluses firmly in place. Utilizing this function will help save space and keep things organized, creating a

healthy working or learning environment. Although the CDE5560T can be wall mounted for a solid and safe

user touch experience, we also offer an optional trolley mount (LB-STND-003) that provides the flexibility of a

mobile display.
