CO detector
Safety instructions
Please follow these safety instructions closely to prevent accidents
and material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note"
contain additional information.
Installation, initial start-up, inspection,
maintenance and repairs must only be
carried out by a competent person
(heating engineer/installation contrac-
tor).
Before working on the equipment/heat-
ing system, isolate the power supply
(e.g. by removing a separate mains
fuse or by means of a mains isolator)
and safeguard against unauthorised
reconnection.
When using gas as fuel, also close the
main gas shut-off valve and safeguard
against unauthorised reopening.
Repairing components which fulfil a
safety function can compromise the
safe operation of your heating system.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
Exclusion of liability
No liability is accepted for loss of prof-
its, failure to make savings or other
direct or indirect consequential losses
arising from use of the CO detector, or
for losses arising from improper use.
2
Monitoring device for safety shutdown
of the boiler in the event of escaping
carbon monoxide.
Alarm threshold: 50 ppm CO to
EN 50 291-1
This device has been developed to pro-
vide protection from the acute effects of
contact with carbon monoxide.
Danger
The CO detector may not pro-
vide adequate protection for
people with particular medical
conditions.
If in doubt, please consult your
doctor. People with relevant
medical conditions should use
an alarm that generates an audi-
ble or visible warning even at
carbon monoxide concentrations
of under 50 ppm.
Danger
The following substances can
affect CO detectors and may
trigger a false alarm: ethylene,
ethanol, alcohol, isopropanol,
petrol, toluene, ethyl acetate,
hydrogen, hydrogen sulphide
and sulphur dioxide.
Do not use the above substan-
ces in the room in which the CO
detector is installed.
Product information
5777 134 GB
3
A
B
C
D
Indicators:
ATest button
BOperate (green LED)
CError/test (yellow LED)
DAlarm/test (red LED)
Acoustic signal:
When the alarm or test is triggered, an
alarm tone will sound.
Product information (cont.)
5777 134 GB
4
Function
!Please note
Fault-free function of the CO
detector can be guaranteed only
if it is correctly connected to the
control unit.
■ Connect as shown on
page 7.
■ Do not route the connecting
cable in the immediate vicinity
of power cables.
The green indicator illuminates when
the device is operational.
If the CO concentration exceeds the
specified limit, an alarm signal is sent to
the boiler control unit. This turns off the
burner in the boiler. The red and green
indicators illuminate and the alarm tone
sounds.
If the CO concentration falls below
30 ppm, the red LED and the alarm sig-
nal to the control unit are switched off.
This re-enables the burner. The alarm
tone stays on to signal that an
increased CO concentration was detec-
ted earlier. To switch the alarm tone off,
press the test button once or turn the
control unit off and back on again at the
ON/OFF switch.
Note
The function of the CO sensor is contin-
uously monitored during operation. If
the sensor is faulty, the yellow indicator
illuminates and a fault message is dis-
played on the control unit.
Boiler service instructions
Service life
Replace the CO detector after 10 years
in operation.
For the replacement date, see
"Replace by date" on the CO detector.
Product information (cont.)
5777 134 GB
5
■ In the vicinity of the appliance being
monitored
■ Close to the ceiling; carbon monoxide
is lighter than air and therefore rises
Installation location
5777 134 GB
6
Do not install the CO detector in the
following areas:
■ Places where an escape of gas could
fail to trigger the alarm, e.g. behind
curtains or in cupboards
■ Places where water could be
splashed or sprayed, e.g. above a
washbasin
■ Places of high humidity, e.g. next to a
cooker
■ In draughts caused by open win-
dows, doors or air vents (ventilation
or air conditioning)
■ Areas where dust or dirt could cause
the sensor to stop working
■ In rooms where there is a risk of
explosion

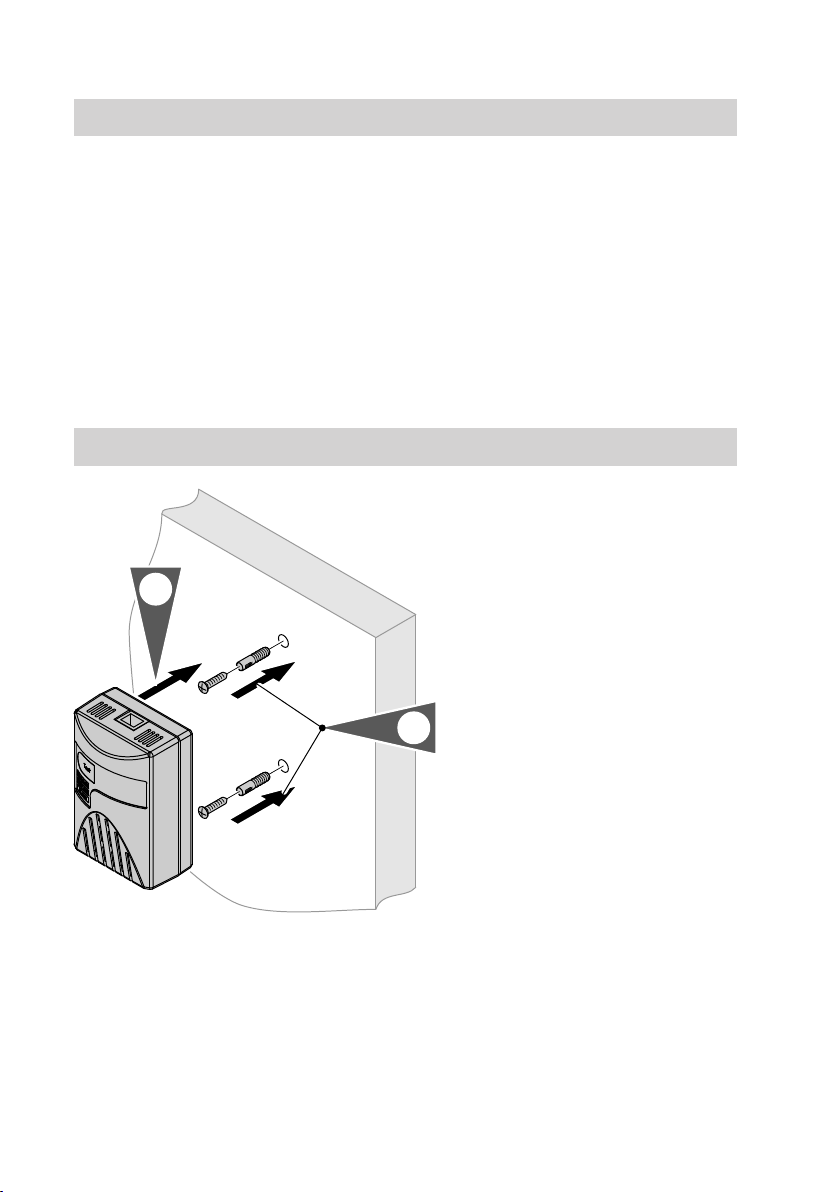

Mounting the CO detector
2.
1.
Installation location (cont.)
5777 134 GB
7
Danger
Incorrect wiring can lead to seri-
ous injury from electrical current
and result in appliance damage.
Take the following measures to
prevent wires drifting into the
adjacent voltage area:
Route LV leads < 42 V sepa-
rately from cables
> 42 V/230 V~/400 V~ and
secure with cable ties.
X4
X21
A
BC
VCC
GND
CO
AVitotronic control unit main PCB
BConnecting cable with plug (stand-
ard delivery)
CCO detector
Connecting the CO detector to the control unit
5777 134 GB
8
1. Open the control unit enclosure.
Boiler installation and serv-
ice instructions
2. Insert the CO detector plug into slot
X21 on the main PCB.
Starting the CO detector
Switch ON the power supply via the
control unit.
All 3 LEDs will flash several times as
the self-test is carried out. After it has
been successfully completed, the green
LED stays on constantly. The CO
detector is ready for operation.
Maintenance and function check
The CO detector is maintenance-free.
Its function should be checked once a
year by a contractor (see following
chapter).
Function test
For the function test, press the test but-
ton.
If the following 4 responses occur, the
CO detector is ready for operation:
■ The yellow LED illuminates con-
stantly.
■ The red LED illuminates constantly.
■ The alarm tone sounds.
■ A fault message is displayed on the
control unit.
If not all responses occur, check the
connection to the control unit and
replace the device if necessary.
Note
If the burner is in operation during the
function test it will be switched off and
blocked.
Connecting the CO detector to the control unit (cont.)
5777 134 GB
9
Heating system maintenance
Regardless of whether a CO detector is
fitted, service the heating system com-
ponents in accordance with the installa-
tion and service instructions and check
them for correct function.
Specification
Rated voltage 24 V– from control unit
Alarm threshold 50 ppm CO to EN 50 291-1
Signal PWM signal
Protection class II
IP rating IP 20 to EN 60 529
Service life Approx. 10 years
Permissible ambient temperature 0 to +40 °C
Air humidity Max. 90 % non-condensing
Acoustic alarm 85 dBA/1 m
Sensor Electrochemical
Declaration of Conformity
CO detector
We, Viessmann Werke GmbH & Co. KG, D-35107 Allendorf, declare as sole
responsible body that the named product complies with the provisions of the follow-
ing directives and regulations:
2014/30/EU EMC Directive
2014/35/EC Low Voltage Directive
Maintenance and function check (cont.)
5777 134 GB
10
Applied standards:
EN 50270: 2015
EN 50271: 2010
EN 50291-1: 2010 + A1: 2012
EN 60335-1: 2012 + AC: 2014
EN 60730-1: 2011
EN 61000-4-2: 2009
EN 61000-4-3: 2006 + A1: 2008 + A2: 2010
EN 61000-4-4: 2012
EN 61000-4-6: 2014
EN 61000-6-3: 2007 + A1: 2011 + AC: 2012
EN 61508-2: 2010
EN 61508-3: 2010
In accordance with the listed directives, this product is designated with .
Allendorf, 20 April 2016 Viessmann Werke GmbH & Co. KG
Authorised signatory Manfred Sommer
Declaration of Conformity (cont.)
5777 134 GB
