VITOCAL 300-A

VITOCAL 350-A

Natural Heat

Air source heat pumps

Top technology for top performance

The Vitocal 300-A is the ﬁrst air/water heat

pump with digital scroll technology and an

electronic bi-ﬂow expansion valve. This

means it achieves an extremely high

Coefﬁcient of Performance of 3.5 (air 2 °C/

water 35 °C) and therefore high seasonal

performance factors too. What's more, it

accounts for the particularly reliable heat

supply of the Vitocal 300-A, as well as

providing signiﬁcantly lower running costs.

RCD: Always as much heat as you need

RCD stands for Refrigerant Cycle Diagnostic

system. This is responsible for permanently

monitoring the heat demand and the output

made available by the Vitocal 300-A. It

uses this information to match the two and

can therefore achieve the highest level of

efﬁciency at every operating point.

Not only quiet at night

Particularly quiet operation is ensured by a

radial fan with variable speed control and a

reduced fan speed for night operation.

Everything you need

Every household has different heat demands

and the conditions for installing a heat pump

vary. The range of accessories for the Vitocal

300-A is suitably ﬂexible and comprehensive.

Subject to demand, the heat pump can be

supplied fully equipped. This means the

heating circuit pump, expansion vessel and

safety equipment have already been fully

ﬁtted. Even the modular electric instantaneous

heater can be easily integrated. In conclusion,

Viessmann has the complete product range to

meet the demands of any installation you

require – inside or out.

Monitor and control from wherever

you are

With the new control unit in the Vitocal 300-A,

you can simply connect your heat pump to the

Vitocom 100. This gives you the option of

conveniently operating your heating system

via your mobile phone if you wish.

Cooling – no problem

Thanks to its reversible operation, the

Vitocal 300-A can also be used for cooling.

Convectors or surface cooling systems with

a cooling capacity of up to 8.6 kW give you

the ﬂexibility to make your living area even

more pleasant.

Vitocal 300-A

1Radial fan

2Evaporator

3Digital scroll compressor

4Condenser

Vitocal 300-AHeat pumps

Vitocal 300-A is

certiﬁed in accordance

with the EHPA heat

pump quality seal and

NF-PAC.

You'll really appreciate the Vitocal 300 -A for its quiet

operation. This is achieved by a special radial fan with

variable speed control, and the reduced fan speed during

night operation.

Take advantage of these beneﬁts

Reversible air/water heat pump for heating and cooling for installation

inside and outside

Variable output control from 3.0 to 8.6 kW

High COP value (COP = Coefﬁcient of Performance) in accordance with EN 14511:

3.5 (air 2 °C/water 35 °C)

4.4 (air 7 °C/water 35 °C)

Maximum ﬂow temperature: up to 60 °C

Low operating noise through radial fan and reduced fan speed during

night operation

Efﬁcient defrosting through circuit reversal

Heat pump control unit for remote control and monitoring

Particularly quiet, outdoor silent version available

230 V single phase unit

Easy to operate Vitotronic 200 heat pump control

Technology that interacts perfectly – the RCD system, the

digital scroll technology and the electronic bi-ﬂow expansion

valve guarantee the highest level of efﬁciency at every

operating point.

Vitocal 350-AHeat pumps

Vitocal 350-A

1Inlet side

2Discharge side

3Evaporator

4Radial fan

5Hermetically sealed Compliant

scroll compressor

Ideal for modernisation

With the Vitocal 350-A air/water heat pump,

modernising is easy. The additional vapour

injection in the compression process (EVI

cycle) enables ﬂow temperatures up to 65 °C.

That makes it an ideal choice where older

heating systems with radiators are installed.

The heat pump draws its energy from the

ambient air without needing to drill boreholes

for geothermal probes.

High DHW convenience

Subject to model type, a higher ﬂow

temperature enables a water temperature of

up to 55°C inside the DHW cylinder. This allows

the Vitocal 350-A to deliver a particularly high

DHW convenience. The Vitocal 350-A

achieves the high ﬂow temperature of 65 °C

even at outside temperatures of -10°C.

RCD guarantees efﬁcient operation

RCD stands for Refrigerant Cycle Diagnostic

system. In the Vitocal 350-A, it is responsible

for permanently monitoring the refrigerant

circuit. This, in conjunction with the electronic

expansion valve (EEV) ensures the highest

efﬁciency at every operating point. Alongside

this, important operating parameters are

saved and called up, when required, for

diagnosis, optimisation, energy statements

and to calculate the seasonal efﬁciency.

Vitocal 350-A is tested

in accordance with

the EHPA heat pump

quality seal.

The Compliant scroll compressor will win you over with its

inner values of reliability, safety and quietness.

Take advantage of these beneﬁts

400 V three phase air/water heat pump, mono-mode with a heating output of

10.6 to 18.5 kW for heating and DHW heating

Particularly suitable for modernisation (even for existing radiator systems) due to

65°C ﬂow temperature, even at winter outside temperatures

DHW temperature subject to model type up to 55 °C

Low COP value (COP = Coefﬁcient of Performance) in accordance with EN 14511:

3.5 (air 2 °C/water 35 °C)

4.1 (air 7 °C/water 35 °C)

High efﬁciency all year round at any operating point and therefore low

consumption costs through innovative RCD (Refrigerant Cycle Diagnostic)

system with an electronic bi-ﬂow expansion valve (EEV)

Low operating noise through radial fan, sound-optimised design and night

operation with reduced fan speed

New heat pump control unit with telecontrol and remote monitoring for connection

to Vitocom 100 and cascade function for up to ﬁve heat pumps

Installation inside or outside with matching accessories

Easy to operate Vitotronic 200 heat pump control unit

Efﬁcient defrosting through circuit reversal

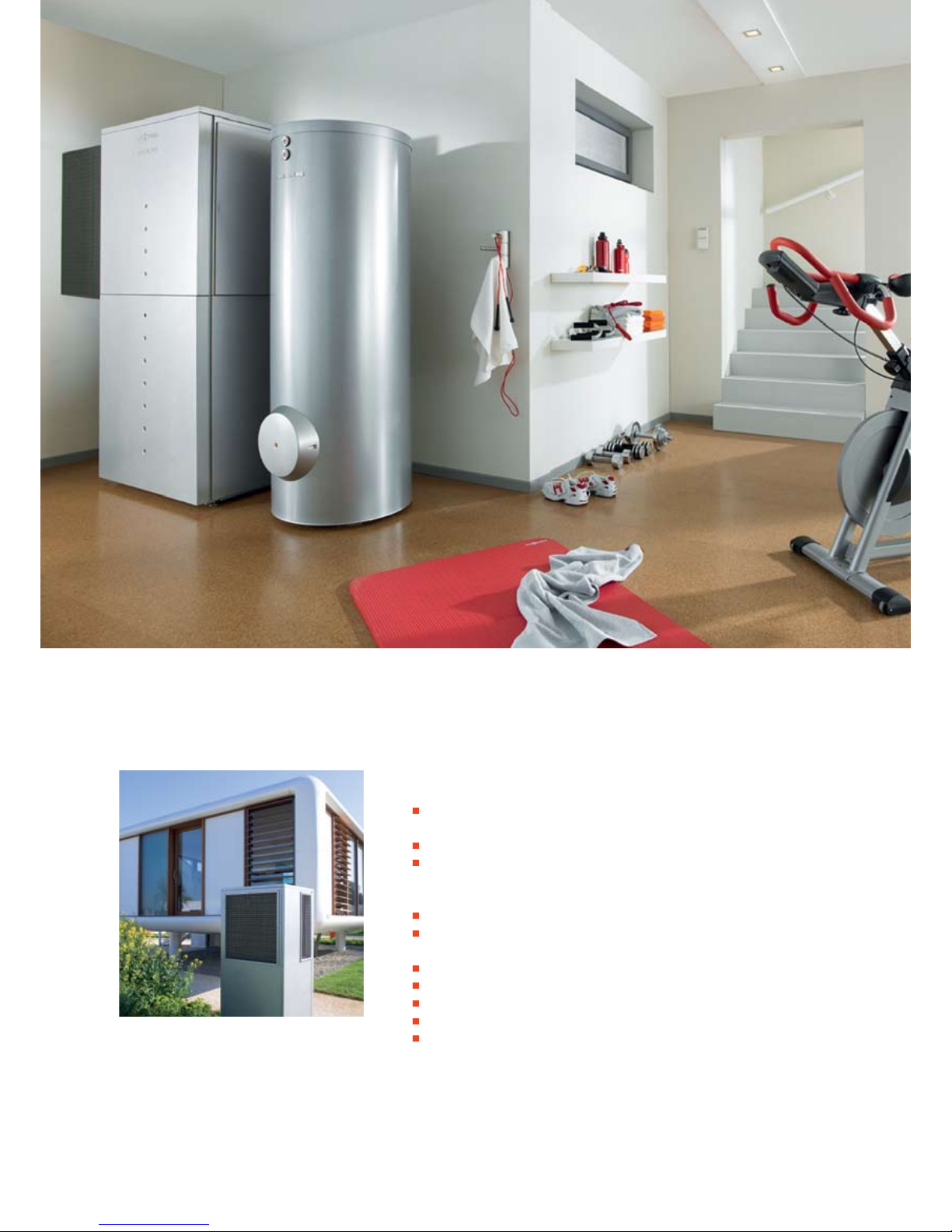

Vitocal 350-A for installation inside

Viessmann Limited

Hortonwood 30, Telford

Shropshire, TF1 7YP

Tel: 01952 675000

Fax: 01952 675040

www.viessmann.co.uk

Technical Data

9440 091 GB 02/2012 Copyright Viessmann

Duplication and alternative use only with prior written consent. Subject to technical modiﬁcations.

Vitocal 350-A, Typ AWH-I Vitocal 350-A, Typ AWH-O

Länge

Höhe

Breite

Height

Depth

Width

Länge

Höhe

Breite

Height

Depth

Width

Vitocal 350-A Type AWH-I 110 AWH-I 114 AWH-I 120 AWH-O 110

AWH-O

114

AWH-O

120

Output data

(EN 14511, A2/ W35°C, Delta T 5K)

Rated output

Power consumption

Coefﬁcient of performance (COP)

in heating mode

10.6

2.9

3.6

14.5

4.2

3.5

18.5

5.8

3.2

10.6

2.9

3.6

14.5

4.2

3.5

18.5

5.8

3.2

Overall dimensions

Depth

Width

Height

946

880

1 870

946

1 030

1 870

946

1 200

1 870

1 265

1 380

1 885

1 265

1 530

1 885

1 265

1 700

1 885

Overall weight kg 287 297 361 325 335 400

External

Internal

Vitocal 300-A, Type AWC-I Vitocal 300-A, Type AW-O

Länge

Höhe

Breite

Height

Width Depth

Länge

Höhe

Breite

Height

Width

Depth

Vitocal 300-A Type AWC-I AW-O AW-O

Output data 100 %

(EN 14511, 2/35°C, Delta T 5K)

Rated output

Power consumption

Coefﬁcient of performance (COP)

in heating mode

Coefﬁcient of performance (COP)

(Air 7°C/Water 35°C)

Output control

Cooling output (Air 27°C/ Water 7°C)

8.6

2.4

3.5

4.4

3 to 8.6

8.6

2.4

3.5

4.4

3 to 8.6

8.6

2.4

3.5

4.4

3 to 8.6

8.6

Overall dimensions

Depth x Width x Height mm 946 x 880 x 1 870 946 x 880 x 1 885 1 265 x 1 380 x 1 885

Overall weight kg 289 279 309

Outdoor

Indoor Outdoor silent
