Advantix clamping ring
Instructions for Use
Advantix clamping ring 2 from 9
Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Intended use 6
2.1.1 Areas of use 6
2.2 Product description 6
2.2.1 Overview 6
3Handling 7
3.1 Assembly information 7
3.1.1 Installation dimensions 7
3.1.2 Tools and materials 7
3.2 Assembly 8
3.3 Disposal 9
Table of contents
Advantix clamping ring 3 from 9
1 About these instructions for use
Trade mark rights exist for this document; for further information, go to
viega.com/legal
.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nTilers
It is not permitted for individuals without the abovementioned training or
qualification to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
Notes give you additional helpful tips.
About these instructions for use
Advantix clamping ring 4 from 9
1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand-
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Advantix clamping ring 5 from 9
2 Product information
2.1 Intended use
2.1.1 Areas of use
The Advantix clamping ring is intended for fastening a sealing collar on
an Advantix drain.
2.2 Product description
2.2.1 Overview

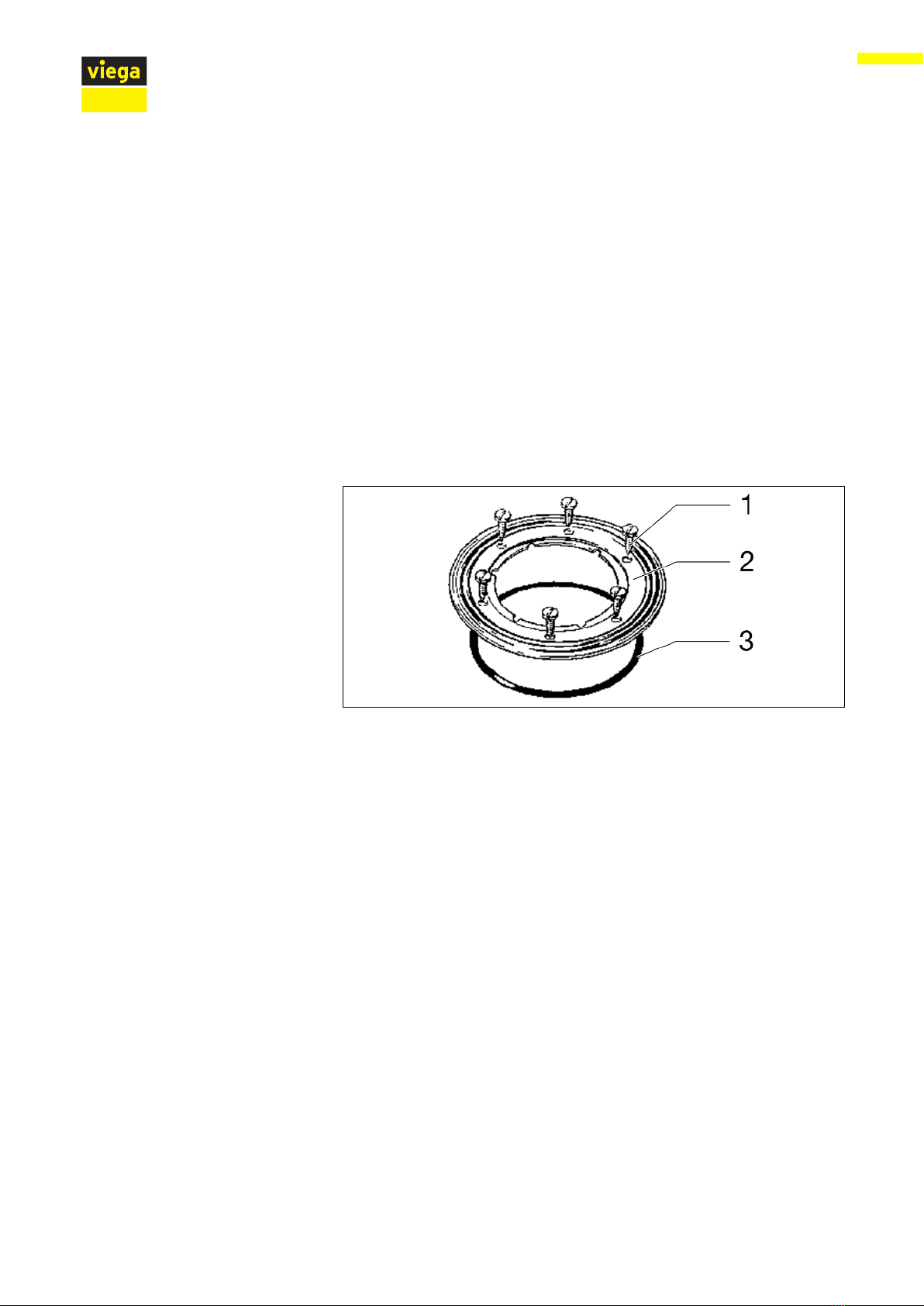

Fig. 1: Scope of delivery
1 fixing screws
2 clamping ring, stainless steel
3 sealing element
Product information
Advantix clamping ring 6 from 9
3 Handling
3.1 Assembly information
3.1.1 Installation dimensions

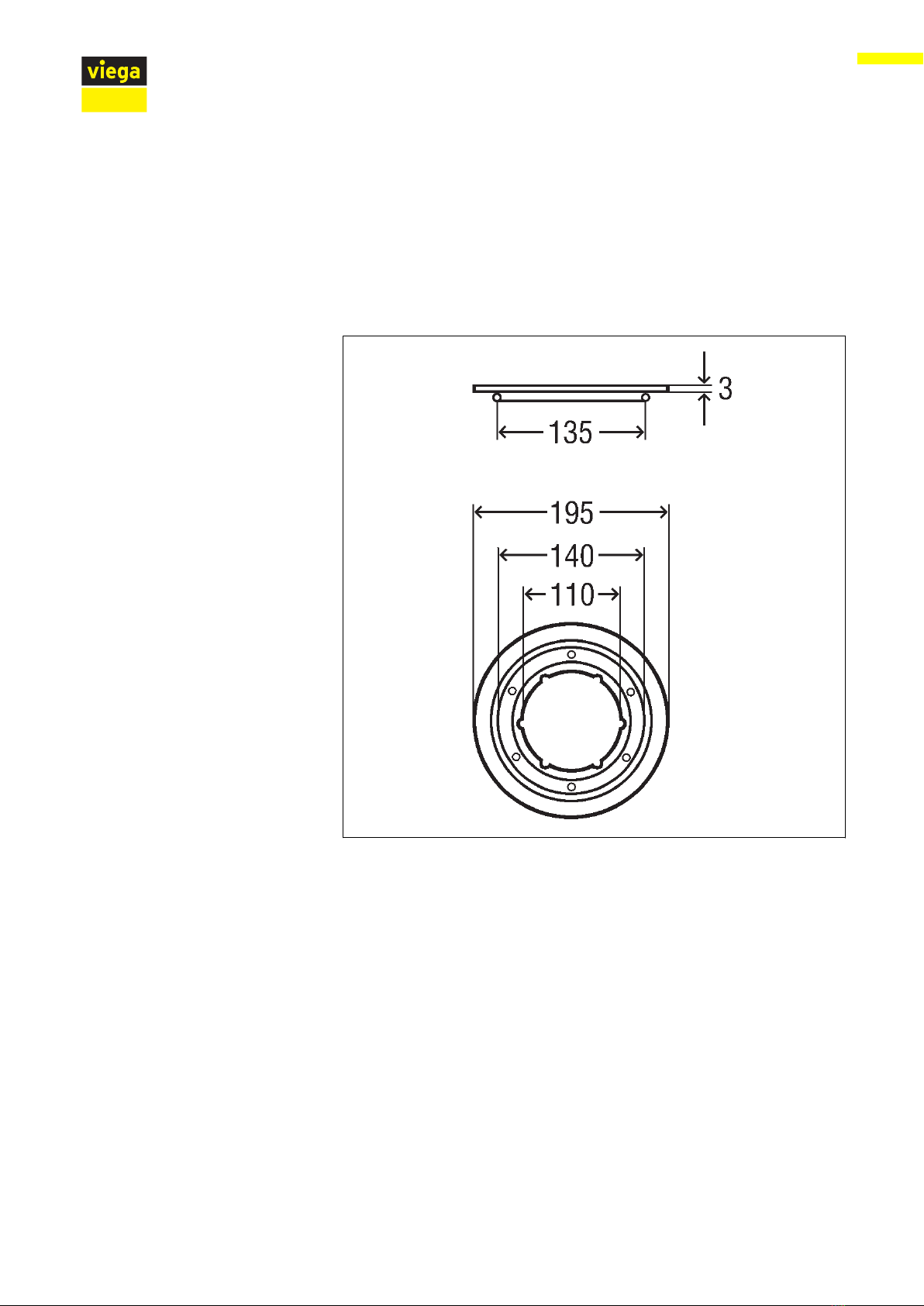

Fig. 2: Dimensional drawing
3.1.2 Tools and materials
nscrewdriver
nsealing collar
Required tools
Required material
Handling
Advantix clamping ring 7 from 9
3.2 Assembly
Requirements:
nThe drain has been mounted.
nA suitable sealing collar is available.
nThe flange is free of heavy soil.
nThe complete surface of the flange is lined with material and undam-
aged.
If required, clean the flange of coarse soil (e. g. from screed).

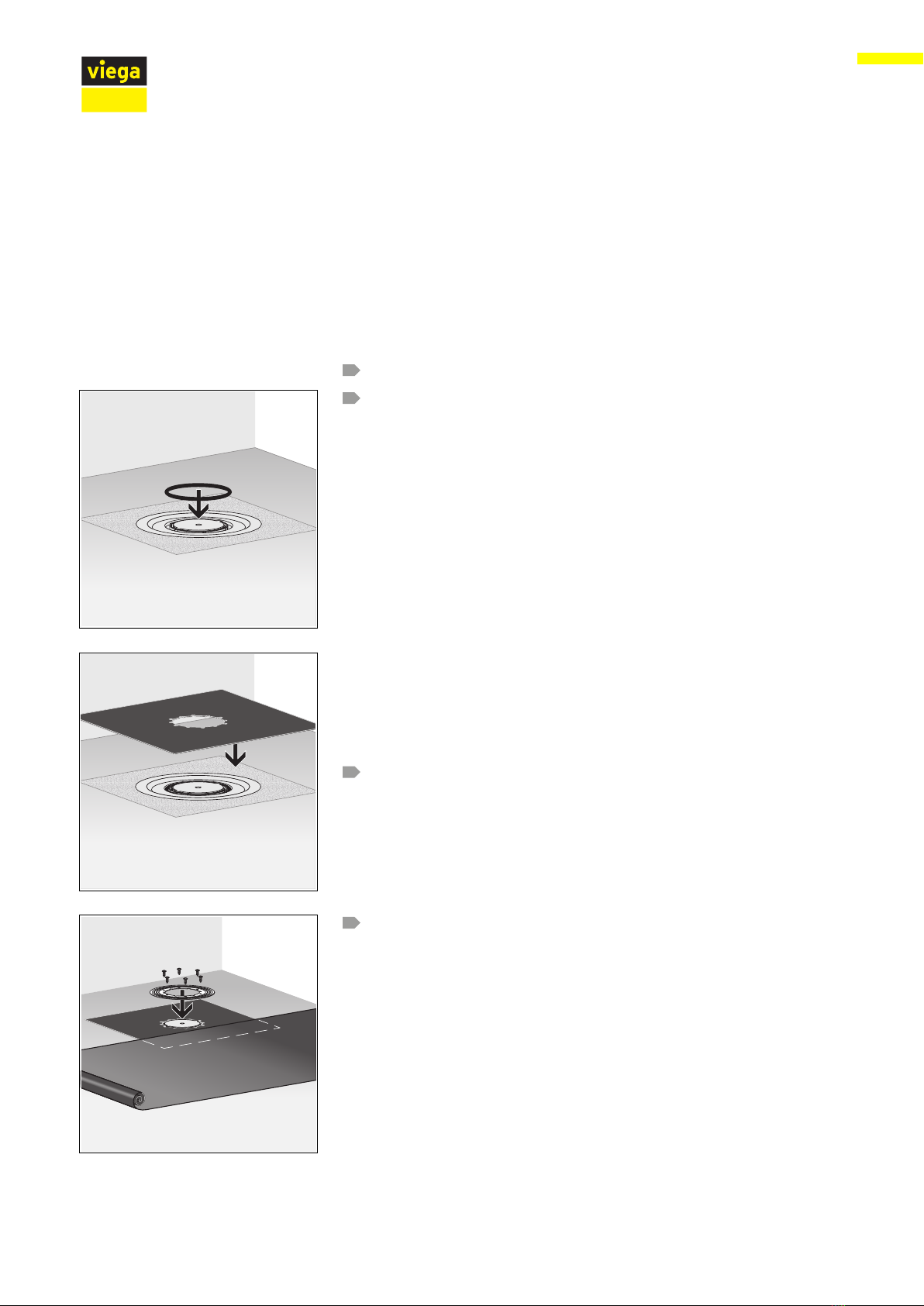

Insert sealing ring.
The sealing ring must lie in the groove between the flange and the
screw holes.
INFO! The Viega sealing collar has two differently coated sides.
One side is coated with bitumen and the other side with EPDM. If
the additional sealing takes place with bitumen sealing lanes, the
sealing collar must be used with the bitumen side facing
upwards. If EPDM sealing lanes are used, the EPDM side must
face upwards.
Position the sealing collar in such a way that the screw holes are
visible through the recesses.
Position the clamping ring on the sealing collar in such a way that
the screw holes are visible through the recesses.
Handling
Advantix clamping ring 8 from 9

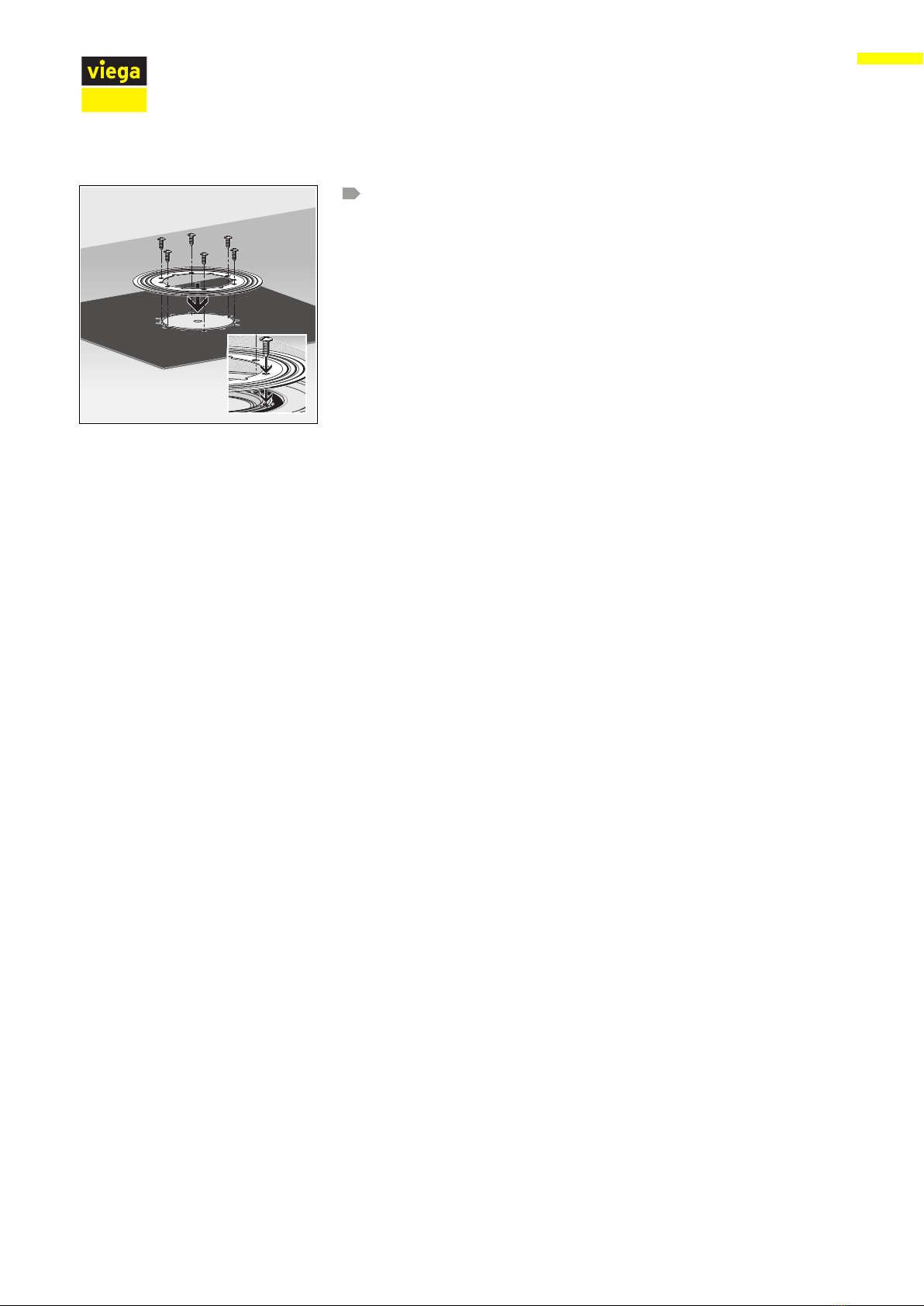

Screw the clamping ring tightly to the flange.
Thread in the mounting screws in the screw holes only.
ðThe drain is sealed and the remaining sealing collars can be
laid.
3.3 Disposal
Separate the product and packaging materials (e. g. paper, metal,
plastic or non-ferrous metals) and dispose of in accordance with valid
national legal requirements.
Handling
Advantix clamping ring 9 from 9
