Videx 6231 Manuel utilisateur

66251140-EN - V1.3 - 15/06/16

6200 Series

Art.6231 - Installation instructions

Art.6231 3.5" colour display videophone

27 mm 144 mm

182 mm

Fig. 1

VIDEOPHONE FOR 4+1 SYSTEMS WITH BALANCED VIDEO SIGNAL NON COAX ART.6231

Videophones with 3.5”colour LCD TFT monitor for video systems using balanced video signal (non coax).

Are made from white ABS shockproof plastic and the installation is surface mounting.

PUSH BUTTONS

Activates the electric lock (door-open) only when the videophone is on and the handset is picked up.

Switches on the system and displays the video from the outdoor station on the videophone (camera recall).

By picking up the handset and pressing the “door-open”push button it is possible to open the door.

Service push button or camera recall depending on JP1 jumper position (see Table 1 - Jumper settings for Art.6231

on page 2).

Service push button or camera recall depending on JP2 jumper position (see Table 1 - Jumper settings for Art.6231

on page 2).

CONTROLS

Switch to adjust the call tone volume and enable the privacy service. In the middle position the volume is standard,

in right position the volume is high while in the left position privacy is enable: the LED under the symbol will

illuminate. When the service is enabled the videophone receives calls showing the video from the door panel but

doesn’t ring. The privacy mode may be disabled moving the switch to the middle or right position.

Adjusts the picture brightness: right rotation to increase, left rotation to decrease.

PT3 Contrast (internal trimmer – rotate clockwise to increase, anticlockwise to decrease).

PT2 Hue (internal trimmer – rotate clockwise to increase, anticlockwise to decrease).

66251140-EN - V1.3 - 15/06/16

6200 Series

Art.6231 - Installation instructions

JUMPER SETTINGS

There are 3 internal jumpers (JP1-JP3). The rst 2 jumpers are for service push button functions the third sets the videophone as

either a master or a slave (this function is often used for videophones with parallel connections). Table 1 on page 2 shows the

default conguration for these jumpers and the available congurations.

TERMINALS AND RELEVANT SIGNALS

Table 2 on page 2 shows the functions available on the terminals. The table also shows (for compatibility with older systems)

the terminal markings used on the 900 series and 3000Series.

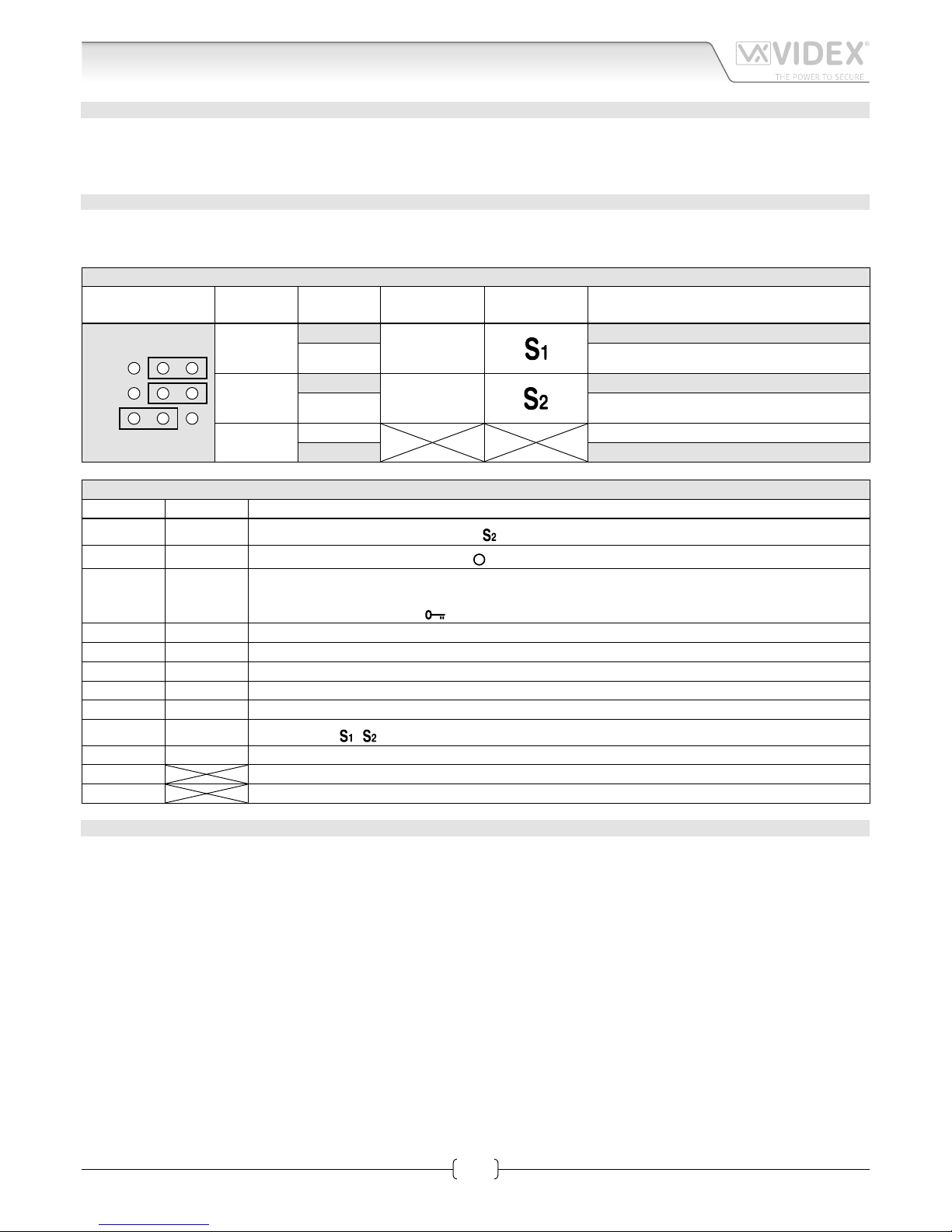

Table 1 - Jumper settings for Art.6231

Jumper Jumper

position Pin connector Button Push button function

B A

JP1

JP2

JP3

JP1

Linked to pin connector “T”.

BCamera recall.

JP2

Linked to pin connector “T”.

BCamera recall.

JP3 AMonitor switched o during call tone.

BMonitor switched on during call tone.

Table 2 - Art.6231 videophone signals

Art.6231 Art.3X31 Signal description

2T 13 See Table 1 on page 2 - push button

C 3 Camera recall button - push button

1 4

Call tone input.

Input/Output speech line.

Door opening – push button

 5 Negative power input 0 Volt.

+ 6 Positive power input +15 - 20Vdc 0.45A.

V2 7 Video input +sync.

V1 8 Video input –sync.

CP 9 Local call tone input (at bell etc.).

T 11 Push buttons , common terminal.

1T 12 See Table 1 on page 2 - push button

DL Door open LED +12Vdc input

12VI 12Vdc power input for LED privacy

TECHICAL SPECIFICATION

Voltages: 20Vdc (+2-5V)

Power consuption: Stand-by: 0mA

Operating: 100mA max

Art.6231 3.5" colour display videophone

66251140-EN - V1.3 - 15/06/16

6200 Series

Art.6231 - Installation instructions

Art.6231 3.5" colour display videophone

66251140-EN - V1.3 - 15/06/16

6200 Series

Art.6231 - Installation instructions

Art.6231 3.5" colour display videophone

66251140-EN - V1.3 - 15/06/16

6200 Series

Art.6231 - Installation instructions

6200 Series Videophone wall mounting instructions

1. In order to install the videophone, it is necessary to remove the cover, which contains all the electronics, from the base: rstly

disconnect the handset from the videophone (by removing its plug from the videophone), then press lightly the bottom part of

the videophone and simultaneously pulling outwards the upper part as shown in Fig. 1.

2. Put the base of the unit on the wall at approx 135cm from the nished oor to mark the points for the xing holes “A” (Fig. 2)

remembering that the wires “D” (Fig. 3) must be fed through the hole “E” (Fig. 3). If you use the ush mounting box 503, embed

it into the wall vertically at approx. 140cm from the nished oor and the base.

3. Following Fig. 3, make the holes “A”, insert the wall plugs “B” and x the base with the screws “C” feeding the wires “D” into

the hole “E”. If you have used the box 503, x the base to the wall through the holes “F” using the screws “C”.

4. As shown in Fig. 4A, connect the wires to the removable terminals following the provided installation diagram. Connect the ter-

minal blocks to the electronics contained in the cover as shown in Fig. 4B. Reinsert the handset and test system before closing.

Note: Contrast and hue trimmers can be adjusted only if the videophone is open. Note while testing the system, it is

advisable to hold the cover with your hand closing manually the hook switch of the handset (see Fig. 4B reference“G”).

5. Once testing is complete and all the necessary adjustments are made, disconnect the handset from the cover and close the unit

as shown in Fig. 5: rst hook it on the bottom then push in the top until you hear the clip.

6. Reconnect the handset and hang it as shown in Fig. 6.

Fig. 1

Fig. 4

135cm

Fig. 2

Fig. 5

Fig. 3

Fig. 6

66251140-EN - V1.3 - 15/06/16

6200 Series

Art.6231 - Installation instructions

Note

66251140-EN - V1.3 - 15/06/16

6200 Series

Art.6231 - Installation instructions

Note

MANUFACTURER

VIDEX ELECTRONICS S.P.A.

Via del Lavoro, 1 - 63846 Monte Giberto (FM) Italy

Tel (+39) 0734 631669 - Fax (+39) 0734 632475

www.videx.it - inf[email protected]

CUSTOMER SUPPORT

All Countries:

VIDEX ELECTRONICS S.P.A.

www.videx.it - technical@videx.it

Tel: +39 0734-631669 - Fax: +39 0734-632475

UK Customers:

VIDEX SECURITY LTD

www.videx-security.com

Tech Line: 0191 224 3174 - Fax: 0191 224 1559

The product is CE marked demonstrating its conformity and is for distribution

within all member states of the EU with no restrictions. This product follows

the provisions of the European Directives 2014/30/EU (EMC); 2014/35/EU

(LVD); 2011/65/EU (RoHS): CE marking 93/68/EEC.

Main UK oce:

VIDEX SECURITY LTD

1 Osprey Trinity Park

Trinity Way

LONDON E4 8TD

Phone: (+44) 0870 300 1240

Fax: (+44) 020 8523 5825

www.videx-security.com

marketing@videx-security.com

Northern UK oce:

VIDEX SECURITY LTD

Unit 4-7

Chillingham Industrial Estate

Chapman Street

NEWCASTLE UPON TYNE - NE6 2XX

Tech Line: (+44) 0191 224 3174

Phone: (+44) 0870 300 1240

Fax: (+44) 0191 224 1559

Greece oce:

VIDEX HELLAS Electronics

48 Filolaou Str.

11633 ATHENS

Phone: (+30) 210 7521028

(+30) 210 7521998

Fax: (+30) 210 7560712

www.videx.gr

[email protected]

Danish oce:

VIDEX DANMARK

Hammershusgade 15

DK-2100 COPENHAGEN

Phone: (+45) 39 29 80 00

Fax: (+45) 39 27 77 75

www.videx.dk

[email protected]

Benelux oce:

VIDEX BENELUX

E3 Iaan, 93

B-9800 DEINZE

Phone: (+32) 9 380 40 20

Fax: (+32) 9 380 40 25

www.videxbenelux.be

[email protected]
