Vidao DVD5500 Manuel utilisateur

DVD5500

INSTRUCTION MANUAL

1-11

DVD PLAYER

1080p UPCONVERTING HDMI

WARNINGS

•To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

•To reduce the risk of electric shock, do not open the cabinet. No user serviceable parts are inside.Refer servicing to

qualified personnel.

•This appliance uses a Laser System. To prevent direct exposure to the laser beam do not open the cabinet. Visible and

invisible laser radiation is present when the cabinet is open. Avoid direct exposure and do not stare into the beam.

•Batteries should not be exposed to excessive heat such as direct sunlight, fire, or other heat sources.

•Caution: Do not expose this appliance to dripping or splashing liquids. Do not put objects filled with liquid, such as vases on

or nearthe appliance.

•Caution: To turn this appliance off completely, the POWER cord must be unplugged from the wall outlet. The power cord must

be easily accessible at all times.

THE LIGHTNING FLASH WITH

ARROWHEAD SYMBOL, WITHIN AN

EQUILATERAL TRIANGLE, ISINTENDED

TO ALERT THE USER TO THE

PRESENCE OF NON-INSULATED

"DANGEROUS VOLTAGE" WITHIN THE

PRODUCT'S ENCLOSURE THAT MAY BE

OF SUFFICIENT MAGNITUDE TO

CONSTITUTE A RISK OF ELECTRIC

SHOCK TO PERSONS.

WARNING: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE THE

FRONT OR REAR COVER. NO USER

SERVICEABLE PARTS ARE INSIDE. REFER

SERVICING TO QUALIFIED SERVICE

PERSONNEL.

THE EXCLAMATION POINT WITHIN AN

EQUILATERAL TRIANGLE ISINTENDED TO

ALERT THE USER TO THE PRESENCE OF

IMPORTANT OPERATING AND

MAINTENANCE (SERVICING)

INSTRUCTIONS IN THE LITERATURE

ACCOMPANYING THE APPLIANCE.

FCC WARNINGS

WARNING: Changes or modifications to this unit not expressly approved in this manual could void the user’s authority to operate

the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that

produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third grounding prong. The wide blade and/or the third prong are

provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete

outlet.

10) Protect the POWER cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where

they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,

such as POWER-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION

DO NOT OPEN

S3125A

QUICK GUIDE FOR HDMI FUNCTION

1. Please check to see if your TV set has a HDMI video input.

2. If your TV set has a HDMI video input then connect the DVD player to the TV set using an HDMI cable

(not included). Switch on the DVD player and TV set. The DVD Player output will automatically be

adjusted from the default video output of 480i to a higher-resolution setting to match that of your TV

screen, 720p, 1080i, or 1080p. The TV screen will now show the "VIDAO" logo. Press the H D MI button

on the remote control of the DVD player and you can change the high-resolution setting of the DVD

player to, 720p, 1080i, or 1080p. Once the high-resolution setting of the DVD player changed, the

high-resolution setting on the TV screen image is automatically changed.

IMPORTANT NOTICE

Front and Back Panels. ..................................................................................1

Front Panel. ..................................................................................................1

Back Panel.. ................................................................................................1

Remote Control... ....................................................................................... 2

Operating the Remote Control.... .................................................................... 3

Functions.......... ........................................................................................ 4-7

System Setup..................... ................................................................... . 8-10

MP3 Function .......... ................................................................................... 10

JPEG Files..... ................... ......................................................................... 10

Troubleshooting .........................................................................................11

1.POWER

2.DISC DOOR

3.LED DISPLAY

4.USB

1.HDMI Connector

2.AUDIO output

Use to connect both right and left channels

3. VIDEO output

5.OPEN / CLOSE

6.LEFT / RIGHT

7.STOP

8. NEXT

HDMI CABLE

AV CABLE

HDMI

AC IN

CONFORMS TO

UL STD 60065

CERTIFIED TO

CSA STD C22.2

No. 60065

DVD PL AYER

POWE R CO NS UMPTI ON : 15 W

DVD5500

COAXIAL output

HDMI

AC IN

CONFORMS TO

UL STD 60065

CERTIFIED TO

CSA STD C22.2

No. 60065

DVD PL AYER

POWER CONSUMPTION: 15W

DVD5500

245678

9 10

9.PREV

10.PLAY/PAUSE

POWER: AC 90-240V~50/60Hz

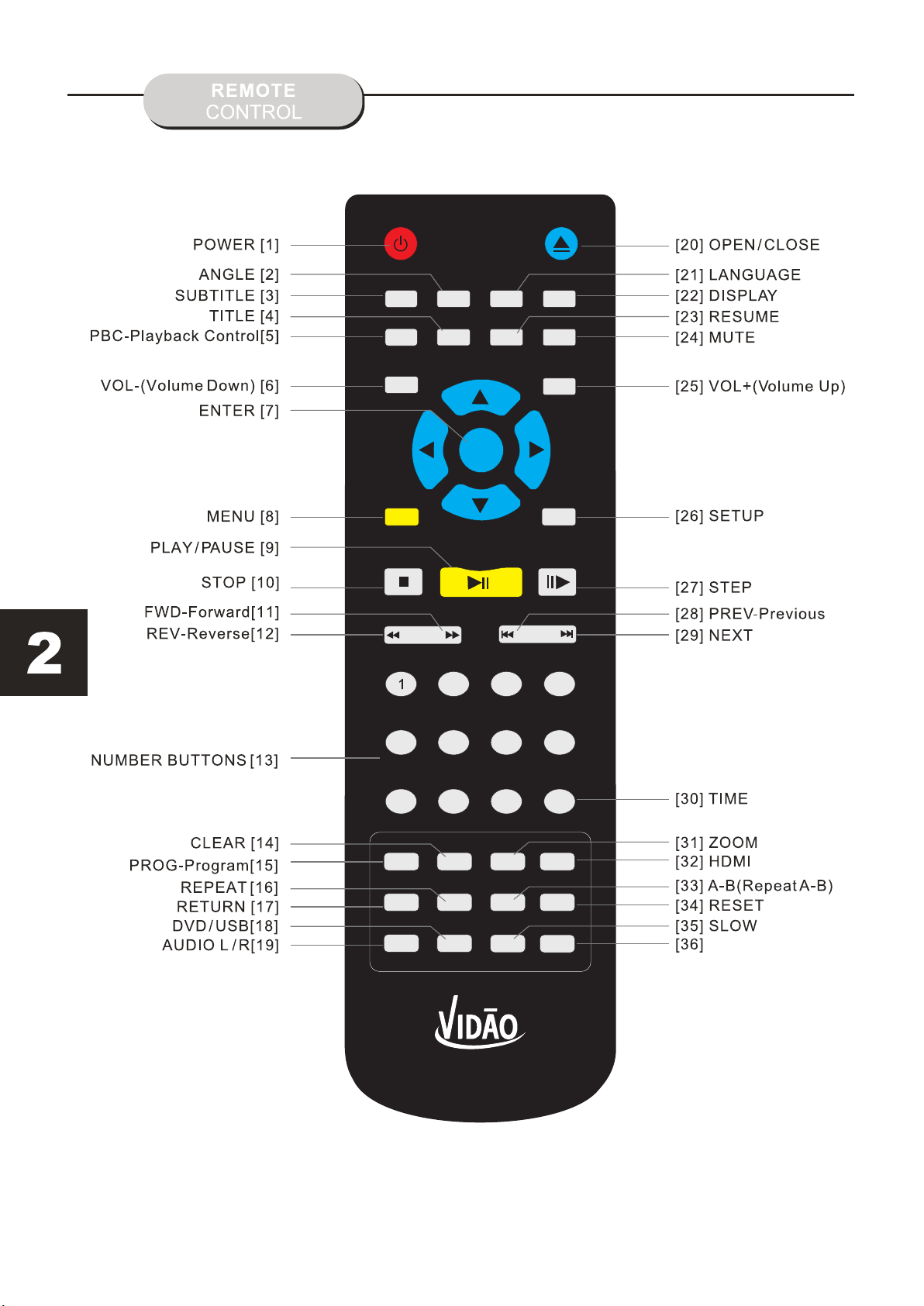

POWER OPEN / CLOSE

SUBTITLE

ANGLE

LANGUAGE

DISPLAY

PBC TITLE RESUME MUTE

VOL- VOL+

ENTER

MENU SETUP

STOP PLAY / PAUSE STEP

REV FW D PREV NEXT

234

5678

9 10+0

TIME

PROG CLEAR ZOOM HDMI

RETURN REPEAT A-B RESET

SLOW DVD / USBAUDIO L / R

DVD5500

16:9 / 4:3

Battery Installation

1. Push down and out on the battery

compartment cover to remove it.

2. Insert the two "AAA" batteries into the battery

compartment of the remote control, making

sure the + and - signs on the batteries and the

inside of the battery compartment match up.

3. Replace the battery compartment cover.

Notes:

Do not mix batteries from different

manufacturers, or old with new.

If the remote control will not be used for an

extended period of time, remove the batteries

to prevent damage-causing corrosion.

Remove the dead batteries immediately to

prevent damage-causing corrosion.

If battery leakage occurs, wipe the battery

liquid from inside the battery compartment,

and then replace both batteries.

Always replace both batteries at the same time,

using new, fully charged batteries.

The life expectancy of batteries may vary

depending on amount of use.

Using the Remote Control

Point the remote control at the remote sensor

on the DVD receiver. When the signal is

received from the remote, the unit will function

accordingly.

The remote will operate up to approximately 16'

from the remote sensor at an angle of around

30' in each direction.

BATTERIES

INCORRECT USE OF BATTERIES MAY

CAUSE THEM TO LEAK, CORRODE,

OR EX-PLODE.

Notes:

Do not direct the remote sensor toward any

light source, such as direct sunlight or strong

fluorescent light as it may cause the unit not to

operate correctly.

When other remote controls are used nearby or

when the remote is used near equipment using

infrared rays, interference may occur.

Placing an object on the remote control may cause

it to inadvertently depress a button, changing a

function and shortening battery life.

Do not cover the front of the DVD receiver

with tinted glass, as it may cause interference

with normal operation of the controller.

Make sure there is no solid objects between

the remote control and the remote sensor .

This could prevent the unit from receiving

the signal.

Do not spill water or put wet items on the

remote control.

Press the PLAY / PAUSE

button.

Turn on the TV set and select the A/V mode.

1. Press the POWER button on front panel,

DISC LOADING appears on screen.

If there is no disc in the player, NO DISC will

show on the screen

2. Press the OPEN / CLOSE button.

The disc tray will open.

3. Place the disc on the disc tray, be sure

content (Wide-screen, Full-screen) side is face

down on the tray.

4. Press OPEN / CLOSE button to close the tray.

The disc tray will close and the disc type will appear

in the upper-left-hand corner of the screen.

Once the player has read the disc, the unit

automatically will begin playback.

Note:

It is possible to damage a disc if it is not placed

correctly on the guides in the disc tray. This may

also cause the DVD player to malfunction. Do

not force or place anything other than a 5" DVD

or CD onto the disc tray.

Never move the DVD player during playback,

as this may cause damage to the disc as well as

the player. To open and close the disc tray, only

use the OPEN / CLOSE key found on both the

remote control and on the unit's front panel.

Press the PREV or NEXT buttons to play the

previous or next track. To resume normal playback,

press PLAY / PAUSE button

Press NEXT button

To play a DVD video disc:

5. PREV / NEXT playback

1/2

STOP

PLAY/PAUSE

DISPLAY

To activate either function, simply press the

FWD or REV buttons on the remote.

The speed changes each time the button is

presse. To resume normal playback, press

the PLAY / PAUSE button.

1. Press the STOP button to end the function and

the TV screen will show the Stop icon. With some

disc formats like DVD, the player can recall the

place in the movie where Stop was pressed, and

resume play from that location.

2. Press PLAY / PAUSE to resume playback from

the location where the disc was stopped or from

the beginning of the disc.

3. Press STOP twice to stop completely.

This DVD player has the ability to play discs in

slow motion in either forward or reverse direction.

Each time the SLOW button is pressed, the forward

speed will slow to 1/2 speed, to 1/4, to 1/8, to 1/16,

and back to normal. In reverse, the speed will also

slow from 1/2 speed, to 1/4, to 1/8, to 1/16, and back

to normal. To resume normal playback at anytime,

press the PLAY / PAUSE button.

While a disc is playing, the status of various

functions may be checked, such as the tile,

track number, and several time categories.

1. Press the DISPLAY button once and the title

appears along with the chapter and how much

time has played.

2. Press the DISPLAY button again and the

remaining time for that particular title appears.

3. Press the DISPLAY button again and the

total elapsed time for that particular chapter

appears.

4. Press the DISPLAY button again and the

total remaining time for that particular chapter

appears.

5. Press the DISPLAY button again and the

display turns off.

1. While in the Play mode, press STEP continuously

to move forward in the video frame by frame.

2. Press PLAY / PAUSE resume normal playback.

REV

Stop playback

Slow Motion

Screen Display

Frame-By-Frame Playback

A-B repeat

A-B AB

Audio-L & Audio-R

The default audio setup is STEREO, press

Audio-L , and the sound will be output from Left

channel only, Press Audio-R , and the sound

will be output from Right channel only.

Press Audio-L or Audio-R again, sound will

return back to Stereo.

The DVD Player has the capability to display

subtitles in any of 32 different languages.

1. Press the SUBTITLE button. The subtitle

menu will appear. Select the desired language

by pressing the SUBTITLE button.

2. To remove the subtitles from view, press

the SUBTITLE button until they disappear .

Note: The disc being played must be

multi-subtitle encoded.

The ability to change the camera angle allows

the viewer to play director and watch a movie

from different perspectives.

1. Press the ANGLE button on the remote

control. With each press, the camera angle

changes.

2. The button may be pressed only when the

flashing angle icon appears in the unit's display

panel.

Note:

The camera angle may be changed only in discs

with multi-angle capability encoded.

The unit has the capability to show movies in one

of eight languages.

1. Press the LANGUAGE button. The language

menu will appear. Select the desired language

by pressing the LANGUAGE button.

Note:

The disc being played must be multi-language

encoded.

Locating A Title

DVD discs are normally divided into titles, which are

then sub-divided into chapters. A Specific title or chapter

Title Function Menu

1. Press the TITLE button. The title menu will appear

on the TV screen.

2. Press the appropriate scroll button to select the

desired title. A title may also be located by pressing

its assigned number with the number buttons.

3. Press the ENTER button. This will start playback

from chapter 1 of the selected title.

can easily be located. Specific titles can be found using

the title menu function if the disc contains a title menu,

or through its unique title number.

Note:

Some discs do not respond to this function. If different

instructions appear on the TV screen, follow those

instructions. The instructions given here describe

the basic procedure. Procedures may vary depending

on the content of the DVD disc.

Press "A-B" once to set a start-point, press again to

set an end point and complete the setting. The

selected section A-B will be repeated. The third press

will cancel this function.

Subtitles

Camera Angle

Language

Autres manuels Vidao Lecteur DVD

Vidao

Vidao 415 Manuel utilisateur

Manuels Lecteur DVD populaires d'autres marques

Sony

Sony DVP-F11 Manuel utilisateur

Philips

Philips DVP3560K/F8 Manuel utilisateur

LENCO

LENCO DVP-740 X2 Manuel utilisateur

JVC

JVC XV-N650BEU Manuel utilisateur

Aiwa

Aiwa XD-DV370 Manuel utilisateur

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manuel utilisateur

Denon

Denon DVM-1805 - DVD Changer Manuel utilisateur

Toshiba

Toshiba SD-3815 Manuel utilisateur

Tevion

Tevion 44330 Manuel utilisateur

Samsung

Samsung DVD-HD860 Manuel utilisateur

Sylvania

Sylvania DP170SL8 Manuel utilisateur

Toshiba

Toshiba SD-P1200 Manuel utilisateur

JVC

JVC XV-D9000E Manuel utilisateur

Dolby Laboratories

Dolby Laboratories CP650 Manuel utilisateur

Philips

Philips DVD737K/931 Manuel utilisateur

Denon

Denon DVD-5900 Manuel utilisateur

Philips

Philips DVD 951 Manuel utilisateur

Philips

Philips DVDR3460 Manuel utilisateur
