VINYL CUTTING PLOTTER
INSTALLATION
MANUAL
ANHUI WILLIAM CNC TECHNOLOGY CO.,LTD
www.CNCVICUT.com
Step 1 Open outside packing box,take out inside box 1 and box 2
(Box 1 contain machine main body and software/accessories;Box
2 contains machine bracket parts)
ANHUI WILLIAM CNC TECHNOLOGY CO.,LTD
www.CNCVICUT.com

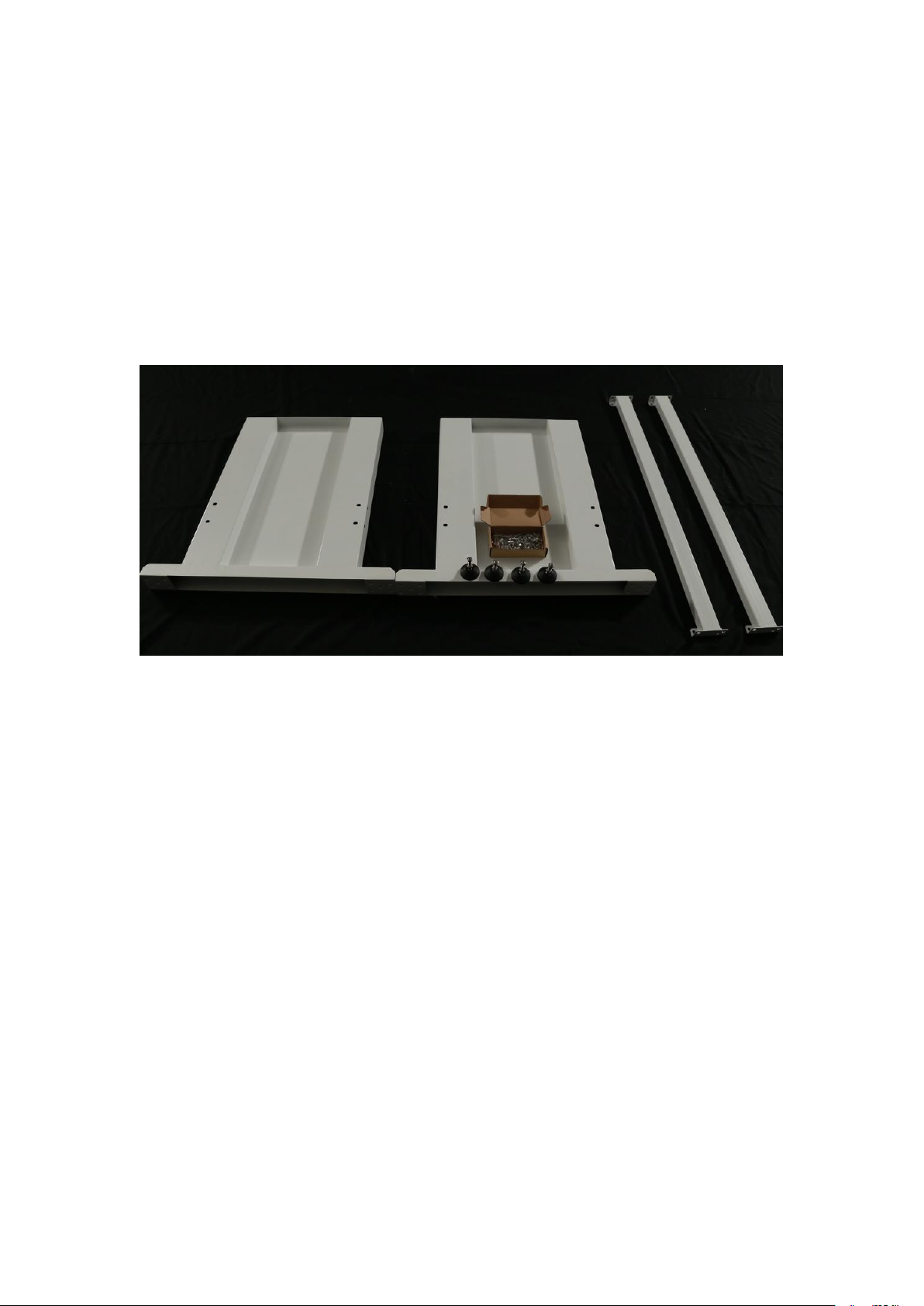

Step 2 Open box 2,take out beam and two vertical shaft
bracket,use four “SHCS” each side to combine them then take
out two machine foot combine vertical shaft bracket with four
“SHCS”
(notice the direction of machine foot)
Step 3 Take out two paper shaft bracket and combine with
vertical shaft bracket by screws then fix the two basket shaft
bracket on the paper shaft by screws.
Step 4 Take out machine main body and take off four side
machine mat at bottom to let four screws out, put the four
screws through the hole on the paper shaft bracket and use
machine mat to fix tight in the back.
ANHUI WILLIAM CNC TECHNOLOGY CO.,LTD
www.CNCVICUT.com
Step 5 Take out cloth bag and feeding roller then put them on
the correspond shaft bracket, use usb line to connect computer,
turn on the machine.
Thank you for your reference,
if you have any questions,
please contact the local
dealer or VICUT customer
service center.
Thank you again !
From VICUT
Anhui William CNC Technology Co., Ltd
Email: vivien@vicut.cn Tel: +86 551 65774134
