Victory 4x4 EXPRESS Guide de configuration

EXPRESS/ SAVANA

ROOF RACK

Thank you for purchasing from Victory 4x4! Checkout our website, victory4x4.com for other great o-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don’t hesitate to call us at 269-459-8447!

INSTALL INSTRUCTIONS

Please read the mounting instructions below carefully before attempting to install.

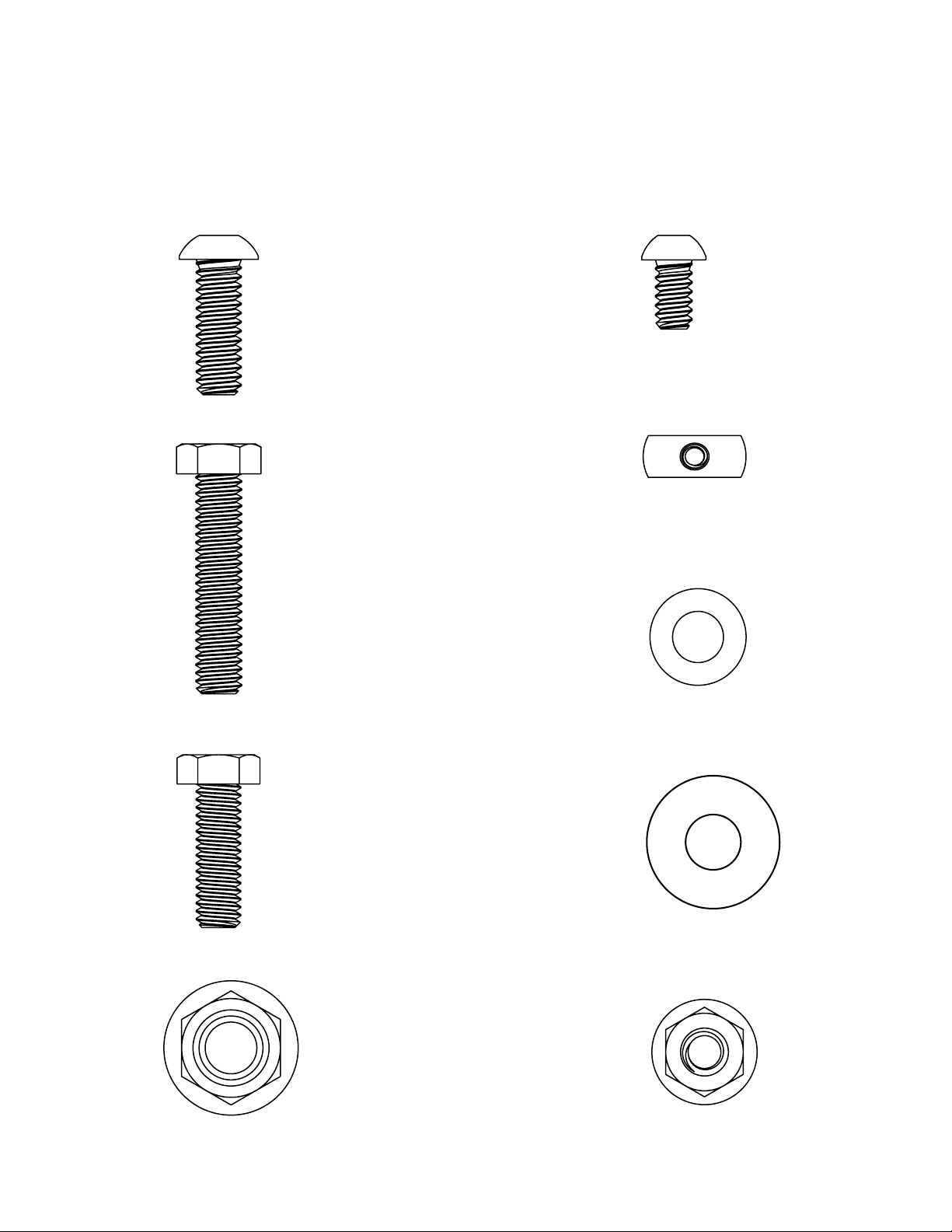

INCLUDED HARDWARE

86x

30x

86x

1/4” ID

Washer

1/4"-20

Serr. Flange Nut

1/4"-20 X 3/4"

Button Head

4x 1/4"-20 X 3/8"

Button Head

4x 1/4"-20

T-Nut

8x 5/16” - 18 X 1”

Hex Head

16x

5/16” - 18 X 1-1/2”

Hex Head

.307/.327” ID

Washer

24x

16x

5/16” - 18

Flange Locknut

Included with light

bar cutout option.

Included with light

bar cutout option.

EXTENDED BODY

INCLUDED HARDWARE

78x

30x

78x

1/4” ID

Washer

1/4"-20

Serr. Flange Nut

1/4"-20 X 3/4"

Button Head

4x 1/4"-20 X 3/8"

Button Head

4x 1/4"-20

T-Nut

8x 5/16” - 18 X 1”

Hex Head

16x

5/16” - 18 X 1-1/2”

Hex Head

.307/.327” ID

Washer

24x

16x

5/16” - 18

Flange Locknut

Included with light

bar cutout option.

Included with light

bar cutout option.

REGULAR BODY

2x 14x 1x 1x 1x

Included with light

bar cutout option.

INCLUDED HARDWARE

EXTENDED BODY

2x 12x 1x 1x 1x

1L/1R

Included with light

bar cutout option.

INCLUDED HARDWARE

REGULAR BODY

INCLUDED PARTS

1x 1x

4x 4x

1x1x

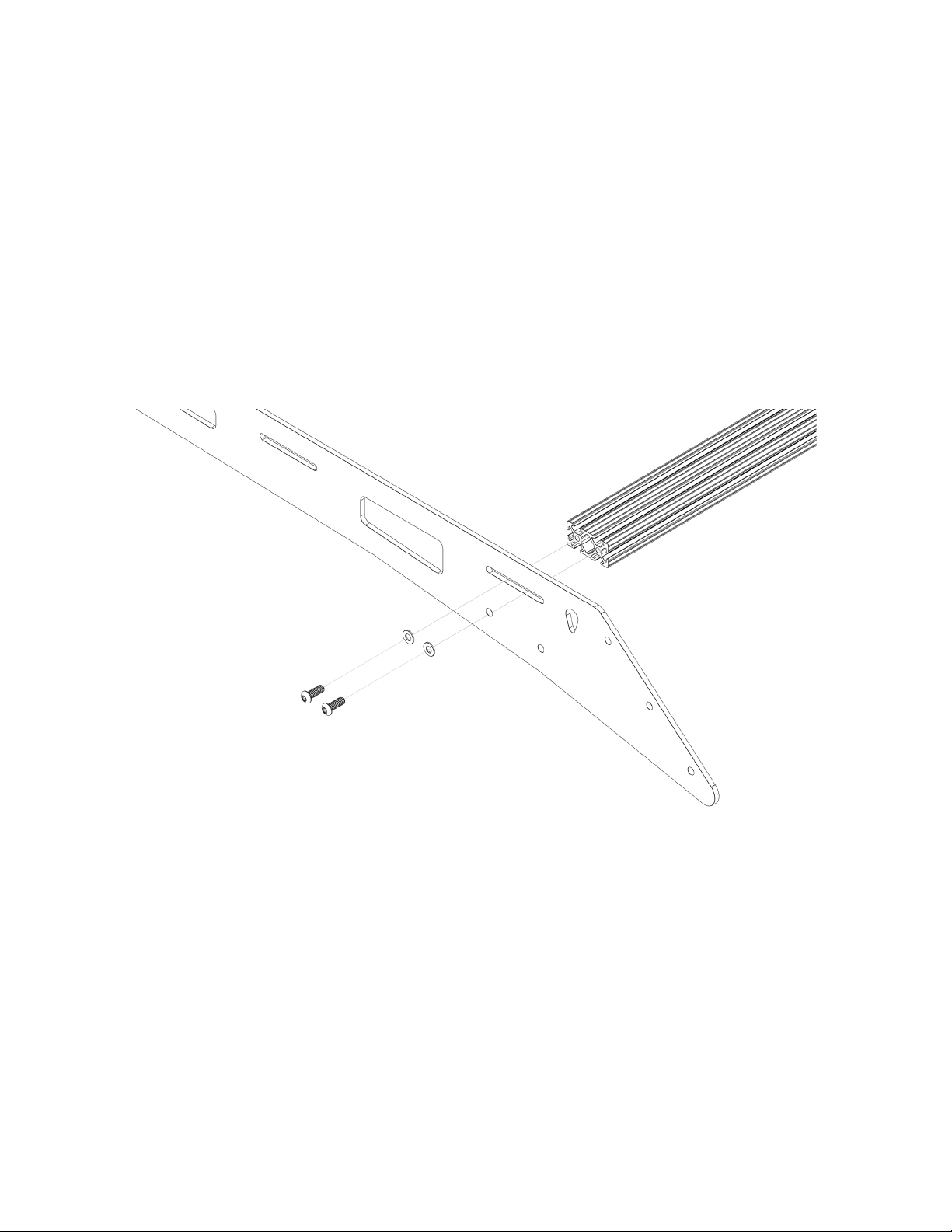

1Assemble both halves of the rack separately on the ground. Start by

mounting the crossbars between the 2 side rails. For this, use the1/4”-20 X

3/4” button head bolts and the 1/4” ID washers (2 per bar per side). Make

sure the machined slot in the rail of the crossbar is facing up, so that you

can easily add t-nuts to mount your gear.

ASSEMBLY

2Next, Mount the strip of trim to the bottom edge of the front fairing. Start

just to the outside of the peak of the bottom edge and continue until it

reaches the equivalent point on the other side of the fairing. Cut o any

extra. Then, cut the extra in half and mount the 2 pieces onto the bottom

edge of the rear fairing wherever it contacts the roof of the vehicle.

ASSEMBLY

3Next, mount the front and rear fairings. To do this, use the 1/4”-20 X 3/4”

button head bolts, 1/4” ID washers, and 1/4”-20 serrated ﬂange nuts. The

front fairing will need 3 of each per side and the rear fairing will need 2 of

each per side. When mounting the front fairing, adjust it all the way up to

avoid contact with the roof and leave the bolts loose enough to be able to

make adjustments once it is on the roof of the vehicle.

ASSEMBLY

4Next, attach the front and rear mounts to the assembled roof rack using

the 1/4”-20 X 3.4” button head bolts, 1/4” ID washers, 1/4”-20 serrated

ﬂange nuts. Tighten them fully to the inside of the side rail. Make sure that

the arrow is pointing forward.
