Vicon VC-700WDR Manuel utilisateur

VC-700WDR

COLOR DOME CAMERAS

About this manual

INSTRUCTION MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for later reference.

This installation should be made by a qualified service person and should conform to the

National Electric Code, ANSI/NFPA 70 and all local codes.

Installers should use appropriate hardware mounting materials.

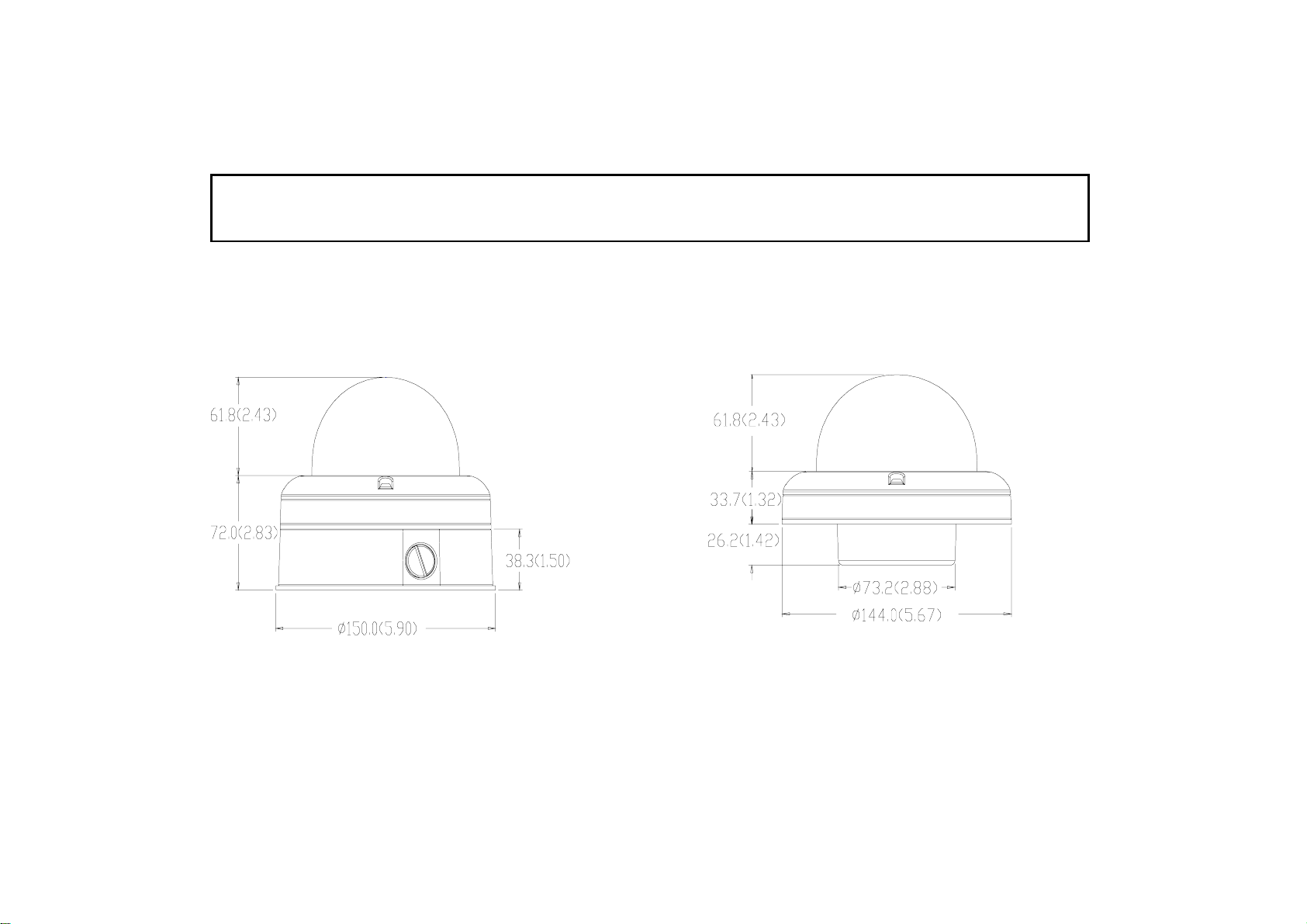

Surface-Mount configuration In-Ceiling configuration

Dimensions : inch (mm)

PRECAUTIONS

■Do not open or modify

Do not open the case except during maintenance and installation, as it may be

dangerous and cause damages.

■Do not put objects inside the unit

Make sure that no metal objects or flammable substances

get inside the camera. This could cause fire, short-circuits or damages.

■Be careful when handling the unit

To prevent damage, do not drop the camera or subject it to strong shock or

vibration.

■Install away from electric or magnetic fields

■Protect from humidity and dust

■Protect from high temperature

Be careful when installing close to the ceiling , in a kitchen or boiler room,

as the temperature may rise to high levels.

■Cleaning

Dirt can be removed from the case only by wiping it with a soft cloth moistened

with a soft detergent solution.

■Mounting Surface

The mounting surface material must be strong enough to support the camera.

TROUBLESHOOTING

Before sending the camera out for repair, check the items below.

If the problem persists after checking these items, contact your service center.

■If no image appears

▪Is the coaxial cable attached securely?

▪Are the power and voltage normal?

▪Has the iris of the lens inside the camera been adjusted correctly

(with the level volume) ?

▪Is there adequate illumination?

■If the image is unclear

▪Is the lens in focus?

▪Is the lens dirty?

▪Dirt or fingerprints on the lens can adversely affect the images.

Gently wipe any dirt or fingerprints off the lens with a soft cloth or lens

cleaning paper and cleaning fluid (commercially available).

▪Is the monitor adjusted correctly?

LENS ADJUSTMENT

1. Adjust the panning (360˚) and tilt (90˚) position.

2. Set the zoom position by using Zoom Lever Screw.

3. Set the focus by using Focus Lever Screw.

4. Loosen set screws (using small M1.0 Hex L-wrench provided) to adjust roll

(turns camera position top/bottom).

PAN SET

SCREW

(2X)

TILT

90˚ZOOM

FOCUS

SPECIFICATION

General Spec NTSC PAL

CCDType

Total number of pixels

Min illumination

Video Output

Resolution

S/N Ratio

Gamma

Wide Dynamic Range 102dB(typical), 120dB(max)

Shutter Speed 1/60s - 1/100,000s 1/50s - 1/100,000s

SyncSystem

White Balance

Power Input

Video Output

Voltage

Power Consumption

Lens

Operation Temp

Operation humidity

3.3-12mm or 9-22mm

14°F ∼131°F (- 10℃∼+55℃)

48dB or more(AGC of f)

0.45

Up to 90％(non-condensing)

Connectors

Wire

BNC Cable

ElectricSpec

12VDC(10 - 16V) or 24VAC

2.0W

Mechanical Spec

Internal (12VDC) / External (Line Lock, 24VAC)

Auto , manual

1/3" PIXIM CMOS progressive

742(H) X 552 (V)

0.06fc(0.6Lux) F1.2, 30IRE at COLOR

0.008fc(0.08Lux) F1.2, 30IRE at BW(TDN)

1.0Vp-p/75 ohm Composite

540 TV Lines

CONNECTIONS

12VDC-24VAC

RED (+)

BLACK (-)

11.8in

(300mm

)

RED (+)

BLACK (-)

VIDEO

CAUTION

The use of a UL Listed Class 2 power supply is required to ensure compliance with

electrical safety standards.

Check for polarity when using a 12VDC power supply.

Cable for connection to portable monitor, provided.

When using a portable monitor, terminate at 75ohms (at last device).

Surface-Mount Base In-Ceiling Base

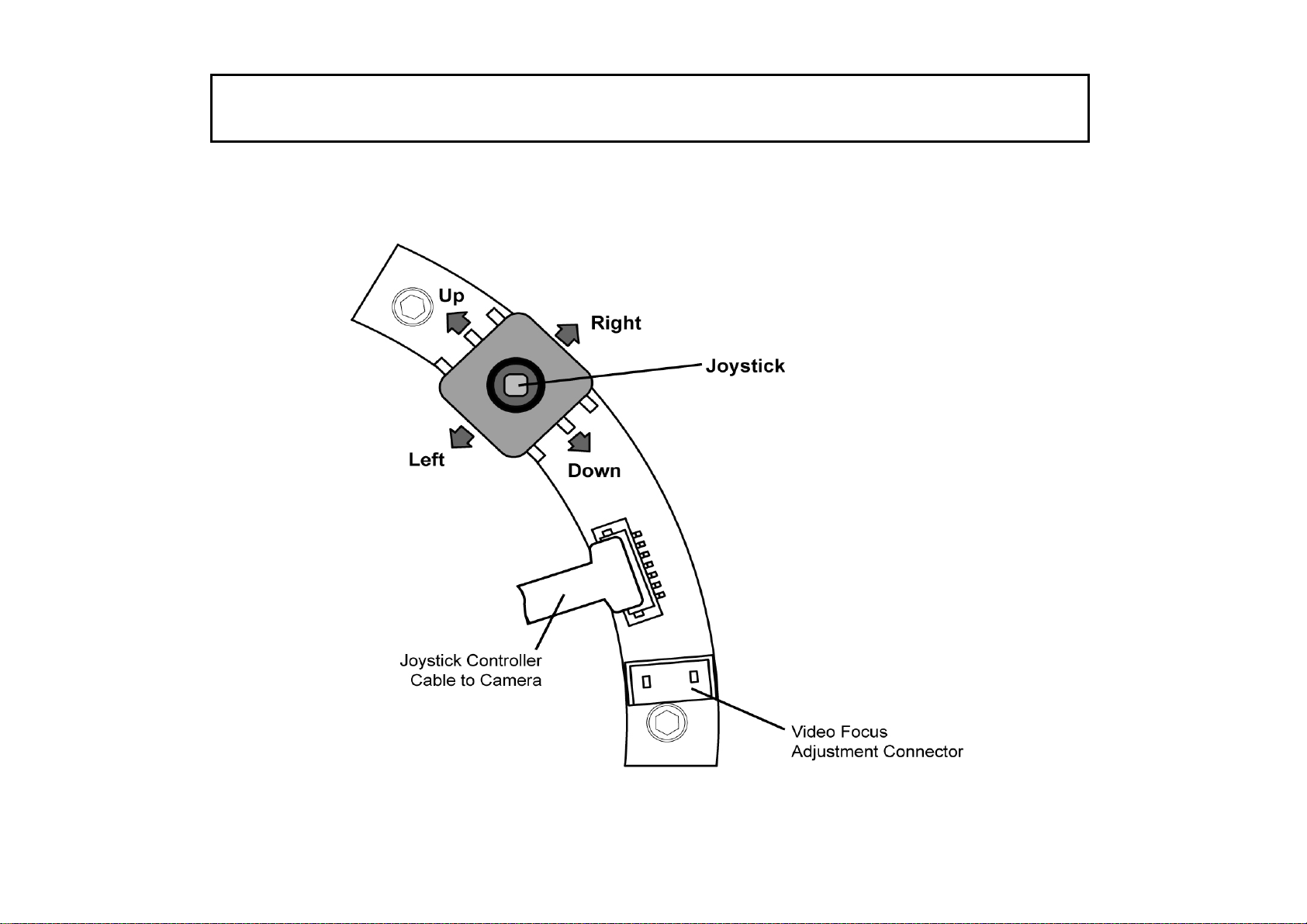

■CAMERA SETTINGS

CAMERA SETTINGS
