Vicon ROUGHNECK V-CELL-HD-A Manuel utilisateur

ViconNet 8.0 Software

XXYYY-XX-XX

Vicon Industries Inc. does not warrant that the functions contained in this equipment will

meet your requirements or that the operation will be entirely error free or perform

precisely as described in the documentation. This system has not been designed to be

used in life-critical situations and must not be used for this purpose.

Document Number: 8009-8247-31-00 Product specifications subject to change without

Vicon Industries Inc.

Tel: 631-952-2288) Fax: 631-951-2288

Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON

(800-348-4266) UK: 44/(0) 1489-566300

www.vicon-security.com

XX247-31-00

ROUGHNECK V-CELL-HD-A

Corner-Mount Network Camera

Quick Installation Guide

V-CELL-HD-A Quick Installation Guide

1. Description

The information in this manual provides quick installation and setup procedures for the V-CELL-HD-A of High-

Security Corner-Mounted Cameras. These units should only be installed by a qualified technician using

approved materials in conformance with federal, state, and local codes. Read these instructions thoroughly

before beginning an installation. Refer to the complete manual for detailed information. Always refer to Vicon’s

website to assure you have the most up-to-date manual, http://www.vicon-security.com.

The Roughneck® V-CELL-HD-A high-security camera is an integrated housing, camera, lens and IR illuminators

system specifically designed for use in custodial suites and prison cells. It is fully compatible with all Valerus®

and ViconNet® systems; its ONVIF certification provides an open-platform for integration into other video

management systems.

The housing is designed to fit into a corner; once installed, the base plate should be permanently sealed to the

wall so that the housing is ligature proof. The housing consists of a two part stainless steel assembly, a fixed

base plate and a removable front plate, that allows ease of installation and servicing. The front plate is secured

with security screws and has two polycarbonate windows to protect the camera and IR illuminators. The alarm

input and alarm output can be used to connect various third party devices, such as door sensors and alarm

bells.

1.1 Components

The system comes with the following components:

Camera unit Installation Guide Installation CD Accessory Kit

Optional OSD Controller

Check your package to make sure that you received the complete system, including all components shown

above.

Note: The optional OSD Controller can be purchased separately.

V-CELL-HD-A Quick Installation Guide

2. Installation

For the network camera to operate, it is necessary to connect a network cable for data transmission and power

connection from customer-supplied power supply.

2.1 Overview

Parts and Description

①Main Power 12 VDC (↑(+) pole /↓(-) pole)

②RJ45 (PoE) Port

③Micro-SD Card Slot

④Alarm & Audio In/Out Port

⑤Status LED

Upon boot-up, green and red are both on for a short time and then only green will be on.

If red is lit, this indicates a failure (no picture); if flashing green and no red, this indicates that a

good picture is displaying.

⑥Service Monitor Port (CVBS Out)

V-CELL-HD-A Quick Installation Guide

Quick Installation

Below is an overview for installing the camera. When using

1) Installation (without Rear Cover)

1. Use camera mounting frame as template to mark mounting holes on mounting surface. (Fig.1)

2. Drill holes for mounting base and a minimum 3/4 in. hole for routing wines. (Fig.1)

3. Mount camera mounting frame using appropriate hardware for mounting surface. (Fig.2)

4. Route wires through hole in wall and out through base plate. (Fig.2).

5. Terminate wires to camera board.

6. Mount front plate to base plate. (Fig.2)

V-CELL-HD-A Quick Installation Guide

2) Installation (using Rear Cover)

1. Use rear cover as template to mark mounting and cable access holes.

2. Drill mounting and cable access holes in mounting surface.

3. Insert cable clamp into access hole, route cables through clamp and mount cover using appropriate

hardware.

4. Use camera mounting frame to mark its mounting holes, drill holes and mount using appropriate

hardware.

5. Terminate wires to camera board. Feed the excess wire back through cable clamp and tighten clamp.

6. Mount front plate to camera mounting frame.

Note: Installation of the rear cover is required for UL/Canadian UL compliance.

V-CELL-HD-A Quick Installation Guide

2.2 Cable Connections

All cabling is done to the boards located on the back of the front plate.

1) Micro SD memory slot on the Board

Card Slot for Micro SD memory: Socket “J10.” (SD card customer-supplied.)

2) Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network camera. Generally a

crossover cable is used for direct connection to a PC, while a direct cable is used for

connection to a hub.

3) Connecting Alarms

AI (Alarm In):

External devices can be used to signal the network camera to react upon events. Mechanical

or electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors.

G (Ground):

Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.

Alarm Out:

The network camera can activate external devices such as buzzers or lights. Connect the

device to the AO (Alarm Out) and G (Ground) connectors.

4) Connecting the Power

Connect the power of 12 VDC for the network camera. Connect the positive (+) pole to the ‘+’ position and

the negative (-) pole to the ‘-’ position for the DC power.

Be careful not to reverse the polarity when connecting the power cable.

A router featuring PoE (Power over Ethernet) can also be used to supply power to the camera.

The heater can be powered by a 12 VDC, or PoE power source.

For the power specifications, refer to the Appendix, Product Specification.

If PoE and 12 VDC are both applied, the camera will be supplied with power from PoE.

5) IR Control

To adjust the intensity of the IR illuminators, use the Day & Night menu in the web browser.

6) Connecting Service Monitor Port

The Service Monitor output port (J1) is located on the front board of the camera and BNC out port is

located on the rear board of the camera.

V-CELL-HD-A Quick Installation Guide

▶

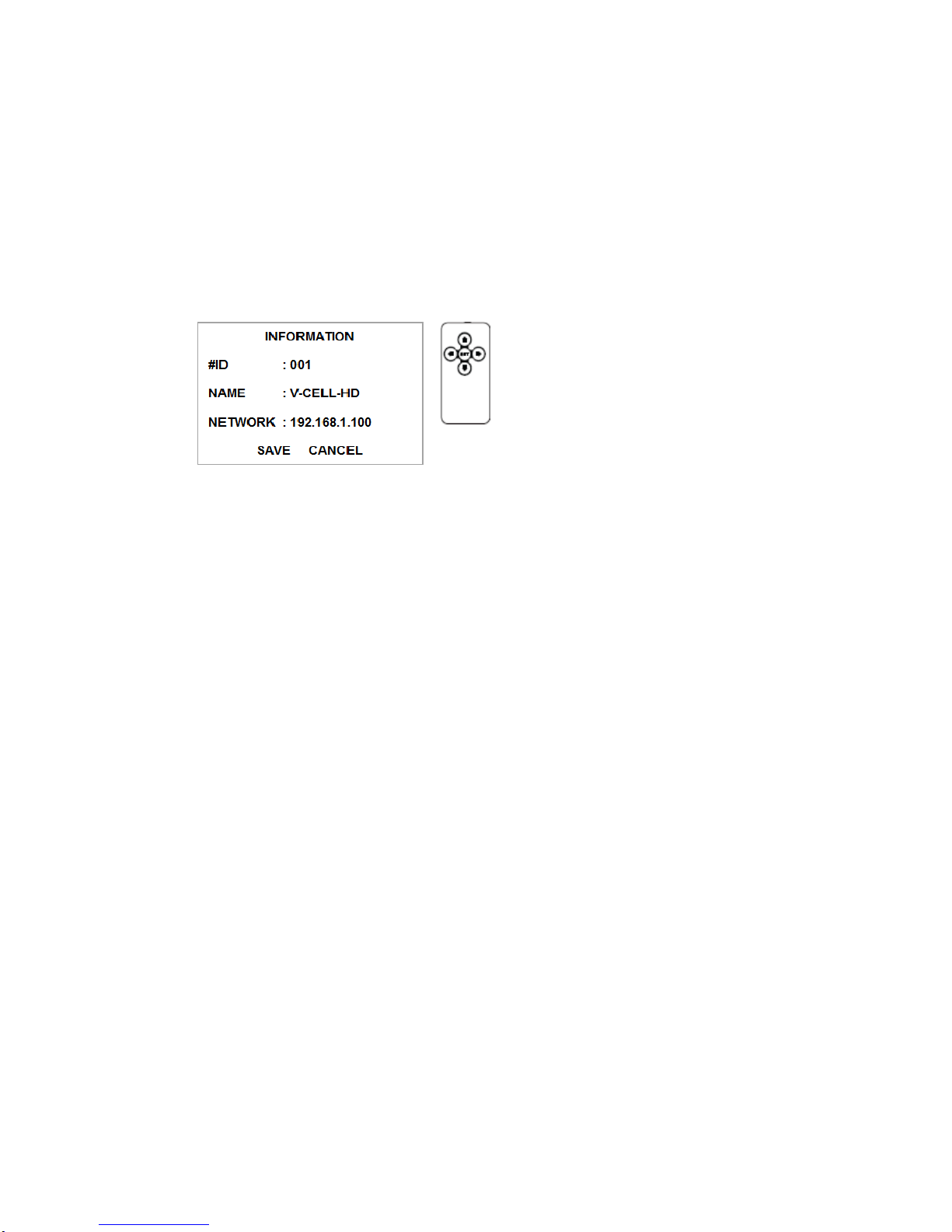

ID & IP assignment

To make changes in the OSD menu, the optional OSD controller can be used to set the

camera title and IP address.

1. Connect the OSD Controller to the Service Monitor port of the network camera.

2. Connect Service Monitor and the Video Output port of the OSD Controller.

3. Press the SET button on the controller to access the Main Menu.

4. Change camera ID and IP address as needed. Additionally, the Name (or title) of the camera can be

changed. Use the ↑↓←→ buttons on the controller to change the parameters.

5. Select SAVE or CANCEL to exit the Main Menu.

The Video Output can also be used for easy zoom and focus control when adjusting the lens.

Video Output is restricted to 704x480 (576) resolution.

Note: The optional OSD Controller can be purchased separately.

-A

V-CELL-HD-A Quick Installation Guide

2.3 Network Connection and IP assignment

The network camera is designed for use on an Ethernet network and requires an IP address for access. Most

networks today have a DHCP server that automatically assigns IP addresses to connected devices. By the

factory default, your camera is set to obtain the IP address automatically via DHCP server. If your network

does not have a DHCP server the network camera will use 192.168.1.100 as the default IP address.

If DHCP is enabled and the product cannot be accessed, run the “Smart Manager” utility on the CD to search

and allocate an IP address to your products, or reset the product to the factory default settings and then

perform the installation again.

1. Connect the network camera to the network and power up.

2. Start SmartManager utility (Start>All Programs>SmartManager>SmartManager); the main window

displays. After a short while any network devices connected to the network will be displayed in the list.

3. Select the camera on the list and click right button of the mouse. The pop-up menu below displays.

4. Select Assign IP. The Assign IP window displays. Enter the required IP address.

Note: For more information, refer to the Smart

Manger User’s Manual.

V-CELL-HD-A Quick Installation Guide

3. Operation

The network camera can be used with Windows® operating system and browsers. The recommended

browsers are Internet Explorer®, Safari®, Firefox®, Opera® and Google® Chrome® with Windows.

Note: To view streaming video in Microsoft® Internet Explorer, set your browser to allow ActiveX controls.

Note: Some screens may appear different (i.e., color scheme) depending on the firmware version, but the

functionality is the same or similar.

3.1 Access from a Browser

1. Start a browser (i.e., Internet Explorer).

2. Enter the IP address or host name of the network camera in the Location/Address field of the browser.

3. A starting page displays. Click Live View, Playback or Setup to select corresponding web page.

4. Click Live View for the network camera’s Live View page to appear in the browser.
