Vicon IX 2000 L Manuel utilisateur
Installation&
O
p
eration Manual
IX 2000 L, IX 2000 H
Colour Camera
Vicon Industries Inc. Does not warrant that the functions contained in this equipment will meet your requirments o
r
that the operation will be entirely error free or perform precisely as discribed in the documentation. This system
has not been designed to be used in life critical situations and must not be used for this purpose.
Copyright © 2006 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and ist logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24- Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: vicon-cctv.com
-2-
Dear Customer!
By selecting this VICON product you have chosen a professional device which
guarantees highest possible quality and reliability. We like to thank you very much for
your confidence in our products and kindly ask you to read the following instructions
carefully before commissioning the product in order to be able to take full advantage
of all quality features regarding this product line.
Contents Page
General Information
¨Safety Precautions 3
¨Accessories and Additional Devices 3
Mounting the Camera
¨Mounting the Camera to a Wall Mount 4
Commissioning the Camera
¨Tips for Camera Location 5
¨Adjustment of Back Focus 6
¨Calibration of ES/DC- Lenses 6
¨Focusing the Camera Lens 7
¨Circuit points and operation 8
¨Lens mounting and connection 9
Exhibit
¨Troubleshooting 10
¨Technical Specifications 11
¨Cleaning and Care 12
¨Technical Support 12
¨Notes 13
¨Shipping Instructions 14
GENERAL INFORMATION
-3-
General Information
Safety Precautions
*Read these instructions carefully before commissioning the camera in order to
avoid damages caused by improper installation or use.
*Installation may only be carried out by authorised personnel according to the local
safety regulations.
*Operate the camera with the designated voltage only.
*Follow the safety instructions attached to the camera.
*Never use the camera for other purposes than designated.
*Repairs and adjustments at the camera may only be carried out by authorised
personnel.
*In case of ourdoor use you have to install the camera in a suitable weather
protection case incl. heating element.
*If any liquid or solid matter should get into the housing, disconnect the camera
from power supply and have it checked by your authorised dealer before re-using
(danger of electronic shock!).
*Do not disassemble the camera. To avoid electric shocks, never remove screws or
covers. There are no user-serviceable parts inside it. All maintenance may only be
carried out by authorised personnel according to the local safety regulations.
Install the camera by a least height of 2.30 m.

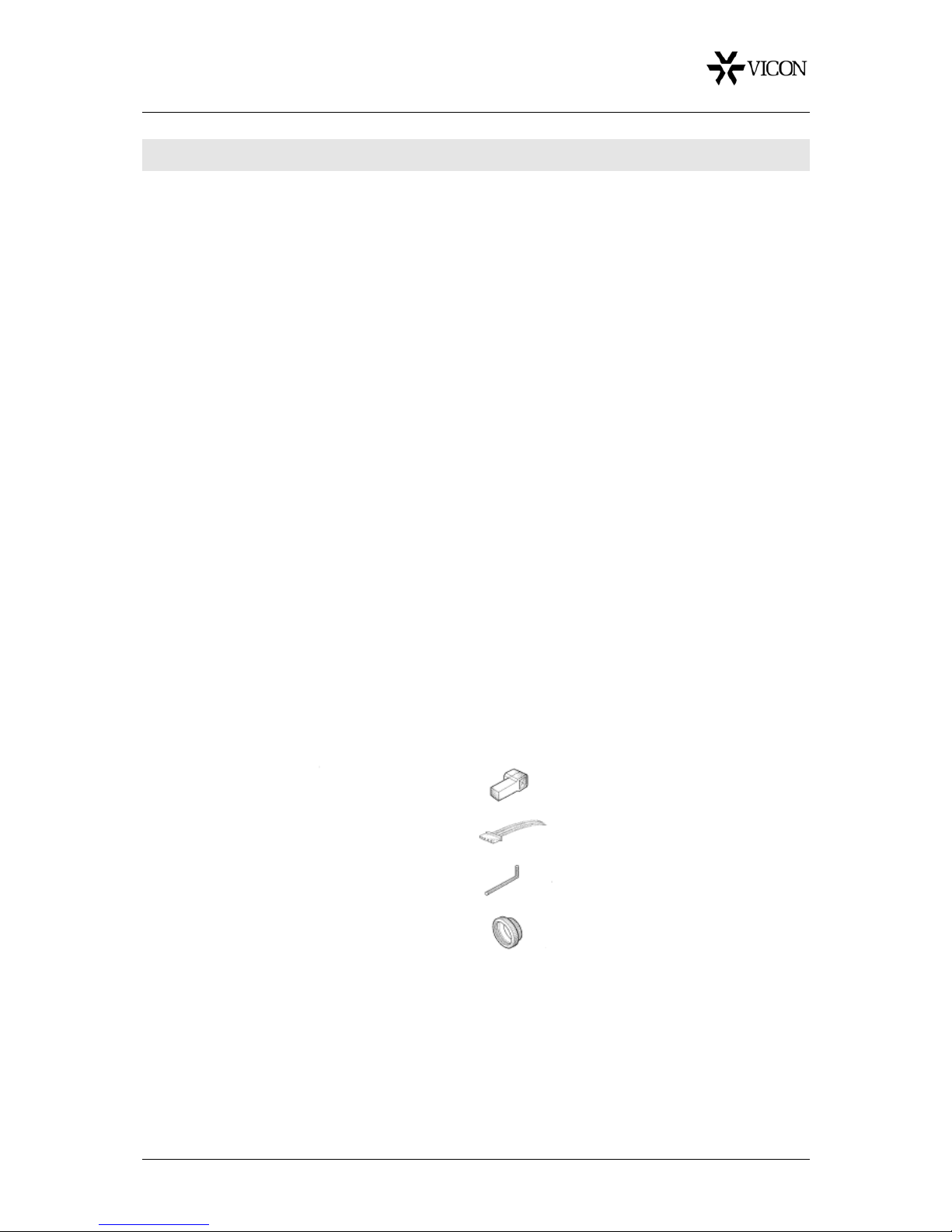

Composition:
1. Auto Iris Lens Plug
2. Inbus Schlüssel
3. C-Mount Adapter
4. Bedienungsanleitung
1. Auto Iris Lens Plug
2. Remote Plug
3. L-Wrench
4. C-Mount Adapter
5. Instruction Manual
MOUNTING THE CAMERA
-4-
Mounting the Camera
Mounting the Camera to a Wall Mount
COMMISSIONING THE CAMERA
-5-
Commissioning the Camera
Tips for Camera Location
1.0 To avoid internal overheating:
-never expose the camera to direct sunlight without additional camera housing
-keep sufficient distance to direct heat sources.
2.0 Never install the camera at humid, oily or dusty locations without using an
additional housing. (without additional housing the camera is not suitable for
outdoor use!)
3.0 The camera should be installed out of reach (min. height: 2.30 m)
4.0Do not aim the camera towards indoor lighting, the windows, the sunlight or the
sky (to get good pictures, camera and light should be aimed towards the object)
5.0 Reduce the picture detail to the
essential parts of the picture and place
the camera as close as possible to the
object (a smaller picture detail
guarantees sharper details).
6.0 Do not aim the camera towards a
window but instead towards the room.
7.0 Outdoors the camera should be
placed as high as possible so that the
horizon does not appear in the picture.
8.0 Avoid peak light as background (also
caused by reflections, e.g. window
panes).
wrong right
COMMISSIONING THE CAMERA
-6-
Adjustment of Back Focus
This adjustment should only be carried out, if the lens cannot be focused properly
using the lens focus ring. For such a case proceed as follows:
1 Loosen the Allan head screw with the
attached Allan head key. For large distances,
turn the focus ring of the lens almost (0.5 cm)
to the "endless" limit position. If you need to
focus an object near the camera, turn the
focus ring of the lens to a position 1cm before
the "near" limit position.
2 Use the back focus adjustment screw to adjust the distance between lens and
CCD chip until the picture is in focus. Then fix the Allan head screw using the Allan
head key.
3 Finally, focus the picture using the lens focus ring.
Adjustment of ES / DC Lenses
To adjust a lens with automatic iris (DC driven or video driven) to the camera, please
proceed as follows:
1. Turn the level potentiometer (position: ES lenses at the lens itself, DC lenses: at
the camera) to the max. position H (turn right). The monitor picture then appears
to be too bright.
2. Slowly turn the level potentiometer back until the monitor picture appears to be
perfect and is not too bright anymore. Then turn the potentiometer back to the
right (in direction "H") just a little bit.
3. Check the lens performance by using the camera under different and/or changing
light conditions.
Locking screws
COMMISSIONING THE CAMERA
-7-
Focusing the Camera Lens
After you have selected the correct picture detail you have to adjust the lens focus.
The focus adjustment needs to be done with the iris fully open, since the camera has
the smallest depth of focus in this position. If the focus adjustment was not done with
the iris completely open, the picture would be sharp during the day but slowly getting
out of focus the more the light disappears. To fully open the lens, use a grey filter in
front of the lens, provided you are using a lens with automatic iris. Adjust the focus
while the iris is fully open using the lens focus ring. Make sure the most important
picture details are in optimum focus (use a service monitor). If it is not possible to
bring the picture into focus, please adjust the back focus of the camera as described
above.
If you intend to use I.R. illumination at a later stage, you must use an I.R. pass filter
together with the grey filter during focus adjustment to ensure that only I.R. light will
get through to the camera chip and the focus adjustment is done according to this
spectrum, only. Attention: I.R. light can only be used in combination with mono
cameras, not colour cameras!
CIRCUIT POINTS AND OPERATION
-8-
A
TW // Hold:
A
TW: Auto tracking white balance,
adjust automatically
Hold: the momentary colour value will
be stored
BLC :
Backlight on / off
A
GC:
A
GC on / off
A
ES // AI:
A
ES: autom. electr. Shutter
A
I: autom. Iris
DC // Video:
Change-over between steered video
and steered DC lenses, if the AI
function is activated
L-Lock // Int:
Change-over between internal
synchronisation and linelock. This
function is not availably with 12 V DC!
V- Phase:
Linelock phase setting
DC Level:
Shutter setting with DC lenses
PL:
Power signal
A
C24V / DC 12V:
Power connection, the polarity with 12V
DC makes no difference
230V AC:
Mains voltage connecting lead
VIDEO OUT:
Videoexit to the monitor etc.
Circuit points and operation
Rear view
12V DC / 24V AC Model
Rear view
230 V AC Model
CIRCUIT POINTS AND OPERATION
-9-
Lens mounting and connection
connection of AI lenses: connection of DC lenses:
1. +8,5 V 1. control –
2. not connected 2. control +
3. control signal 3. drive +
4. GND 4. GND
TECHNICAL SPECIFICATIONS
-10-
Exhibit
Troubleshooting
Error Cause
No picture - No operating voltage (check red LED)
- Coaxial connection interrupted (check video cable)
The picture is noisy - Insufficient light
- The lens drive of the used lens (DC / AI) is not
properly adjusted to the camera (level too low)
The picture is too bright - The lens drive of the used lens (DC / AI) is not
properly adjusted to the camera (level too high)
- Too much peak light; change camera location or
activate backlight function of the camera
The picture is not sharp - Focus not adjusted properly
- Back focus not adjusted properly
- When used outdoors: heater defective; front pane of
camera housing gets steamy
The picture is distorted - Different GND potentials between camera and
monitor; use opto coupler (e.g. VPT from videotronic)
- Bad connections
Ghost image - Wrong 75 Wtermination
- Shield of video cable interrupted
Synchronisation of cameras
does not work properly
- No or bad linelock connection between camera (12
V/DC version) and power adapter
- Mains plug twisted; turn the mains plug by 180° to
change the linelock phase
Please contact your authorised dealer with an exact failure description if none of the
above remedy measures fixes your problem.
