SAVE THIS BOOK

This book is valuable. In addition to instructing you

on how to install and maintain your appliance, it also

contains information that will enable you to obtain re-

placementpartsoraccessoryitemswhenneeded.Keep

it with your other important papers.

This ﬁreplace is approved for use as a wood burning ﬁre-

place or for use with a vented gas log approved to ANS

Z21.60 or Z21.84 standards or for use with a vent-free gas

logheaterapprovedtoANSZ21.11.2standard.Ahoodmust

be installed when using a vent-free log heater (see , page

18).

This wood burning ﬁreplace complies with UL127-

CAN/ULS-S610-M87 standard as a FACTORY BUILT

APPLIANCE.

FOR CANADA: The authority having jurisdiction (such

as the municipal building department, ﬁre department,

etc.) should be contacted before installation to deter-

mine the need to obtain a permit.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

WOOD BURNING FIREPLACE

OWNER’S OPERATION AND

INSTALLATION MANUAL

MODEL C42MW

ICBO # ER-3507

PFS

USC

www.fmiproducts.com 108919-01H2

SAFETY

WARNING: Do not install a

ﬁreplaceinsertinthisboxunless

themanufacturer'sinstructions

with the insert speciﬁcally state

thisﬁreplacehasbeentestedfor

use with this insert.

FOR YOUR SAFETY

• Do not store or use gasoline

oranyotherﬂammablevapors

orliquidsinthevicinity ofthis

or any other appliance.

• Due to high temperatures, the

appliance should be located

out of trafﬁc and away from

furniture and draperies.

• Do not place clothing or other

ﬂammablematerialsonornear

the appliance.

• Never leave children unat-

tended when a ﬁre is burning

in the ﬁreplace.

WARNING: Use solid wood

or processed solid fuel ﬁre logs

only. When processed wood

fuel ﬁre logs are used, do not

poke or stir the logs while they

are burning. Use only ﬁre logs

that have been evaluated for

the application in ﬁreplace and

refer to ﬁre log warnings and

caution markings on packaging

prior to use.

This ﬁreplace is not intended to

beusedasasubstitute forafur-

nacetoheatanentirehome.Use

for supplemental heat only.

WARNING: Improper instal-

lation, adjustment, alteration,

service or maintenance can

causeinjury,propertydamageor

loss of life. Refer to this manual

for assistance or additional in-

formation. Consult a qualiﬁed

installer or local distributor.

IMPORTANT:Checklocalcodes

before installing this ﬁreplace.

Before beginning installation of this ﬁreplace,

read these instructions through completely.

• This Style Crest, Inc ﬁreplace and its com-

ponents are safe when installed according

to this installation manual. Unless you use

Style Crest, Inc components, which have

been designed and tested for the ﬁreplace

system, you may cause a ﬁre hazard.

• TheStyleCrest,Incwarranty will be voided

by and Style Crest, Inc disclaims any re-

sponsibility for the following actions.

a.Modification of the fireplace, com-

ponents, doors, air inlet system and

damper control.

b. Use of any component part not manu-

factured or approved by Style Crest, Inc

in combination with a Style Crest, Inc

ﬁreplace system.

Proper installation is the most important step

in ensuring safe and continuous operation of

ﬁreplace. Consult the local building codes as

totheparticularrequirementsconcernedwith

the installation of all factory built ﬁreplaces.

TABLE OF CONTENTS

Safety .................................................................. 2

Speciﬁcations ...................................................... 3

Fireplace Installation............................................ 4

Venting Installation .............................................. 7

Optional Gas Line Installation............................ 13

Operation and Maintenance..............................14

Technical Service............................................... 15

Parts.................................................................. 16

Replacement Parts............................................ 18

Accessories....................................................... 18

www.fmiproducts.com

108919-01H 3

SPECIFICATIONS

0" TO

BOTTOM

OUTSIDE AIR

(LEFT SIDE

ONLY)

TOP SPACERS

3/4" AIR

SPACE

BACK

AND

SIDES

HEARTH

EXTENSION

66" X 20"

12"

EACH SIDE

1" AIRSPACE

TO COMBUSTIBLE

COMBUSTIBLE

WALL BOARD

0" TO

MATERIAL

NO COMBUSTIBLE

MATERIAL ON FACE

GAS LINE

KNOCK OUT

AIR KIT KNOCK OUTS

ROUND TOP TERMINATION

GAS LINE

KNOCK OUTS

LEFT SIDE

RIGHT SIDE

NOT LESS

THAN 14" TO

PERPENDICULAR

SIDEWALL

SQUARE CHASE-TOP

TERMINATION

8.25"

10.375"

13"

37.5"

33"

44"

42"

21.5"

32"

6.5"

38.85"

14.438"

1.375"

25.375"

8.25"

14"

44"

1.75"

0.625"

28.5"

21.125"

www.fmiproducts.com 108919-01H4

FIREPLACE INSTALLATION

SELECTING LOCATION

Todeterminesafest andmostefﬁcientlocation

forﬁreplace,youmusttakeinto consideration

the following guidelines:

1. Locationmustallowforproper clearances

(see Figures 1 and 2).

2. Consider a location where ﬁreplace will

not be affected by drafts, air conditioning

ducts, windows or doors.

3. A location that avoids cutting of joists or

roof rafters will make installation easier.

4. An outside air kit is available with this

ﬁreplace (see Optional Outside Air Kit on

page 7).

MINIMUM CLEARANCE TO

COMBUSTIBLES

Back and sides of ﬁreplace 3/4" minimum*

Floor** 0" minimum

Perpendicular wall to opening 12" minimum

Top spacers 0" minimum

Mantel clearances see Mantels, page 6

Chimney outer pipe surface 1" minimum

* Not required at nailing ﬂanges

** See step 2 of Framing

WARNING: Do not pack re-

quiredairspaceswithinsulation

or other materials.

Minimum/Maximum Chimney Height

Minimum height of chimney, measured from

base of ﬁreplace to ﬂue gas outlet of termina-

tion, is 11.5 feet for straight ﬂue or a ﬂue with

one elbow set. Maximum distance between

elbows is 2 feet. For systems with two elbow

sets, minimum height is 22 feet. Maximum

heightofanysystem is 28 feet.Thismeasure-

mentincludesﬁreplace, chimneysectionsand

height of termination assembly at level of ﬂue

gas outlet (see Figure 18, page 11).

FRAMING

1. Frameopeningforﬁreplace using dimen-

sions shown in Figures 1 and 2.

2. If ﬁreplace is to be installed directly on

carpeting, tile (other than ceramic) or any

combustible material other than wood

ﬂooring, ﬁreplace must be installed upon

ametalorwood panel extending full width

and depth of ﬁreplace.

3. Set ﬁreplace directly in front of this open-

ingandslideunit back until nailingﬂanges

touch side framing.

4. Check level of ﬁreplace and shim with

sheet metal if necessary.

5. Before securing fireplace to prepared

framing, ember protector must be placed

between hearth extension (not included)

and under bottom front edge of ﬁreplace

to protect against glowing embers falling

through. If ﬁreplace is to be installed on

a raised platform, a Z-type ember protec-

tor (not included) must be fabricated to

ﬁt your required platform height. Ember

protector should extend under ﬁreplace a

minimumof11/2".Ember protector should

be made of galvanized sheet metal (28

gauge minimum) to prevent corrosion.

6. Using screws or nails, secure ﬁreplace to

framing through ﬂanges located on sides

of ﬁreplace.

22"

37.625"

44.25"

Figure 1 - Framing Dimensions

52 1/2"

15 7/8"

22 1/2"

72 7/8"

Maintain 3/4"

Clearance at

Sides and

Back of

Fireplace

3/4" Clearance Not

Required at Nailing Flanges

Figure 2 - Corner Installation

www.fmiproducts.com

108919-01H 5

HEARTH EXTENSION

A hearth extension projecting a minimum of

20" in front of and a minimum of 12" beyond

each side of ﬁreplace opening is required to

protect combustible ﬂoor construction in front

of ﬁreplace. Fabricate a hearth extension

using a material which meets the following

speciﬁcations: a layer of noncombustible,

inorganicmaterialhaving a thermalconductiv-

ity of K=0.84 BTU IN/FT, HR. F (or less) at 1"

thick. For example, if material selected has

a K factor of 0.25, such as glass ﬁber, the

following formula would apply:

0.25 x 1.0" = 0.30" thickness required

0.84

Thermal conductivity "K" of materials can be

obtained from manufacturer or supplier of

noncombustible material. If hearth extension

is to be covered, use noncombustible mate-

rial such as tile, slate, brick, concrete, metal,

glass, marble, stone, etc. Provide a means

to prevent hearth extension from shifting and

seal gap between ﬁreplace frame and hearth

extension with a noncombustible material

(see Figure 3).

WARNING:Hearthextension

is to be installed only as shown

in Figure 3.

FIREPLACE INSTALLATION

Continued

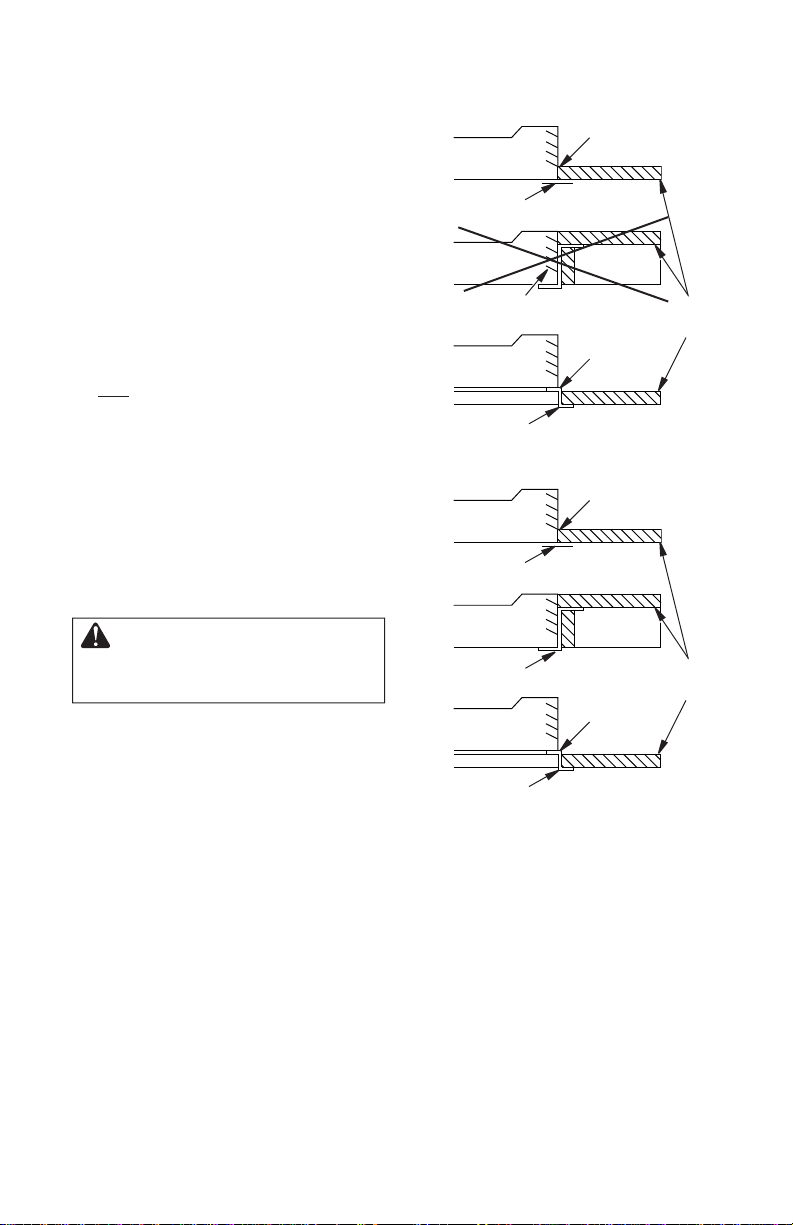

Figure 3 - Hearth Extension

Seal Gap

Fireplace Front

Ember Protector

Fireplace Front

Raised Hearth

Fireplace Front

Elevated

Ember Protector

Seal Gap

Hearth

Extension

Seal Gap

Fireplace Front

Ember Protector

Fireplace Front

Elevated

Do Not Block Louver

Ember Protector

Seal Gap

Hearth

Extension

Hearth Extension, Circulating Modes

Hearth Extension, Noncirculating Models

www.fmiproducts.com 108919-01H6

FIREPLACE INSTALLATION

Continued

Figure 4 - Mantel Clearances to

Combustible Material

Electrical

Bushing Electrical

Cover

Plate

Rocker

Switch

Figure 6 - Fan Switch-Electrical Bushing

Electrical

Housing Wire Nut (3x)

(Not Supplied) Outer Wrapper

of Fireplace

Electrical Cover

Plate and

Electrical Bushing

Fireplace Chassis

Ground

To Power

Source

Receptacle

(Supplied)

Power Source Wiring

(Not Supplied)

Prewired Receptacle

and Ground

MANTELS

A mantel may be installed if desired (see

Figure 4). Woodwork such as wood trims,

mantels or any other combustible material

projecting from front face must not be placed

within 12" of ﬁreplace opening (and within 9"

of top louver opening). Combustible materi-

als above 12" and projecting more than 1 1/2"

from ﬁreplace must not be placed less than

12" from top opening of ﬁreplace (NFPASTD

211, Sec. 7-3.3.3).

Mantels or any other combustible material

maycomeuptosideedgeof black metal face

of ﬁreplace if projection from front face falls

within limits shown in Figure 5.

FAN/BLOWER KIT ASSEMBLY

Fanor blower kit is optional with this ﬁreplace

(for circulating models only). Use of blowers

or fans other than those manufactured by

Style Crest, Inc voids warranty. Fan is oper-

ated by pressing rocker switch (see Figure 6)

in lower right hand corner of ﬁreplace face.

Blower is operated by turning control knob

(not shown).

Fan/blower kit electrical connections are

made through electrical cover plate on side

of ﬁreplace a shown in Figure 6.

FIREBOX

SAFE ZONE

Figure 5 - Side Mantel Clearance

Top View of Fireplace

Min. 12" from

Perpendicular Side Wall

0.625" Max.

33° 8"

Wiring Instructions

1. Remove electrical cover plate with bush-

ing from ﬁreplace by removing 2 sheet

metal screws as shown in Figure 6.

2. Slidepowersourcewiringthroughelectri-

cal bushing opening and electrical cover

plate and make all necessary connec-

tions.

3. Slide all wiring connections in electrical

housing as shown in Figure 6.

4. Secure electrical cover plate with screws

previously removed.

Note:Electricalhousingandcoverplatehave

sharp edges. Wear protective gloves.

Sheet

Metal

Screws

12 1/4" Ref.

1 1/2"

Max.

Upper Section

of Circulating

Fireplace

Ref.

Min.

33°

3" Nom. *Note: Drawing

Not To Scale

Safe Zone For

Projection of

Combustible

Materials

Combustible

Material

15"

Min.

12"

Min.

Fireplace Opening

Top of

Louvered

Opening

www.fmiproducts.com

108919-01H 7

Figure 8 - Lineal Gain

LINEAL GAIN

PART NO. DESCRIPTION GAIN

42" Fireplace 37 1/2"

12-8DM Pipe Section 10 5/8"

18-8DM Pipe Section 16 5/8"

24-8DM Pipe Section 23 5/8"

36-8DM Pipe Section 34 5/8"

48-8DM Pipe Section 46 5/8"

RT-8DM Round Termination 6 7/8"*

RTL-8DM Round Termination 7 3/4"*

RTT-8DM Round Termination

with Slip Section 6 7/8" to

23 1/8"*

RTTL-8DM Round Termination

with Slip Section 8 1/2" to

21 1/2"*

ET-8DM Square Chase-Top 12"*

ETO-8DM Square Chase-Top

with Mesh 12"*

ETL-8DM Square Chase-Top

with Slip Section 7" to 15"*

ETLO-8DM Square Chase-Top

with Mesh & Slip

Section

12" to

25 1/2"*

* The lineal gain for the terminations is

measured to the ﬂue gas outlet height.

Hemmed

End

8" Stainless

Inner Pipe

12 3/8"

Galvanized

Outer Pipe

Figure 7 - Outside Air Kit

Secure to Collars with Metal Tape, Screws

or Straps (Min. of 1/4" x 20" in size)

Air Inlet

Location

Must Allow

For Bushes

or Snow

Vent Hood

Required for

Wall Installation

Air Inlet

Eyebrow

Vented Crawl Space

(Check Local Codes

Before Installing in a

Vented Crawl Space)

VENTING INSTALLATION

OPTIONAL OUTSIDE AIR KIT

(MODEL AK4/AK4F)

Installation of outside air kit should be per-

formed during rough framing of ﬁreplace due

to the nature of it's location. Outside combus-

tion air is accessed through a vented crawl

space (AK4F) or through a sidewall (AK4).

See Figure 24 on page 15 for instruction of

operating air kit.

CAUTION: Combustion air

inlet ducts shall not terminate

in attic space.

The maximum height for the

air vent can not exceed 3 feet

below the ﬂue gas outlet of the

termination.

CHIMNEY PIPE

Style Crest, Inc chimney system consists of

12", 18", 24", 36" and 48" snap-lock, double-

wall pipe segments, planned for maximum

adaptability to individual site requirements.

Actual lengths gained after ﬁtting overlaps

must be taken into consideration (lineal

gain) and are given in lineal gain chart (see

Figure 8).

Lineal gain is actual measurable length of a

part after two or more parts are connected.

WARNING: The opening in

collar around chimney at top of

ﬁreplacemustnotbeobstructed.

Neveruseblowninsulationtoﬁll

chimney enclosure.

www.fmiproducts.com 108919-01H8

VENTING INSTALLATION

Continued

Figure 9 - Typical Offset Installation

Return

Elbow

Offset

Elbow

Return

Elbow Offset

Elbow

6' Max.

Return

Elbow

Offset

Elbow

Offset

Elbow

Return

Elbow

AB C

Offset

Elbow

Ceiling

Support Pipe

12S-8DM

Return

Elbow

ASSEMBLY AND INSTALLATION OF

DOUBLE WALL CHIMNEY SYSTEM

Each double wall chimney section consists

of a galvanized outer pipe, a stainless steel

inner ﬂue pipe and a wire spacer. Pipe sec-

tions must be assembled independently as

chimney is installed. When connecting chim-

ney directly to ﬁreplace, inner ﬂue pipe sec-

tion must be installed ﬁrst with lanced side

up. Outer pipe section can then be installed

over ﬂue pipe section with hemmed end up.

Pressdown on each pipe section until lances

securely engage hem on ﬁreplace starter.

Wire will assure proper spacing between

inner and outer pipe sections.

Note: For Canada, use chimney parts des-

ignated HT.

WARNING:Openingincollar

around chimney at top of ﬁre-

place must not be obstructed.

Never use blown insulation to

ﬁll chimney enclosure.

Continue to assemble chimney sections as

outlined, making sure that both inner and

outerpipesectionsare locked together. When

installing double wall snap-lock chimney to-

gether, it is important to assure joint between

chimney sections is locked. Check by pulling

chimney upward after locking. Chimney will

not come apart if properly locked. It is not

necessary to add screws to keep chimney to-

gether (exception - see Figure 11, page 9).

USING ELBOW OFFSETS (30E-8DM)

1. To achieve desired offset, you may install

combinations of 12", 18", 24", 36" and

48" length of double wall pipe (see offset

chart, page 7, and Figure 9).

Note:Forsystems with 2 elbowsets,mini-

mum height is 22 feet. Maximum height

for any system is 50 feet.

2. Chimney weight above offset rests on

return elbow. Straps must be securely

nailed to rafters or joists (see Figure 10,

details A and B, page 9).

3. Maximumlengthof pipebetweensupports

(return elbow or 12S-8DM) is 6' of angle

run.Maximumoftwo 6' anglerunsections

per chimney system (see Figure 9).

4. All pipe connections between offset and

return must be secured with two screws

on outer pipe only (see Figure 11, page

9). Do not penetrate inner stainless.

www.fmiproducts.com

108919-01H 9

Figure 11 - Elbow Offset

Screws

Figure 10 - Ceiling Support Pipe 12S-8DM

OFFSET RISE CHIMNEY LENGTH

A B 48" 36" 24" 18" 12"

4 3/8" 16 3/8" ELBOW SET ONLY

9 3/4" 25 1/2"1

12 3/4" 30 3/4"1

15" 34 3/4"1

18" 40" 1 1

21 1/4" 46 1/4"1

23 3/4" 49 1/4"11

27 3/4" 56 3/4"1

30" 60 3/4"1 1

33" 66" 1 1

36" 71" 1 1

38 1/4" 75" 2

41 1/4" 80 1/4"1 11

45" 86 3/4"2

46 3/4" 89 1/2"1 1 1

51" 97" 1 1

53 1/4" 101" 2 1

56 1/4" 106 1/4"2

59 1/4" 111 1/2"1 1 1

61 3/4" 115 1/2"2 1

64 3/4" 120 3/4"2 1

68 1/4" 127" 1 2

70" 130" 2 1 1

74 1/4" 137 1/2"1 2 1

76 3/4" 141 1/2"1 2 1

79 3/4" 146 3/4"4

OFFSET CHART (22-50 FT. SYSTEM HEIGHT)

2" Min.

Straps Straps

Straps

Detail A

Return Elbow Detail B

Angle

Firestop

See Detail A

See Detail B

Ceiling Support

Pipe 12S-8DM

VENTING INSTALLATION

Continued

www.fmiproducts.com 108919-01H10

VENTING INSTALLATION

Continued

Pitch Slope Opening

"A" Max. Used Flashing

Model No.

Flat 0° 15" V6F-8DM

0-6/12 26.6° 16 1/8" V6F-8DM

6/12- 12/12 45.0° 20 3/8" V12F-8DM

4. Remove shingles around opening mea-

sured. Cut out this section.

5. Add next sections of pipe until end

penetrates roof line. Check to see that

properclearancesare maintained. Extend

chimney by adding sectionsof double wall

pipe until pipe is minimum of 30" above

highest point of roof cutout. Termination

and chimney must extend a minimum of

36" above highest point where it passes

through roof.

Figure 14 - Roof Opening Measurements

FLASHING INSTALLATION (V6F-8DM

OR V12F-8DM)

Determineﬂashingtobeusedwithroofopen-

ingchart.Slideﬂashingoverpipe until base is

ﬂatagainstroof. Replace as manyshinglesas

needed to cover exposed area and ﬂashing

base. Secure in position by nailing through

shingles (see Figure 15, page 11). DO NOT

NAIL THROUGH FLASHING CONE.

Installing Flashing on a Metal Roof

When installing ﬂashing on a metal roof, it

is required that putty tape be used between

ﬂashing and roof. Flashing must be secured

toroofusing#8 x 3/4" screws andthensealed

with roof coating to prevent leakage through

screw holes. A roof coating must also be ap-

plied around perimeter of ﬂashing to provide

a proper seal.

FIRESTOP SPACERS (FS-8DM)

Firestop spacers are required at each point

where chimney penetrates a floor space.

Their purpose is to establish and maintain

required clearance between chimney and

combustible materials. When pipe passes

through a framed opening into a living space

above, ﬁrestop must be placed onto ceiling

from below as shown in Figure 12.

They also provide complete separation from

one ﬂoor space to another or attic space as

required by most codes. When double wall

pipe passes through a framed opening into

an attic space, ﬁrestop must be placed into

an attic ﬂoor as shown in Figure 13.

Figure 12 - Firestop Spacer with Living

Space Above Ceiling

Figure 13 - Firestop Spacer with Attic

Space Above Ceiling

PENETRATING ROOF

Tomaintain a2"clearancetopipeona roofwith

a pitch, a rectangular opening must be cut.

1. Determine center point where pipe will

penetrate the roof.

2. Determine center point of the roof. Pitch

isthedistancetheroofdropsover a given

span,usually12".A6/12pitchmeansthat

the roof drops 6" for each 12" measure

horizontally down from roof rafters.

3. Use roof opening chart (Figure 14) to

determine correct opening length and

ﬂashing required.

If area above is a living space, install

ﬁrestop below framed hole.

If area above is an attic or insulated area,

install ﬁrestop above framed hole.

14 3/8"

(36.5 cm)

30"

(76.2 cm

)

(2.5

cm)

(2.5

cm)

Minimum Measurements

(2.5 cm)

Opening "A"

Autres manuels pour C42MW

Table des matières

Autres manuels Vexar Cheminée intérieure

Vexar

Vexar DVF32TMHPN-A Guide de démarrage rapide

Vexar

Vexar CEF32M Guide de démarrage rapide

Vexar

Vexar C36MW Manuel utilisateur

Vexar

Vexar Coleman CD32M-2 Guide de démarrage rapide

Vexar

Vexar CD32M-B Manuel utilisateur

Vexar

Vexar 368STM-1 Guide de démarrage rapide

Vexar

Vexar C36EMW-RC Guide de démarrage rapide

Vexar

Vexar CD36T-M Guide de démarrage rapide

Vexar

Vexar CD32M-B Guide de démarrage rapide

Vexar

Vexar CD32M (-1)(-2) Guide de démarrage rapide

Vexar

Vexar CD32M Guide de démarrage rapide

Vexar

Vexar CD36TN-M Guide de démarrage rapide

Vexar

Vexar C42MW Manuel utilisateur

Vexar

Vexar C36EMW-RB Guide de démarrage rapide

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
