VEVOR VVPS115BUS Manuel utilisateur
USER MANUAL
SINGLE SPEED POOL PUMP
01
Instruction Manual
VVPS115BUS(1.5THP 115V)
VVPS120BUS(2.0THP 115V)
IMPORTANT : Be sure to review the contents of this manual before attempting to operate the equipment.
This manual should be located where it can be easily referenced by all users of themachine.
NEED HELP? CONTACTUS!
Have product questions? Need technical suppo? Please feel free to contact us:
CustomerSe[email protected]
Read this "Safety Precautions" before operation.
The below information should not be neglected for the proper use of this product. Your
understanding can prevent harm or danger to the user or others.
SAFETY PRECAUTIONS
MAIN PARTS
02
PARTS
1.Lid & Clamp Ring
2.O-Ring
3.Strainer
4.Clip-Bayonet
5.Strainer body
6.Drain Plug
7.Diuser O-Ring
8.Bolts
9.Diuser
10.Pump Housing O-Ring
11.Impeller
12.Pump Housing
13.Motor
14.Shaft Seal
ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE
INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST BE FURNISHED TO
THE END-USER OF THIS PRODUCT. FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY.
READ CAREFULLY AND SAVE THIS INSTRUCTION MANUAL
INSTALLATION
03
The following information is ve impoant for safety in
handling this product. Be sure to obsee it.
Indicates an imminently hazardous situation that, if not avoided, will result
in death or serious inju.
DANGER
Indicates a potentially hazardous situation that, if not avoided, could
result in death or serious inju.
WARNING
Indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate inju, or propey damage.
CAUTION
ALERT
PROHIBITED
IMPORTANT
Do not operate the pool and spa circulation system if a system component is not assembled
properly, damaged, or missing.
Before staing the system pump, all system valves must be set to allow system water to
return to the pool.
Remove pressure test plugs and/or plugs used in winterization of the pool/spa from the
suction outlets. Fail to do so will result in an increased potential for suction entrapment.
Connect only to a branch circuit protected by a ground-fault circuit interrupter (GFCI).
Before working on any electrical equipment, turn o the power supply to the equipment.
Do not permit children to play with this product.
WARNING
Strainer cover must be properly secured to prevent violent separation due to pressure in
the circulation system.
Before seicing, turn all the circulation system and pump controls o, make sure the lter
manual air relief valve is in the open position, and all pressure is relieved.
It is highly recommended that this product be installed and seiced by a qualied pool
professional.
Stay o the main drain and away from all suction outlets.
DANGER
04
Before seicing, all water circulation systems and pump controls must be o
position and release all the pressure from the system.
INSTALLATION
Use Teon tape on the thread before screw ttings to pump inlet and outlet pos so as to avoid
leakage. Do not over-tighten the ttings.
Warning: Keep product away from Children.
This pump is compatible with above-ground pools and spas. Locate the pump as close to the
pool and water level as possible. Do not add too many elbow pipes in the plumbing so as to
avoid suction reduction. It is highly recommended that the pump be placed in cool, d
places and avoid direct sunlight. Install the pump on a rm, level base or pad to meet all local
and national codes. Fasten the pump to a base or pad with screws or bolts to fuher reduce
vibration and stress on pipe or hose joints. The base must be solid, level, rigid, and
vibration-free.
WARNING: This product should be installed and seiced by a qualied pool professional.
All electrical wiring must be in conformance with applicable local codes, regulations, and
the National Electric Code (NEC).
It is strongly advised to protect the electrical components from direct sunlight though
this pump is designed for outdoor use.
If installed within an outer enclosure or beneath the ski of a hot tub or spa, adequate
ventilation and free circulation of air must be provided to prevent overheating.
Place this pump in a well-drained area, one that will not ood when it rains.
Do not install this pump in a damp or non-ventilated location. It requires free circulation
of air for cooling.
Do not run the pump d. Water acts as a coolant and lubricant for the mechanical shaft
seal. Running the pump d may damage seals, causing leakage, ooding, and voids
warranty. Fill strainer housing with water before staing the motor.
CAUTION
05

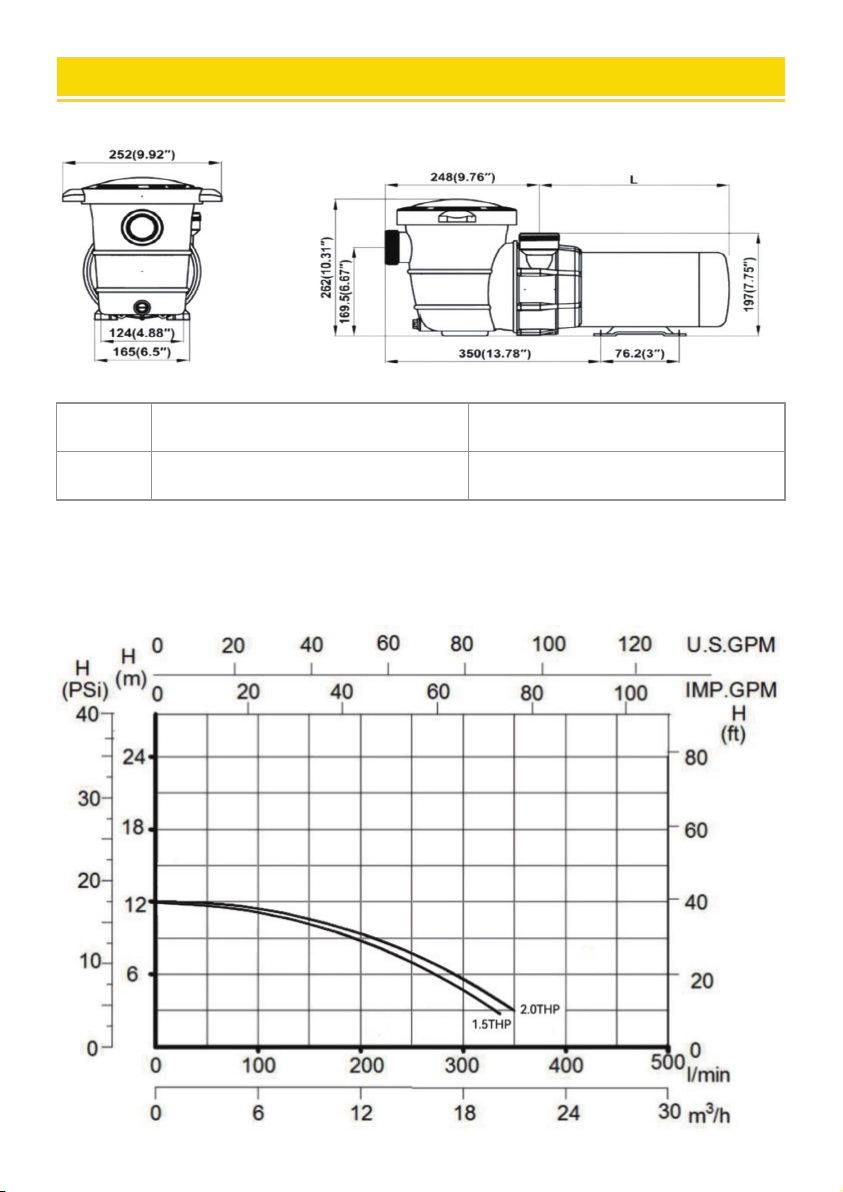

THP 1.5 2.0
L12.01"(305mm) 12.76"(324mm)
• Remove pump lid and Strainer.
• Remove clip-bayonet (pa# 4 in the pas list).
• Remove the pump strainer body from the pump housing.
• Unscrew the 8 bolts.
• Turn the discharge po to be horizontal.
• Screw back the 8 bolts.
• Re-install the pump strainer body.
• Buckle up the clip-bayonet.
• Put Strainer back into the pump strainer body.
• Fasten pump lid
06
Make sure that the electrical supply available is suitable for the motor’s voltage, phase, and cycle.
Voltage from the power must be in the range from 90% to 110% of the motor nameplate rated voltage.
Otherwise, the motor may overheat and result in overload tripping and reduced component life.
Install, ground, bond, and wire motor in accordance with local or NEC requirements.
The motor should be grounded permanently by connecting the ground terminal to the electrical
seice ground.
Bond motor to pool structure. Bonding will connect all metal pas within and around the pool with a
continuous wire. Bonding reduces the risk of current passing between bonded metal objects, which
could potentially cause electrical shock if grounded or shoed.

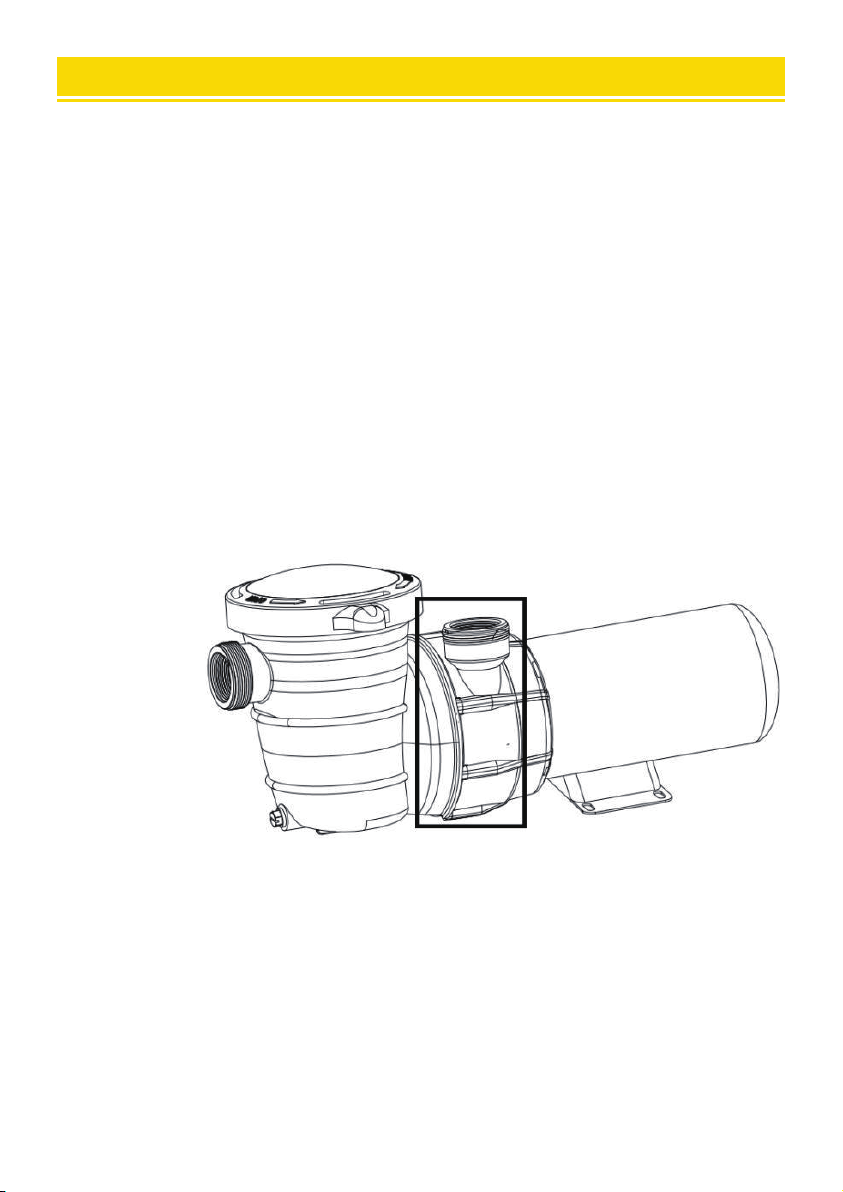

Pump discharge po can be turned to horizontal:
TROUBLE SHOOTING
MOTOR WILL NOT START
• Improper or loose wiring connections; open switches or relays; tripped circuit breakers,
GFCI’s, or blown fuses.
• Manually check rotation of motor shaft for free movement and lack of obstruction.
• If you have a timer, make sure it is working properly. Bypass it if necessa.
MOTOR SHUTS OFF
MOTOR HUMS BUT DOES NOT START
• Undersized wiring; loose connections; etc.
• Low voltage at motor or power drop (frequently caused by undersized wiring or extension cord use).
• Mechanical binding and electrical overload.
• Centrifugal switch stuck in the OPEN position.
• Binding of the motor shaft.
PUMP WON’T PRIME
•Make sure pump strainer housing is lled with water and the cover O-ring is clean; also, be sure it is
properly seated in the cover O-ring groove. Make sure the strainer cover is locked rmly in position
and lubricated with “Jack’s 327”.
• Make sure all suction and discharge valves are fully open and not blocked, that the pool water level
is at a proper level and that the skimmer weir is not hung up or stuck on the skimmer wall.
• Block o to determine if the pump will develop a vacuum. You should have 5”-6” of vacuum at the
strainer cover. You may be able to check by removing the skimmer basket and holding your hand over
the bottom po with the skimmer full and pump running. If no suction is felt, check for line blockage.
• a. If pump develops a vacuum, check for a blocked suction line or diy strainer basket, and an air
leak in the suction piping may be the cause.
• b. If the pump does not develop a vacuum and the pump has sucient “priming water”: i. Re-check
strainer housing cover and all threaded connections for suction leaks. Check if all hose clamps are
tight. ii. Check voltage to ensure that the motor is rotating at full RPM. iii. Open housing cover and
check clogging or obstruction in suction. Check impeller for debris. iv. Remove and replace shaft seal
only if it is leaking.
07
PRIMING
Fill strainer housing with water to suction pipe level. If water leakage occurs anywhere on the pump or
lter, DO NOT sta the pump. If no leakage occurs, stand at least 10 feet from the pump and/or lter
and proceed with staing the pump.
TROUBLE SHOOTING(CONTINUED)
LOW FLOW
• Clogged or restricted strainer or suction line; undersized pool piping.
• Plugged or restricted discharge line or lter, valve paially closed (high gauge reading).
How to correct: Backwash strainer as per manufacturer’s instructions;
• Air leak in suction piping causing rumbling in the pump.
• Cavitation due to restricted or undersized suction line or leak at any joint, low water
level in the pool, and unrestricted discharge return lines. Correct suction condition or
throttle return lines, if practical.
NOISY PUMP
•Vibration due to improper mounting, etc. Put a rubber pad under metal mounting feet.
• Foreign matter in the pump housing. Loose stones/debris hitting the impeller could be the
cause; remove any above.
• Motor bearings noisy from normal wear, rust, overheating, or concentration of chemicals
causing seal damage which will allow chlorinated water to seep into bearings wiping out
the grease causing bearing to whine. All seal leaks should be replaced at once.
• Equipment base vibrating.
08
