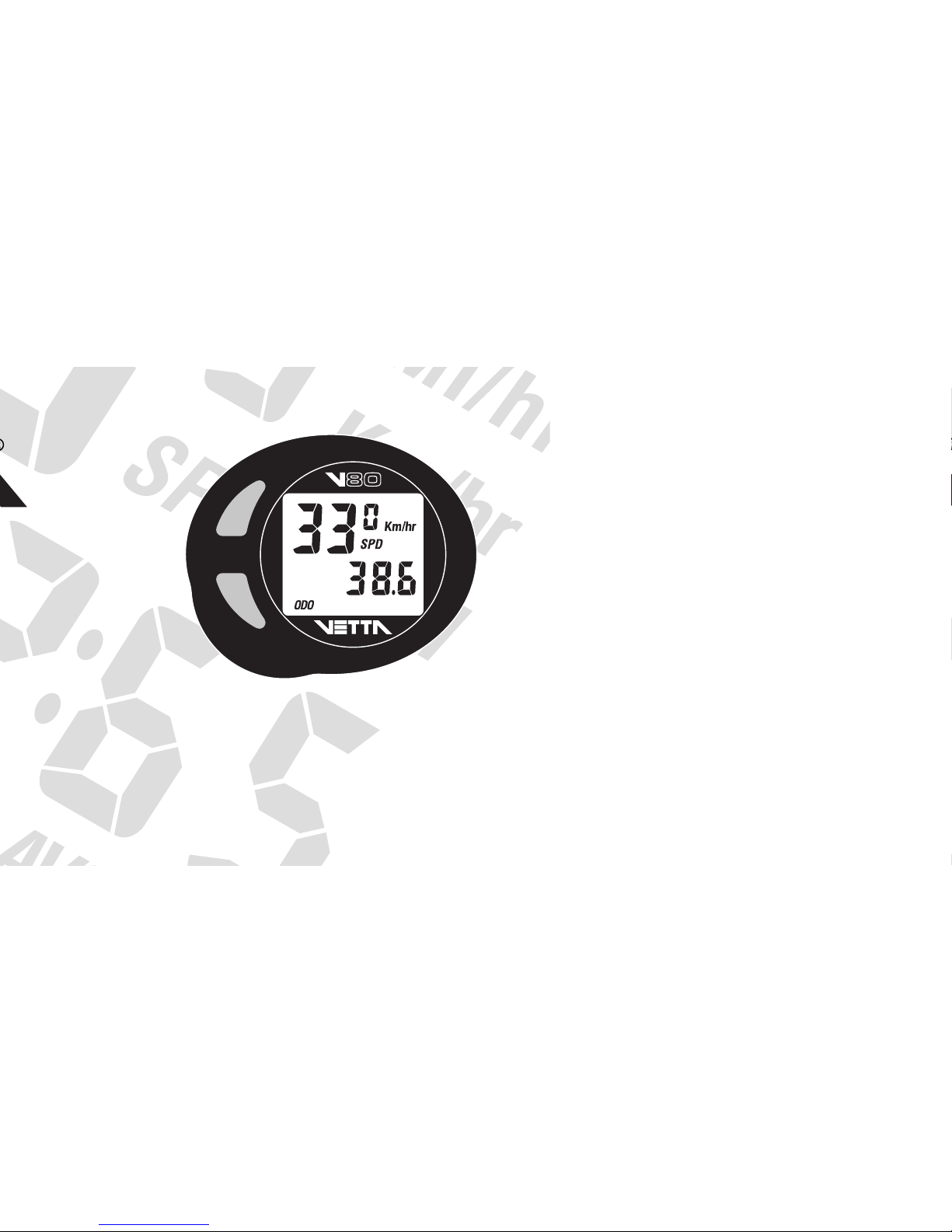

CYCLE COMPUTER OWNER'S MANUAL
ENGLISH
INTRODUCTION
Congratulations on your purchase of the new Vetta V-80 or V-80C cycle computer. The V-80 series
is designed for the serious cyclist with the features that really support a training program, whether
you are a road cyclist, offroad cyclist, or triathlete. The Vetta two button feature allows easy pro-
gramming and operation. The V-80 model offers seven functions for the cycling enthusiast, includ-
ing readouts on elapsed time, average and maximum speed, and trip distance. The V-80C offers the
additional function of cadence, which is essential to any training program that involves the mea-
surement and improvement of cycling performance.
COMPONENT ILLUSTRATIONS
Head Unit Sensor Bracket Battery Magnet V-80C
Cadence Sensor
V-80C
Cadence Magnet
FUNCTION LIST
SPEEDOMETER (SPD) (Mi/hr or Km/hr)
Tells you your current speed on the upper line of the display screen at all times.
CUMULATIVE ODOMETER (ODO)
Tells you your cumulative distance until you perform an all clear total reset, the
battery is changed, or the unit passes 9999.9 mi. or km.
TRIP ODOMETER (DST)
Tells you the distance for your current ride from 0 to 999.99 mi. or km. Automati-
cally resets after 999.99 mi. or km. Trip odometer will commence automatically
when the bicycle wheel rotates. To reset the trip odometer to zero at the end of your
ride, press the “SET” and “MODE” buttons simultaneously.
ELAPSED TIME (RT)
Elapsed time begins when the wheel begins to rotate. It starts automatically
when the wheel is set into motion and stops when the wheel stops for over
four seconds. When one hour of riding time has elapsed, the clock display will
automatically display the time as hours and minutes. When ten hours of rid-
ing time have elapsed, the clock will return to 0:00. Average speed will show
an “E” for error. Distance (DST) and maximum speed (MXS) will continue to
accumulate. To clear the elapsed time press the “SET” and “MODE” buttons
while in the elapsed time mode.
MAXIMUM SPEED (MXS)
Maximum speed is your highest attained speed on your current ride. It is stored
and displayed until an all clear reset is performed or the battery changed.
AVERAGE SPEED (AVS)
Your average speed is calculated using your true ride time and trip distance. The
minimum unit displayed is 0.1 Km/hr or Mi/hr.
DIGITAL 12/24 HOUR CLOCK(MODEL V-80) DIGITAL 24 HOUR CLOCK(MODEL V-80C)
Gives you the time of day in a 12 or 24 hour format. To display the clock, press the
“MODE” button for one second. To change between the 12 and 24 hour clock, press the
“MODE” button for three seconds while in the clock mode. Press the “MODE” button
again to return to odometer mode.
CADENCE (RPM) (MODEL V-80C ONLY)
Crank arm cadence (RPM) is displayed from 15 to 199 RPM.
FEATURE LIST
RESETTABLE ODOMETER (V-80)
The cumulative odometer on the V-80 can be preprogrammed to any desired mileage. This feature allows
you to retain your cumulative mileage when replacing batteries or allows you to lie about your mileage to
impress your friends.
AUTO POWER SAVING MODE (AUTO START-STOP)
As a battery saving device, Vetta computers will automatically shut down after 10 minutes of non-use. Your
V-80 or V-80C will automatically restart itself as soon as the unit receives input from the wheel.
AUTO SCAN V-80
Once it is activated, this feature scans all display modes at 3 second intervals. To activate this feature, press
the “SET” button while in the trip distance mode. To deactivate the Auto Scan mode press either the “SET”
or “MODE” button. V-80C ONLY–Select any mode except odometer, press and hold the “MODE” button,
thrn press the “SET” button to activate. Follow the same steps to deactivate the Auto Scan mode.
ALL CLEAR TOTAL RESET V-80
To completely clear the unit of all information, press the “SET” and “MODE” buttons for 10 seconds. The
unit will return to the programming mode with the flashing Km/hr symbol displayed. The unit is now ready
to reprogram. Do not clear the computer unless you need to reprogram the unit. V-80C ONLY–Select the
odometer mode and press the “SET” button for 10 seconds. Unit will revert to the programming mode with
a flashing Km/hr display.
USER MODIFIABLE SCREEN (MODEL V-80C ONLY)
The screen positions for the Speed and Cadence readings can be easily switched. In the Cadence mode,
press and hold the SET button, then press the MODE button at the same time. Speed (SPD) will be dis-
played on the lower line and Cadence (RPM) on the upper line. Press SET then MODE buttons again and
the display will change back.
The V-80 and V-80C computers use a common LR44 1.5v button cell battery.
Replacement batteries are available at most camera shops and from your Vetta
retailer. Under normal usage a battery should last approximately one year.
NOTE:
Most problems that occur with cycle computers are caused by dead or weak bat-
teries. If you are having problems with your computer's operation, check and
replace the battery first.
STEP 1
Remove the battery cover from the bottom of the computer by turning the
battery cap counterclockwise with a coin.
STEP 2
Install the battery into the battery compartment with the positive (+) side of the
battery facing the compartment door. Be careful when you are installing the
battery not to bend any of the battery contacts.
STEP 3
Screw the battery cap firmly into place. Make sure that the rubber o-ring seal
does not get pinched or distorted in this operation as this may compromise the
waterproofing of the unit.
BATTERY INSTALLATION
LR44 1.5v Battery
WARNINGS AND CAUTIONS
Vetta encourages you to ride safely. Wear a helmet every time you ride, use front and rear
lights at night, and always keep your eyes on the road ahead of you.
Vetta cycle computers are sophisticated electronic instruments. Vetta recommends that this
product be installed only by a qualified bicycle retailer. Failure to read these instructions and improper
installation of this device may void the warranty. If you are in doubt about any aspect of the installation
or operation of this product, consult your local bicycle retailer for clarification.
CAUTION
CAUTION
“SET” BUTTON (UPPER LEFT)
The “SET” button confirms, resets, or clears numbers.
“MODE” BUTTON (LOWER LEFT)
The “MODE” button starts, stops, or moves in a loop sequence from one function
to another.
BUTTON FUNCTIONS
SETTING MILES/HOUR OR KILOMETERS/HOUR (V-80)
After the battery is installed, all of the displays will be illuminated. Km/hr will then
appear on the screen.
STEP 1
Press the “MODE” button to switch between miles and kilometers.
STEP 2
When your selection has been made, press the “SET” button to confirm your
selection and move to the wheel circumference selection mode.
PROGRAMMING THE COMPUTER HEAD
Now that you are familiar with the features of your Vetta V-80 or V-80C cycle computer, you are ready to
begin programming the unit specifically for your bike. Take a few minutes to familiarize yourself with the
buttons and their functions before you proceed to program the unit.
