Mechanical Edge-O-Dock Levelers

FM-0648, FM-2066, FM-2072, FM-2078, FM-2566, FM-2572, FM-3066, FM-3072

Model FM-2066

Receiving instructions:

After delivery, remove the packaging from the product. Inspect the product to determine whether it

sustained damage during transport. If damage is discovered, record a complete description of it on the bill of

lading and file a claim with the carrier immediately! If the product is undamaged, discard the packaging.

NOTE:

The end user is solely responsible for confirming that product design, use, and maintenance comply with

laws, regulations, codes, and mandatory standards applied where the product is used.

Replacement Parts and Technical Assistance:

If you have questions that are not addressed in these instructions, or to order replacement parts, labels,

and accessories, call (260) 665-7586 and ask for the Service and Parts Department. You can also reach

Service and Parts online at http://www.vestilmfg.com/parts_info.htm.

Table of Contents 12/2/20 FM MANUAL.DOCX

Table of Contents

Signal words … … … … … … … … … … … … 2

Hazards … … … … … … … … … … … … 2

Model number and capacity … … … … … … … … … … 3

Major components and orientation … … … … … … … … … 4

Exploded parts diagram and Bill of Material … … … … … … … … 4

Installation instructions … … … … … … … … … … 5

Record of satisfactory condition … … … … … … … … … 15

Operation instructions… … … … … … … … … … … 15

Inspection and maintenance … … … … … … … … … … 17

Adjusting spring tension … … … … … … … … … … 17

Replacement parts … … … … … … … … … … … 18

Labeling diagram … … … … … … … … … … … 19

Limited warranty … … … … … … … … … … … 20

SIGNAL WORDS

This manual uses SIGNAL WORDS to direct the reader’s attention to important safety-related messages.

These messages describe uses of the product that could result in personal injury or property damage. Each

signal word corresponds to a specific hazard level. The following are definitions of signal words that might

appear in this manual.

Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS

INJURY. Use of this signal word is limited to the most extreme situations.

Identifies a hazardous situation which, if not avoided, COULD result in DEATH or SERIOUS

INJURY.

Indicates a hazardous situation which, if not avoided, COULD result in MINOR or

MODERATE injury.

Identifies practices likely to result in product/property damage, such as operation that might

damage the product.

HAZARDS

Vestil Manufacturing strives to identify all foreseeable hazards associated with the use of its products.

However, material handling is dangerous and no manual can address every risk. Ultimately, the most effective

way to prevent injury is for persons who use this dock leveler to apply sound judgment whenever using this

device.

Improper or careless operation of this device might result in serious personal injuries.

•Read and understand this entire manual before installing, assembling, using or servicing this

dock leveler. Keep this manual in a location known to persons who use the dock leveler. Read the

manual whenever necessary to refresh your understanding of proper use, inspection, and maintenance

procedures.

•The Edge-O-Dock Leveler presents falling, pinch point, and impact hazards to the user and bystanders.

ALWAYS follow these instructions to avoid injury.

•DO weld the dock leveler securely to the dock face before use. DO anchor the dock leveler to the dock

if necessary. See the Installation Instructions starting on page 5.

•DO NOT install the dock leveler in a dock that is not flat and level. It is acceptable for the driveway

surface below the dock to be inclined towards or away from the dock edge.

•DO inspect the dock leveler for damage or defects prior to use every day. DO NOT use a dock leveler

that is damaged or is not working properly.

Table of Contents 12/2/20 FM MANUAL.DOCX

•

DO NOT use a dock leveler that has not been welded continuously across its top edge to the dock face.

DO NOT use a dock leveler if any welds are cracked.

•DO NOT use a dock leveler that rocks or shifts when a load is placed on it. Remove it from service until

it can be repaired.

•DO wear appropriate PPE. At a minimum, use footwear compliant with ASTM F2413 (formerly ANSI

Z41-1999) and eye guards compliant with ANSI Z87.1-2010.

•DO NOT use the dock leveler if you tire quickly or easily, or if you have experienced fainting spells. DO

NOT use the dock leveler if you are under the influence of alcohol, medication, or other substances that

affect your balance or coordination. Only use the dock leveler if you are in good physical health.

•DO NOT use a handle other than the factory-supplied handle to extend the dock leveler.

•DO maintain a firm footing when operating the dock leveler.

•DO NOT attempt to extend the dock leveler if no trailer is present in the dock, as the operator can lose

his balance.

•DO NOT extend the dock leveler while people in the truck bay are within reach of the unit.

•DO NOT store items on the dock leveler. DO NOT attempt to use the dock leveler if objects are on top

of it. ALWAYS check the dock leveler for foreign objects before use. Only use this item as intended.

•DO NOT exceed the load limit for the dock leveler. The load limit is printed on the nameplate label,

found on the right-hand side of the deck weldment.

•DO NOT force the lip plate to extend using your hands or other mechanical means. Remove it from

service until it can be repaired.

•DO inspect the dock leveler as described in Inspections & Maintenance on page 17. DO NOT use the

dock leveler unless it is in normal condition. ONLY use manufacturer-approved replacement parts if

repairs are necessary.

•DO NOT use this product UNLESS every label shown in the labeling diagram on page 19 is in place,

undamaged, and easily readable.

•DO NOT modify the dock leveler in any way without express, written approval from Vestil

Manufacturing. Unapproved modifications automatically void the Limited Warranty on page 20 and can

make the product unsafe to use.

MODEL NUMBER AND CAPACITIES

The model number, serial number and capacities are printed on the nameplate label, located on the left

side panel of the deck weldment (left and right correspond to those of the trailer). Include the model and serial

numbers in any correspondence with your dealer or the factory.

The load capacity rating as printed on the nameplate of your unit designates its net capacity. This capacity

must never be exceeded, as permanent damage or personal injury may result.

Table of Contents 12/2/20 FM MANUAL.DOCX

MAJOR COMPONENTS AND ORIENTATION

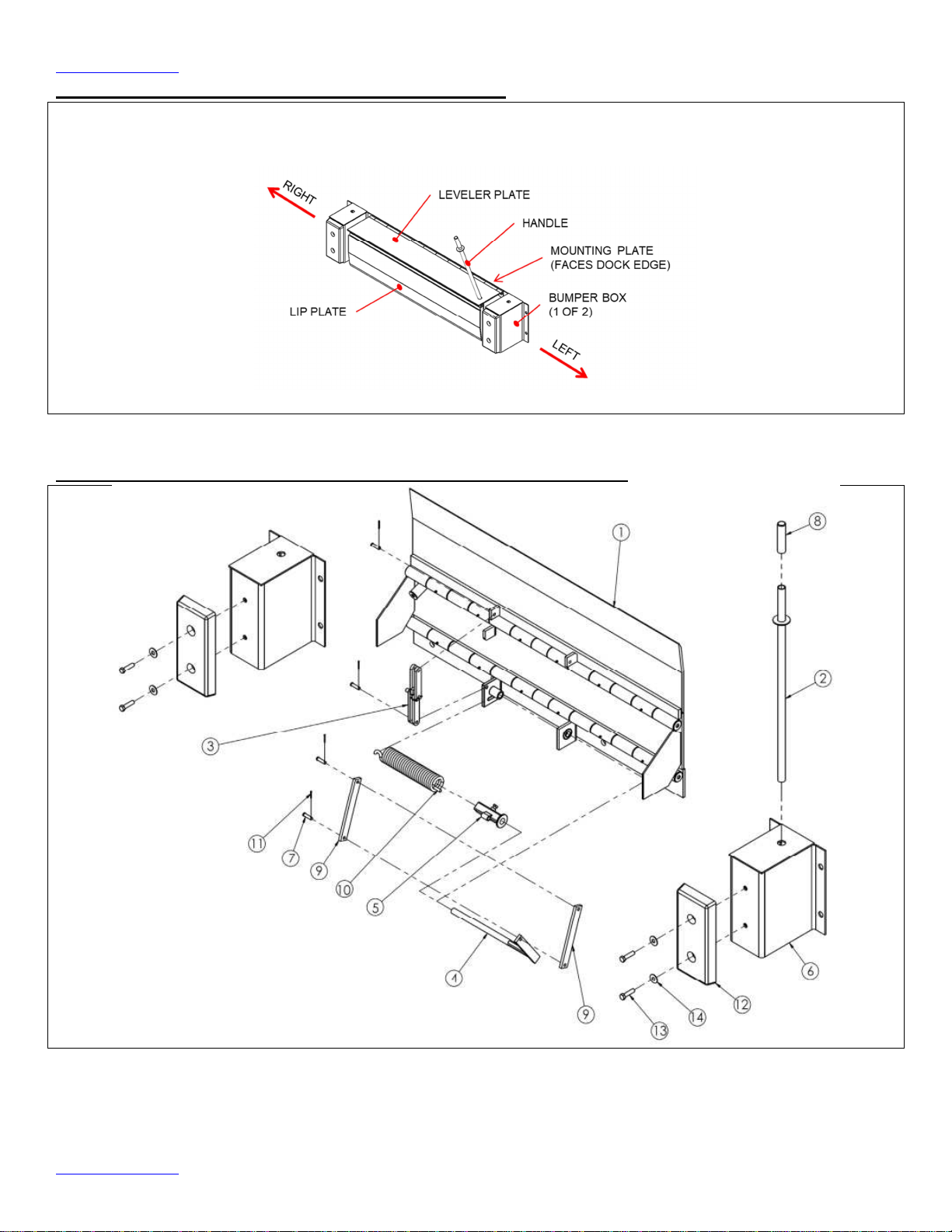

Refer to this drawing to identify the major components of your Edge-O-Dock Leveler. In this manual, “right” and

“left” will always correspond to the right and left sides of a trailer parked at the dock.

EXPLODED PARTS DIAGRAM AND BILL OF MATERIAL

Table of Contents 12/2/20 FM MANUAL.DOCX

Item no.

Vestil p/n

Description

Qty

17-513-077

17-513-007

17-513-006

17-513-079

17-513-013

07-513-012

07-513-075

07-513-074

WELDMENT, ASSEMBLY, DECK

FM-0648

FM-2066

FM-2072

FM-2078

FM-2566

FM-2572

FM-3066

FM-3072

07-525-004 ASSEMBLY, HANDLE 1

07-516-008 ASSEMBLY, LINK ARM 1

07-612-001 ASSEMBLY, PIN, SPRING RETAINER 1

07-518-009 ASSEMBLY, TORSION TUBE, SPRING TENSIONER 1

07-514-001 WELDMENT, 13” BUMPER BOX 2

21-112-003 PIN, 1/2” X 1-15/16” RETAINING CLEVIS PIN 4

07-025-005 HANDLE, BLACK RUBBER, 6” 1

07-040-003 LEVER, SPRING LINKAGE BAR 2

07-146-009 SPRING 1

65078 EXTENDED PRONG COTTER PIN, ZINC FINISH 1/8” X 1-1/2” 4

29-001-001 SPECIALTY MOLDED RUBBER BUMPER 2

11311 BOLT, HHCS, #5 PLAIN 5/8”-11 X 2” 4

33016 FLAT WASHER, LOW CARBON, USS ZINC PLATED, 5/8” 4

INSTALLATION INSTRUCTIONS

Read all instructions carefully before unpacking and installing your Edge-O-Dock leveler. Follow these

instructions carefully.

BEFORE YOU BEGIN.

The procedure for installing an Edge-O-Dock dock leveler depends on the dock

height and the construction of the dock edge. This manual assumes an optimum dock height of 50”.

The preferred dock edge construction is a well-anchored six-inch steel channel, ¼” thick, embedded and

anchored in the dock edge. This feature allows the dock leveler to be welded into position. This also allows you

to install an approach ramp to increase the dock leveler’s height.

With a shorter steel dock edge, concrete anchors will be required in addition to welding.

If no steel edge is present, a steel approach plate must be anchored to the floor to provide a welding surface.

DO NOT use a dock leveler that has not been welded to the dock. FAILURE TO FOLLOW THE PROPER

INSTALLATION PROCEDURE WILL DECREASE THE CAPACITY OF DOCK LEVELER.

Table of Contents 12/2/20 FM MANUAL.DOCX

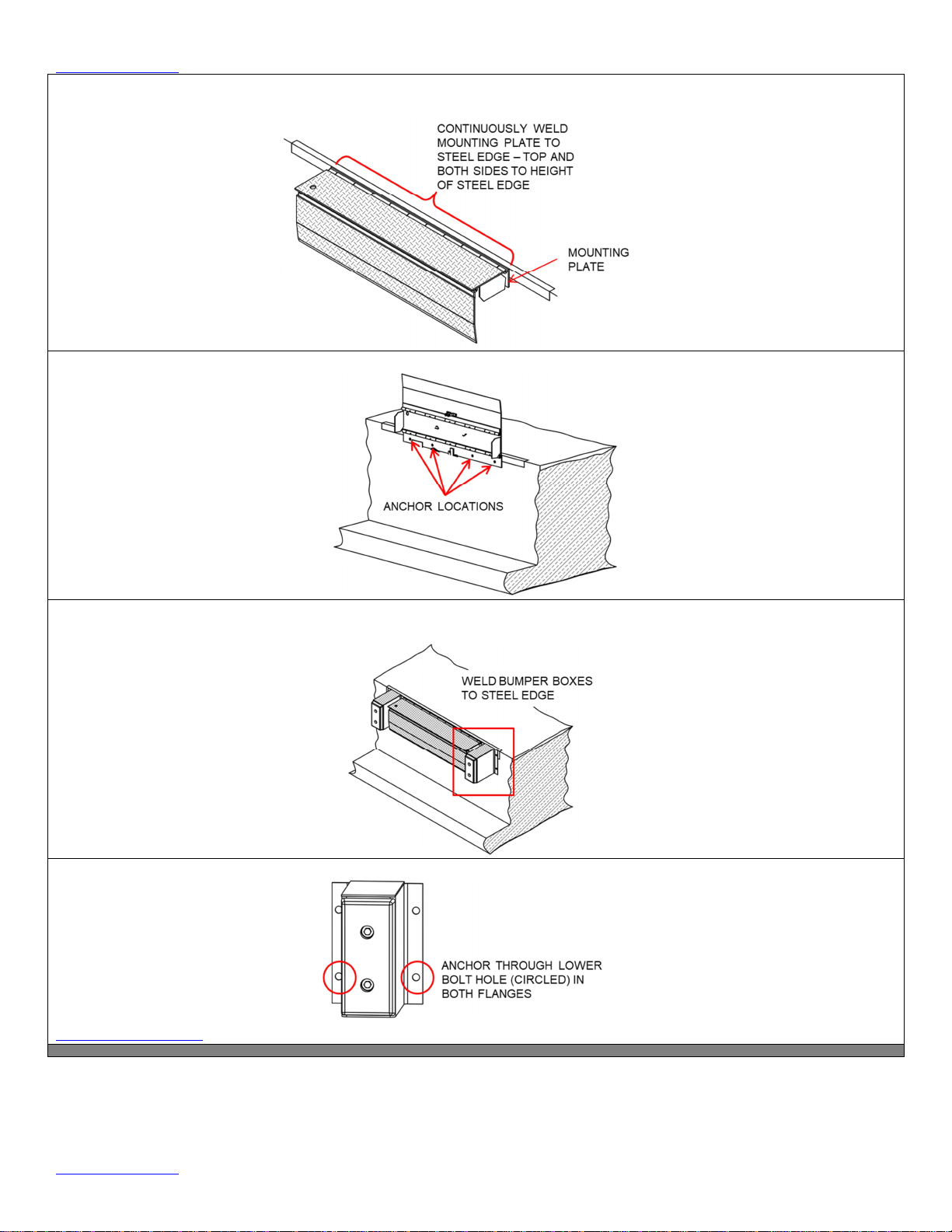

RECOMMENDED DOCK EDGE FOR NEW CONSTRUCTION.

The recommended dock edge for new

construction is a well-anchored 6-inch channel with a minimum thickness of ¼ inch (C6x8.2). Anchors must be

made from 1 ½” lengths of 6-inch channel, welded inside the channel at a 12-inch pitch.

The CE curb edge option is available through your Vestil distributor.

TOOLS AND SUPPLIES NEEDED.

The following tools and supplies will be needed for the installation. These

are not supplied with the product.

•Tape measure

•Forklift with a lift boom

•Air or electric grinder

•Arc welder

•1-1/2” open-end wrench or pipe wrench

•¾” open-end wrench, box wrench, or socket wrench (19 mm will also work)

•Rotary hammer drill *

•3/4” × 5” concrete anchors (up to 14 needed, depending on dock construction) *

•Approach ramp (for docks under 50” tall) *

•Approach plate (for docks not having a steel edge) *

* item depends on condition of dock edge

Table of Contents 12/2/20 FM MANUAL.DOCX

MOUNTING DIMENSIONS

Model

Weight

Capacity

0648

75"

48"

43 1/2"

28 1/2"

28 11/16"

321 lb

6000 lb

2066

93"

66"

61 1/2"

46 1/2"

29"

483 lb

20,000 lb

2072

99"

72"

67 1/2"

51 1/2"

29"

523 lb

20,000 lb

2078

105"

78"

73 1/2"

58 1/2"

29"

537 lb

20,000 lb

2566

93"

66"

61 1/2"

46 1/2"

29"

545 lb

25,000 lb

2572

99"

72"

67 1/2"

51 1/2"

29"

577 lb

25,000 lb

3066

93"

66"

61 1/2"

46 1/2"

29 13/16"

632 lb

30,000 lb

3072

93"

66"

61 1/2"

46 1/2"

29 13/16"

672 lb

30,000 lb

STEP 1.

Measure the height of the steel dock edge.

Height of steel edge is 6” or greater … … … Proceed to Steps 2-7 (p.7)

Height of steel edge is less than 6” … … … Proceed to Steps 8-14 (p.9)

No steel dock edge present … … … … Proceed to Steps 15-26 (p. 11)

All installations will conclude with steps 27-37 (p. 13).

Table of Contents 12/2/20 FM MANUAL.DOCX

STEP 2

(

docks with

steel edge 6” or greater)

Measure the height of the dock, from the edge of the dock

to the driveway surface below the dock edge.

Height of dock edge is 50”±1”*, … … Proceed to Step 4

Height of dock edge is less than 50”, but no less than 46” Proceed to Step 3

Height of dock edge is less than 46” … … … Not recommended

* Assumes an optimal dock height of 50”

STEP 3.

For docks lower than 50” tall, install a 2” or 4” tall steel approach ramp for your dock leveler (not

included with product). Select the approach ramp that sets the dock height to 50”±1”. The dock leveler provides

a smooth transition from the dock floor to the top of the leveler. Follow the manufacturer’s instructions for

installation. Contact your Vestil distributor to select the approach ramp that best fits your application.

STEP 4.

Remove all material and protrusions from the dock face.

STEP 5.

Center the leveler in the doorway of the dock, with the top edge of the mounting plate even with the

edge of the dock or the approach ramp (if installed). Tack weld the mounting plate at each end.

STEP 6.

Weld the mounting plate to the dock edge. Have a qualified welder apply a continuous weld

completely around the top and both sides of the mounting plate.

Table of Contents 12/2/20 FM MANUAL.DOCX

STEP 7.

Weld the bumper boxes to the dock edge. Apply a continuous weld across the top and down both

sides of each bumper box as far as the bottom of the steel dock edge.

Proceed to Step 27 to complete the installation (p. 13).

STEP 8 (

docks with

steel edge less than 6”).

Measure the height of the dock, from the edge of the dock to

the driveway surface below the dock edge.

Height of dock edge is 50”±1”, … … … Proceed to Step 9

Height of dock edge is less than 50” … … … Installation not recommended

STEP

Remove all material and protrusions from the face of the dock.

STEP 1

Center the leveler in the doorway of the dock, with the top edge of the mounting plate even with the

edge of the dock or the approach ramp (if installed). Tack weld the mounting plate at each end.

Table of Contents 12/2/20 FM MANUAL.DOCX

STEP 1

Weld the mounting plate to the dock edge. Have a qualified welder apply a continuous weld over the

top edge of the mounting plate, and down both sides of the mounting plate to the bottom of the steel edge.

STEP 1

Install four ¾”×5” anchors into the dock through the holes in the mounting plate into the dock.

STEP

Weld the bumper boxes to the dock edge. For each box, apply a continuous weld across the top,

and down both sides to the bottom of the steel dock edge.

STEP 1

Install a single ¾”×5” anchor into the dock through the flange of each bumper box.

Proceed to Step 27 to complete the installation.
