Vestfrost NFG 309 Manuel utilisateur
Service manual NFG 309
Upright freezer
20-06-2006Page 2
3-star freezer ***
The freezer is approved for long term storage at -18°C
At an ambient temperature of 25˚C and when the thermostat knob
is set at 7 (coldest), the lowest possible temperature of the upright is
-25˚C
Please note: Only 4-star freezers are approved for freezing fresh
food products.

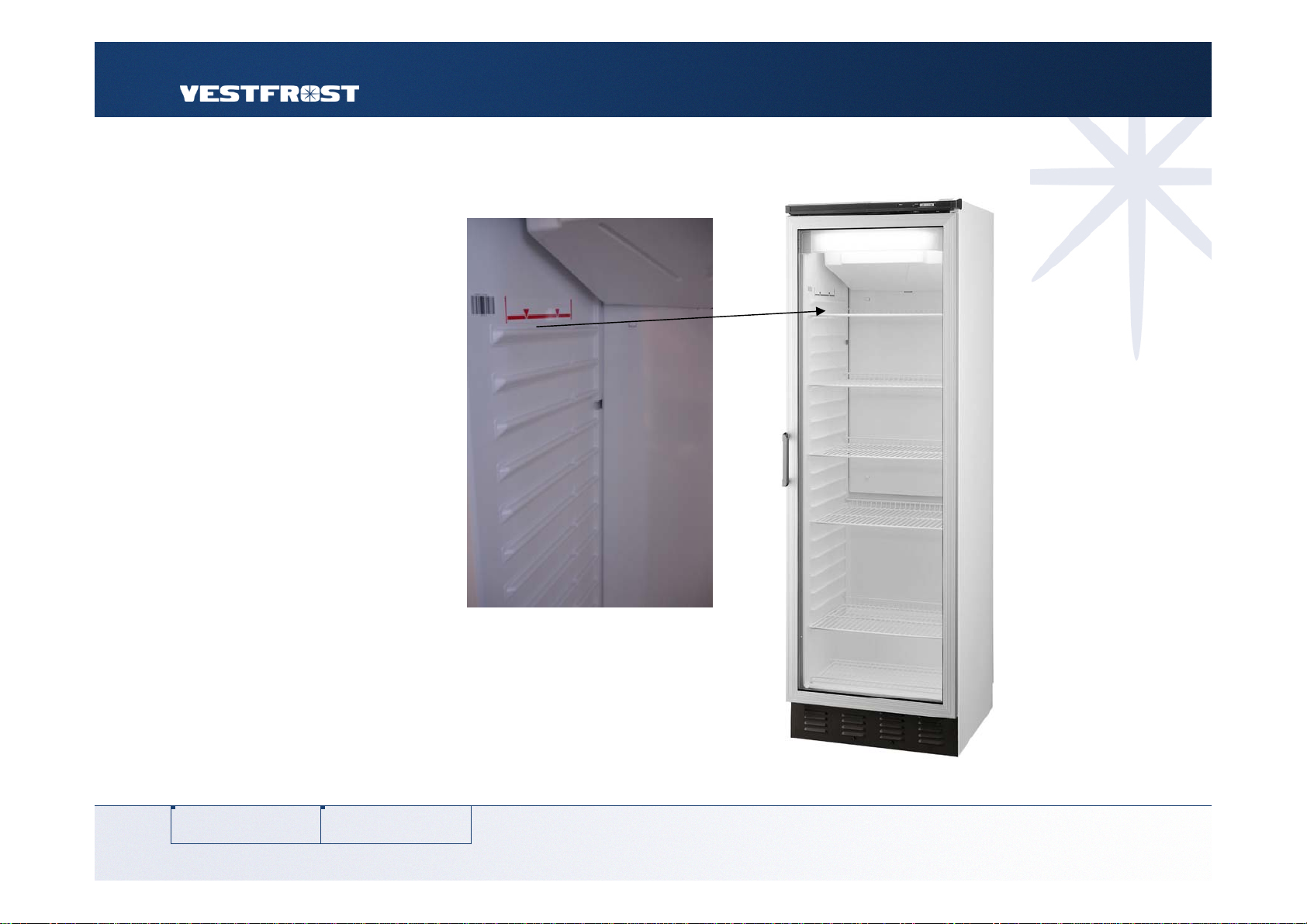

Load label
Maximum load
20-06-2006Page 3

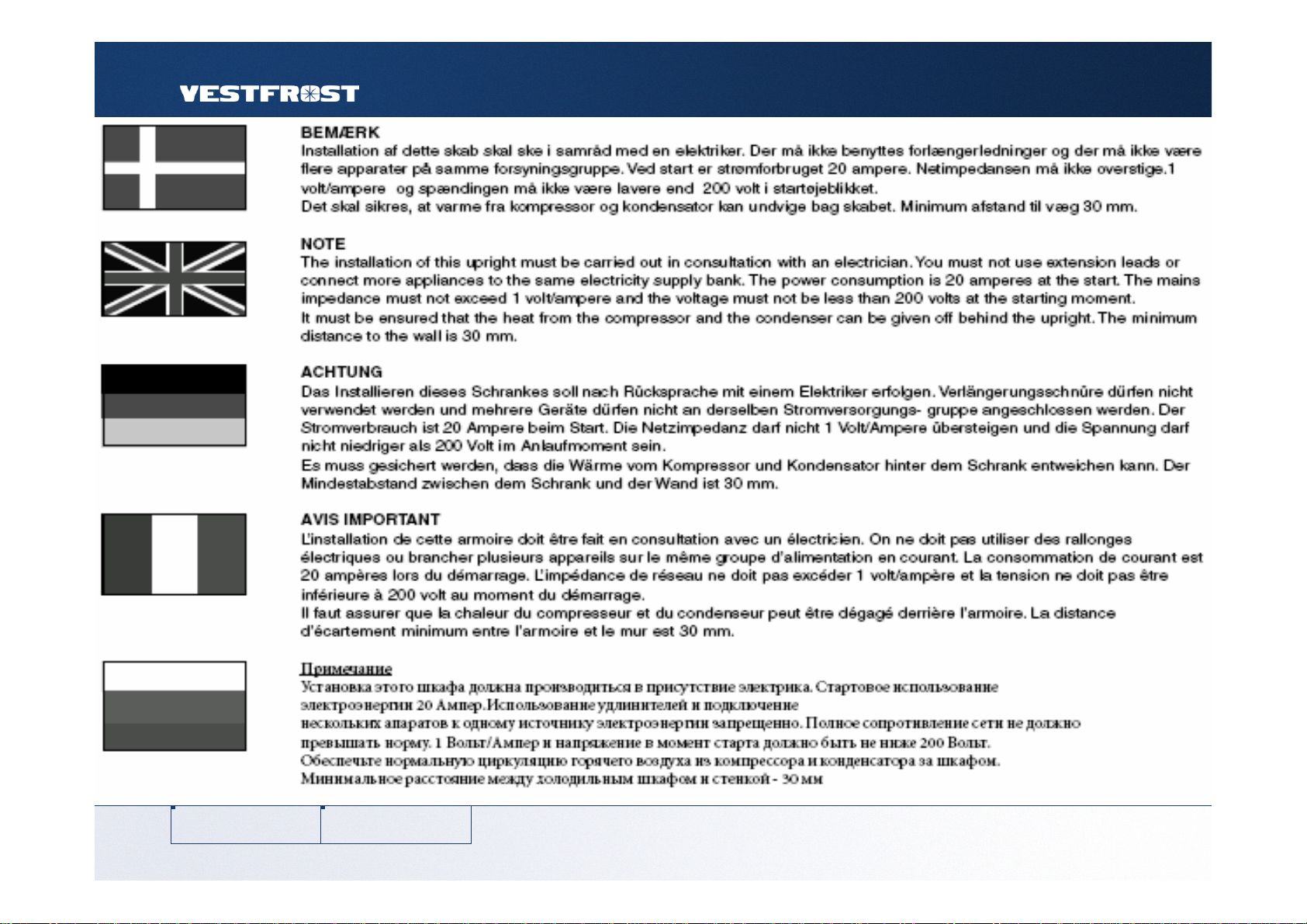

NOTE!
Reversing door fitted with door closer - top
Reversing door fitted with door closer - bottom
Mounting of door fitted with door closer - hinged left
Dismounting of lamp screen, fluorescent tube, starting switch and fixture
Access to evaporator, bimetallic thermostat, heating element, and ventilator
Timer, description
Motor compartment, description
Access to electric panel
Vacuum valve, gasket, lock, air channel, thermostat sensor, and ice pack.
Functional description of NFG 309
Wiring diagram 1
Wiring diagram 1A
20-06-2006Page 4
20-06-2006Page 5
Reversing door fitted with door closer - top

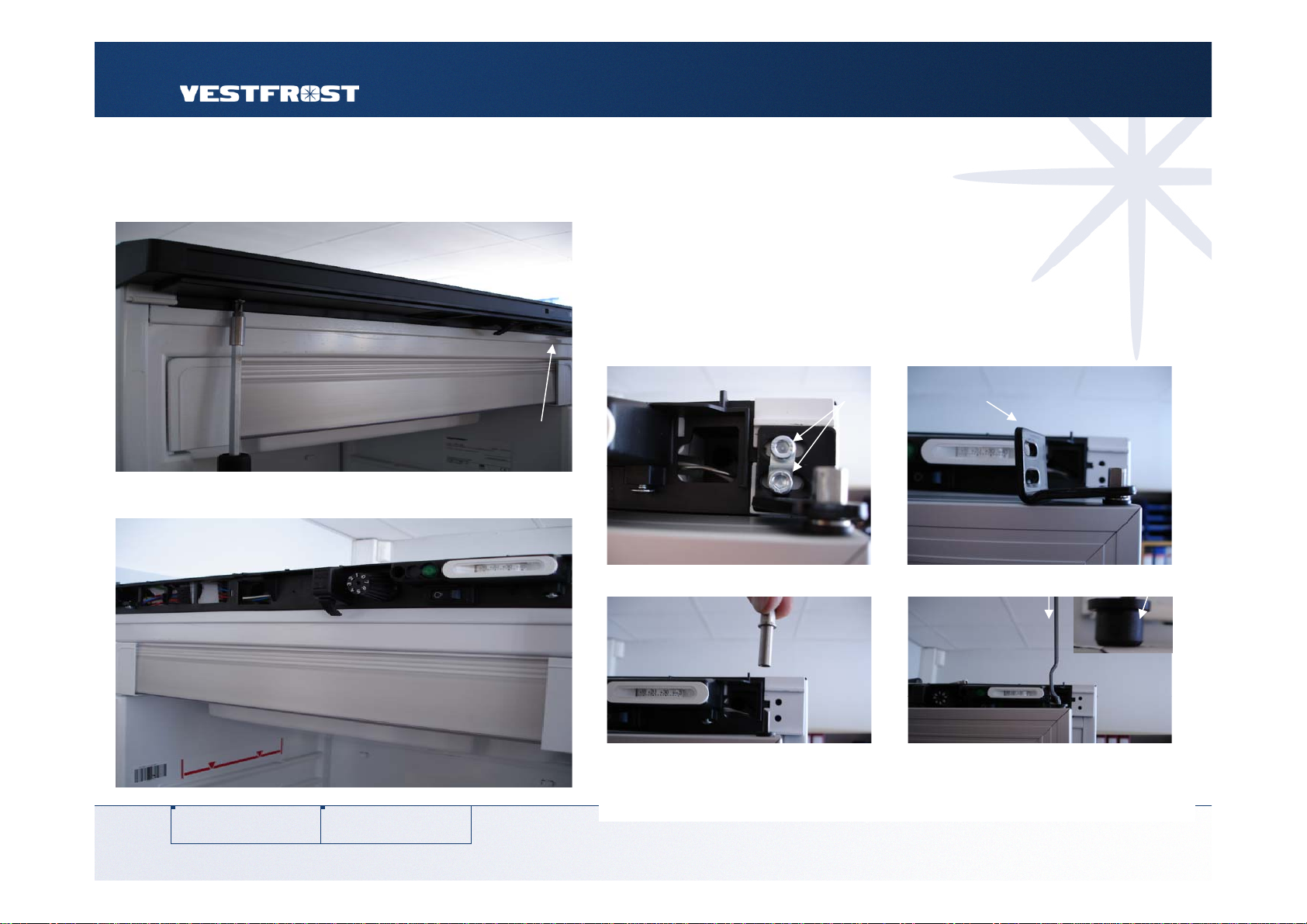

1. Open door and loosen 2 screws below the top panel
(Do only loosen)
2. Hereafter, dismantle top panel from the electric panel.
Before proceeding to the next step, you should lie down
the upright on the back plate. This makes reversing the
door easier and more safe!
3. Unscrew two 4 mm screws.
Remember to hold down the hinge,
because this is tightened by the
spring on the door .
4. The hinge will swing out to the left
if the upright is hinged right.
Can following be dismounted.
5. Pull pin free 6. Spring Bush
Remember that all parts are to be used at the opposite side, however,
a new hinge is necessary.
Left top hinge for door closer 0-A1040020303
Right top hinge for door closer
0-A1040020203
20-06-2006Page 6

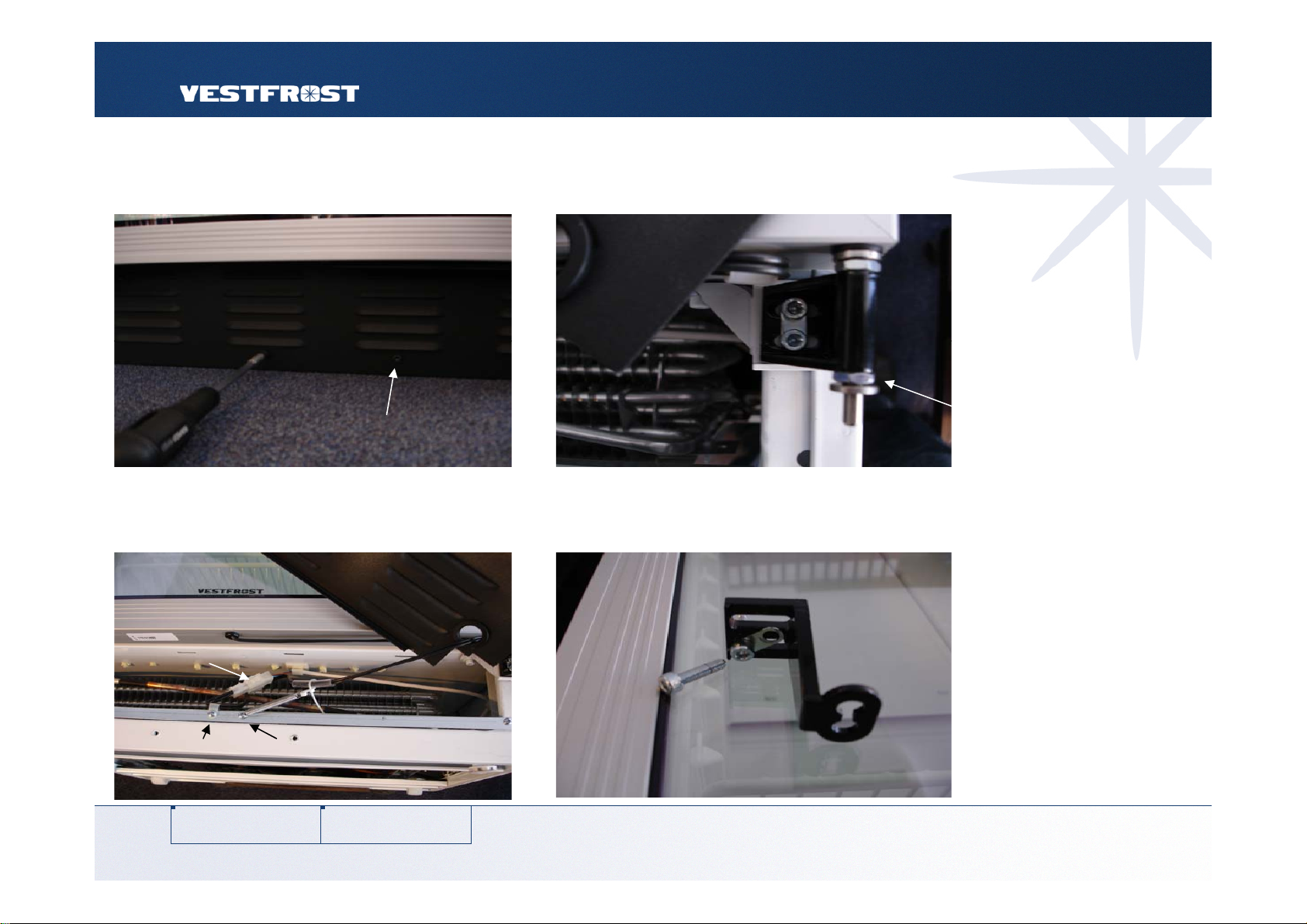

1. Unscrew 2 screws in kick plate
2. Dismantle kick plate from the cabinet and dismount
screw for spring and screw for wire clamp, and pull
plug from connector. Hereafter, pull wire free through
the hole in the kick plate.
3. Dismount bottom hinge
4. Also, dismount lock fittings on the opposite side.
Rotate through 180˚and refit on the opposite side.
Bottom hinge has been
made ready for mounting
on the opposite side, rotate
through 180˚
Reversing door fitted with door closer - bottom
20-06-2006Page 7
Mounting door fitted with door closer – hinged left
1. Mount bottom hinge.
2. Mount spring, wire clamp, and plug.
3. Mount wire clamp and kick plate.
4. Push torsion spring and bush into the door, mount pin!
Spring Bush Pin
5. Mount top hinge on pin as shown on the photo.
Push the hinge counter clockwise in order to tighten
the spring.
6. Adjust door and mount top hinge.
Left top hinge for door closer
0-A1040020303
20-06-2006Page 8

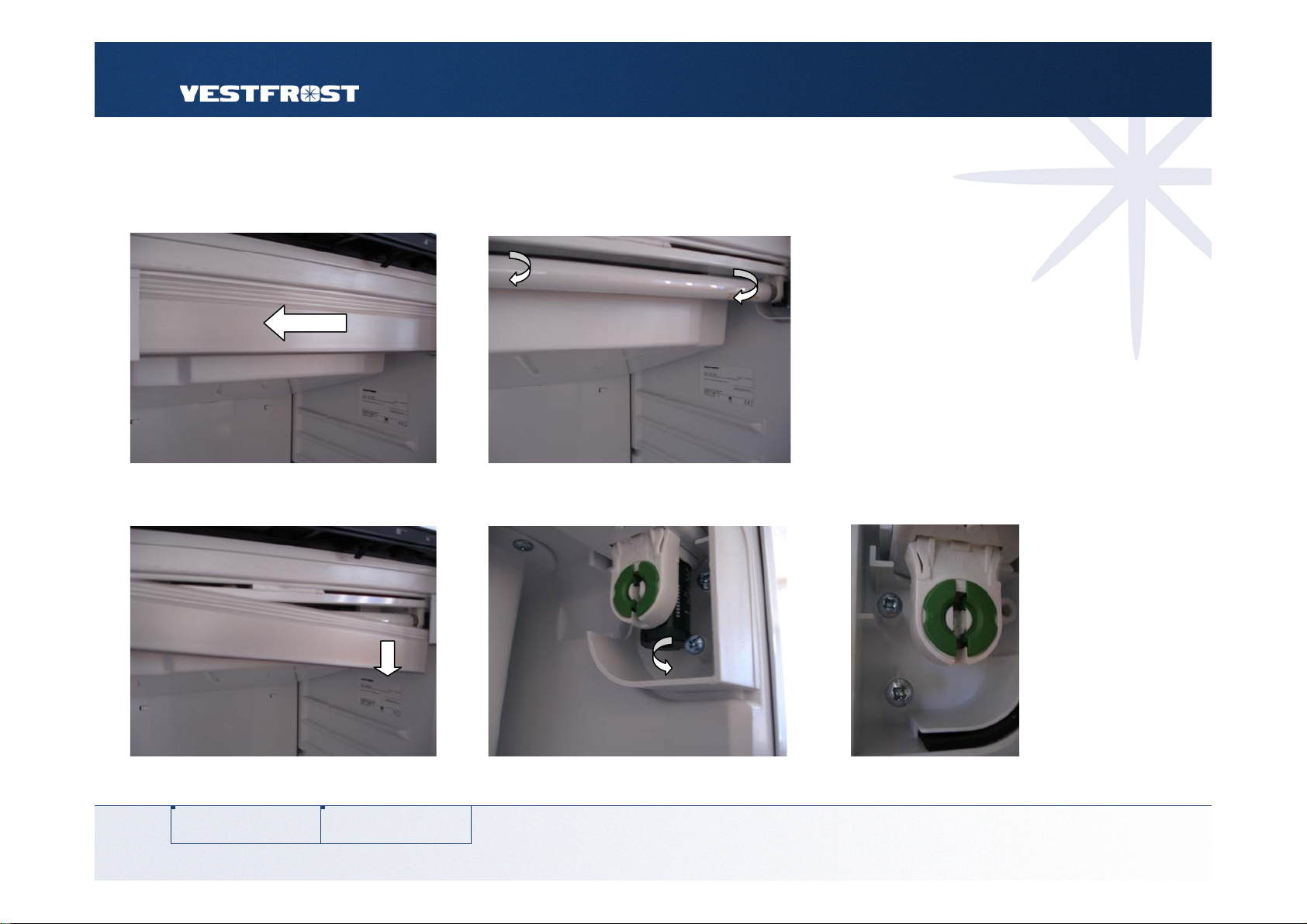

1. Push lamp screen to the left.
2. Dismantle lamp screen from socket
3. Turn fluorescent tube and dismantle from sockets.
4. Starting switch (electronic). 5. Unscrew 2 screws and pull fixture free.
Dismounting of lamp screen, fluorescent tube, starting switch, and fixture
20-06-2006Page 9
Access to evaporator, bimetallic thermostat, heating element, and ventilator

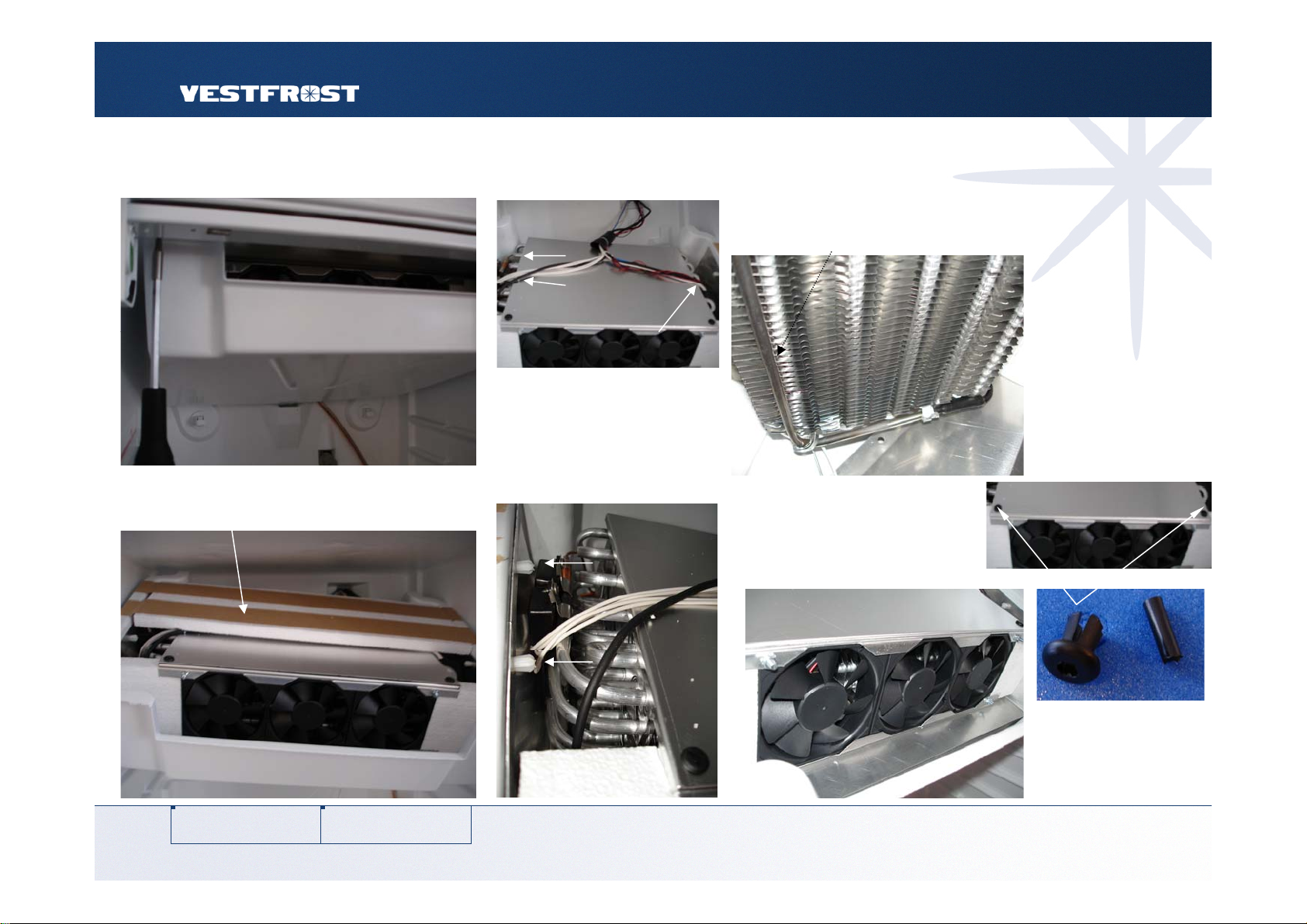

1. Unscrew 2 screws from evaporator casing.
2. Carefully, tip evaporator casing and
remove heat shield (EPS).
3. Location of bimetallic thermostat.
4. Dismount plastic rivets
to access heating
element and evaporator.
Push out pin completely and
dismount entire plastic rivet.
5. Heating element is fitted below the evaporator.
6. Dismount plastic rivets in
evaporator shield and the
ventilator can be accessed.
Switch – door
heat
Switch –
ventilator
Switch -
heating element
20-06-2006Page 10
1
2
3
4
5
1
Bimetallic thermostat for evaporator ventilator. Ventilator only operates when the door
is shut. Cuts in at -2˚C and cuts out at +13˚C
Bimetallic thermostat switches off door heat during defrosting.
Cuts in at -2˚C and cuts out at +13˚C
Wire comes back to transformer, door heat (cutting off of current/signal from
bimetallic thermostat)
24 V for ventilator from transformer.
2
Bimetallic thermostat for heating element.
Cuts out current to heating element
at +13˚C and starts the timer.
Wire from internal ventilator (3 in one
frame).
Wire from heating element.
3
4
5

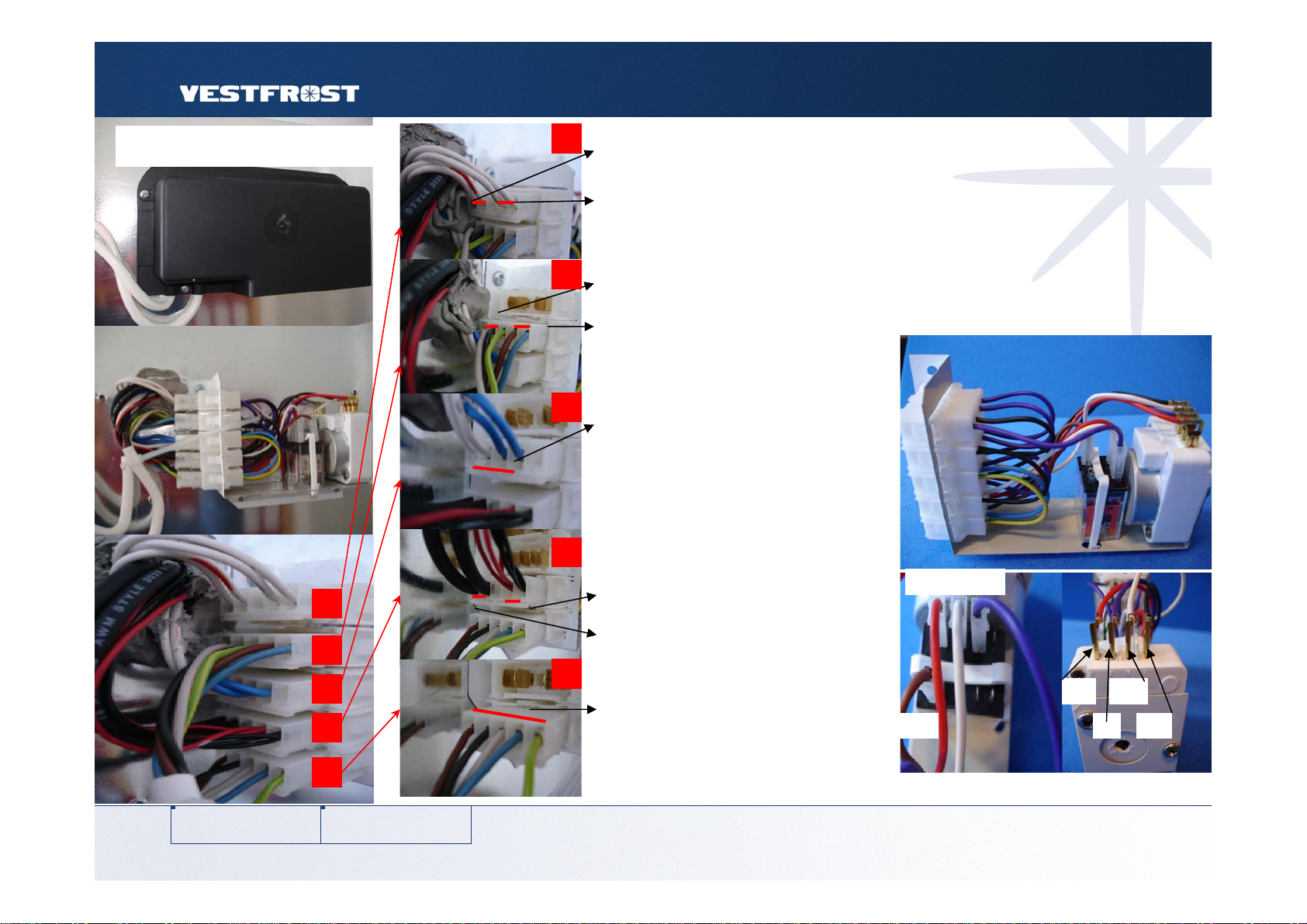

Wires from terminal box bn
rd wh li
rd
li
wh
bk
Description of timer
