Vent-Axia EKF355E1 Instructions de montage

EKF

EC kitchen extract fan range

Stock Ref. N°

EKF355E1

EKF400E1

EKF450E1

EKF450E3

EKF500E3

EKF560E3

Installation and Wiring Instructions

PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS.

PLEASE SAVE THESE INSTRUCTIONS

Installation and Wiring Instructions for the

EKF EC kitchen extract fan range.

IMPORTANT: READ THESE INSTRUCTIONS BEFORE COMMENCING THE

INSTALLATION

DO NOT install this product in areas where the following may be present or occur:

•Corrosive or flammable gases, liquids or vapours.

• Possible obstructions which would hinder the access or removal of the Fan.

•Sudden ductwork bends close to the Fan.

SAFETY AND GUIDANCE NOTES

1. THESE UNITS MUST BE SITED AND CONNECTED IN ACCORDANCE WITH CURRENT I.E.E

REGULATIONS, BS7671 (UK), OR THE APPROPRIATE STANDARDS IN YOUR COUNTRY.

2. INSTALLATION SHOULD BE BY A QUALIFIED ELECTRICIAN AND INSTALLER.

3. ALL REGULATIONS AND REQUIREMENTS MUST BE STRICTLY FOLLOWED TO PREVENT

HAZARDS TO LIFE AND PROPERTY, BOTH DURING AND AFTER INSTALLATION, AND DURING

ANY SUBSEQUENT SERVICING AND MAINTENANCE.

4. THESE UNITS MUST BE EARTHED.

5. SITE THE UNIT AWAY FROM DIRECT SOURCES OF HEAT. AMBIENT TEMPERATURE RANGE

IS -20°C TO 40°C OUTSIDE OF FAN AND DUCTWORK (MAX. 120°C IN-DUCT).

6. WHEN INSTALLING UNIT, TAKE CARE NOT TO DAMAGE ELECTRICAL OR OTHER HIDDEN

UTILITIES.

7. CHECK THE DETAILS ON THE RATING LABEL FOR CORRECT VOLTAGE AND ELECTRICAL

RATING.

8. THE INSTALLER IS RESPONSIBLE FOR THE INSTALLATION AND ELECTRICAL CONNECTION

OF THE KITCHEN EXTRACT SYSTEM ON SITE. IT IS THE RESPONSIBILITY OF THE INSTALLER

TO ENSURE THAT THE EQUIPMENT IS SAFELY AND SECURELY INSTALLED AND LEFT ONLY

WHEN MECHANICALLY AND ELECTRICALLY SAFE.

9. DUE TO THE WEIGHT OF THE UNITS, IT IS RECOMMENDED THAT MULTIPLE PERSONS ARE

INVOLVED IN THE INSTALLATION. AT ALL TIMES, INSTALLATION PRACTICES MUST COMPLY

WITH RELEVANT HEALTH AND SAFETY LEGISLATION.

10. EKF EC KITCHEN FAN UNITS ARE DESIGNED AND SPECIFIED FOR USE WITH VENT-AXIA

CONTROLS, DAMPERS, GRILLES AND ACCESSORIES.

11. THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS

WITHOUT SUPERVISION.

12. YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH

THE APPLIANCE.

13. PRECAUTIONS MUST BE TAKEN TO AVOID THE BACKFLOW OF GASES INTO THE ROOM,

FROM THE OPEN FLUE OF GAS OR OTHER FUEL BURNING APPLIANCES.

Product description

The EKF EC kitchen extract fan is suitable for continuous running at 120°C in-duct air temperature. It

can be mounted indoors or outdoors and controlled using the 0-10V potentiometer included.

Installation

The EKF EC kitchen extract fan is designed as a kitchen extract fan to be positioned between lengths of

ducting.

Short duct runs terminating close to the fan (i.e. within 1.5m) must incorporate suitable guards unless the

fan is mounted higher than 2.1m above the floor.

Position the fan at the highest point on the system with both ducting runs sloping downwards from this

point.

In circumstances where an excessive amount of moisture is present in the air then a condensation trap

should be installed.

When siting the appliance, ensure that there is sufficient space to allow access for any servicing and

maintenance.

The EKF EC kitchen extract fan is supplied with 3 x optional discharge positions. Before installation,

consideration needs to be given to which discharge outlet is required. The discharge panel and 2 x

access panels are interchangeable to suit the installation.

It is recommended that duct connections to the unit are made via flexible connectors, (see accessories

list).

Mounting the unit

If mounting the unit outdoors:

the unit MUST be installed with a weather roof fitted (see accessories list);

it is suggested that the unit is mounted at least 150mm off the floor surface.

If suspending the unit, it is recommended that the unit is supported underneath. The M6 nutserts that are

fitted to the framework can be used to fix supports. Take care not to obstruct the access panel. Vent-

Axia supplies a mounting feet kit, (see accessories list).

Floor mounted on mounting feet and anti-

vibration mounts

Suspended from

ceiling with

mounting feet and

Connection of flexible connectors, transformation pieces, mounting feet, weather roof and discharge

cowl should be made using the 8 x M6 fixing points located on each side of the unit. Maximum thread

length into these fixing points is 12mm. Fixings are included with Vent-Axia supplied accessories.

Wiring

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED

FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE.

EKF FANS ARE CLASS 1 AND MUST BE EARTHED.

1. Remove isolator cover & terminal box cover and put to one side.

2. Select and follow the wiring diagrams.

3. Check all connections have been made correctly and ensure all terminal connections and cable

clamps/glands are securely fastened.

4. The cable entry must be made using the knockouts provided.

5. Replace isolator cover & terminal box cover.

6. Ensure the impeller rotates and is free from obstructions

Notes

1. 24V – D1 should always be connected when unit is in operation.

a. An on/off switch can be fitted between 24V – D1.

b. NOTE: breaking 24V – D1 does not isolate the motor supply!

2. Terminals 11 – 14 provide a volt-free contact which can be used to indicate operation.

a. In operation, the contact is closed.

b. In fault/no power condition, the contact is open.

c. Max. 250V ac, 2A.

3. Speed control can be provided via a 0-10V input to E1.

a. NOTE: this product has an EC motor with built-in speed control fitted and is not suitable to

be speed controlled via variation of the supply voltage or frequency!

b. Minimum recommended control voltage to start the fan is 2V.

Full speed 230V, 1Ph, 50Hz

Controls box Isolator

Applies to:

EKF355E1

EKF400E1

EKF450E1

Applies to:

EKF355E1

EKF400E1

EKF450E1

Controls box Isolator

Variable speed 230V, 1Ph, 50Hz

Applies to:

EKF450E3

EKF500E3

EKF560E3

Controls box Isolator

Full speed 400V, 3Ph, 50Hz

Applies to:

EKF450E3

EKF500E3

EKF560E3

Controls box Isolator

Variable speed 400V, 3Ph, 50Hz

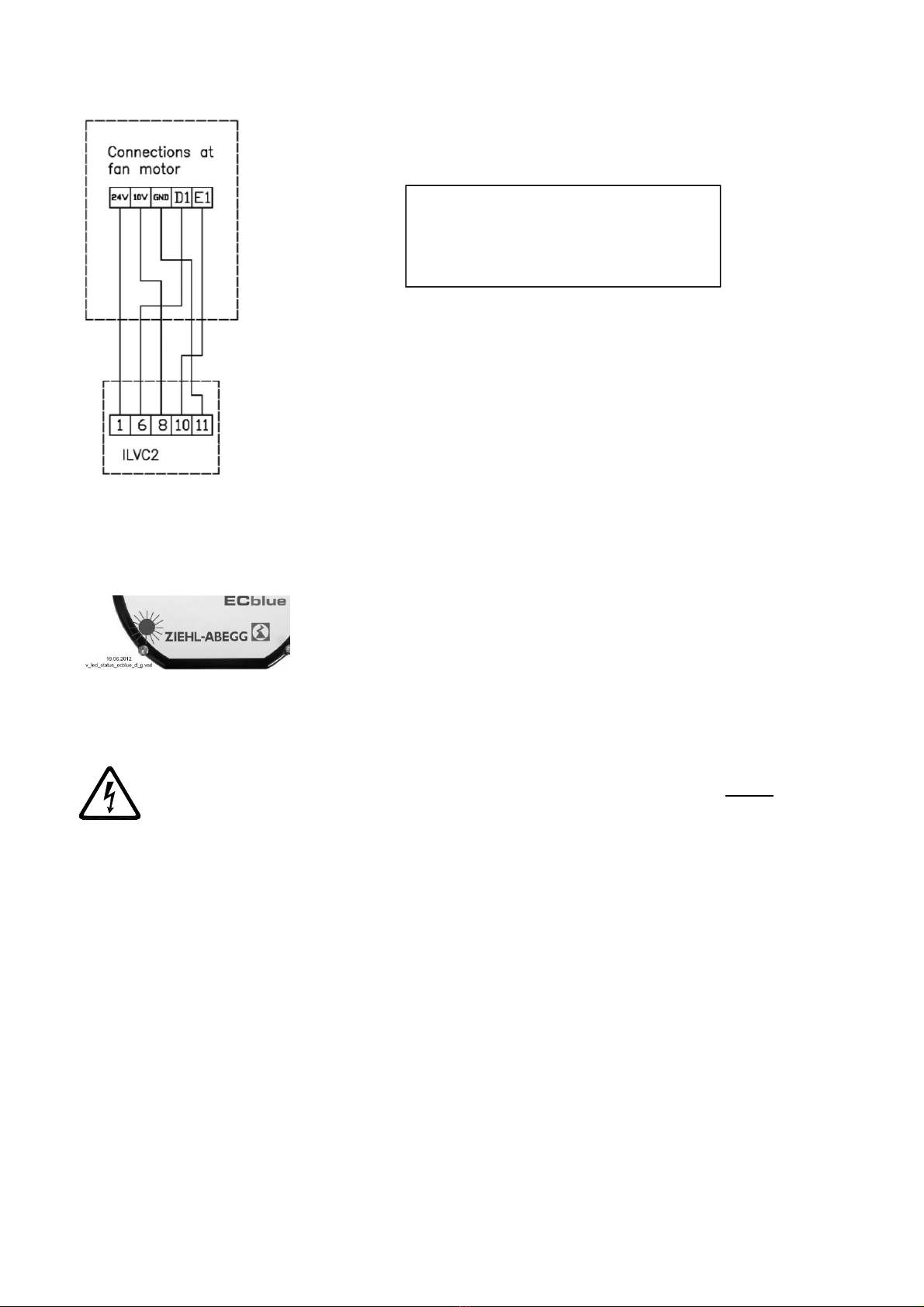

ILVC2 Variable Speed Controller

Trouble-shooting

The motor has a status LED integrated into its cover. The LED will stay on constantly during normal

operation and stay off when there is no power to the motor. In fault condition, the LED will flash in

multiple sequences. Please refer to Vent-Axia Technical Support for more information should this occur.

Servicing & Maintenance

WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE

ISOLATED FROM THE POWER SUPPLY DURING MAINTENANCE.

1. At intervals appropriate to the installation, the fan should be inspected and cleaned to ensure there is

no build-up of grease, dirt or other deposits.

The EKF control connections include a

24V output & D1 input. The D1 input

requires 24V for the fan motor to run. This

is used to enable the ON/OFF switching

through terminals 1 & 6 of the controller.

ACCESSORIES

Part No. Description

EKFFC355 EKF355 FLEXIBLE CONNECTOR KIT

EKFFC400 EKF400 FLEXIBLE CONNECTOR KIT

EKFFC500 EKF500 FLEXIBLE CONNECTOR KIT

EKFTP35-35 EKF355 TRANSFORMATION PIECE TO 350 CIRCULAR DUCT

EKFTP40-40 EKF400/450 TRANSFORMATION PIECE TO 400 CIRCULAR DUCT

EKFTP40-45 EKF400/450 TRANSFORMATION PIECE TO 450 CIRCULAR DUCT

EKFTP50-50 EKF500/560 TRANSFORMATION PIECE TO 500 CIRCULAR DUCT

EKFTP50-56 EKF500/560 TRANSFORMATION PIECE TO 560 CIRCULAR DUCT

EKFMF355 EKF355 MOUNTING FEET KIT

EKFMF400 EKF400 MOUNTING FEET KIT

EKFMF500 EKF500 MOUNTING FEET KIT

EKFWR355 EKF355 WEATHER ROOF

EKFWR400 EKF400 WEATHER ROOF

EKFWR500 EKF500 WEATHER ROOF

EKFDC355 EKF355 DISCHARGE COWL

EKFDC400 EKF400 DISCHARGE COWL

EKFDC500 EKF500 DISCHARGE COWL



Head Office: Fleming Way, Crawley, West Sussex, RH10 9YX.

UK NATIONAL CALL CENTRE, Newton Road, Crawley, West Sussex, RH10 9JA

SALES ENQUIRIES: Tel: 0844 8560590 Fax: 01293 565169

TECHNICAL SUPPORT: Tel: 0844 8560594 Fax: 01293 539209

For details of the warranty and returns procedure please refer to www.vent-axia.com or write to Vent-Axia Ltd, Fleming Way, Crawley, RH10 9YX

405570 B 1015

The  Guarantee

Applicable only to products installed and used in the United Kingdom. For details of guarantee outside

the United Kingdom contact your local supplier.

Vent-Axia guarantees its products for two years from date of purchase against faulty material or

workmanship. In the event of any part being found to be defective, the product will be repaired, or at

the Company’s option replaced, without charge, provided that the product:-

Has been installed and used in accordance with the instructions given with each unit.

Has not been connected to an unsuitable electricity supply. (The correct electricity supply

voltage is shown on the product rating label attached to the unit).

Has not been subjected to misuse, neglect or damage.

Has not been modified or repaired by any person not authorised by the company.

IF CLAIMING UNDER TERMS OF GUARANTEE

Please return the complete product, carriage paid to your original supplier or nearest Vent-Axia Centre,

by post or personal visit. Please ensure that it is adequately packed and accompanied by a letter

clearly marked “Guarantee Claim” stating the nature of the fault and providing evidence of date and

source of purchase.

The guarantee is offered to you as an extra benefit, and does not affect your legal rights
