Vendor EF27B Manuel utilisateur
ELECTRIC FLAT PANEL FIREPLACE HEATER
OWNERS MANUAL
For use with Models EF27B / SHWALL-35
Only use this heater as described in this manual. Any other use is not recommended
by the manufacturer, and may cause fire, electric shock, or other personal injury.
WARNING! Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could result in fire,
electric shock, serious personal injury, or death.
WARNING! INDOOR use only! NEVER use this heater outdoors!
CAUTION! Keep this owner’s manual for future reference. If you sell or give this product
away, make sure this manual accompanies this product.
Meijer.com
2
IMPORTANT SAFETY INFORMATION!
WARNING
zALWAYS keep electric cords, home furnishings, drapes, clothing, papers, or other
combustibles at least 3 feet (0.9m) away from the front of this heater, and away from the
bottom, sides, and rear of this heater.
zDO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
zDO NOT COVER this heater or block the air vents at all. Doing so could cause a fire.
zAVOID fire or electric shock! NEVER insert or allow any foreign objects to enter the
ventilation or exhaust openings of this heater.
zPrevent Fire! Keep all flammable liquids, like gasoline or paint, away from this heater. This
heater produces arcing sparks that could ignite flammable liquids.
zDO NOT cover this heater in any manner. Doing so could block the air flow and cause the
unit to overheat, or could ignite the material covering the heater.
zNEVER run the power cord under carpet, rugs, runners, or any other covering. Doing so
could cause the cord or materials covering the cord to overheat.
zAVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
blockage. Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet.
WARNING
zFor residential use only! NOT for commercial use! NEVER use this fireplace for other than
its intended purpose.
zALWAYS ATTACH WALL MOUNT BRACKET TO WALL AND HANG UNIT BEFORE USE.
NEVER USE WHILE THE UNIT IS SITTING ON THE GROUND OR OTHER SURFACE.
zThe wall mount bracket is designed for use ONLY with this product. NEVER use a wall
mount bracket from another manufacturer.
zUse extreme caution if using this heater near children, or where children may be present.
zNEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
zThis heater is hot when in use. AVOID INJURY! DO NOT TOUCH hot surfaces, or attempt
to move this heater while it is hot.
zALWAYS turn this heater off before unplugging it from the outlet.
zAVOID INJURY! Keep the cord from crossing traffic areas to avoid tripping.
zNEVER modify this fireplace. Doing so could result in personal injury or property damage.
Modification of this fireplace completely voids all warranties.
zDiscontinue use if this fireplace malfunctions or is dropped or damaged in any manner.
Meijer.com
3
WARNING
zRisk of electric shock! DO NOT OPEN! No user-serviceable parts inside!
zALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
zALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.
zNEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool, become damp or come in contact with water.
zNEVER hang this unit on a wall directly below an electrical outlet.
zNEVER operate this heater if the power cord or plug has become damaged, or if the
grounding pin is damaged or missing.
zPlace the heater near a wall outlet so an extension cord is not needed. If an extension cord is
needed, the gauge of the cord must be at least 14AWG, and the rating must be at least
1875 Watts. NEVER use a smaller gauge cord with a lower rating. Doing so may result in
fire or electric shock.
zONLY use this heater on a 110~120 Volt 15 Amp grounded circuit. NEVER overload the
circuit. If this heater trips the circuit breaker, unplug all other appliances on the same circuit
before the next use. Avoid plugging other appliances into the same circuit as this heater.
zNEVER plug this heater into an outlet that is old, cracked,or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
zALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT, discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.
•The cord supplied with the heater has a
plug with two blades (live and neutral) and
one round pin (ground). If a 3-slot
receptacle is not available, an adapter
MUST be used. The adapter MUST be
properly grounded to the outlet box (see
figure at right).
Meijer.com
4
PREPARATION
This carton includes a GLASS panel! Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface.
Check to make sure nothing is missing. Dispose of packaging materials properly. Please recycle.
Tools (not included): Phillips screwdriver; stud finder; level; tape measure; electric drill; 1/16” drill bit.
Concrete walls: DO NOT use these anchors. Consult a professional for proper anchoring methods.
PARTS & HARDWARE
A – Firebox ( 1 ) B – Front Glass Panel ( 1 )
NOTE: The wall mount bracket (C) is attached to the
back of the firebox (A) by two thumb screws (6).
C – Wall Mount Bracket ( 1 ) 6 – M5x8 Machine Screws ( 2 )
NOTE: Unscrew both M5x8 machine screws (6) from the top of the firebox (A). KEEP the machine screws.
Remove the wall mount bracket (C) from the firebox.
A
6
6 C
Meijer.com
5
PARTS & HARDWARE
Air Vent Panel, Hardware, Remote Control Decorative Stones
2 – M4x8 Machine
Screws ( 2 )
WS – White Stones ( set )
RC – Remote Control ( 1 ) RC Battery ( 1 ) CS – Clear Faux Stones ( set )
Wall Hanging Hardware
3 – M5x40 Wood Screws ( 4 ) 4 – M4x30 Drywall Screws ( 4 ) 5 – M15x40 Drywall Anchors ( 4 )
Meijer.com
6
ASSEMBLY INSTRUCTIONS
STEP 1. Find a safe location. Minimum clearance on each side must be at least 2 inches (5 cm);
minimum clearance from the floor must be at least 11¾ inches (30 cm); minimum clearance from
the front must be at least 3 feet (90 cm). Choose a location near an outlet so an extension cord is
not required. DO NOT position the unit directly below a power outlet. See Safety Information on
pages 2 and 3 for more warnings about placement, installation, and use of this product.
NOTICE The wall mount fasteners included with this fireplace are for use ONLY with a
wood-framed wall covered in drywall (sheet rock). For concrete walls, cinder
blocks, or other wall types, consult a professional for the best attachment methods.
STEP 2. Locate the wall studs using an electronic stud-finder. Studs are spaced 16” apart as
measured from the center of each stud. The holes in the mounting bracket (C) will align with the
wall studs. The end of each arm has a set of three holes. Select one set of holes (left, center, or
right) when attaching the mounting bracket to the wall. There are also two holes on the center post.
16”
16”
Studs
Drywall
Hook
Tab
C
16”
16”
16”
Note: The wall mount bracket
tabs are on the upper arms and
the hooks are on the lower arms.
Wall or other
objects at side
Wall or other
objects at side
Floor or other
surface
Minimum clearance:
2 inches
(
5 cm
)
from
edge of glass
Minimum clearance:
2 inches
(
5 cm
)
from
edge of glass
Minimum clearance:
11¾ inches (30 cm)
from bottom edge
Meijer.com
7
AVOID INJURY and DAMAGE! Four screws should be screwed directly into wall
studs. If that is not possible, at least two screws must be screwed directly into wall
studs, AND four additional screws must also be screwed into the drywall anchors.
STEP 3. Position the wall mount bracket (C) over the wall studs. Level the mounting bracket and
mark the four holes with a pencil. Set the wall mount bracket aside. Drill a pilot hole at each marked
point using a 1/16” wood drill bit. Make sure each hole goes into a wall stud.
STEP 4. Thread one M5x40 wood screw (3) through the bracket, into the pilot hole, and into the
stud. Partially tighten. Make sure the bracket is level. Thread the remaining three M5x40 wood
screws into the other three holes. Check the alignment and tighten each screw securely with the
Phillips screwdriver. Check each screw to make sure it is tight, and that the bracket is secure.
3
C
3
3
3
Meijer.com
8
STEP 5. If only one wall stud is available, the wall mount bracket must be secured to the wall with
two M5x40 wood screws (3) though the two center post holes AND four M4x30 drywall
screws (4) through one other set of bracket holes. DO NOT attach the wall mount bracket to the
wall studs with one of the outer sets of holes as the bracket will not be stable. Use the center holes.
STEP 6. Center the wall mount bracket (C) over the wall stud. Level the mounting bracket and
mark the two center post holes with a pencil. Mark the four outer holes for the drywall anchors. Set
the wall mount bracket aside until STEP 8.
STEP 7. Drill pilot holes into the two center marks using a 1/16” wood drill bit. Make sure each pilot
hole is drilled directly into a wall stud. Next, use a Phillips screwdriver to screw the four drywall
anchors (5) into the drywall until they are flush with the surface. DO NOT OVERTIGHTEN.
3
3
3
3
4
4
4
4
5
5
5
5
C
Meijer.com
9
STEP 8. Thread the two M5x40 wood screws (3) through the center post holes, into the pilot holes,
and into the wall stud. Partially tighten. Make sure the bracket is level. Thread the four M4x30
drywall anchor screws (4) through the wall mount bracket and into drywall anchors.
DO NOT OVER- TIGHTEN as this may loosen the anchors or damage the drywall. Check the
alignment and tighten each screw securely with the Phillips screwdriver. Check that the bracket is
secure.
ALWAYS unplug this fireplace heater before assembly or cleaning, or before
relocating. Failure to do so could result in electric shock, fire, or personal injury.
STEP 9. With the firebox (A) at an angle, fit the slots in the back of firebox (A) over the hooks on
the wall mount bracket, and carefully press the top of the firebox against the wall mount bracket.
The slots at the top edge of the firebox should slide over the wall mount bracket tabs. Hold the
firebox in place and thread the machine screws (6) through the holes in the firebox and into the wall
mount bracket tabs. Tighten both machine screws and make sure the firebox is secure to the wall.
4
3
3
4
4
4
C A
6
6
Meijer.com
10

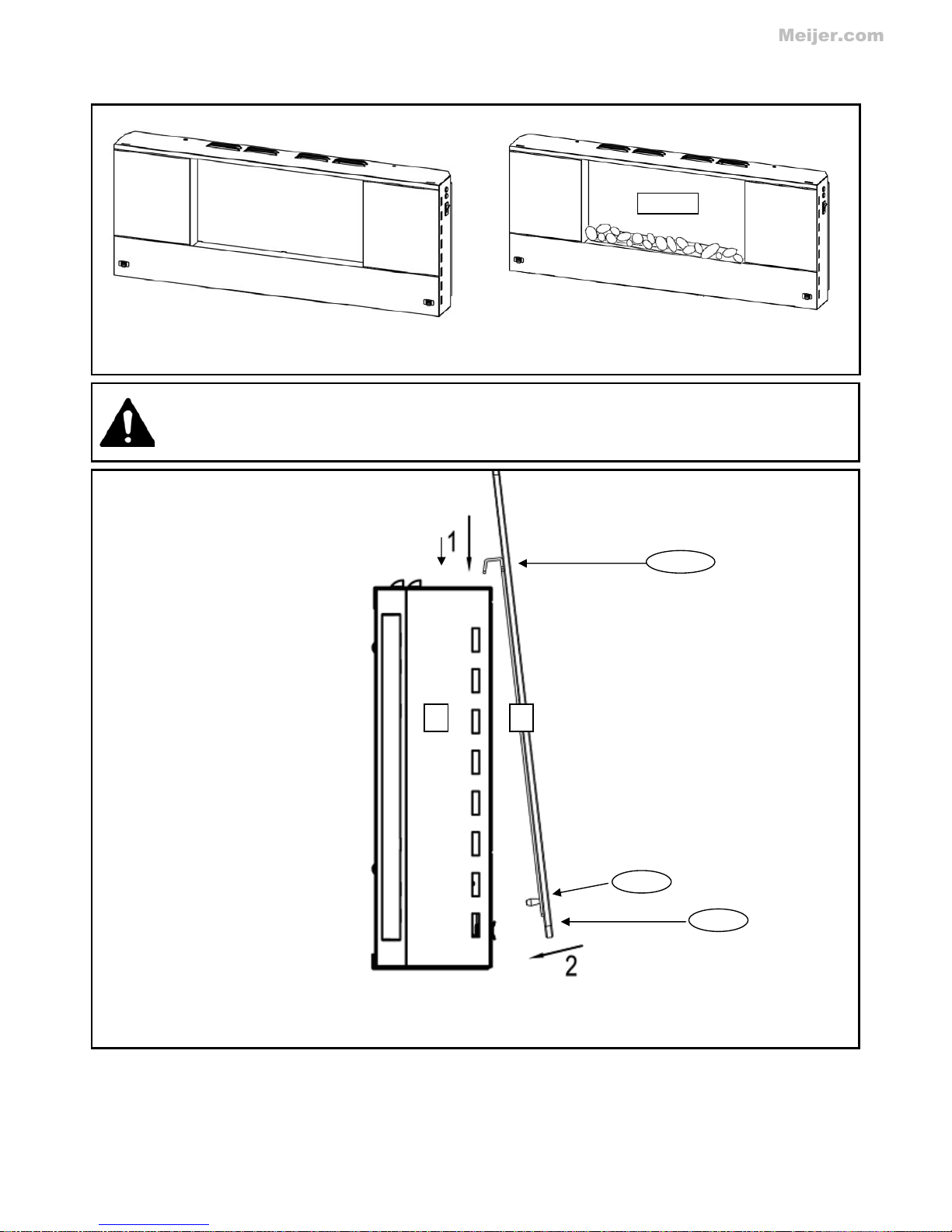

STEP 10. Arrange the white stones (WS) and clear faux stones (CS) along the inset window ledge
at the front of the firebox. Use care when moving the fireplace as the stones may shift positions.
The next step requires installation of a GLASS panel! The manufacturer recommends
that two adults install the glass panel. Always use extreme caution when handling glass.
Failure to do so could result in personal injury or property damage.
STEP 11. Set both hooks of the front glass panel (B) into the slots at the top front edge of the
firebox (A). Press the two posts of the glass panel into the locking slots near the lower corners of
the front firebox panel.
WS/CS
A
B
Post
Slot
Hook
Meijer.com
