Velodyne SUBCONTRACTOR SC-600 Amplifier Manuel utilisateur

SC-600 IF/IC

(In-Floor/In-Ceiling)

Subwoofer

SubContractorTMSeries

INSTALLATION

MANUAL

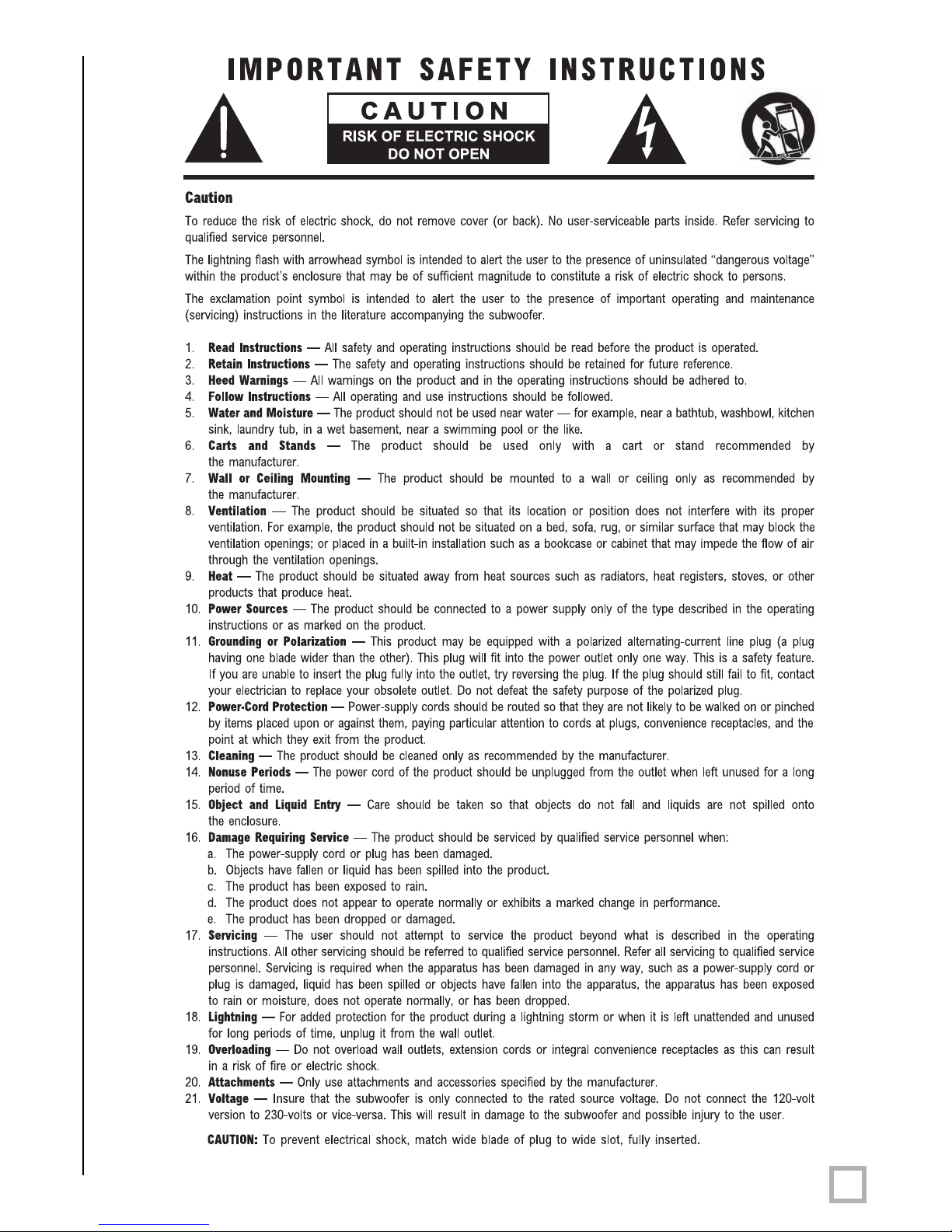

.www.velodyne.com SC-600 IF/IC User’s Manual

Table of Contents

Product Overview.................................................................................................1

Installation — Step-By-Step ....................................................................................2

Velodyne Products .............................................................................................10

Product Overview

.www.velodyne.com SC-600 IF/IC User’s Manual

The SC-600 IF/IC is an affordable in-ceiling or in-floor subwoofer that offers outstanding

performance and value. The SC-600 IF/IC sports a powerful 12” driver and slot-loaded, bass

reflex cabinet enabling maximum performance to reproduce the most demanding home theater

and music with authority, accuracy and low distortion. The SC-600 IF/IC is easy to install

whether it's for new construction or retrofit – four adjustable brackets are included that can be

attached anywhere on the cabinet surface. The SC-600, a rack-mountable amplifier that powers

the SC-600 Series, features 400 watts dynamic / 200 watts RMS power.

The SC-600 IF/IC can be installed in a variety of locations and positions for a given

installation. The SC-600 IF/IC can be used in-floor, in ceiling, or in other applications – all that

is required is a sturdy stud frame to mount to and a way to mount the SC-ICG (In-Ceiling) Grille

or decorative grille. The woofer cabinet is 14” wide so ideally installs with 16” joist spacing.

However, spacer boards can be used to adapt the SC-600 IF/IC to other applications.

This document provides the detailed process for properly installing the SC-600 IF/IC.

The user’s manual for the SC-600 subwoofer amplifier provides the details on

connectivity and proper configuration of the SC-600 IF/IC after installation.

IT IS STRONGLY RECOMMENDED THAT ONLY THE SC-600 AMPLIFIER BE USED WITH THE

SC-600 IF/IC, DUE TO THE SPECIFIC EQ CURVES AND AMPLIFIER CUSTOMIZATION IN

THE SC-600.

A WordAbout Grilles

The SC-600 IF/IC comes with a permanently attached protective metal grille. This is intended

to protect the driver from debris falling into it in in-floor installation situations. No register or

decorative grille is provided – the installer must determine the location of the subwoofer and

what is to be used as a register or other decorative grille to hide the subwoofer enclosure after

the installation is complete.

Velodyne does offer, as an option, a paintable, perforated metal 12” ceiling grille, the SC-ICG.

Installation — Step-By-Step

.www.velodyne.com SC-600 IF/IC User’s Manual

Step 1 -

Determine installation location. As stated above, the SC-600 IF/IC can be mounted virtually

anywhere. The only requirements are that the cabinet fit into the location, and that there be a

proper opening for the sound to be passed into the listening environment.

Step 2 -

Mark installation location. It is useful to place the subwoofer cabinet in its proposed position

and mark the locations of the four brackets that will be used to affix the subwoofer to the

framing. Note that the brackets can be mounted ANYWHERE on the subwoofer cabinet, as

long as the brackets do not interfere with the woofer’s operation. Always use all four brackets

in the installation. It is recommended that the cabinet be positioned flush with the face of the

joists for ease of positioning and installation, but this is not required. Make sure the speaker

terminals are facing the direction you intend to run the speaker wire.

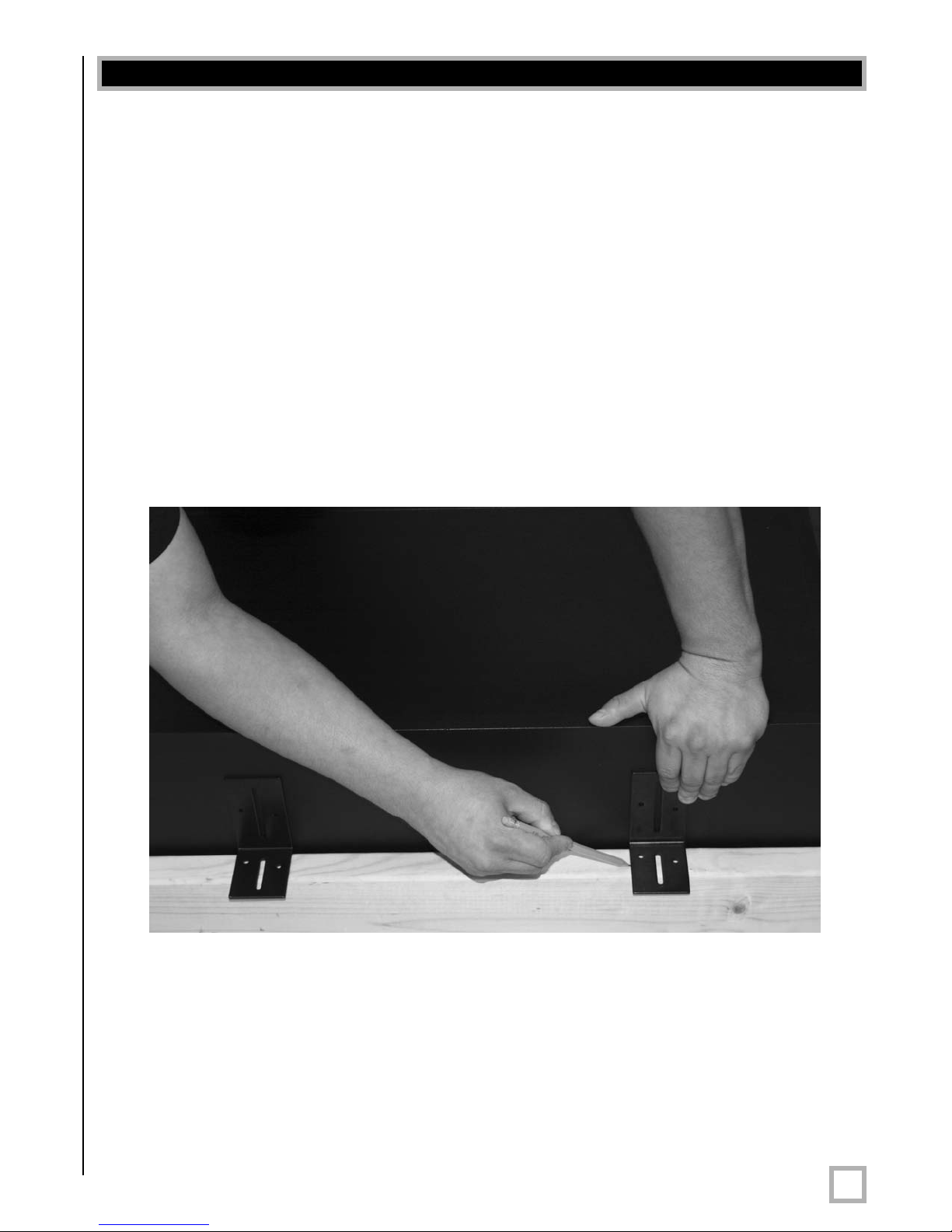

Figure 1: Mark bracket locations with a pencil.

Note: The brackets can be attached anywhere on the SC-600 IF/IC cabinet.

.www.velodyne.com SC-600 IF/IC User’s Manual

Step 3 -

Determine and mark grille location. From the centerline of the subwoofer driver, mark off

the dimensions of the grille opening to accommodate the decorative grille chosen for the end

user installation.

Step 4 -

Prepare the installation location. Make whatever modifications are required to enable the

subwoofer to fit in the installation location. Note that the SC-600 IF/IC is designed for joists

on 16” centers. Install spacer studs as required to accommodate this dimension.

Step 5 -

Attach the PSA-sided foam strips to the subwoofer cabinet. MAKE SURE STRIPS ARE USED

ANYWHERE THE CABINET WILL COME INTO CONTACT WITH THE STRUCTURE IN ANY WAY.

The SC-600 IF/IC is a powerful subwoofer and will likely buzz or rattle if not isolated from the

structure using the provided foam strips.

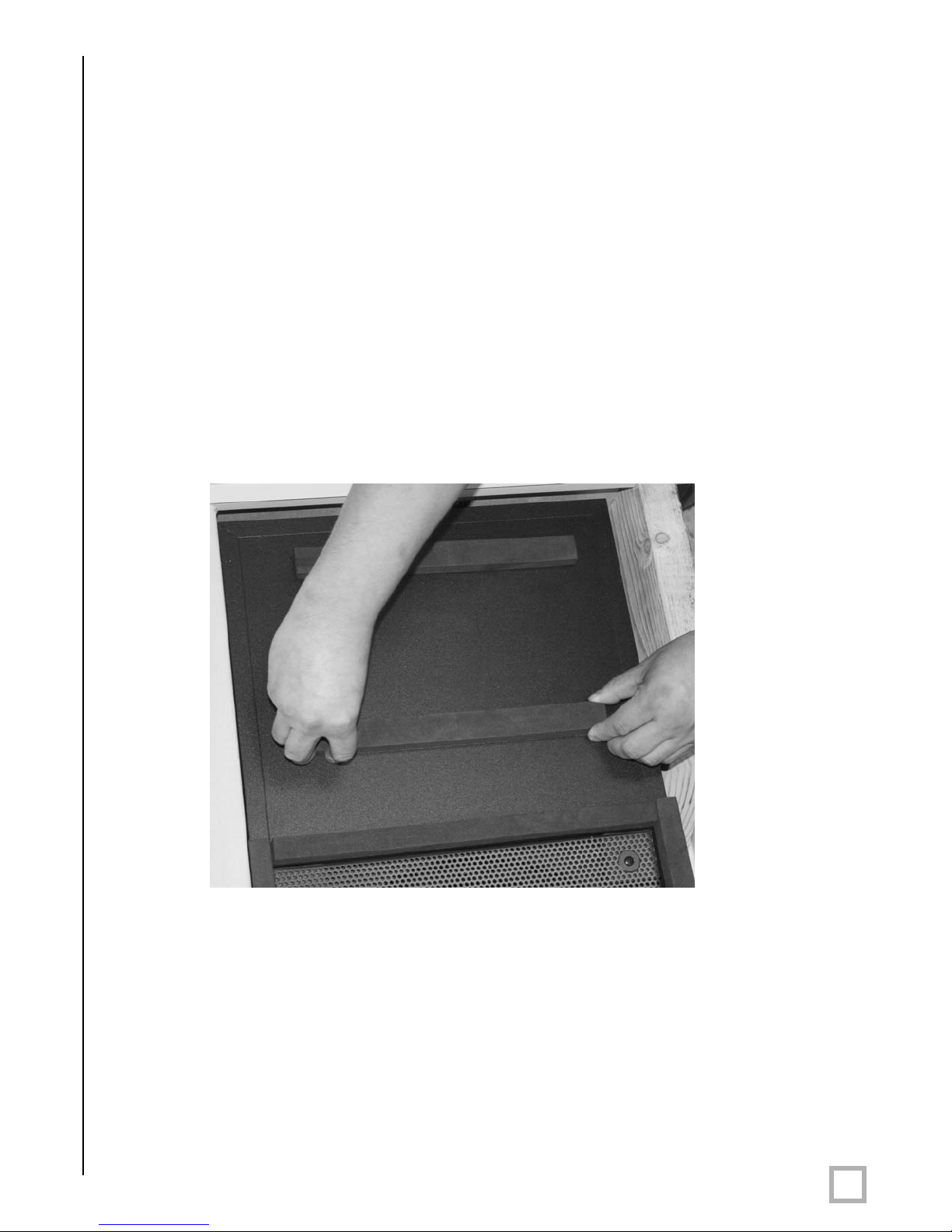

Figure 2: Affix foam strips.

.www.velodyne.com SC-600 IF/IC User’s Manual

Step 6 -

Install. Place the SC-600 IF/IC as determined in step two and attach the brackets loosely.

CAUTION: The SC-600 IF/IC is heavy. Either use a partner to suspend the subwoofer while

you are attaching it or use a mechanical device to hold it in place during installation.

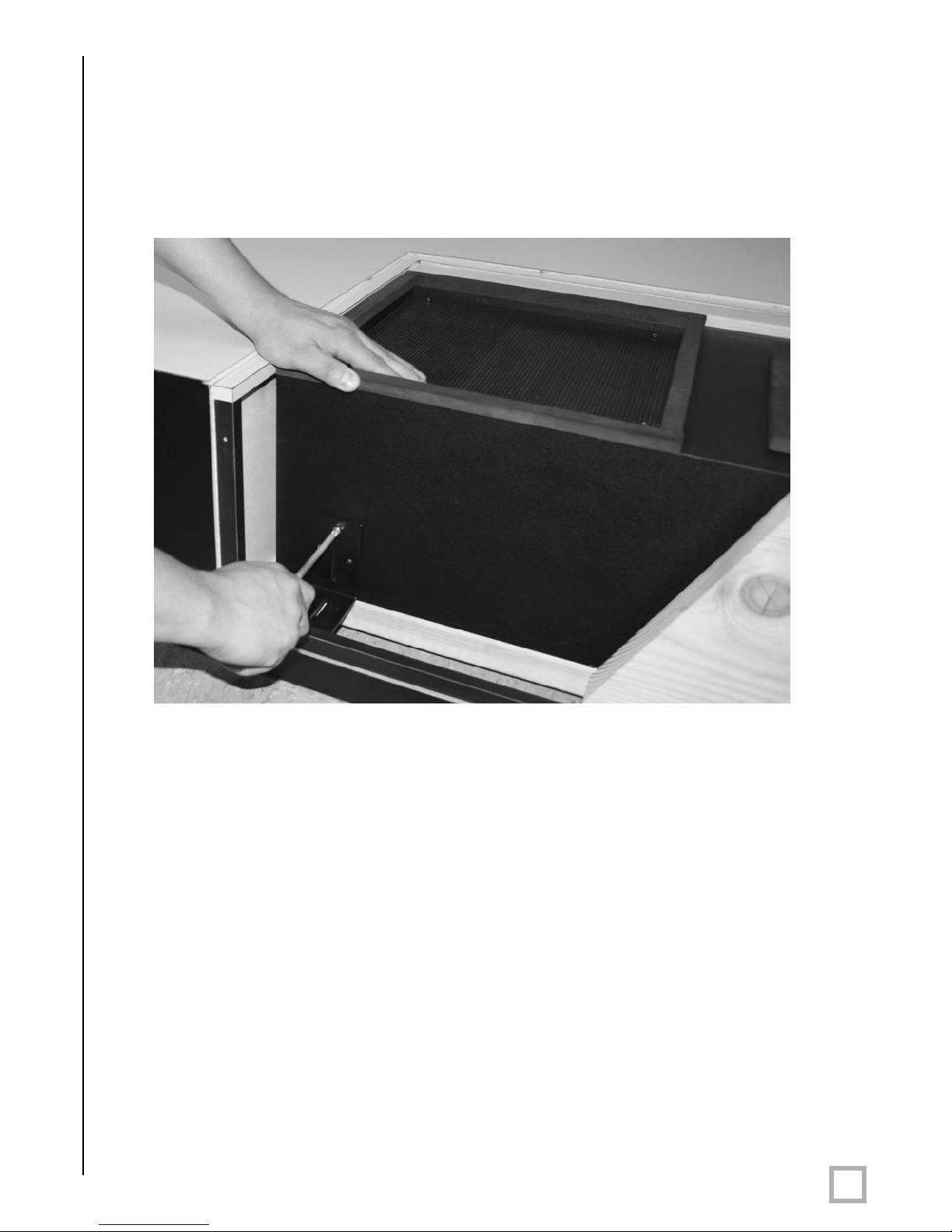

Figure3: SC-600 IF (In-Floor) positioned into floor location.

Step 7 -

Adjust bracket position and tighten. Position the subwoofer into its final location and tighten

the brackets.

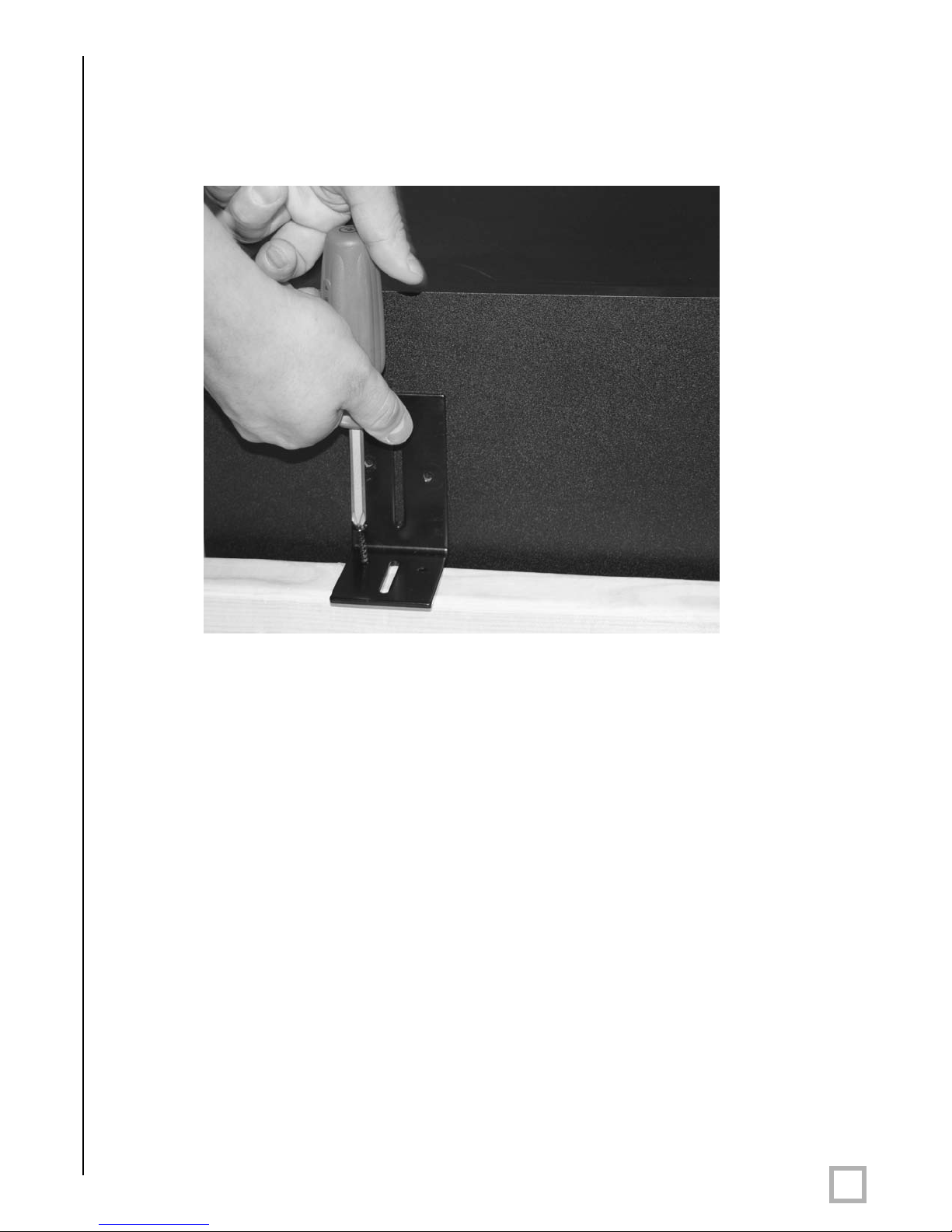

Figure4: Tighten the brackets.

.www.velodyne.com SC-600 IF/IC User’s Manual

Step 8 -

Secure wiring. Attach the speaker wire to the speaker terminals. Twist the wire strands tightly

before inserting them in the terminals. Do not allow stray wires from one terminal to touch the

other terminal. This will damage the amplifier. A 16 AWG or heavier wire is recommended.

Be sure to secure the speaker wire so it does not rattle or buzz against the cabinet during use.

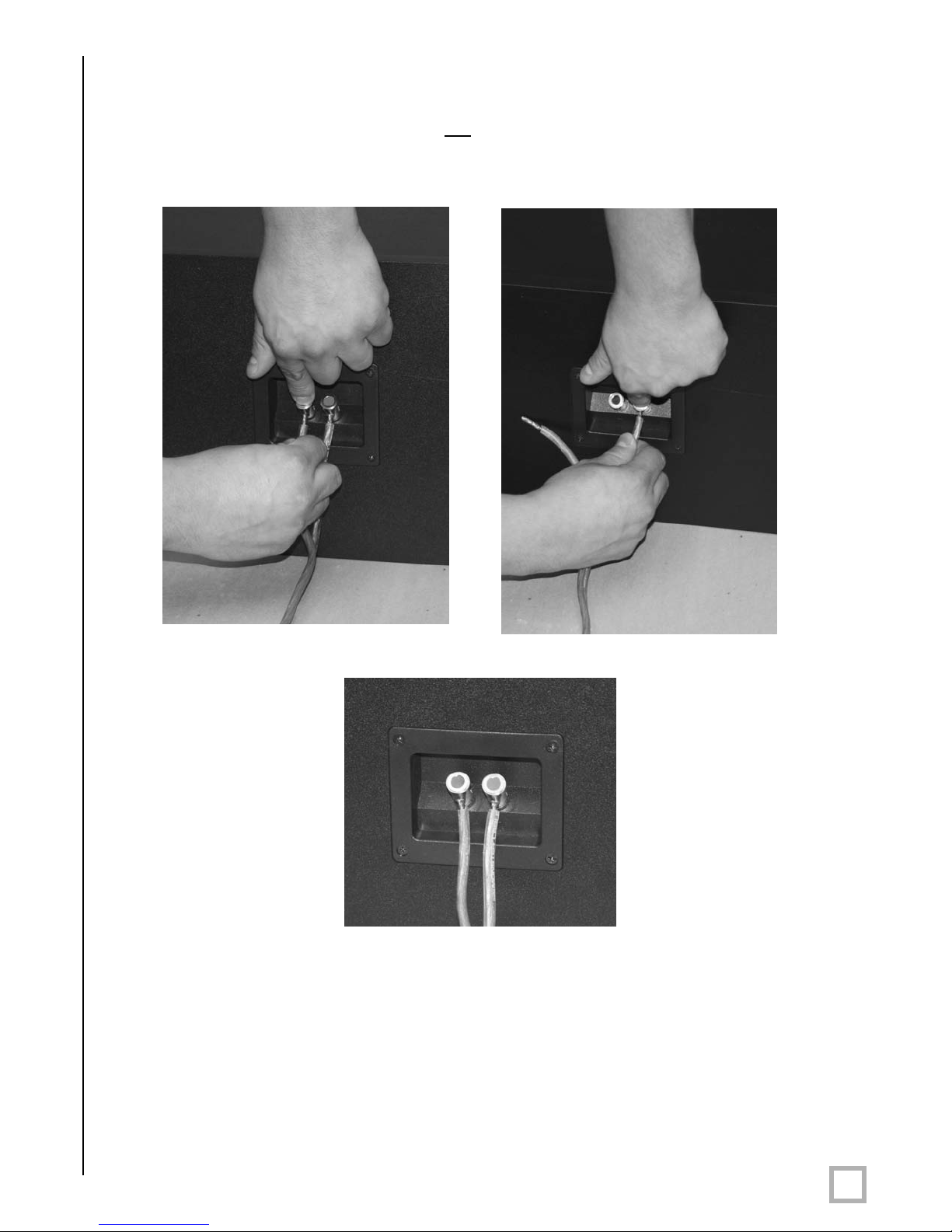

Figure 5a, 5b, and 5c: Speaker wire connection.

.www.velodyne.com SC-600 IF/IC User’s Manual

Step 9 -

Complete installation. Install the decorative grille and perform any other tasks needed to

complete the installation based on chosen woofer positioning. It is recommended to use

caulking to secure the decorative grille to prevent buzzing and rattling.

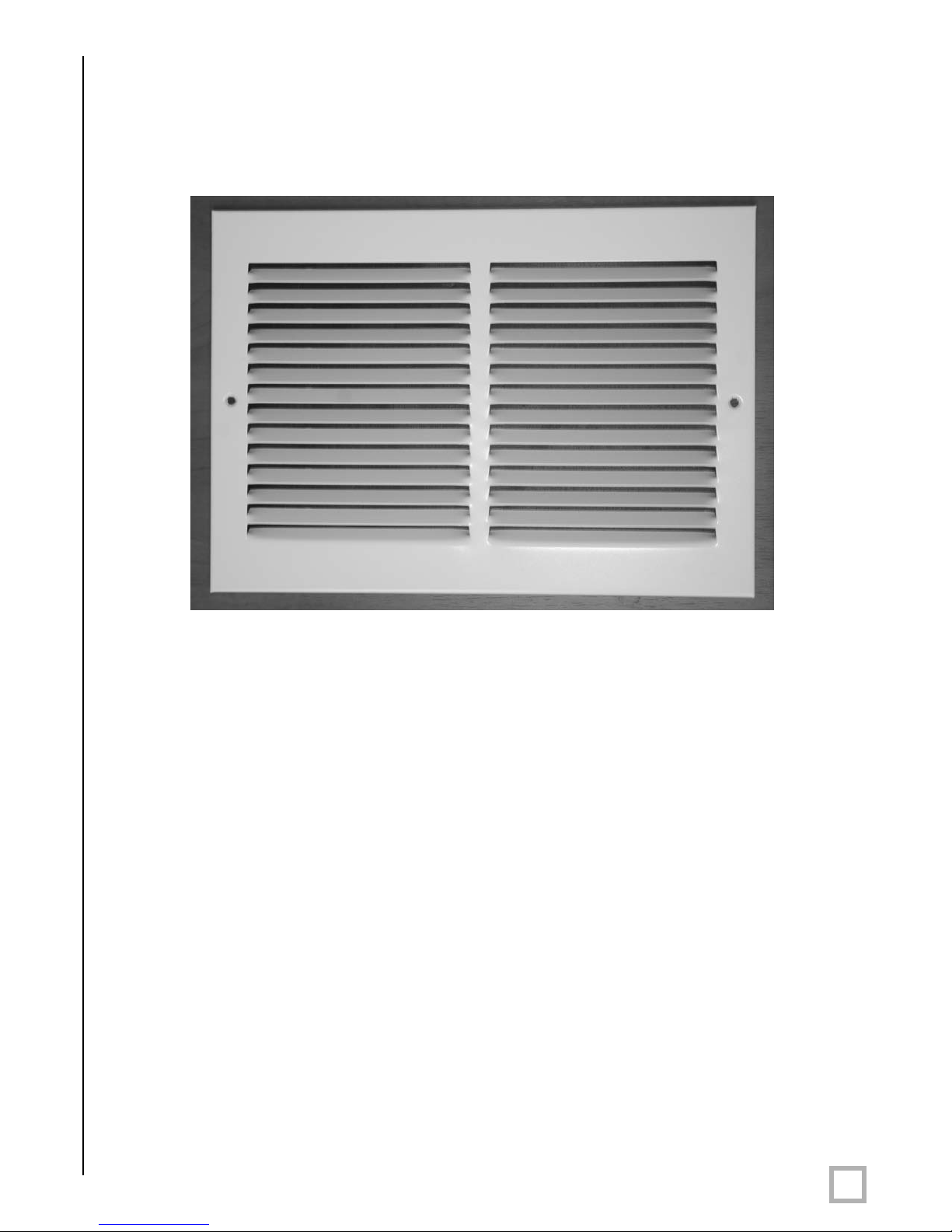

Figure 6: Finished installation with register

Step 10 -

Use aggressive bass material and check the subwoofer for buzzes and rattles. These can come

from inadequate use of the foam strips, or there may be sympathetic vibration in the structure

due to the powerful nature of the SC-600 IF/IC. In the latter case, track down the rattle and

secure it with caulking or other similar material.
