Velleman K8017 Manuel utilisateur

Total solder points: 110

Difficulty level: beginner 1 2 3 4 5 advanced

3 - CHANNEL LIGHT ORGAN

ILLUSTRATED ASSEMBLY MANUAL H8017IP-1

3-channellightorgan(Low,MidandHigh)inan

attractivetransclucentenclosuretocreateyour

ownlightshows.

K8017K8017

Specifications:

 Operating voltages : 110-125 or 220-240VAC 50/60Hz

 Max. load : 200W per channel (100W @ 110-125VAC)

 Only suited for incandescent light bulbs

 Dimensions (WxHxD) 155x45x160mm (6.2”x1.8”x6.4”)

modifications reserved

Features:

Low, Mid and High channels

Sensitivity adjustment per channel

LED indication per channel

Attractive translucent enclosure

Microphone included

Noise suppressed according to EN55015

Features & specifications

VELLEMAN NV

Legen Heirweg 33

9890 Gavere

Belgium Europe

www.velleman.be

www.velleman-kit.com

Assembly hints

1. Assembly (Skipping this can lead to troubles ! )

Ok, so we have your attention. These hints will help you to make this project successful. Read them

carefully.

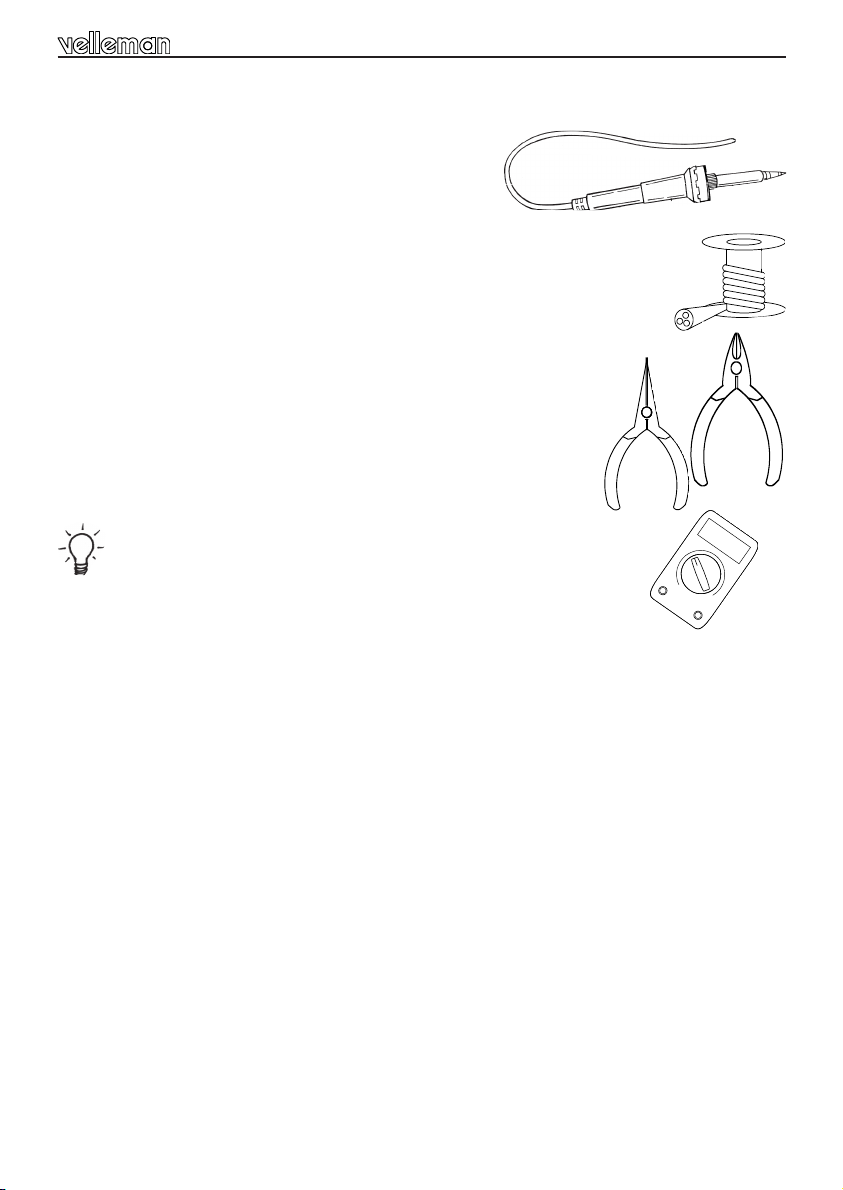

1.1 Make sure you have the right tools:

 A good quality soldering iron (25-40W) with a small tip.

 Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to

give it a wet look. This is called ‘thinning’ and will protect the tip, and enables you to

make good connections. When solder rolls off the tip, it needs cleaning.

 Thin raisin-core solder. Do not use any flux or grease.

 A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads,

hold the lead so they cannot fly towards the eyes.

 Needle nose pliers, for bending leads, or to hold components in place.

 Small blade and Phillips screwdrivers. A basic range is fine.

For some projects, a basic multi-meter is required, or might be handy

1.2 Assembly Hints :

Make sure the skill level matches your experience, to avoid disappointments.

Follow the instructions carefully. Read and understand the entire step before you perform each

operation.

Perform the assembly in the correct order as stated in this manual

Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.

Values on the circuit diagram are subject to changes.

Values in this assembly guide are correct*

Use the check-boxes to mark your progress.

Please read the included information on safety and customer service

* Typographical inaccuracies excluded. Always look for possible last minute manual updates,

indicated as ‘NOTE’ on a separate leaflet.

0.000

1.3 Soldering Hints :

1- Mount the component against the PCB surface and carefully

solder the leads

2- Make sure the solder joints are cone-shaped and shiny

3- Trim excess leads as close as possible to the solder joint

REMOVE THEM FROM THE TAPE ONE AT A TIME !

Assembly hints

DO NOT BLINDLY FOLLOW THE ORDER OF

THE COMPONENTS ONTO THE TAPE.

ALWAYS CHECK THEIR VALUE ON THE

PARTS LIST!

Construction

C1 : 100nF (104 - µ1)

C2 : 100nF (104 - µ1)

C3 : 1µF (105)

C4 : 100nF (104 - µ1)

C5 : 47nF (473)

5. Ceramic Capacitors

C...

D1 : 1N4007

1. Diode. Watch the polarity!

D...

CATHODE

ZD1 : 12V0 / 1,3W

2. Zener diode. Watch the polarity!

ZD...

CATHODE

R1 : 4K7 (4 - 7 - 2 - B)

R2 : 100K (1 - 0 - 4 - B)

R3 : 4M7 (4 - 7 - 5 - B)

R4 : 22K (2 - 2 - 3 - B)

R5 : 470K (4 - 7 - 4 - B)

R6 : 1K5 (1 - 5 - 2 - B)

3. 1/4W Resistors

R...

R13 : 10K (1 - 0 - 3 - B - 9)

R14 : 10K (1 - 0 - 3 - B - 9)

R15 : 10K (1 - 0 - 3 - B - 9)

R16 : 10K (1 - 0 - 3 - B - 9)

R17 : 10K (1 - 0 - 3 - B - 9)

R18 : 10K (1 - 0 - 3 - B - 9)

4. Metal film resistors

T1 : BC547B

T2 : BC547B

6. Transistors

SK1 (2X)

SK2 (2X)

SK3 (2x)

SK4 (2X)

MIC1 -

MIC1 +

7. PCB tabs

R...

R7 : 4K7 (4 - 7 - 2 - B)

R8 : 4E7 (4 - 7 - B - B)

R9 : 4E7 (4 - 7 - B - B)

R10 : 4E7 (4 - 7 - B - B)

R11 : 470K (4 - 7 - 4 - B)

R12 : 470K (4 - 7 - 4 - B)

Construction

LD1 : 5mm LED RED

LD2: 5mm LED GREEN

LD3: 5mm LED YELLOW

LD4: 5mm LED RED

8. LEDs. Watch the polarity!

LD...

CATHODE

COLOUR= 2...5

CATHODE

LD...

CATHODE

MIC1

9. Microphone

MIC...

F1 : 3,15A T (slow)

12. Fuse holder + fuse

Choose operating voltage :

For 110 - 125VAC :

C7 : 220nF / 250VAC

C8 : 470nF / 250VAC

For 220 - 240VAC :

C7 : 470nF / 250VAC

C8 : 220nF / 250VAC

10. Capacitors

C6 : 470µF / 16V

11. Electrolytic capacitor.

Check the polarity!

C...

F...

TH1 : TIC 106M or eq.

TH2 : TIC 106M or eq.

TH3 : TIC 106M or eq.

13. Thyristors

TH...

L1

14. Choke

L...

RV1 : 10K

RV2 : 10K

RV3 : 10K

RV4 : 10K

15. Resistor trimmers

RV...

Mount the snap-in AC sockets on their support.

Mount the PCB on the bottom lid of the enclosure and fasten with the supplied screws. (Use the

shortest supplied screws)

Assembly

16. Assembly

Assembly

Position the socket support on the bottom lid.

Run about 10 cm (4”) of the supplied wire trough the hole in the enclosure lid. Click the strain

relief on the cable, and squeeze it into the hole, until it fits snugly

1 2 3

OPEN

As this kit is shipped to different countries, there is no AC plug supplied. You will need to attach a

plug that matches your electrical system to the loose end of the AC cable. Always close and fasten

the enclosure lid before operating this kit. Make sure the AC voltage is correctly set. Fill out the

included power rating label and stick it to the bottom of the enclosure. To test the unit, turn all con-

trols fully clockwise and plug it in. When the AC cord is plugged in, the power indicator LED should

light. Tap the enclosure gently. The internal LED’s will flash. Now you can test the unit with light

bulbs connected. Make sure the max. rating per channel is not exceeded ! You can adjust the over-

all sensitivity by turning the master level control, while the level for each individual channel can be

adjusted with the low-, mid- and high level controls.

Hook-up & Use

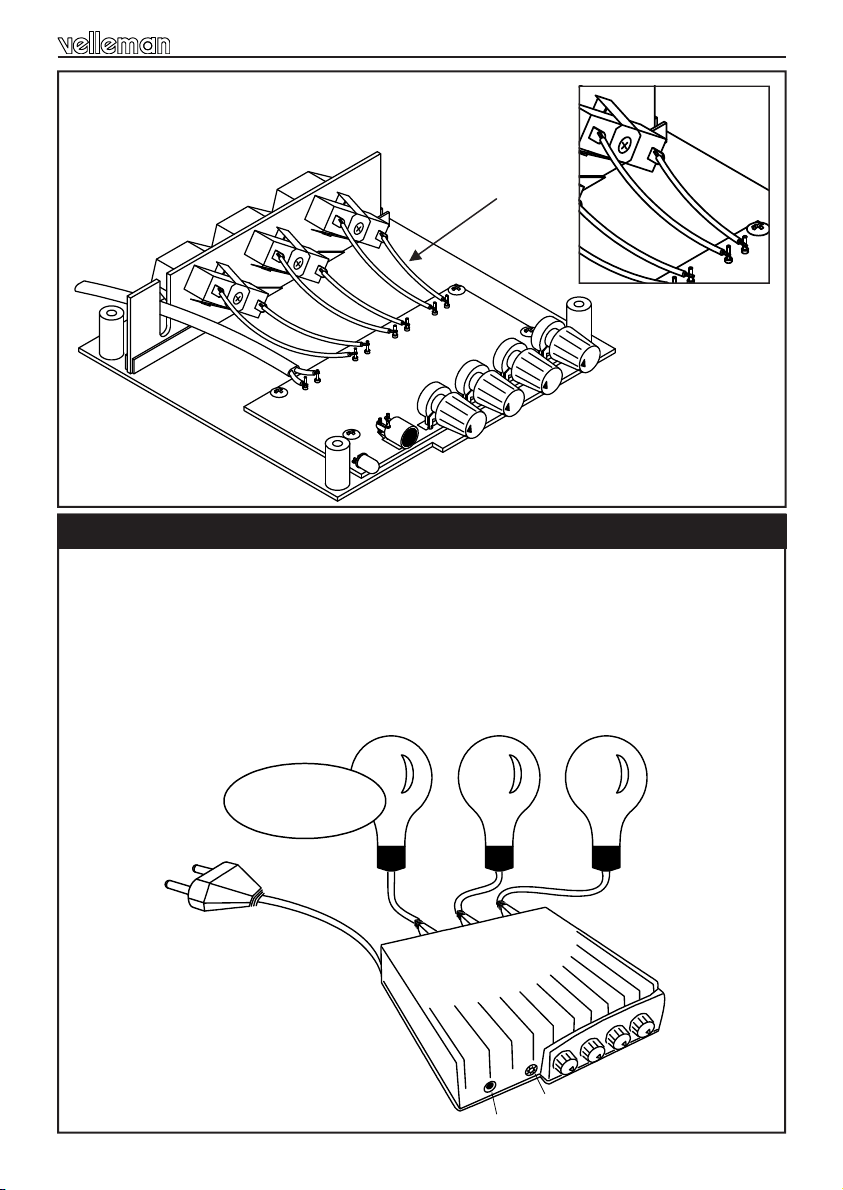

Solder the AC cable to the SK1 pins. Connect the AC sockets to the

board with the supplied wire. Inspect the whole assembly once

more before closing the lid. Fasten the lid with the supplied screws.

17. Hook-up and use

POWER INDICATOR

MICROPHONE

MASTER LEVEL

LOW LEVEL

MID LEVEL

HIGH LEVEL

100W @ 110-125VAC

200W @ 220-245VAC

MAX !

AC PLUG (OPTION)

+/- 6cm (2,4”)

18. Diagram power supply

SK1

3.15 SLOW

470n/250V~ @230VAC

R11

470K

1N4007

ZD1 12V/1.3W

470µ/16V

4K7

LD1

RED

100K

RV1

10K

MIC1

MIC M300

100n

BC547B

100n

4M7

22K

470K

RV2

10K

1K5

100n

RV3

10K

4K7

RV4

10K

47n

1µ

SK4SK3SK2

220n/250V~ @230VAC

220n/250V~ @115VAC

AC POWER IN

LEVEL

LOW MID HIGH

LAMP1 LAMP2 LAMP3

470n/250V~ @115VAC

R12

470K

TH1

TIC106M

TH2

TIC106M

TH3

TIC106M

4E7

R10

4E7

LD2

GREEN

LD3

YELLOW

LD4

RED

R13

10K/0.6W

R15

10K/0.6W

R17

10K/0.6W

R16

10K/0.6W

R18

10K/0.6W

R14

10K/0.6W

Diagram
