OPERATOR FOR SECTIONAL

AND COUNTERWEIGHT

GARAGE DOORS

WARNING!! Before installing, thoroughly read this manual that is an integral

part of the pack

The CE mark conforms to European directive

EEC 89/336 + 92/31 + 93/68 D.L. 04/12/1992 N. 476.

Our products if installed by qualified personnel capable to evaluate risks,

comply with norms UNI EN 12453, EN 12445

PACKING CONTENTS ............................................................................

VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS ............

DIMENSIONS .........................................................................................

TECHNICAL DATA..................................................................................

CONSIDERATIONS FOR INSTALLATION..................................................

INSTALLATION......................................................................................

5-6-7-8-9

TROUBLESHOOTING..............................................................................

SAFETY PRECAUTIONS ........................................................................

1- Operator with control unit

1- Mounting accessory kit

1- Guide with pre-mounted chain

PACKING CONTENTS

VIEW OF TYPICAL AUTOMATION AND NAMES OF COMPONENTS

A = Flashing light

B = Door frame

C = Pulling guide

D = Fixing brackets

E = Operator with control unit

F = Manual release

G = Door

H = Photocells

I = Rubber edge

DIMENSIONS

Maximum height counterweight door

3000mm

Maximum height sectional door

2700mm

Door max width

3000mm

4500mm

Supply

230Vac

Motor power supply

24Vdc

Motor RPM

220

Emergency release Mechanical internal-external

Working temperature

-20° C / +55° C

Weight

4 Kg

Protection rating

IP 30

Opening time

22 sec

Force of thrust

700 N

1000 N

Motor current input

0,7 A

1,2 A

100Kg70Kg

TECHNICAL DATA

CONSIDERATIONS FOR INSTALLATION

150 mm

330 mm

230 mm

The installation and testing operations must be performed solely by qualified

personnel in order to guarantee the proper and safe operation of the automatic gate.

ŸThe company declines any responsibility for damage caused by incorrect

installations due to incompetence and/or negligence.

ŸBefore the installation of the automation, check that the door is fully functional

and balanced.

INSTALLATION

NOTE: For the installation of the operator on

counterweight doors you must use the

CURVED ARM (optional)

Fix the front support of the guide on

the door frame or on the wall

depending on the measurement taken.

Insert and lock the preassembled

guide into the front support

Bend the brackets according to the

measure A.This measure is

obtained leveling the guide with the

ceiling

Fix the brackets on the guide support

and motor support

Ceiling

Brackets

Guide

support Motor

support Brackets

Brackets

Fix the top panel of the

door to the pulling

bracket with self tapping

screws

Hang the arm to the bracket

and fix it with the nut and bolt

TE 8x25

1. Take the engine, release

the slide by pushing on

the front stop.

2. Unscrew the fixing screws

and remove of the cover.

Slide Stop

Cover

Screws

TE Bolt

Nut

Pulling Bracket

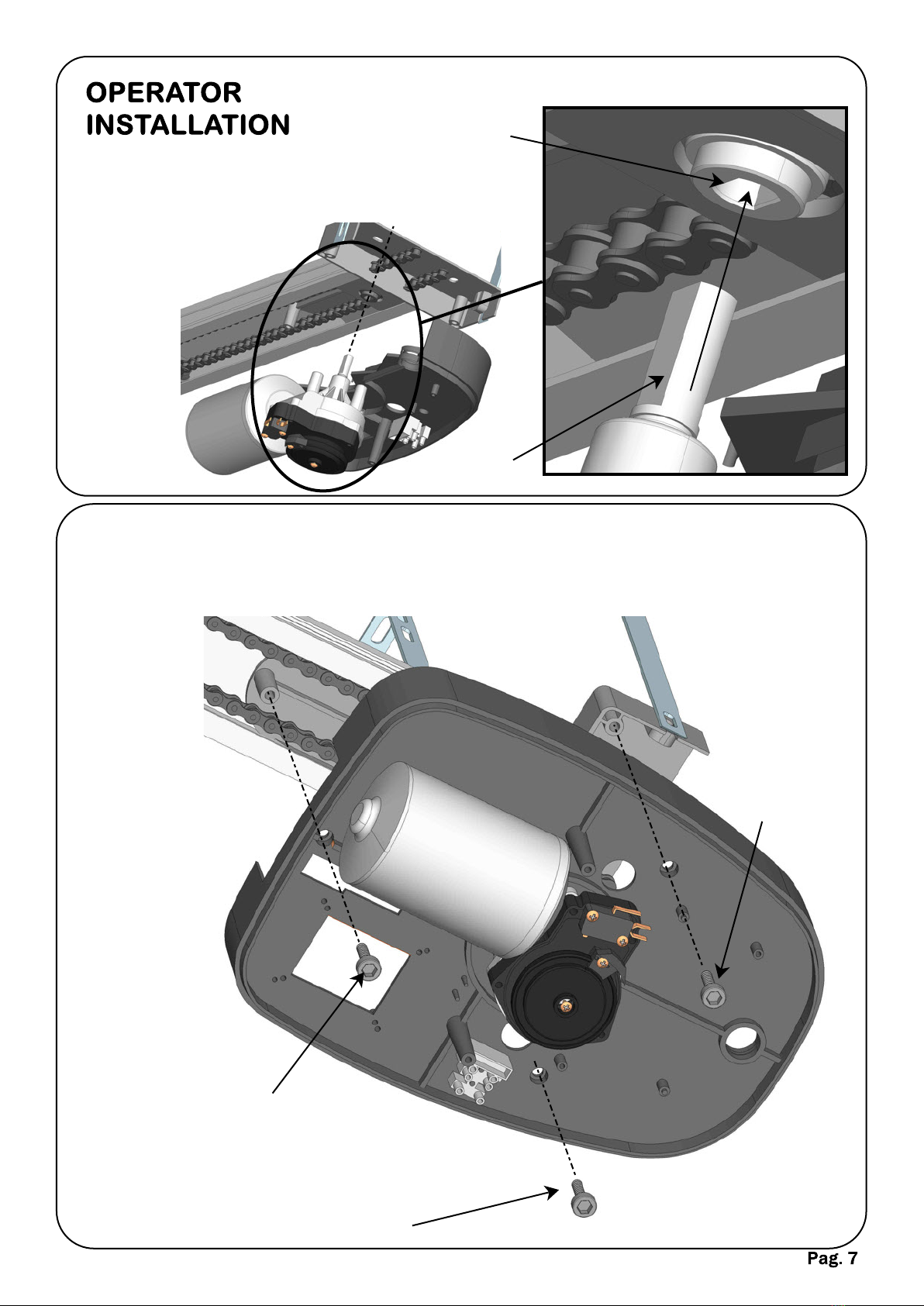

Insert the motor

bringing the shaft

into the seat of the

gear

Fix the motor with three self tapping screws

Screw

Gear Seat

Motor Shaft

Adjust the opening limit

switch in the desired

position by moving the

plastic cam,

unscrewing a little the

screw

Make all electrical connections referring to the control unit manual

Cam

Screw

Microswitch

Make a knot on the nylon

cord and plug it into the

hole of the cart release

lever passing the site.

Insert the cable in its seat,

as shown in the picture

Take a release plate

and tie the other end of

the cord

Release Plate

Nylon Cord

Release Lever

Cord Passage Seat

Cart

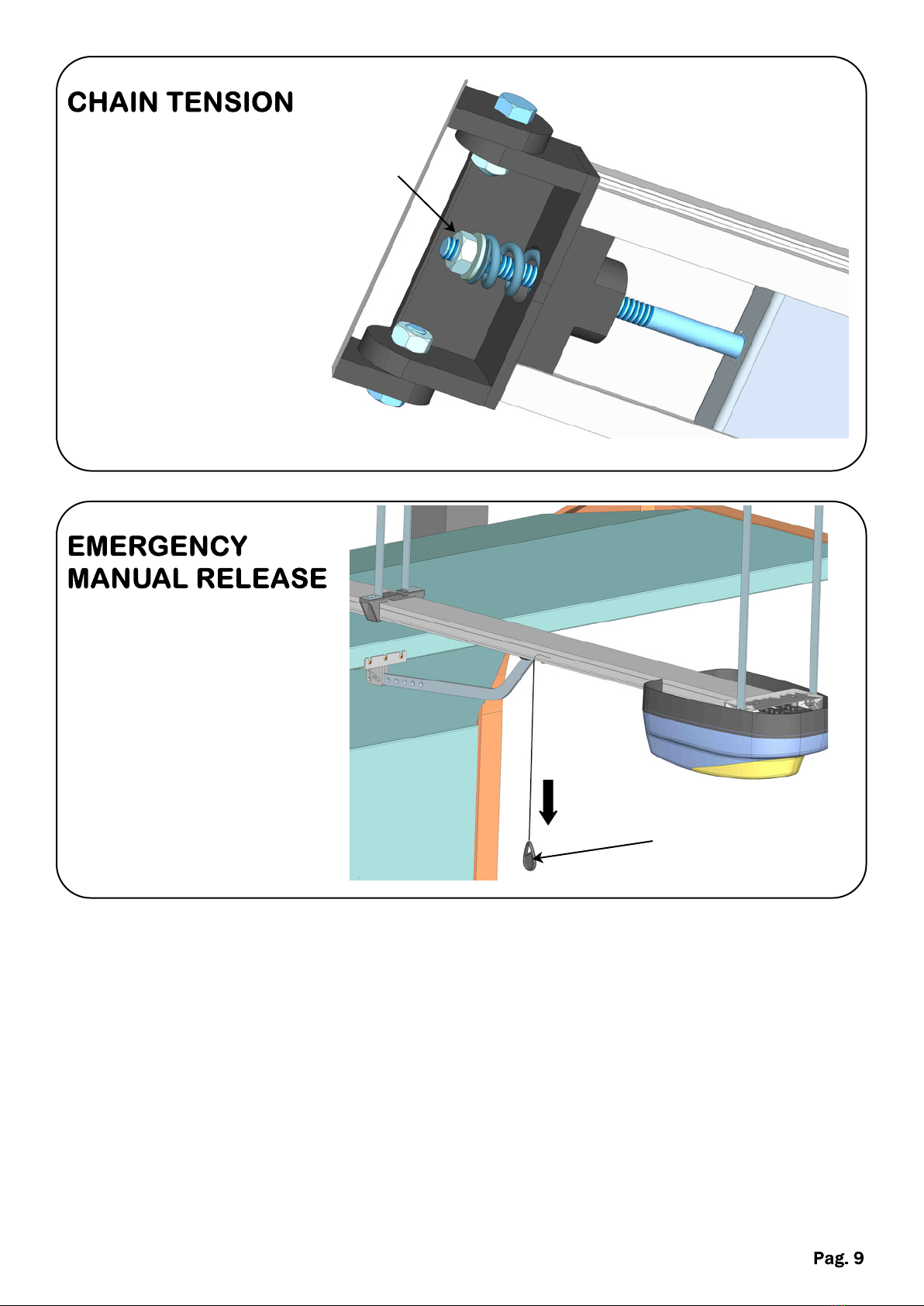

To increase or

decrease the chain

tension adjust nut M8

Ÿscrew the nut to

increase tension

Ÿunscrew the nut to

decrease tension

Nut M8

In case of emergency to

unlock the operator pull

the release plate

Release Plate

TROUBLESHOOTING

PROBLEM PROBABLE CAUSE SOLUTION

On giving a command with

the remote

control or with the

key-switch, the gate

doesn’t open or the motor

doesn’t start

230 volt mains voltage

absent Check master switch

Emergency STOP present

Check for any STOP

selectors or commands.

If not used, check jumper

on STOP contact input on

the control board

Fuse blown Replace with one of same

value.

Power cable of motor or

motors not

connected or faulty.

Connect the cable to

appropriate

terminal or replace.

The photocell is not

functioning or the

beam is interrupted

Check the connection,

remove any

obstacle across the beam

On giving a command with

the remote control, the

door doesn’t open but

works with the key

command

The remote control has not

been

memorised or the battery

is flat

Carry out the remote

control learning

procedure on the radio

receiver or replace the

battery with a new one..

The door starts, but stops

immediately

The force of the motor or

motors is insufficient

Modify the value with the

FORCE trimmer on the

control unit

On giving a command, the

motor

starts, but the gate does

not move

There is an obstacle in

front of the

wings, the hinges are

blocked or the

motor anchorage bracket

or brackets

have come loose

Remove the obstacle from

the wings,

restore the hinges, replace

or lubricate them.

Fasten the motor bracket

N.B. - If the problem persists, contact your Retailer or the nearest Service

Centre
