Vax X5 Manuel utilisateur

OWNER'S MANUAL

Operating and Servicing Instructions

Please read these instructions

carefully before using your new

VaCUUm.

You are now the proud owner of aVAX®.\A/e trust your new purchase will bring you many years of satisfaction.

Vax was invented to change the way you vacuum. Using a design philosophy we call NEXT CLEANTM,Vax has combined

proven cleaning effectiveness with user-focused engineering, so you can clean more with less strain and bending.

That's deep cleaning at a higher level.

Thank you for your support ofVAX ® products.

Visit our website at www.vaxusa.com

TABLE OF CONTENTS

Features

How To Operate

Brush Vacuuming

Vacuuming With Accessories

Vacuuming Upholstery, Furniture, and Curtains

Dirt Container and Filter

HEPA Filter Removal and Cleaning

General Maintenance

Turbo Tool Removal and Cleaning

Page 5

Page 7-9

Page 7

Page 8

Page I0

Page I [ - 13

Page II, 12

Page 14

THINSVACUUN CLEANER mS_NTENDED FOR HOUSEHOLD USE ONLY,

Do not leave appHance when plugged in. Unplug from

outlet when not in use and before servicing.

Do not use outdoors or on wet surfaces. Electrical shock

couW occur.

Do not allow to be used as atoy° Close attention is

necessary when used by or near ch[_dreno

Use only as described in this manual Use only

manufacturer's recommended attachments°

Do not use with damaged cord or plug. If appliance is not

working as it should, has been dropped, damaged, _eft

outdoors, or dropped into water, return it to a service

center for inspect[ono Call Io877oVAXoUSAo9 (1o877o829o

8729) for the nearest service center.

Do not pull or carry by cord, use cord as hand_e, dose a

door on cord, or pull cord around sharp edges or corners.

Do not run appWiance over cord. Keep cord away from

heated su_aces.

Do not unplug by pulling on cord° To unplug, grasp the

plug, not the cord.

Do not handle p_ug or appliance with wet hands.

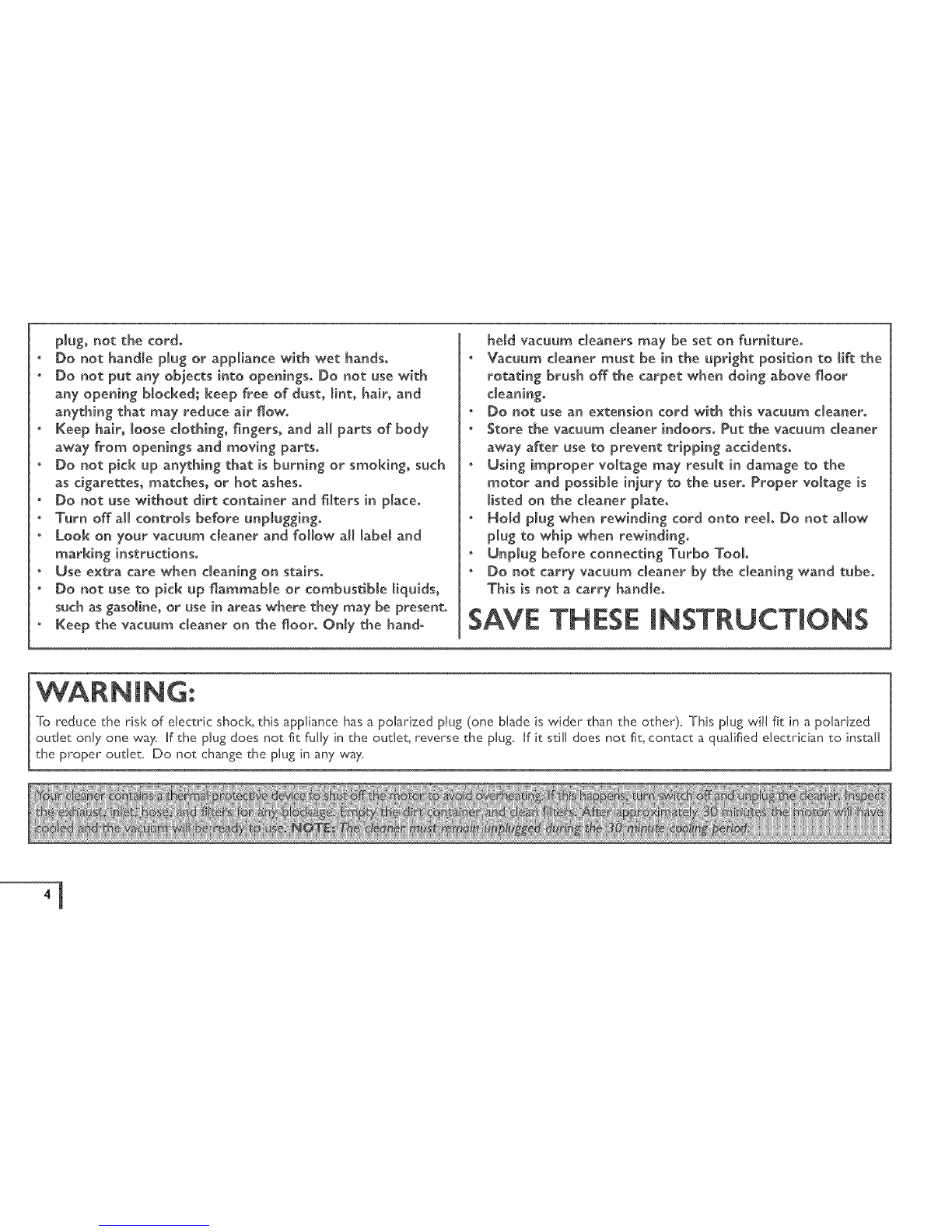

Do not put any obiects into openings. Do not use with

any opening b_ocked_ keep free of dust, lint, hair, and

anything that may reduce air flow.

Keep hair, _oose clothing, fingers, and aH parts of body

away from openings and moving parts.

Do not pick up anything that is burning or smoking, such

as cigarettes, matches, or hot ashes.

Do not use without dirt container and fi_ters in p_ace.

Turn off aH controls before unplugging.

Look on your vacuum cleaner and follow aH [abe[ and

marking instructions.

Use extra care when cleaning on stairs.

Do not use to pick up flammaMe or combustible liquids,

such as gasoline, or use in areas where they may be present.

Keep the vacuum cleaner on the floor. Only the hand-

hew vacuum cleaners may be set on furniture.

•Vacuum cleaner must be in the upright position to lift the

rotating brush off the carpet when doing above floor

cleaning.

•Do not use an extension cord with this vacuum cleaner.

•Store the vacuum cleaner indoors. Put the vacuum cleaner

away after use to prevent tripping accidents.

"Using improper voltage may result in damage to the

motor and possible injury to the user. Proper voltage is

listed on the cleaner p_ate°

•Hold p_ug when rewinding cord onto reel Do not allow

p_ug to whip when rewinding.

• Unplug before connecting Turbo Tool

•Do not carry vacuum cleaner by the cleaning wand tube.

This is not a carry handle.

SAVE THESE INSTRUCTIONS

WARNING:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized

outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install

the proper outlet, Do not change the plug in any way,

-- 17

-- 20

1. Soft touch handle

2. ON/OFF button for brushroll

3. ON/OFF power button for vacuum

4. Soft touch cleaning wand handle

5. Cleaning wand release button

6. Hose fastening ring

7. Hose release button

8. Cleaning wand

9. Dirt container bottom release door

10, Hose clip

11. Reset button (located on back of nozzle)

12. Headlight

13. Brushroll

14. Soft touch furniture guard

15. Power cord hook

16. Crevice tool

17. Rotating upholstery tool

18, Accessory storage

19. Suction hose

20, Dirt container release and carry handle

21. Dirt container lidand lifetime HEPA filter

22. Bottom release lever

23, Dirt container

24. Exhaust filter(permanent filter)

25. Automatic cord rewind peda[

26. Exhaust grille

27. Power cord

28, Wheels

Pull cleaning wand to the front

of the cleaner and press hose

into handle assembly.

Using a Phillips or Flat Head screwdrive_

secure the handle by inserting the

provided four screws into the back of

the handle.

Insert excess cord into handle of the

cleaner by pushing down into lower

handle. CAUTION: AVOID PINCHING

CORD WHILE INSERTING INTO

HANDLE.

5.j _

',,...

Connect the cleaning wand to

the opening on the base and push

the wand handle towards unit

until it snaps into place.

3. f

Align handle onto base of cleaner.

y vacuum !

aner by the

aning wc,nd

e.This isnot

carry handle

...................... V

TRANSPORTING

YOUR CLEANER

Use carry handle located on dirt

container lid.

STARTING UP

1, 2,/ 3./

Holding the power cord by the plug, pull the

cord out completely. Red tag will indicate the

end of the cord. Plug into the outlet.

BRUSH VACUUMWNG

Tilt the upright vacuum cleaner

beck before you start vacuuming.

At the same time, use your foot

to press the nozzle down onto

the carpet.

For easier handling while

vacuuming, hook the power

cord onto the power cord

hook.

Brush Vacuuming on carpeted floors:

•The brushroll is switched on or off

using the brushroll on/off switch

(Diagram 2). Switch brushroll on for

carpeted floors.

• The rotating brushroll loosens deeply

embedded dirt and brings it to the

surface.

Vacuuming on smooth surfaces:

•Switch brushroll off to obtain the

best results when vacuuming smooth

barefloor surfaces.

Switch the upright vacuum

cleaner on or off by pressing the

on/off switch.

BRUSHROLL RESET

RESET BUTTON

If something becomes lodged and

brushroll shuts off, turn cleaner off

and remove obstruction. Once the

problem has been fixed, the vacuum

cleaner can be switched back on

again after approximately 2 minutes

by pressing the reset button. 7

VACLJUM_NG WiTH ACCESSORIES

• Bring the upright vacuum cleaner into its vertical locking position. The brushroll switches off automatically in this position, thus preventing any damage to the

carpet while cleaning with hose or tools.

• To switch the upright vacuum cleaner on again when you resume vacuuming, tilt it back. The brushrotf switches on again automatically.

Press the release button to release the

cleaning wand.The cleaning wand with built-

in brush can be used for cleaning surfaces.

UPHOLSTERY

TOOL

While pressing the hose release

button, pull out the suction hose

to release from cleaning wand.

5. 6.f

To access tools, rock upholstery tool

away from cleaner. To remove tools,

grasp tool and pull up and out of

accessory clip.

Straighten the hose and hook the hose clip

into the fastening ring to prevent the upright

vacuum cleaner from toppling over during use.

Then attach the accessory to the

suction hose. The rotating upholstery tool may be turned through 360 ° to allow

vacuuming Jn poorly accessible areas such as corners, edges, stairs

and vertical surfaces.

VAX MAX SYSTEM

TURBO TOOL

Air powered hand-held Turbo Tool

makes removing pet hair and lint

from upholstery and stairs easy.

FLEXoN-HOLD NOZZLE

Attach the Turbo Tool to the suction hose or cleaning wand.

Flex-n-Hold Nozzle bends and

forms to reach around corners

and into tight spaces.

Attach the Flex-n-Hold Nozzle to the suction hose

or cleaning wand. 9
