Vax Power5 C85-P5-Be Instructions d'installation

BAGLESS CYCLONIC

CYLINDER VACUUM

C85-P5-Be

C85-P5-Pe

LET’S GET STARTED.

Power5

Let’s talk safety

Basic

safety

precautions

Don’ts

Do’s

This vacuum cleaner is intended for household use only and

NOT for commercial or industrial use.

• Only use the vacuum cleaner indoors on dry surfaces and

keep the area your cleaning well lit.

• Keep ngers, hair and loose clothing from moving parts and

openings whilst using the vacuum cleaner.

• Don’t use this vacuum cleaner if it has been dropped,

damaged or left outdoors.

• Don’t run over the power cord or use vacuum cleaner if the

power cord or plug is damaged. Please contact our Customer

Care Line on: 0330 026 8455 (Mon-Fri: 8:30am to 6:30pm,

Sat: 9:00am to 5:00pm).

• Don’t handle the plug or use the vacuum cleaner with

wet hands.

• Don’t pull or carry this vacuum cleaner by the power cord.

• Don’t use the power cord as a handle, pull the power cord

around corners, sharp edges or close a door over the

power cord.

• Don’t unplug vacuum cleaner by pulling on the power cord.

• Turn o all controls on the vacuum cleaner before

disconnecting or connecting the power cord.

• Always make sure both the pre-motor/post motor lters are

in place before use.

• Always switch o the vacuum cleaner before disconnecting

or connecting the hose and accessories.

• Keep all openings clear and free from debris as this may

aect the airow/suction.

• Always replace the fuse in the plug with a British 13amp fuse.

• This vacuum cleaner can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the vacuum cleaner in a safe way and understand the

hazards involved. Children shall not play with the vacuum cleaner. Cleaning

and user maintenance shall not be made by children without supervision.

• Only Vax recommended tools and accessories should be used with this

vacuum cleaner.

• Don’t vacuum up any ammable or combustible materials (lighter uid, petrol,

kerosene etc.) or use the vacuum cleaner in an area with explosive vapours

or liquid.

• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning

items or use in an area where there may be harmful uids (chlorine, bleach,

and ammonia drain cleaner).

• Don’t attempt to remove blockages with sharp objects as this may cause

damage to your vacuum cleaner.

• Don’t vacuum up hard or sharp objects such as glass, nails, screws or

coins etc.

• Don’t use the vacuum cleaner with incorrect voltage as this may result in

damage or injury to the user. The correct voltage is listed on the ratings label.

• Always protect the power cable from heated surfaces and open ames.

• Take extra care when positioning and using the vacuum cleaner on the stairs.

• Use only CE approved 13amp extension cords, non-approved extension

cords may overheat. Care should be taken to arrange the extension cord as

it can be a trip hazard.

• Store your vacuum cleaner in a cool, dry area. If lters have been cleaned

as per user guide instructions ensure they are thoroughly dry before

storing away.

PLEASE KEEP INSTRUCTIONS FOR FURTHER USE

Thank you for buying this Power 5.

Taking care of your carpets and hard oors

The Power 5 is designed to make vacuuming carpets and hard oors regularly, as eective and

ecient as possible and this user guide will help you get the most out of your machine.

Maintaining your carpets and hard oors will ensure they keep their appearance for longer.

You’ve chosen the carpets and hard oors for your home for a reason and Vax will help you

take good care of them.

Taking care of your Power 5

Also inside this guide are instructions on maintaining your new machine, so that it’s always

ready when you are to tackle your carpets and hard oors.

Let us know what you think @VaxUK

Taking care of you

We’re here if you need us. Instead of taking me back

to the shop, simply visit:

vax.co.uk/support or call:

(UK) 0330 026 8455 (ROI) 1-800 928 308

Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm

Calls are charged at the UK local rate. Please make a note of the serial number and model number

of the product before calling.

Alternatively, you can write to us at:

Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 0LW, UK

This User Guide can be found online at: vax.co.uk/support

Contents

Let’s talk safety

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Let’s talk technical

Accessories

What to do if it goes wrong

Getting in touch

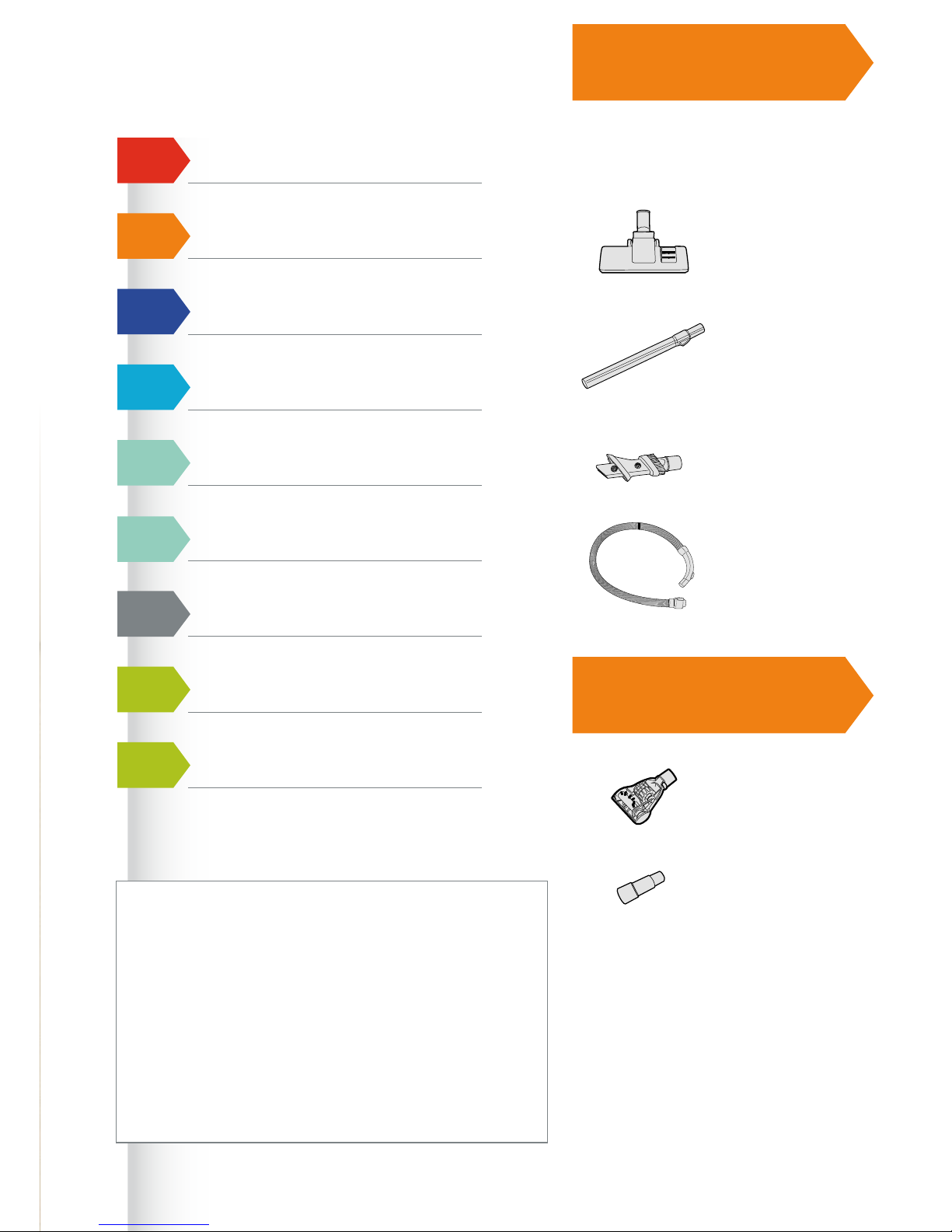

Included with

your machine

Accessory Hose

Combination

Floorhead

Tool Connector

TurboTool

Telescopic

Extension Tube

Initial Setup for normal operation

1. Use the base accessories.

a. Shortest hose.

b. Extension tube set to shortest practicable length.

2. Clean lters installed.

3. Dust receptacle empty.

4. All Bleeds must be closed.

5. Floorheads/tools set to Carpet Mode for carpet cleaning.

6. Mechanical Agitation turned ON for carpet cleaning.

7. Floorheads/tools set to Hard Floor Mode for hard oor cleaning.

8. Mechanical Agitation turned OFF for hard oor cleaning.

Power 5 Pet

All the above, plus

Power 5

(Included with all models)

3-in-1 Tool

Getting to know your machine

Technical Specication

Name Power 5

Voltage See rating label on machine for details

Wattage See rating label on machine for details

Cord length 5m

Weight 4.7kg

Subject to technical change without notice.

Accessories & Consumables

Filter Kit (Type 95)*

1-1-134231-00

Pro Cleaning Kit (Type 2)

1-1-133326-00

TurboTool (Type 6)

1-1-134419-00

Hard oor tool (Type 3)

1-1-135705-00

*To purchase consumables and accessories, please visit vax.co.uk

Carry handle

Dirt container release button

Cord rewind button

Hose entry point

Power On/O button

Wheel outer

Dirt container lid

Post motor lter

(hidden) and cover

Dirt container

Separator and shroud

Getting started

PLEASE READ ‘LET’S TALK SAFETY’ AT THE BEGINNING BEFORE USE

Getting started

Before you begin cleaning

• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments,

or removing and emptying the dirt container.

• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the

thermostat will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug

from electrical socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the

vacuum cleaner to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters

to fully dry before putting back into the vacuum machine).

• Tap the pre-motor lter over a bin every 4-6 uses to remove dirt/debris.

• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage.

Assembling your cylinder

Click!

Press both buttons at the end of the

hose and push hose into the hose

entry point.

Insert the hose grip into the

telescopic extension tube. Press the

button on the telescopic extension

tube and adjust to required length.

Insert the other end of the telescopic

extension tube into the oor head.

Fully unwind the power cord.

A yellow mark on the cord indicates

the recommended cord length.

Do not exceed the cord beyond the

yellow mark.

Plug in and switch the unit on by

pressing the power button.

How to use

When unwinding the

power cord always pull

out to the yellow marker

but no further.

CAUTION

Using your machine

Slide vent cover on hose grip open

to reduce suction if required.

Lower brushes for hard oors.

How to use

IMPORTANT: The base of the vacuum cleaner should always be positioned at on the oor when starting and in use.

The dirt container should be locked into place before lifting the vacuum cleaner by the carry handle.

For use on carpets, click rocker

switch forward.

For use on hard oors click rocker

switch back.

Raise brushes for carpets.

Using your machine

TIP

Brushes on the

oorhead should be

visible when using on

hard oors.

Using your machine

Press the cord rewind button

to retract the cord into the

vacuum cleaner.

Place the oor head into the parking slot on the back of vacuum cleaning for

storage and carrying.

Using your machine

Choose an accessory. Choose an accessory and push onto

the telescopic extension tube or hose.

If required use tool connector.

Using accessories

Storage

Taking care of your machine

Cleaning the pre-motor lter

Remove dirt container

by pushing down the dirt

container release button

and lifting the dirt container.

Hold the dirt container and

twist the lid anti-clockwise.

Tap the pre-motor lter

against a bin to remove

any dirt/debris.

Leave to dry for 24 hours or

until fully dry before placing

back in the machine.

Rinse the pre-motor lter

under water (max 40°C).

TAP

MAX

40˚C

MAX

40˚C

24hr

Lift the lid to reveal the

pre-motor lter.

Hold the dirt container over a

bin. Press the dirt release clip

at the bottom of the container,

the dirt release door will open

allowing dirt/debris to fall out.

Lift out the pre-motor lter.

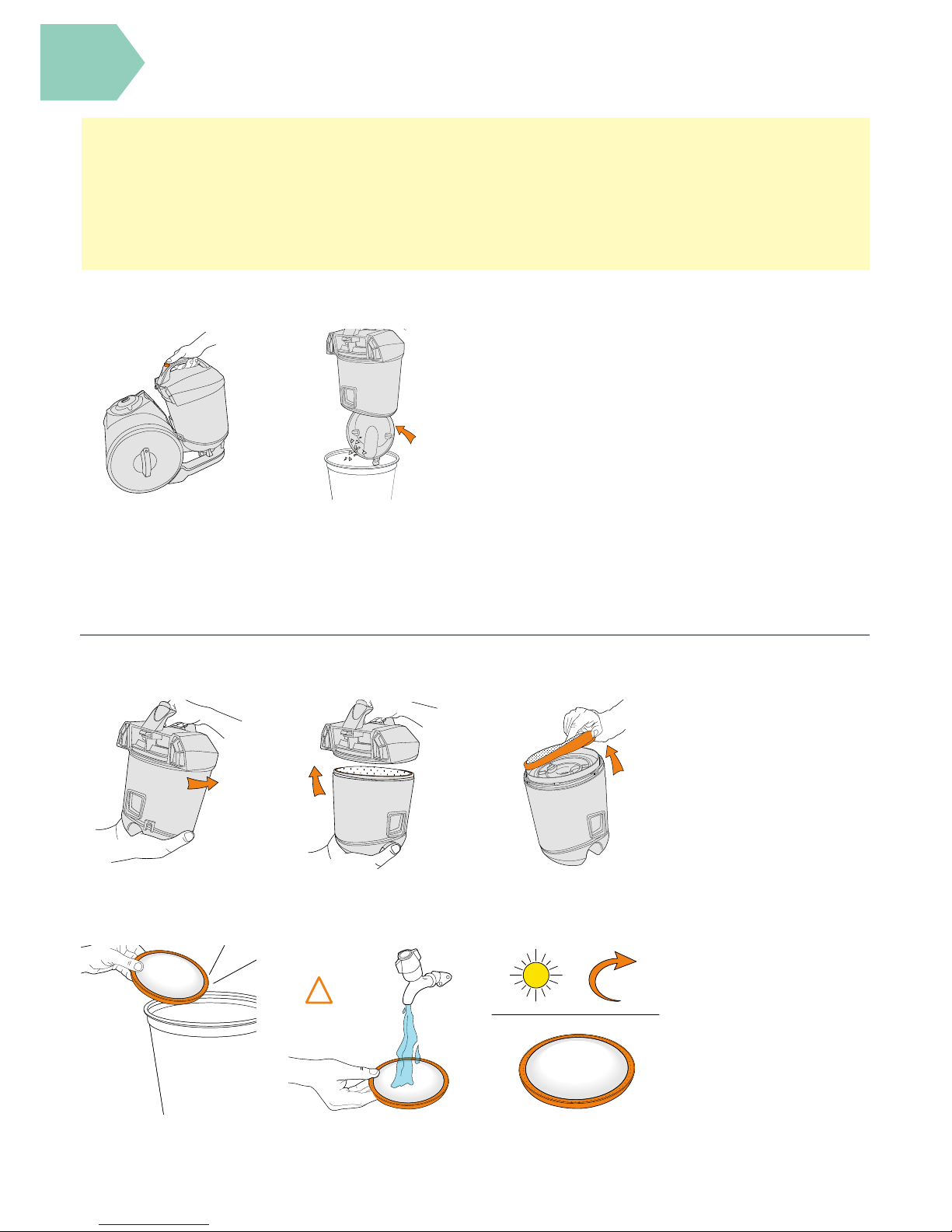

Emptying and cleaning the dirt container

IMPORTANT: Always switch o and unplug the vacuum cleaner from the electrical socket before assembling,

opening or emptying the dirt container, or before connecting/disconnecting the attachments.

Check the pre-motor lter every time you empty the dirt container and tap against a bin to remove

dirt/debris if required.

The motor is equipped with a thermal cut-out. If for any reason the unit should overheat, the thermostat will

automatically turn the unit o.

Taking care of your machine
