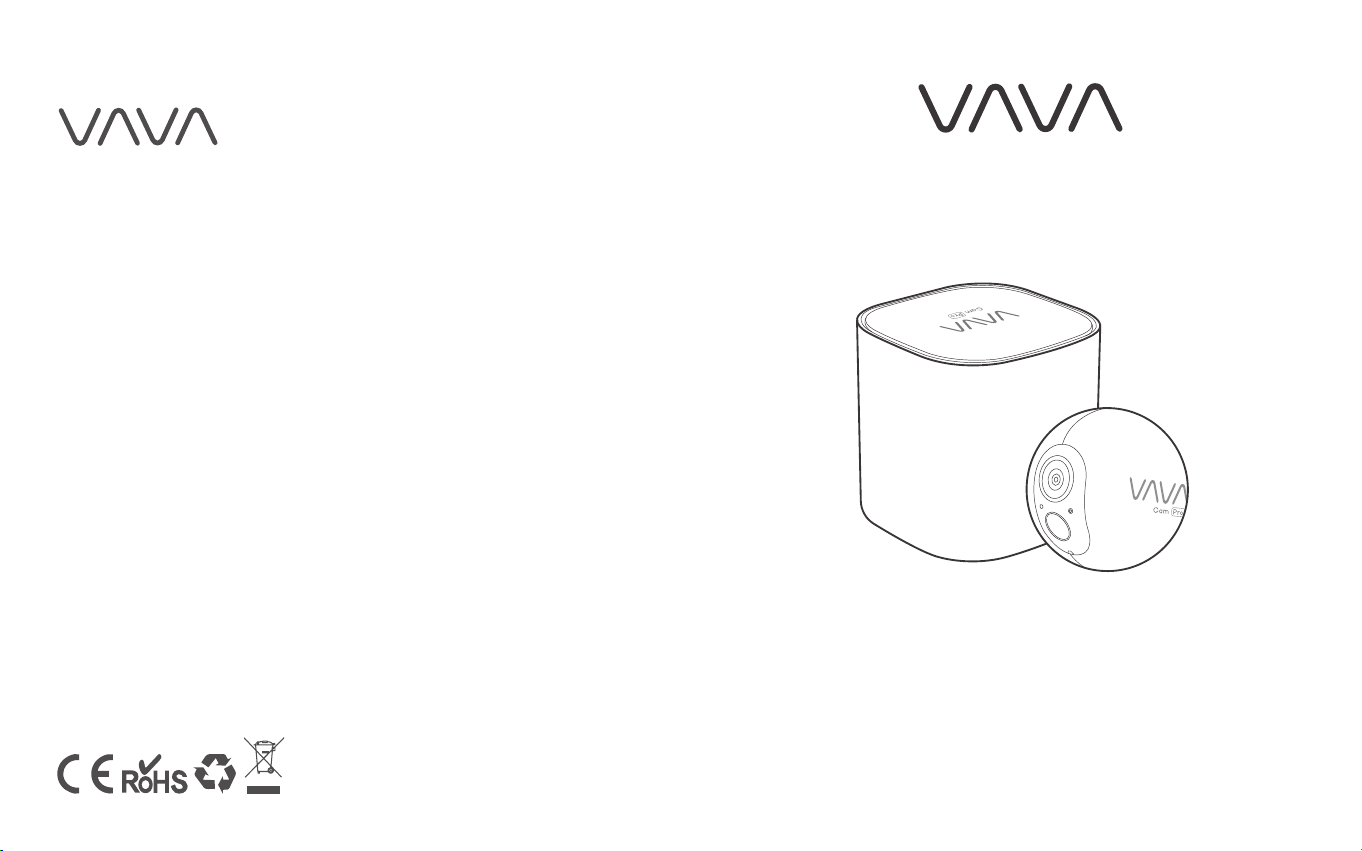

Vava Cam Pro Manuel utilisateur
ASIA PACIFIC
E-mail: support.jp@vava.com(JP)
JP Importer: 株式会社SUNVALLEY JAPAN
Address: 〒104-0032 東京都中央区八丁堀3丁目18-6 PMO京橋東9F
EUROPE
E-mail:
support.uk@vava.com(UK)
support.de@vava.com(DE)
support.fr@vava.com(FR)
support.es@vava.com(ES)
support.it@vava.com(IT)
EU Importer: ZBT International Trading GmbH
Address: Halstenbeker Weg 98C, 25462 Rellingen, Deutschland
NORTH AMERICA
E-mail: support@vava.com
Tel: 1-888-456-8468 (Monday-Friday: 9:00 – 17:00 PST)
US Distributor: SUNVALLEYTEK INTERNATIONAL INC.
Address: 46724 Lakeview Blvd, Fremont, CA 94538
MANUFACTURER
Manufacturer: Shenzhen NearbyExpress Technology Development Co.,Ltd.
Address: 333 Bulong Road, Shenzhen, China, 518129
Learn more about the EU Declaration of Conformity:
https://www.vava.com/downloads-VA-HS003-CE-Cert.html
20190919
VA-HS003_V1.2
www.vava.com
MADE IN CHINA
Model: VA-HS003
VAVA Cam Pro
Quick Start Guide
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
Table of Contents
01
10
13
15
17
20
What’s in the Box
Connect the Home Base to the Internet
Charge the Camera
Get the APP and Setup
Using the APP
Mount Your Camera
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
What’s in the Box
LAN
Power
Sync Reset
Micro SD OUT
Base Station Camera
Stand Mount Base Station
Power Adapter
Magnetic Wall Mount Mounting Screws & Anchors
Desktop Mount Camera Power
Adapter
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
USB Charging Cable
Ethernet Cable
USE GUIDE
Quick Start Guide
Product Diagram
LAN
Power
Sync Rese t
Micro SD OUT
Base Station
1
2
4
5
6
7
3
USB Port
Reset Button
LED Indicator
Power Port
Sync Button
Micro SD Card Slot
Ethernet Port
1
2
3
4
5
6
7
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
Product Diagram
1
2
3
4
5
1
2
3
4
5
6
9
10
8
7
6
7
8
9
10
Lens
Microphone
PIR Motion Sensor
LED Indicator
Light Sensor
Speaker
Mount Port
Micro USB Charging Port
Reset Button
Sync Button
Camera
13
13
11
11
12
12
Magnetic Mount
Desktop Mount
Stand Mount
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
Camera
Button Controls
Button
Sync Button
Reset Button
Function
Turn on the camera
Pair with the base
station
Turn off the camera
Reboot the camera
Operation
Press once
Press and hold for 5 seconds to
enter pairing mode with the LED
indicator flashing blue slowly
Press and hold for around 10
seconds
Press once to reboot the camera
without losing any data
Note: The Sync Button is not functional during firmware upgrading.
Base Station
Button
Sync Button
Reset Button
Function
Add the Base
station
Reboot the camera
Operation
Press and hold the Sync and
Reset Buttons at the same
time until the LED indicator
flashes red and white alternately
to bring the base station into
pairing mode.
Press and hold for 10 seconds
Base Station
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
LED Indicator & Working Status
Camera
LED Indicator
Off
Flashes Blue Slowly
Flashes Blue Quickly
Flashes Red Slowly
Solid on in Red
Solid on in Red for 5s then off
Working Status
Sleep Mode/ Power Off
Pairing Mode
Paired Successfully
Charging
Fully Charged
Powering On
Base Station
LED Indicator
Solid On in Red and White
Solid On in White
Flashes Red
Flashes Red and White Alternately
Flashes Red and White at the
Same Time
Working Status
Powering On
Connected to Internet
No Internet
Pairing Mode
Restore to Factory Setting
Connect Your Base Station to the Internet
LAN
Power
Sync Reset
Micro SD OUT
1. Insert the TF card into the base station.
LAN
Power
Sync Reset
Micro SD OUT
Note: Micro SD card shall be formatted before use.
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
LAN
Power
Sync Reset
Micro SD OUT
2. Connect the base station to a power source.
LAN
Power
Sync Reset
Micro SD OUT
3. Connect the base station to your router with the included Ethernet cable. The LED
indicator on the base station will keep flashing red when connecting and turn solid
white once successfully connected.
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
Charge the Camera
Micro USB
Charging Port
Please fully charge the camera before use to ensure longer working time. Once fully
charged, the LED indicator on the camera will stay solid red.
Turn on the Camera
Press the Sync Button on the camera to turn it on. The LED indicator on the camera will
stay solid on for 5 seconds then turn off.
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
Get the APP and Setup
Before using the device, please download the “VAVA Home” app from the App Store
(iOS devices) or Google Play (Android devices).
Once installed, please follow the onscreen instructions to complete the
setup as instructed below.
1. Open VAVA Home APP,
tap “New to VAVA Home”
to register via the right
email address, and then
login in with the email
and password you set.
2. Tap “Add Base Station” and follow the instructions
on VAVA Home APP for the remaining steps. After
all the remaining steps are completed, tap OK, then
the base station is added successfully.
Note: This base station can only be bound to
one account. If you want to bind a new account,
you shall unbind the old one.
3. Tap “Add Camera” and followthe instructions on
VAVA Home APP for the remaining steps. After all
the remaining steps are completed, tap OK, then
the camera is successfully paired with a warning tone
“Camera successfully synced with the base station”.
01 03 05 07 09 11 13 15
17 19 21 23
02 04 06 08 10 12 14 16
18 20 22
