15.0” Panel Mount PC

Model VTPC150P / PSS/ PHB / PSSHB

User’s Guide

Read these instructions completely before attempting to operate your new Panel Mount PC

Revision History

Date Rev No Summary Page

8/11/08 00 First Issue

10/13/08 01 Revised panel mounting drawing 6

12/08/08 02 Identify ports on bottom panel view 7

1/08/09 03 Add PHB & PSSHB 4 thru 6

15.0 Panel Mount PC 486-0002-01-03

Safety Instructions

• Read the Safety Instructions carefully and keep it for use later.

• The chassis metalwork of the module must be installed properly to the main earthing termination

for Class 1 equipment.

• Care must be exercised in the a pplication of the system to prevent overheating. Ensure that the

ambient temperature around the system does not exceed 60°C and provide adequate means of

ventilation to achieve this.

• When cleaning c ut off the electrical supply at al l times. Never us e liquid or aerosol detergent,

use a soft damp cloth instead.

• Never ins ert anything metallic into the ch assis op enings. Th is may create an e lectric shock

hazard or hazard from rotating fan blades.

• To avoid electric shock, nev er touch the inside of the system. There ar e no user adjustable

components inside, only a qualified technician should open the system’s case.

• Openings in the system enclosure are to allow for ventilation. To prevent overheating, these

openings should not be blocked or covered.

• If the system does not operate normally – in particular, if there are any unusual sounds or smells

coming from it – disconnect it immediately.

• Do not put pressure on the LCD panel screen because it is very fragile.

• Always handle the system with care when moving it.

• Take care that the system is di sposed of c orrectly at the end of it s life. If in doubt refer to your

local ordinances or regulations for proper disposal.

Cleaning the LCD monitor

To clean the LCD panel:

• Wipe the screen gently with a clean lens brush made of camel hair , or a soft, clean, lint free

cloth. This is to remove dust and other particles without scratching the LCD panel.

• If it is still not clean, then wipe with a damp lint free cloth and blow on it to dry.

Do not clean the panel with a keton-type material (e.g. acetone), or ethyl toluene, ethyl acid, methyl

or chloride. These may damage the LCD panel.

Do not apply pressure to the LCD panel.

15.0 Panel Mount PC 486-0002-01-03

Standard Technical Specifications:

LCD Monitor:

STANDARD VERSION:

Size / Type

15.0” XGA TFT LCD

Native Resolution 1024 x 768

Contrast Ratio 600:1

Viewing Angles Horizontal: 140°

Vertical: 120°

Pixel Pitch 0.294mm

Brightness (typical) 250 cd/m²

Response Time (typical)

Colors Supported:

7ms

16.7 million

HIGH-BRIGHT VERSION:

Size / Type

15.0” a-Si TFT LCD

Native Resolution 1024 x 768

Contrast Ratio 450:1 (contrast ratio >10:1)

Viewing Angles Horizontal: 75° left & right

Vertical: 75° upside, 55° downside

Pixel Pitch 0.297mm

Brightness (typical) 500 cd/m²

Response Time (typical)

Colors Supported: 25ms

16.7 million

15.0 Panel Mount PC 486-0002-01-03

Computer System:

Processor 1.73GHz Intel T5300 Core 2 Duo Processor

System Memory DDR2 533 DIMM 2 GB x 1 (expandable to 4GB)

BIOS AMI BIOS

Hard Drive 120 GB SATA

Operating System Microsoft XP Professional (SP3)

Expansion Slots PCI x 1 (Optional)

Mini PCI x 1

Back Panel I/O Ports PS/2 Keyboard Connector x 1

PS/2 Mouse Connector x 1

AC Power Inlet x 1 (IEC320)

RS-232 Port x 2 (x1 422/485 Optional)

USB 2.0 Port x 6 (x4 on Stainless Steel Models)

RJ45 LAN Port x 2

VGA Port x 1

DVI-D Port x 1

Audio Jacks: Line Out x 1 / Line In x 1

Graphics Integrated Intel 945GME Graphics

LAN Broadcom BCM5787M PCIe GbE controllers

DVD Drive (E-IDE / ATAPI) DVD-R, DVD+R, DVD-RW, DVD+RW, DVD-R DL, DVD+R9 CD-R,

CD-RW,

Touch Screen Resistive

Touch Screen Interface USB

15.0 Panel Mount PC 486-0002-01-03

Power Input 100-240 VAC 1.5A 50/60 Hz

Power Consumption

Standard:

High-Bright:

42W

89W

Temperature

Standard:

High-bright:

Operational: 32°F to 140°F 0°C to 60°C

Storage: -40°F to 149°F -40°C to 65°C

Operational: 32°F to 140°F 0°C to 60°C

Storage: -4°F to 149°F -20°C to 65°C

Humidity

Standard:

High-bright:

Operational: 0 to 90% RH NC

Storage: 0 to 95% RH NC

Absolute: 95% max RH NC (ambient temp 0-40°C)

85% max RH NC (ambient temp > 40°C, up to 50°C)

55% max RH NC (Ta > 50°C)

Installation of Your Panel PC

Packaged with each carton will be:

1 - VTPC150P / PSS /PHB / PSSHB

1 - AC Power Cable

1 - #10-32 Mounting Hardware

1 - Users Guide (Printed or on CD)

BEFORE MAKING ANY CONNECTIONS OR APPLYING POWER,

FIRST READ THROUGH THE ENTIRE MANUAL

15.0 Panel Mount PC 486-0002-01-03

Panel Mount Procedure

Panel Mounting Procedure:

1- Cut and drill the pan el (refer to the panel m ount drawin g, Fig ure A). Measurements are

provided in inches and millimeters.

Panel Mounting Cutout:

1- If access to the bottom of the enclosure is not available following installat ion, attach the

power and all necessary cables to the bottom side of the enclosure at this time.

2- Install the enclosure in the prepared cutout.

3- Secure the enclosure using the lock nuts a nd washer s, supplied with the unit, behind the

holes running along the sides an d the top and bottom of the cu tout in the panel. Extra loc k

nuts and washers are provided.

NOTE: Use #10-32 nuts for mounting.

4- Tighten all mounting hardware to a torque of 24 inch-pounds.

ATTENTION: Mounting nuts must be tightened to a to rque of 24 inch-pounds to provide a

proper panel seal and avoid poten tial damage. Vartech Systems assumes no responsibility for

water or c hemical damage to t he monitor or other equipment within the enclosure due to

improper installation.

5- Attach the power, video and sys tem cables to the bottom side of the enclosure if you hav e

not already done so.

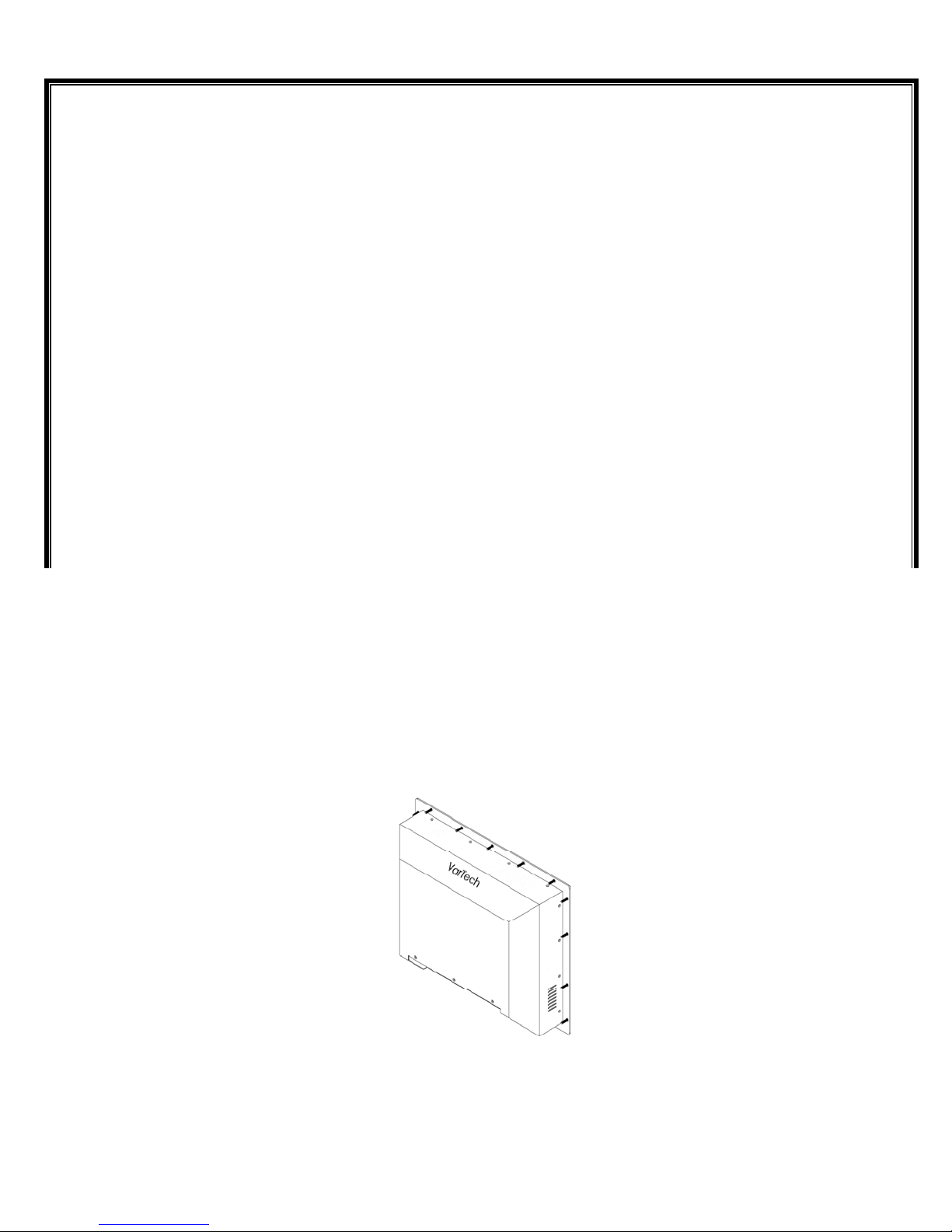

Panel Mount Drawing: Detail –A–

15.0 Panel Mount PC 486-0002-01-03

Connections to the Panel Mount PC

Bottom Rear View

- Connector Panel -

Power Connection (Power In)

The Panel Mount PC includes an AC line cord which is 6ft l ong. The power input receptacle is

located on the bottom rear panel of the system.

Serial Connections (COM 1-2)

The Panel Mount PC is supplied with two se rial connectors configured for RS-232. The

connector is a 9 pin female connectors and can be s et up for any baud rate from 300 to 19. 2

baud. The connector is located on the bottom rear panel of the system.

Ethernet Connections (LAN 1-2)

The Panel Mount PC is supplied with two int egrated Ethernet connectors. The interface will

support 10/100/1000 BaseT connection to a local area network (LAN ). The Panel Mount PC is

supplied with two RJ-45 female connectors located on the bottom rear panel of the system.

USB Connections (USB 1-4)

The Panel Mount PC is supplied with four USB 2.0 connectors lo cated on the bottom rear panel

of the system.

VGA Port

The 15-pin female VGA connector can be used to connect to any analog VGA monitor.

DVI Port

DVI-D 1.0 support for external digital monitor.

15.0 Panel Mount PC 486-0002-01-03

Turning the system On and Off

Before connecting the Panel Mount PC to power, connect any peri pheral devices. As a general

rule, any peripheral device should only be connected or disconnected when the Panel Mount PC

is off with the exception of any USB or 1394 peripheral.

The Panel Mount PC is turned on using the main On- Off rocker switch located on the bottom

rear panel. Once the Panel Mount PC main swit ch is turned on t he computer power pushbutton

switch must be depressed for Windows to star t. Windows must be properly shut down before

the main power switc h is turned off to prevent the chance of corrupting files in the operating

system.

The Panel Mount PC is rated for continuous duty. However, to extend the life of the various

components and cons erve power, it is highly recommended that t he system be properly shut

down and power turned off when the Panel Mount PC is not in use.

LCD Monitor Warm-up Time

All LCD m onitors need time to become t hermally s table the first time you turn them on.

Therefore, to achieve more accurate adjustm ents for parameters, allo w the LCD monitor to

warm (be on) for at least 20 minutes before making any screen adjustments.

Maintenance

The Panel Mount PC is designe d to provide optimum servic e and performance with minimal

maintenance inc luding the occ asional ext ernal c leaning. F or cleaning the Panel Mount PC

enclosure follow the suggested guidelines.

General – NEVER use abrasiv e cleaners or solvent- based cleaners!! Use a clean soft cloth.

The Panel Mount PC should only be opened and se rviced by a qualified technician. Keep the

area around the Panel Mount PC cl ear and free of exc essive dirt or other contaminants. Do not

use water or any liquids on the Panel Mount PC.

For Additional Assistance

Contact Your VarTech Sales Representative

Vartech Systems, Inc.

11529 Sun Belt Ct.

Baton Rouge, LA 70809

800-223-8050

Fax: 225-297-2440

www.vartechsystems.com

15.0 Panel Mount PC 486-0002-01-03
