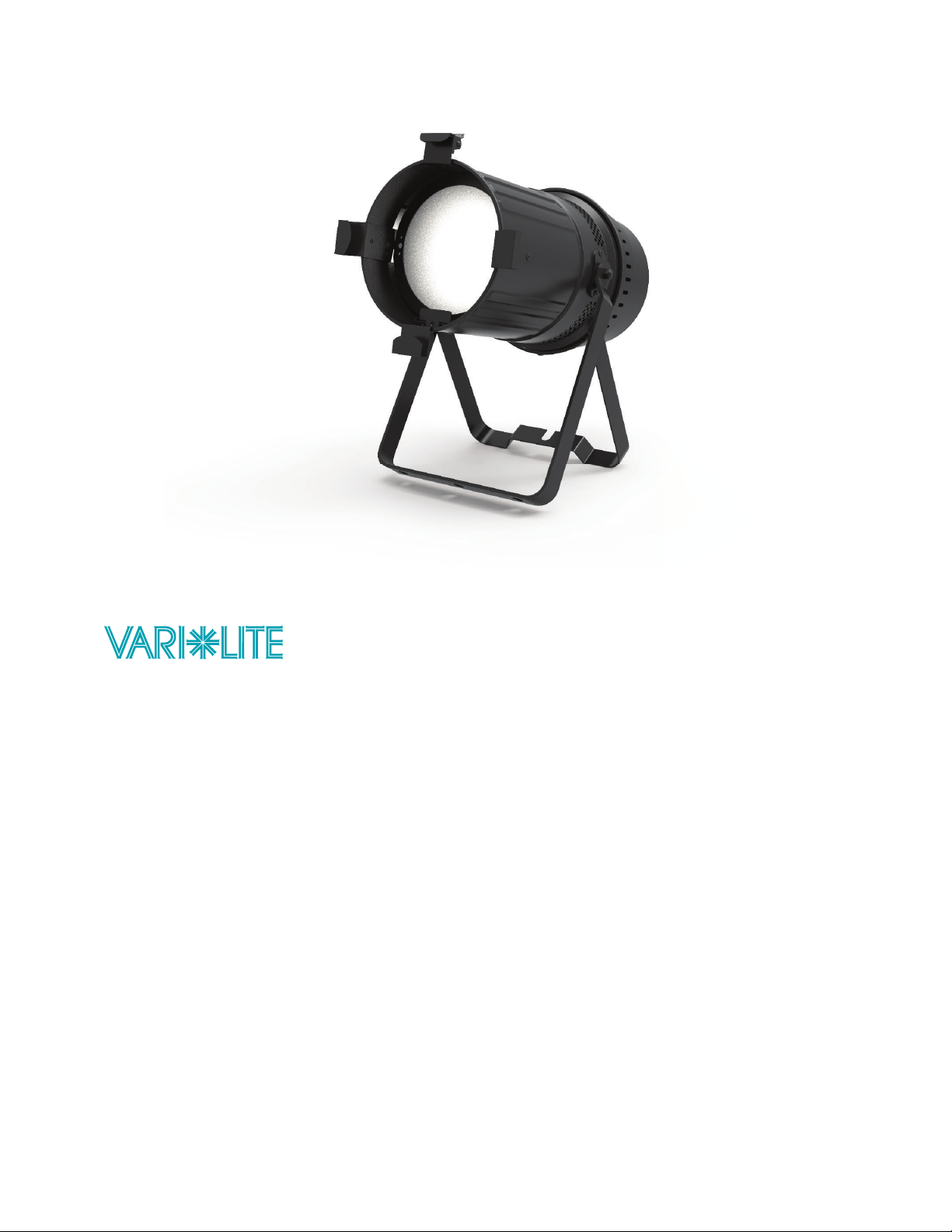

Vari Lite VL800 EVENTPAR WW Manuel utilisateur

VL800 EVENTPAR

QUICK START GUIDE

WWW.VARI-LITE.COM

INTRODUCTION

1. ABOUT THIS MANUAL

The document provides installation and operation instructions for the following products:

• VL800 EVENTPAR WW

Read all instructions before installing or using this product. Retain this manual for future reference.

Additional product information and descriptions may be found on the product speciﬁcation sheet.

2. INCLUDED ITEMS

Each VL800 EVENTPAR luminaire includes the following items:

• VL800 EVENTPAR WW

• Quick Start Guide

3. SAFETY NOTICES

• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.

• Not for residential use. Do not use this equipment for other than intended use.

• Refer service to qualiﬁed personnel. This ﬁxture contains no user serviceable parts.

• Prior to ﬁrst use, carefully inspect unit for damage from shipping.

• Installation and operation to be performed by qualiﬁed personnel only.

• Use safety tether when mounting.

• Install only in locations with adequate ventilation of at least 50cm clearance from adjacent surfaces.

• Ensure sure that ventilation slots are not blocked.

• Ensure that the voltage and frequency of the power supply match the power requirements of the ﬁxture.

• The ﬁxture must be earthed/grounded to the appropriate conductor.

• Do not operate ﬁxture outside the ambient temperature range of 0–40°C.

• Do not connect the ﬁxture to any dimmer pack.

• New ﬁxtures may emit a chemical odor due to the manufacturing process. This odor will dissipate over

time.

• Note distance requirement(s) from combustible materials or illuminated objects. Do not mount near gas

or electric heaters.

• Prior to each use, carefully inspect power cables and replace any damaged cables.

• Exterior surfaces of the luminaire will be hot during operation. Take appropriate precautions.

• Continuous use of the ﬁxture may shorten the lifespan. Power down the ﬁxture when not in use.

• Clean ﬁxtures regularly, particularly when working in a dusty environment.

• Never touch power cables or wires while the ﬁxture is powered on.

• Avoid entangling power wires with other cables.

• In the event of a serious operating problem, immediately discontinue using the ﬁxture.

• Never turn on and o the unit time after time.

• The housing, lenses, and/or the ultraviolet ﬁlter must be replaced if they are damaged.

• Disconnect mains power if the ﬁxture is not used for a long time.

• Original packing materials can be reused for transporting the ﬁxture.

•

• Do not look directly at the LED light beam while the ﬁxture is on.

• Equipment should be mounted in locations and at heights where it will not readily be subjected to tamper-

ing by unauthorized personnel.

QUICK START GUIDE

WWW.VARI-LITE.COM

INSTALLATION AND SETUP

1. MOUNTING

The unit should be mounted via its screw holes on the bracket. Always ensure

that the unit is ﬁrmly ﬁxed to avoid vibration and slipping while operating. Always

ensure that the structure to which you are attaching the unit is secure and is able

to support a weight of 10 times of the unit’s weight. Always use a safety cable that

can hold up to 12 times the weight of the unit when installing the ﬁxture.

The luminaire must be mounted by professionals.

2. SET UP

CONTROL PANEL

1 LCD display - shows the menu and selected functions

2 Buttons:

MENU - To select the programming functions

DOWN - To go backward in the selected functions

UP - To go forward in the selected functions

ENTER - To confirm the selected functions

3 DMX IN - 5-pin XLR cable to link DMX console

4 DMX OUT - 5-pin XLR cable to link to the next unit

5 Power In - connacts to power supply

6 Power Out - connects to next fixture

QUICK START GUIDE

WWW.VARI-LITE.COM

QUICK REFERENCE DMX MAPS

TABLE 1. 16-BIT CHANNEL MODE

CHANNEL PARAMETER

1 Intensity high

2 Intensity low

3 Strobe speed

4 Strobe control

5 Control channel

TABLE 2. 8-BIT CHANNEL MODE

CHANNEL PARAMETER

1 Intensity

2 Strobe speed

3 Strobe control

4 Control channel

TABLE 3. SINGLE CHANNEL MODE

CHANNEL PARAMETER

1 Intensity

QUICK START GUIDE

WWW.VARI-LITE.COM

IMPORTANT INFORMATION

WARNINGS AND NOTICES

When using electrical equipment, basic safety precautions should always be followed including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

• Do not mount near gas or electric heaters.

• Equipment should be mounted in locations and at heights

where it will not readily be subjected to tampering by

unauthorized personnel.

• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.

• Not for residential use. Do not use this equipment for other than intended use.

• Refer service to qualiﬁed personnel.

SAVE THESE INSTRUCTIONS.

WARNING: You must have access to a main circuit breaker or other power disconnect device before installing

any wiring. Be sure that power is disconnected by removing fuses or turning the main circuit breaker o before

installation. Installing the device with power on may expose you to dangerous voltages and damage the device.

A qualiﬁed electrician must perform this installation.

WARNING: Refer to National Electrical Code® and local codes for cable speciﬁcations. Failure to use proper

cable can result in damage to equipment or danger to personnel.

WARNING: This equipment is intended for installation in accordance with the National Electric Code® and

local regulations. It is also intended for installation in indoor applications only. Before any electrical work is

performed, disconnect power at the circuit breaker or remove the fuse to avoid shock or damage to the control.

It is recommended that a qualiﬁed electrician perform this installation.

CUSTOMER SERVICE

If you have any questions regarding this product, please contact Customer Service at +1-214-647-7880 or via

e-mail at entertainment.service@signify.

LIMITED 2-YEAR WARRANTY

Vari-Lite oers a two-year limited warranty on its control products against defects in materials or workmanship

from the date of delivery. A copy of Vari-Lite two-year limited warranty containing speciﬁc terms and conditions

can be obtained from the Vari-Lite website at www.vari-lite.com or by contacting your local Vari-Lite oce.

2000851
