Vantron VT-M2M-C335L Manuel utilisateur

VT-M2M-C335L

1/ 14

User Manual

VT-M2M-C335L

Chengdu Vantron Technology, Ltd.

www.vantrontech.com.cn

VT-M2M-C335L

2/ 14

Revision History:

No.

Version

Description

Date

V1.0

Initial Version

2022.06.27

VT-M2M-C335L

3/ 14

Table of Contents

1. Foreword ...................................................................................................................................4

1.1 Copyright Notice.........................................................................................................................4

1.2 Notes ..........................................................................................................................................4

1.3 Statement...................................................................................................................................4

1.4 Disclaimer...................................................................................................................................4

1.5 Limitation of Liability/Non-warranty..........................................................................................5

1.6 Safety Instructions......................................................................................................................5

1.7 Precautions.................................................................................................................................5

1.8 Safety Instructions for Power Cables and Accessories ...............................................................5

2. Overview....................................................................................................................................7

2.1 Introduction ...............................................................................................................................7

3. VT-M2M-C335L Hardware Instructions.......................................................................................8

3.1 Product Appearance...................................................................................................................8

3.2 Interface Description..................................................................................................................9

3.2.1 Power Interface...........................................................................................................9

3.2.2 Ethernet Interface.......................................................................................................9

3.2.3 RS232 or RS485 Connector .........................................................................................9

3.2.4 RS485 Connector.........................................................................................................9

3.2.5 Boot Configuration....................................................................................................10

3.2.6 LED ............................................................................................................................10

3.2.7 DEBUG.......................................................................................................................10

3.2.8 Renew button............................................................................................................10

3.2.9 SD/MMC and Micro SIM socket ................................................................................11

4. Tips..........................................................................................................................................12

VT-M2M-C335L

4/ 14

1. Foreword

1.1 Copyright Notice

While all information contained herein have been carefully checked to assure its

accuracy in technical details and printing, Vantron assumes no responsibility

resulting from any error or features of this manual, or from improper uses of this

manual or the software. Please contact our technical department for relevant

operation solutions if there is any problem that cannot be solved according to this

manual.

Vantron reserves all rights of this manual, including the right to change the

content, form, product features, and specifications contained herein at any time

without prior notice. The latest version of this manual is at

www.vantrontech.com.cn. Please contact Vantron for further information:

Vantron Technology（Vantron）

E-mail: [email protected]

The trademarks and registered trademarks in this manual are properties of their

respective owners. No part of this manual may be copied, reproduced, translated or

sold. No changes or other purposes are permitted without the prior written consent

of Vantron.

Vantron reserves the right of all publicly-released copies of this manual.

1.2 Notes

Applicable notes are listed in the following table:

Sign

Notice Type

Description

Notice

Important information and regulations

Caution

Caution for latent damage to system or harm to personnel

1.3 Statement

It is recommended to read and comply with this manual before operating

VT-M2M-C335L which provides important guidance and helps decreasing the

danger of injury, electric shock, fire, or any damage to the device.

1.4 Disclaimer

Vantron assumes no legal liability of accidents resulting from failure of

conforming to the safety instructions.

VT-M2M-C335L

5/ 14

1.5 Limitation of Liability/Non-warranty

For direct or indirect damage to this device or other devices of Vantron caused by

failure of conforming to this manual or the safety instructions on device label,

Vantron assumes neither warranty nor legal liability even if the device is still under

warranty.

The VT-M2M-C335L should be installed, debugged and maintained by

professional people.

The outside antennas are not permitted to be installed or to be changed by

non-professional people. To run the device normally, only specify antennas are

approved to be assembled together by professional people.

Unit shall be used with indoor-use antenna only. No antenna for this unit can be

installed outdoor.

1.6 Safety Instructions

Keep and comply with all operation instructions, warnings, and information.

Pay attention to warnings on this device.

Read the following precautions so as to decrease the danger of injury, electric

shock, fire, or any damage to the device.

1.7 Precautions

Pay attention to the product labels/safety instructions printed on silk screens.

Do not try repairing this product unless declared in this manual.

Keep away from heat source, such as heater, heat dissipater, or engine casing.

Do not insert other items into the slot (if any) of this device.

• Keep the ventilation slot ventilated for cooling.

•System fault may arise if other items are inserted into this device.

Installation: ensure correct installation according to instructions from the

manufacturer with recommended installation tools.

Ensure ventilation and smoothness according to relevant ventilation standard.

1.8 Safety Instructions for Power Cables and Accessories

Proper power source only

Start only with power source that satisfies voltage label and the voltage necessary

according to this manual. Please contact technical support personnel of Vantron for

any uncertainty about the requirements of necessary power source.

Use tested power source

This product still contains a button lithium battery as a real-time clock after its

external power source is removed and therefore should not be short-circuited

VT-M2M-C335L

6/ 14

during transportation or placed under high temperature.

Place cables properly:

Do not place cables at any place with extrusion danger.

Cleaning Instructions

Please power off before cleaning the device.

Do not use spray detergent.

Clean with a damp cloth.

Do not try cleaning exposed electronic components unless with a dust collector.

Support for special fault: Power off and contact technical support personnel of

Vantron in case of the following faults:

The device is damaged.

The temperature is excessively high.

Fault is still not solved after the operation according to the manual.

VT-M2M-C335L

7/ 14

2. Overview

2.1 Introduction

Thank you for choosing Vantron. It is our commitment to provide our valued

customers with the embedded devices equipped with the state-of-the-art

technology and the best product services.

Vantron’s M2M products are based on the most advanced ARM and Intel Atom

processors and have low-power consumption and high integration. The products

are designed for applications of M2M in industrials, financial, retail, vehicle, and

transportations etc.

VT-M2M-C335L

8/ 14

3. VT-M2M-C335L Hardware Instructions

3.1 Product Appearance

Front Side View

Right Side View

VT-M2M-C335L

9/ 14

3.2 Interface Description

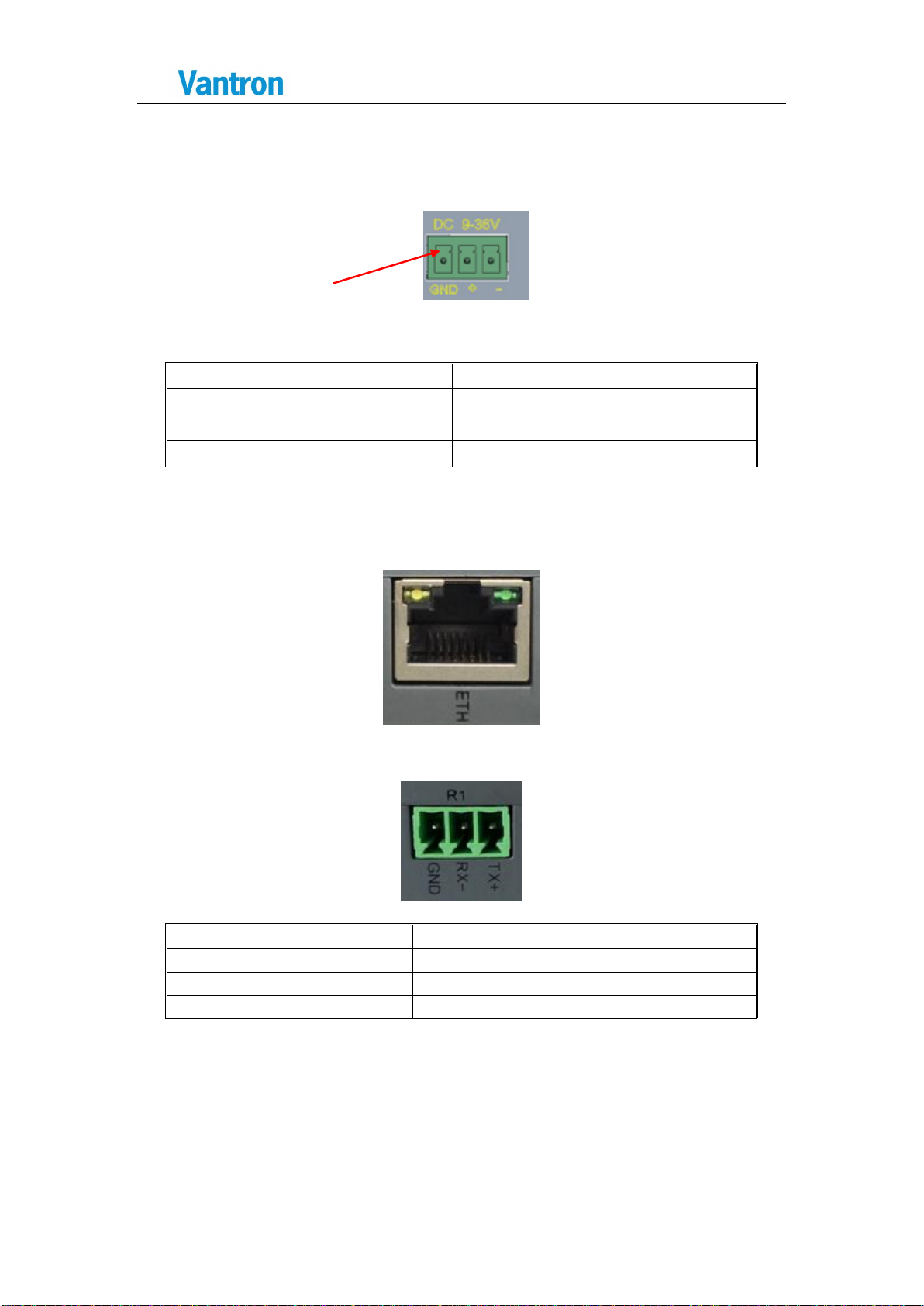

3.2.1 Power Interface

Power connector outlook

Description

Power input range DC9-36V

DC Ground

Shell ground

3.2.2 Ethernet Interface

Standard RJ45 interface, supporting 10M/100M Full/Half Duplex, this is a

standard RJ45 Ethernet port

3.2.3 RS232 or RS485 Connector

Standard vertical 1x3x3.81mm male Terminal Block.

Description

Remarks

TXD1 or RS485_A

RXD1 or RS485_B

GND

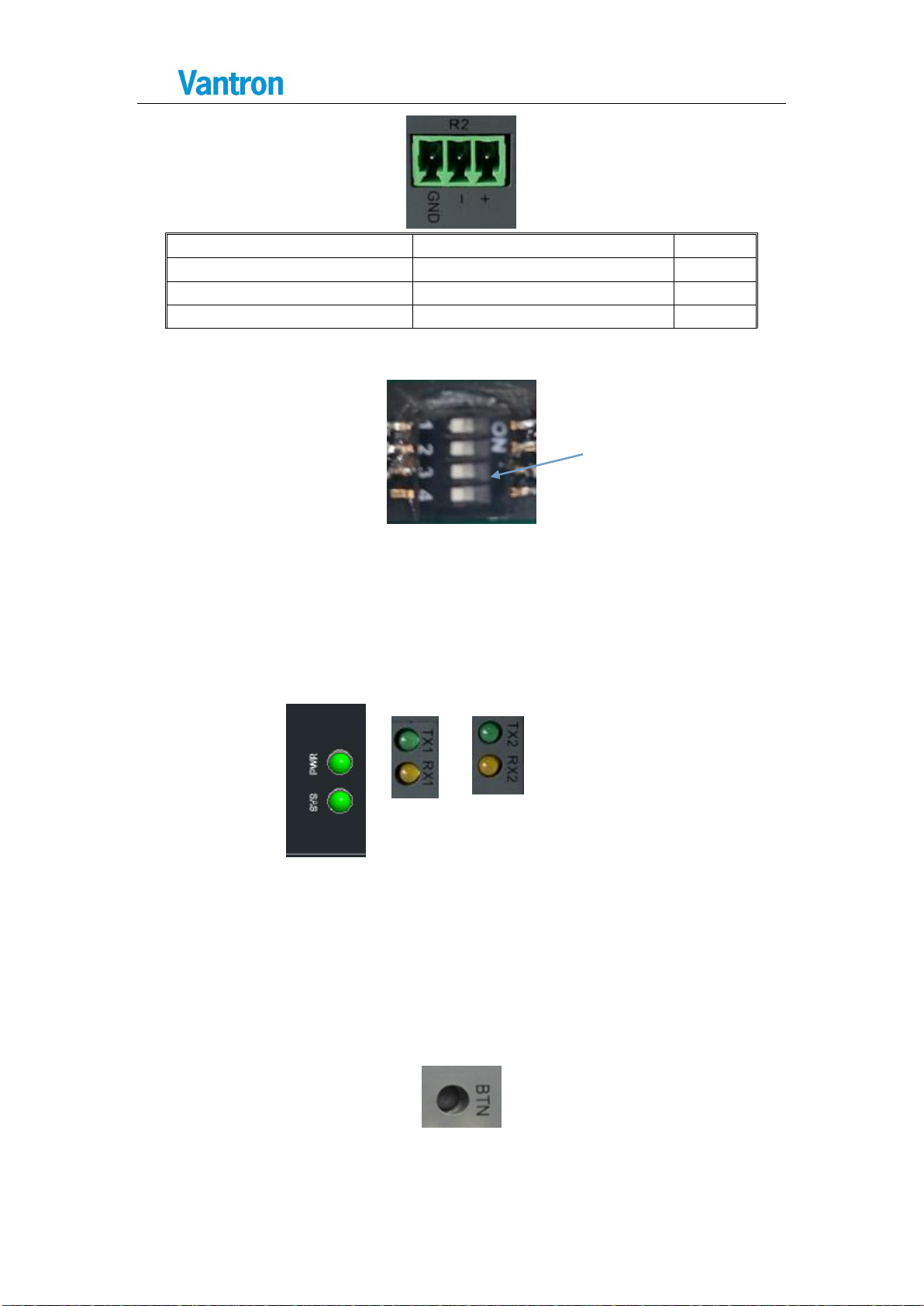

3.2.4 RS485 Connector

Standard vertical 1x3x3.81mm male Terminal Block.

PIN1

VT-M2M-C335L

10/ 14

Description

Remarks

RS485_A

RS485_B

GND

3.2.5 Boot Configuration

000x: Boot from SD/MMC 111x: Boot from EMMC

3.2.6 LED

PWR LED: lightindicatesystem power OK(main power up);offindicate system power turn off

SS LED: User can define by themself.

TX LED: when UART2 send data, TX1 can blink; when UART4 send data, TX2 can blink.

RX LED: when UART2 receive data, RX1 can blink; when UART4 receive data, RX2 can blink.

3.2.7 DEBUG

CONN, 3.5mm audio con, User can show the debug message and use key board input

debug command. It’s RS232 level.

3.2.8 Renew button

Renew button: long press this button will restore the factory setting, the long press time can be

setting by user

Boot

Configuration
