Vantec NexStar Manuel utilisateur
USER’S MANUAL
Universal Storage Adapter
Copyright 2009 Vantec Thermal Technologies. All Rights Reserved.
Package Contents:
1
2
3
5
4
TRADEMARKS
MS-DOS, Microsoft, Windows NT/2000/ME/XP/Vista are trademarks of Microsoft Corporation.
Apple, Macintosh and Mac are trademarks of Apple Computer
*All other third-party brands and names are the property of their respective owners.
3
1
4
NexStar Universal Storage Adapter
®
2
USER’S MANUAL
Universal Storage Adapter
Copyright 2009 Vantec Thermal Technologies. All Rights Reserved.
5
NexStar®Universal Storage Adapter
Power Adapter with On/Off Switch
SATA Data Cable
SATA Power Adapter Cable
User’s Manual
SATA
SATA
SATA
1. Introduction ................................................................................................................02
2. Specifications / Features............................................................................... 03
3. System Requirements ......................................................................................04
4. Parts Layout.................................................................................................................05
5. Installation
5.1 Using the card reader.............................................................................................06
5.2 2.5” IDE Hard Drive Installation...........................................................................07
5.3 3.5” IDE Hard Drive Installation..........................................................................08
5.4 2.5” & 3.5”SATA Hard Drive installation...........................................................09
6. Warranty .........................................................................................................................11
7. Contact .............................................................................................................................11
Table of Contents
1
Table of Contents:
Introduction
2
CB-ISATACR
1. Introduction:
The Vantec NexStar Universal Storage Adapter
provides the flexibility of connecting almost any
type of storage device to your computer. Whether
it is a hard drive, optical drive, SSD, IDE / SATA or
a memory card, this adapter does it all. Easily
backup, transfer, copy files from your new or old
storage devices conveniently through a fully
hot-swappable USB interface. This makes the
Vantec NexStar Universal Storage Adapter an
ideal tool for any service technician, IT consultant,
or even a home user. No drivers are required which
makes it practically a simple plug & play device
that enables you to read and write to multiple storage
devices with ease. The Vantec NexStar Universal
Storage Adapter is the perfect all-in-one solution
for any storage access needs!
®
®
®
• Easily Connect Storage Devices to YourComputer Via USB
• Transfer Rates Up to 480Mbps with USB 2.0
• 4 Read/Write Memory Slots for Support Up to 66 Different Types of Memory Cards
• Backup Your Data with Ease
• Includes a 110V~240V Certified External Power Adapter which Provide Consistent
Power to Your External Device
• Hot-Swappable: Plug & Play Without The Need of Rebooting
• Highly Compact and Extremely Portable
NexStar Universal Storage Adapter
®
Specifications/Features
3
2. Specifications/Features:
Features:
Specifications:
Model: CB-ISATACR
Device Support: All IDE & SATA Devices
Memory Cards (see chart)
Device Size: 2.5"/3.5"/5.25"
Interface: USB 2.0
Storage Capacity: Up to 2 TB*
Power Supply: AC Adapter
Material: Plastic
Dimension: 139 x 54 x 14.5mm
Cable Length: 80cm(31.5 inches)
*For the most updated Storage Capacity, please check our website: www.vantecusa.com
CF-type I / CF-type II / CF-ultra II / CF-pro / CF-pro II / CF Extreme / CF Extreme III / CF Extreme IV /
CF-PSP II / CF-Super / CF-Ultra X / CF-Alpha / CF-UDMA4 / IBM MD / MAGIC STOR MD
MS / MS-Magic Gate / MS-PRO Magic Gate / HS-MS-PRO Magic Gate / MS-DUO / MS-DUO Magic Gate /
MS-PRO Duo / HS-MS-PRO Duo / MS-PRO Duo-PSP / MS-PRO Duo-Gaming / MS M2*
SD / SDHC / SDHC-Ultra / SDHC Ultra II / SDHC Class 2 / SDHC Class 4 /SDHC Class6 / SDC / SD-Pro /
SD-Pleomax / SD-Pro C / SD-Ultra / SD-Ultra II / SD-Ultra II Plus / SD-Extreme III / SD-Ultra X /
SD-Turbo / SD-Super / SD-Max / Mini SD / Mini SD-Pro / Mini SD-Pleomax /
MMC / MMC-Pleomax /MMC Pro / HS-MMC / MMC Plus / MMC-Plus Turbo / RS MMC /
RS MMC-Pleomax / RS MMC-Speed / RS MMC-Max / MMC Mobile / MMC Mobile-ProC /
MMC Mobile-Pocketnet /
Micro SD* / T-Flash*
XD / XD(M) / XD(H)
CF
MS
SD
MMC
Micro SD
XD
3. System Requirements:
System Requirements
4
Intel Pentium II 266 MHz-compatible
Microsoft Windows 2000/XP/Vista.
1. 64MB RAM or higher
2. USB-equipped system with available
USB port
4. For USB 2.0 speeds, the system must
support USB 2.0 specifications.
Mac G3 processor & greater
Mac OS 9.x & greater
1. 64MB RAM or higher
2. USB-equipped system with available
USB port
4. For USB 2.0 speeds, the system must
support USB 2.0 specifications.
NexStar Universal Storage Adapter
®
4. Parts Layout:
Parts Layout
5
MS Card Port3.5”/5.25” IDE Connector
2.5" IDE Connector
To Computer USB Cable
SD Card Port
External USB Port
Extra power
SATA Port
XD Card Port
CF Card Port
NexStar Universal Storage Adapter
®
5. Installation:
Installation
6
(1) Connect USB cable to your PC USB port.
( Figure 5.1-A )
( Figure 5.1-A )
( Figure 5.1-B )
(2) Insert your memory card into the appropriate
drive slot. ( Figure 5.1-B )
5.1. Using the card reader:
NexStar®
Universal Storage Adapter
Computer
2.5”
SATA
SDXD
CFMS
3.5”/5.25”
Universal Storage Adapter
2.5”
SATA
SDXD
CFMS
3.5”/5.25”
2.5”
SATA
SDXD
CFMS
3.5”/5.25”
Universal Storage Adapter
5.2. 2.5” IDE Hard Drive Installation:
Installation
7
(3) Connect the USB cable to the USB port on the PC.
Once connected properly, the HDD should be
automatically detected and be ready for use.
(You might need to connect both USB cables for
adequate power.) ( Figure 5.2-C )
( Figure 5.2-B )
( Figure 5.2-C )
(2) Make sure that the IDE 2.5” HDD pins align to the
device slot. ( Figure 5.2-B )
( Figure 5.2-A )
(1) Insert 2.5” IDE hard drive (HDD) into the slot.
Turn the front side upward. ( Figure 5.2-A )
Don’t connect the 4-pins on the left side to the device. )
NexStar®
Universal Storage Adapter
Computer
2.5”
SATA
SDXD
CFMS
3.5”/5.25”
2.5”
IDE 2.5” Hard Drive
(Extra Power)
IDE 2.5”
Hard Drive
IDE 2.5”
Hard Drive
IDE 2.5”
Hard Drive

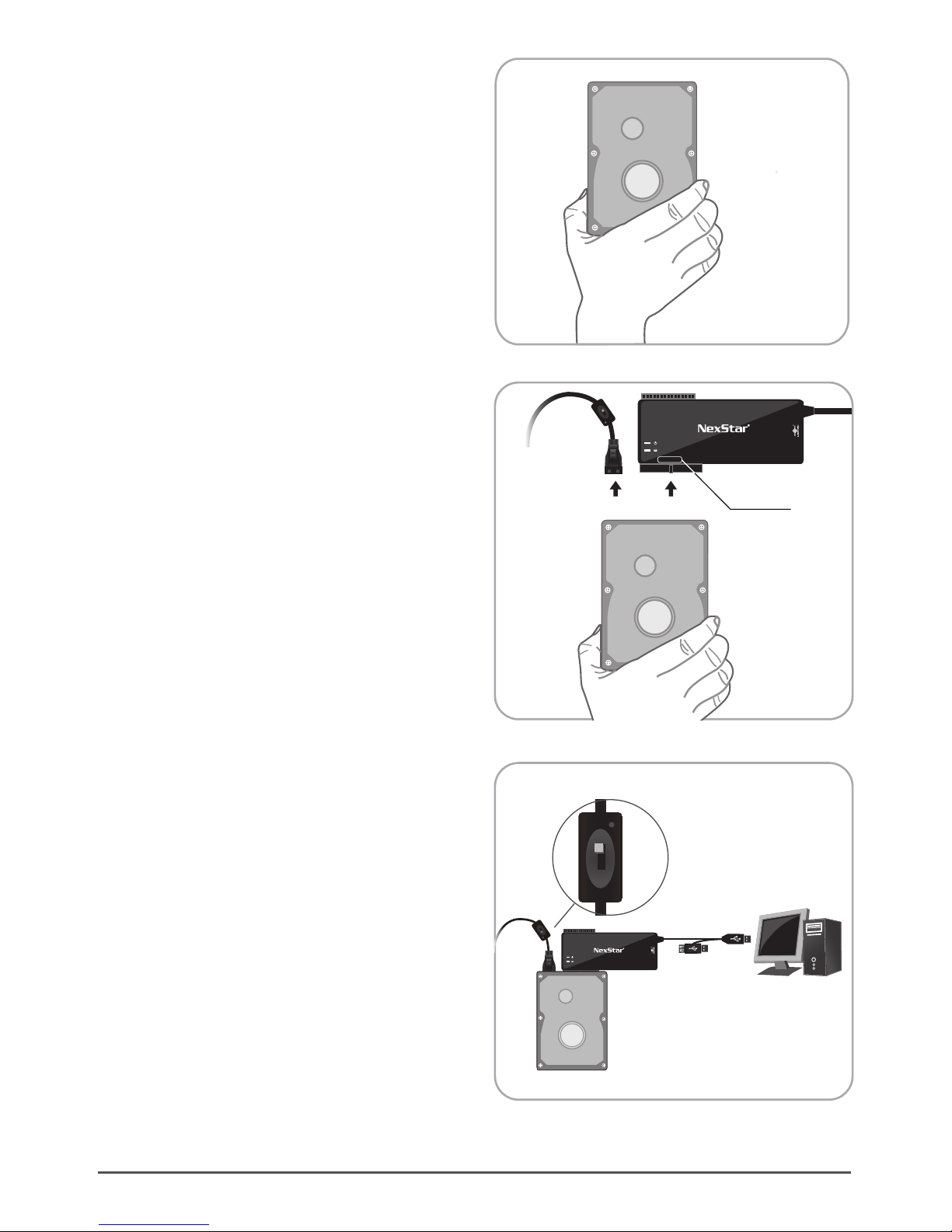

(1) Insert 3.5” IDE hard drive into the slot. Turn the
front side upward. (Set the HDD to MASTER if
needed.) ( Figure 5.3-A )
IDE 3.5”
Hard Drive
5.3. 3.5” IDE Hard Drive Installation:
Installation
8
(2) Connect the larger 40-pin IDE connector of
NexStar – Universal Storage Adapter to the hard
drive. ( Figure 5.3-B1 )
(3) Connect a 4-pin power connector from power
supply to hard drive. ( Figure 5.3-B2 )
(4) Turn on the device power. ( Figure 5.3-C1 )
(5) Connect the USB cable to the USB port on the PC.
Once connected properly, the HDD should be
automatically detected and be ready for use.
( Figure 5.3-C2)
( Figure 5.3-B1 5.3-B2 )
( Figure 5.3-C1 5.3-C2 )
IDE 3.5” Hard Drive
( Figure 5.3-A )
OFF
ON
2.5”
SATA
SDXD
CFMS
3.5”/5.25”
2.5”
SATA
SDXD
CFMS
3.5”/5.25”
3.5”/5.25”
Universal Storage Adapter
(B2) (B1)
(C2)
(C1)
IDE 3.5” Hard Drive
IDE 3.5”
Hard Drive
