This manual is a guide for the operation, care and maintenance of the

Vante

SEBRA

Model 2605 Segmenting Head.

Intended

audience

This manual is intended for use by personnel having technical skills and a

thorough understanding of the products, procedures, and safety requirements for

the collecting, processing and handling of biological products.

Symbols found in

this document

The terms Note, Caution and Warning are used in this manual with the following

symbols to notify the operator of important and/or critical information.

Note: provides useful information regarding a procedure or operating technique

when using Vante material.

Caution:

advises the operator against initiating an action or creating a situation

that could result in damage to equipment, or impair the quality of the blood

products; personal injury is unlikely.

Warning: advises the operator against initiating an action or creating a situation

that could result in serious personal injury to the donor, the operator, or the

blood product recipient.

Symbolsfoundon

the device

The following symbols may be found on the device or device packaging.

Caution, risk of electric shock

Caution (refer to accompanying documents)

Protective Earth (PE)

Power on

Power off

Fuse

Serial number

Catalog number

Chapter 1

P/NVT-108732-US, Manual revision: C

2-1

RODUCT

VERVIEW

The Vante

SEBRA

Model 2605 Segmenting Head ("the Sealing Head")

is part

of a system that employs radio frequency (RF) to make uniform, quality

seals

on blood bags, transfer sets and IV tubing. A Vante SEBRA Model

2600 RF

Power Source provides RF power to the Sealing Head and controls RF

power

and sealing time. The manually activated Sealing Head forms a seal with

its jaws

in such a way as to make segment separation easy and uniform. The Sealing

Head is equipped with a splash guard for operator protection from

inadvertent contact with blood and/or blood products in the unlikely event of

tubingrupture

Application

The Model 2605 Segmenting Head is part of a system and cannot be used

independently. When used in conjunction with the Model 2600 RF Power

Source, it is the instrument used to make seals on tubing or bags made of RF

reactive thermoplastic materials typically used in blood banks, blood processing

facilities and transfusion centers. Tubing or bags utilized in the collection and

handling of blood and blood products is typically made from thermoplastic vinyl,

namely polyvinylchloride, (PVC) or ethylene vinyl acetate (EVA), and it is this

application for which this product is specifically intended.

HEORY OF

PERATION

The physical properties of PVC plastic tubing (and other RF-reactive thermo-

plastic materials) cause it to dielectrically heat at a molecular level in the

presence of RF energy. This energy causes the plastic to soften due to the friction

of the vibrating molecules. In this softened condition, the plastic becomes

weldable because the molecules are free to intermingle under the application of

external forces, such as compression. If allowed to cool while the forces are

applied, the material will be permanently reshaped.

The Sealing Head receives a controlled amount of RF energy from the Power

Source while mechanically compressing the tubing across its diameter during the

dielectric sealing and forming process. When the energy is removed, and the

tubing is allowed to cool under compression, a permanent seal is produced.

Chapter 2

P/N VT-108732-US, Manual revision: C

Sealing Head description

2-2

OMPONENT

DENTIFICATION

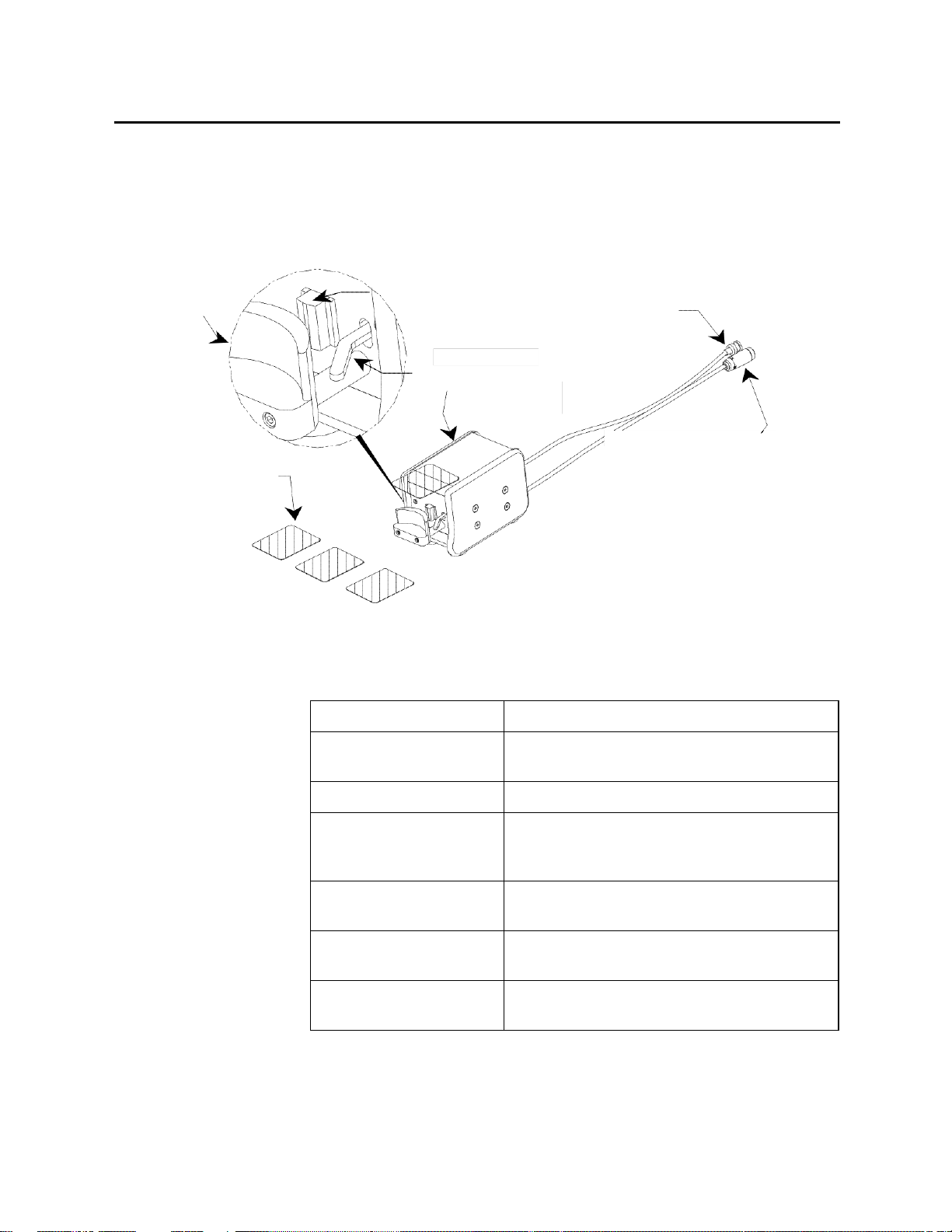

Figure 2-1, Model 2605 Segmenting Head, illustrates the Sealing Head. Table 2-

1 indicates the function of each component included with the Sealing Head.

Ground

Jaw

RF Jaw

RF Power Cable

Seal Trigger

Model 2605

Sealing Head

Seven Pin Connector

Splash Guards

Figure 2-1, Model 2605 Segmenting Head

Table 2-1, Sealing Head Component Functions

Component

Function

Ground Jaw

Compresses tubing while RF is applied to form

seal.

RF Jaw

Delivers RF energy to tubing to form seal.

Splash Guard

Protects the operator from accidental exposure

to blood or blood products in the unlikely event

of a tubing rupture.

Seal Trigger

A microswitch that activates the sealing head

jaws.

RF Power Cable

Provides RF power connection to the Model

2600 Power Source.

Seven Pin Connector

Provides control voltage connection to the

Model 2600.

Table des matières

Autres manuels Vante Équipement de laboratoire

Vante

Vante 3120 Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
