Vantage Hearth HD 8000S Manuel utilisateur

HD 8000S

MANUAL

www.vantage-digital.com

Safety Instruction

2English

afety Instructions

This product has been manufactured to satisfy the international safety standards.

Please read all of safety and operating instructions before operating the product and keep this

manual for future reference.

MAINS SUPPLY

AC 90-250V~, 50/60Hz

Operate your product only from the type of power supply indicated on the marking label. If you

are not sure of the type of power supplied to your home, consult your local power company.

Disconnect the STB from the mains before you start any maintenance or installation procedures.

OVERLOADING

Do not overload a wall outlet, extension cord or adapter as this may result in electric re or

shock.

LIQUIDS

The product should not be exposed to any liquids such as dripping or splashing. No objects

lled with liquids, such as vases, should be placed on the apparatus,

CLEANING

Before cleaning, disconnect the product from the wall outlet, Use a cloth lightly dampened with

water (no solvents) to clean the exterior.

VENTILATION

The slots on top of the product must be left uncovered to allow proper airow to the unit. Do not

stand the product on soft furnishings or carpets. Do not expose the product to direct sunlight,

place it near a heater. Do not stack electronic equipment on top of the product.

ATTACHMENTS

Do not use any attachment that is recommended by the manufacturer it may cause a hazard or

damage the product.

CONNECTION TO THE SATELLITE DISH LNB

Disconnect the product from the mains before connecting or disconnecting the cable from the

satellite dish. Failure to do so can damage the LNB.

CONNECTION TO THE TV

Disconnect the product from the mains before connecting or disconnecting the cable from the

satellite dish. Failure to do so can damage the TV.

LOCATION

Place the product indoors in order not to expose to lightning, rain or sunlight.

Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplier) that product heat.

LIGHTNING, or NOT IN USE

Unplug the product from the wall outlet and disconnect the cable during a lightning storm or

when unused for a long time.

SERVICING

Do not attempt service that this product yourself, as opening or removing covers may expose

you to dangerous voltage or other hazard. Refer all servicing to qualied service personnel.

“The mains plug is used as the disconnect device. Then disconnect device shall remain

readily operable”

Contents

English

ontents

Safety instructions ................................ 2

Chapter 1

Before You Begin................................... 4

General Features......................................... 4

Accessories ................................................. 4

PVR Functions............................................. 42

Comfort Functions ....................................... 44

Chapter 2

Controls and Functions ........................ 5

Front Panel.................................................. 5

Rear Panel................................................... 5

Remote Control Unit.................................... 6

Chapter 3

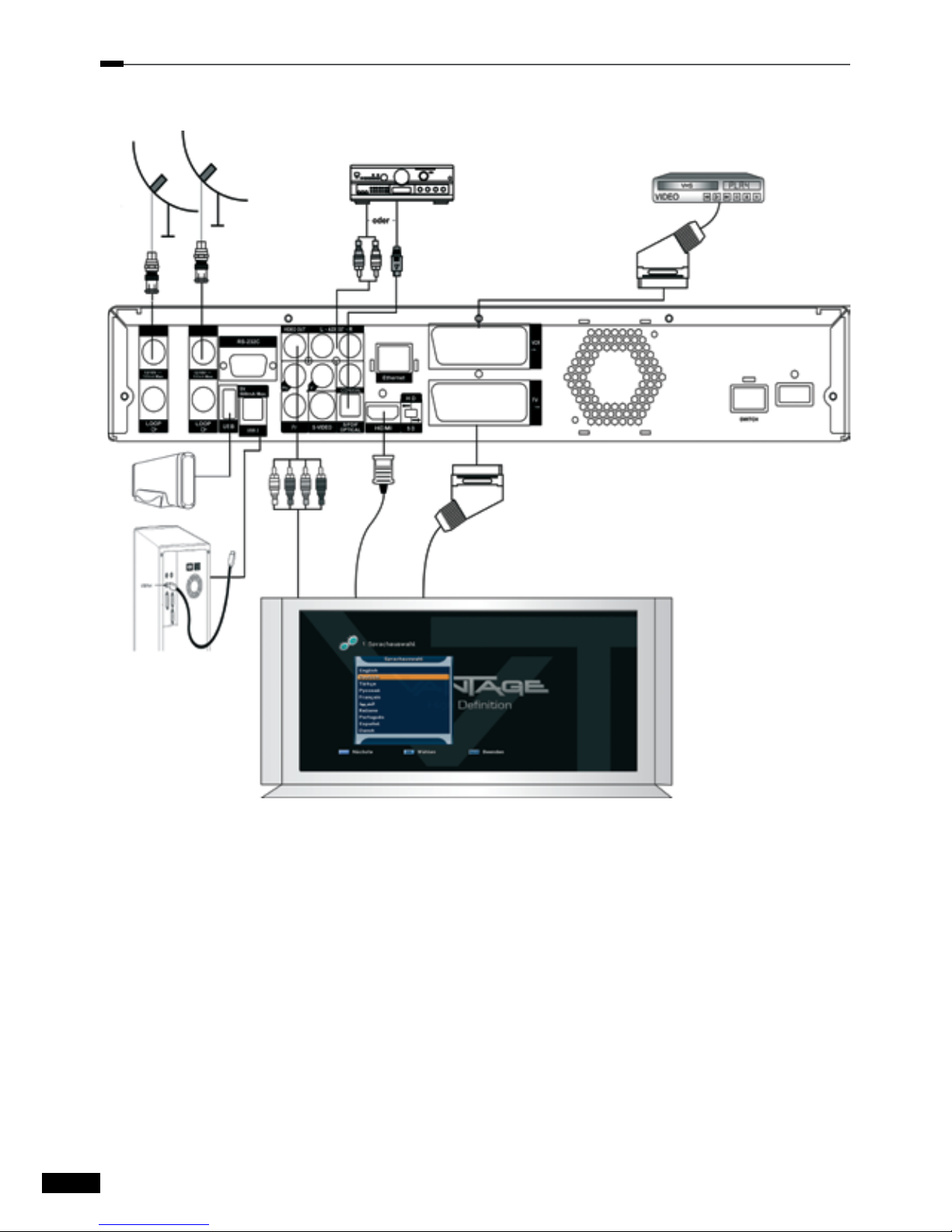

Connections........................................... 10

Location of your receiver........................ 10

Connecting your receiver with

dish system ............................................ 10

Connecting your analog receiver ........... 11

Connecting your receiver to TV.............. 11

Connecting your receiver to VCR

(depending on model) ............................ 11

Connecting external audio/Hi-Fi system ... 11

Connecting digital audio system ............ 11

Chapter 4

Initial Settings and Operations............. 12

Menu Information................................. 12

Getting Started..................................... 12

Selecting the On Screen Display (OSD)

Language ............................................... 12

Selecting the Antenna Setting................ 12

Auto Scanning........................................ 15

Auto Scanning (terrestrial) ..................... 16

Basic Operation ................................... 16

Switching Channel ................................. 16

Volume Control....................................... 16

Info Bar................................................... 17

Selecting the soundtrack........................ 17

Selecting the OSD teletext, VBI teletext,

Subtitle and DVB subtitle ....................... 17

Sleep Timer Function ............................. 18

Zoom Function ....................................... 18

Channel List ........................................... 18

To view channel list in specic order

(Alphabet/Satellite/Provider/HD)............. 19

Electronic Program Guide (EPG)........... 19

Chapter 5

Menu Map............................................... 20

Main Menu.............................................. 21

Installation............................................ 21

Antenna Setting...................................... 21

Motor Setting.......................................... 23

Auto Scanning........................................ 26

Manual Scanning ................................... 26

Blindscan................................................ 28

Defaults Setting...................................... 29

System Setup....................................... 29

Language Setting................................... 29

OSD Setting ........................................... 30

Video Setting.......................................... 30

Audio Setting.......................................... 31

Time Setting ........................................... 31

Reservation Setting................................ 32

System Information ................................ 32

Channel Setup ..................................... 33

Delete Channels..................................... 33

Delete All Channels................................ 34

Favorite Channels.................................. 34

Edit Channels......................................... 35

Software Manager.................................. 36

Parental Lock....................................... 36

Channel Lock ......................................... 36

Lock Controll .......................................... 37

Change Pin Code................................... 37

Game ................................................... 37

Multimedia............................................ 38

PVR Setting............................................ 38

Player Setting......................................... 38

Internal Harddisk.................................... 39

USB 1 and 2........................................... 39

Ethernet.................................................. 40

Conditional Access............................... 41

PVR Functions..................................... 42

Comfort Functions................................ 47

Troubleshooting .................................... 48

Specications ........................................ 49

Glossary ................................................. 52

HDD Installation Guide.......................... 55

Chapter 1 Befor You Begin

4English

efore You Begin

General Features

• Accurate, Brilliant Friendly OSD with Full Function

• MPEG-2 (MP@ML), MPEG-2 (MP@HL), MPEG4 AVC/H.264, HP@L4

• LNB Controlling Logic (0/22KHz Tone)

• SCPC/MCPC Receivable from C /Ku-Band Satellites

• Digital Tuner with Loop-through

• Wide Symbol Rate 2~45Mbps & Frequency Input 950~2150MHz

• DiSEqC 1.0, 1.1 & 1.2 Supported (Go to X function)

• 2 SCARTS for TV, VCR (optional)

• 16 Bit Colors Graphic User Interface

• Multi-language Menu

• 13-digit VFD (Time clock in Stand-by mode)

• OSD Teletext Supported

• EPG (Electronic Program Guide) for On-screen Channel Information

• Installation by Easy Setup Guide

• 10,000 Channels

• User-friendly Data Editing Function

• Favorite Channel and Parental Lock Function

• RS232C Port for Additional Information Service and Upgrading System Software

• S/PDIF OUT Optical and Coaxial

• HDMI

• SVIDEO OUT

•

PVR Ready

•

Time-Shift

•

Unicable

•

OTA Update for Software and Channel Data

•

Ethernet Port(Just HD7100 Series)

•

USB Port

•

2 Common Interface and 2 Smart card Reader

•

SW Blind scanning function

Accessories

• User’s Manual, Micro ber towel, Vantage CD-Rom

• Remote Control Unit

• Batteries

• HDMI Cable

Chapter 2>> Controls and Functions

Engllish

1 1

ontrols and Functions

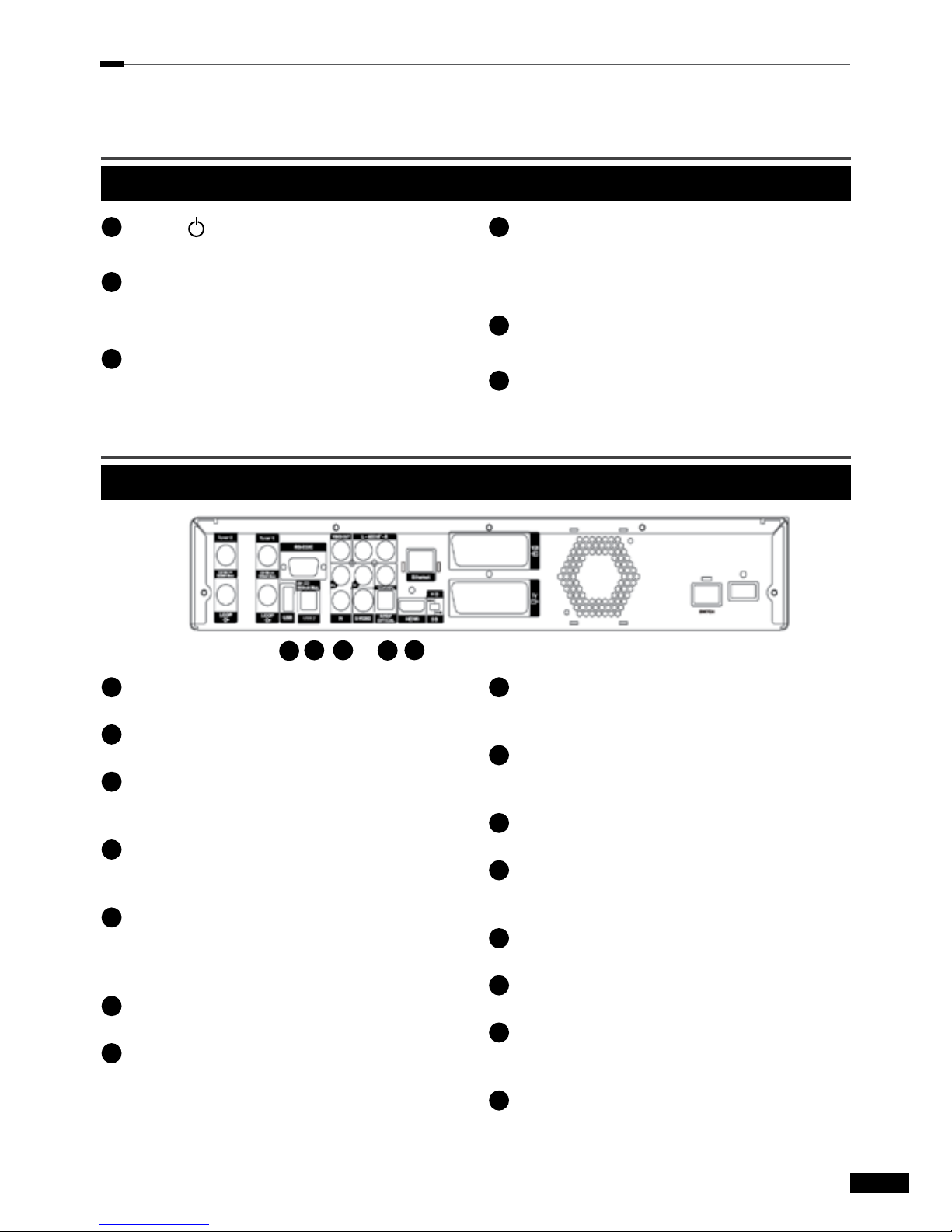

Front Panel

Power ( ) button

Turns your receiver On/Off.

Arrow (◄/►)buttons

Adjusts the volume and moves the cursor

left/right on the menu

Arrow (▲/▼)buttons

Changes channels or moves the cursor up/

down on the menu.

MENU button

Displays the menu

Exits from the current menu or goes to the

previous menu

OK button

Conrms selection

DISPLAY

Displays channel information

Displays local time in Standby mode

Rear Panel

Dish INPUT Tuner2

Connects to the satellite dish.

Dish INPUT Tuner 1

Connects to the satellite dish.

LOOP

Loop out is an output port of the DISH

INPUT signal.

USB 1

Connects to the External HDD or USB

storage with USB cable.

RS-232C

Connect to a PC.

RS232 transfers data to the external

computer.

USB 2

Connect to a PC..

VIDEO OUT

Connects to video input jack on TV or any

external Video system.

AUDIO OUT, LEFT / RIGHT

Connects to audio input jacks on TV or any

external audio system.

Y Pb Pr OUT

Connects to video input jack on TV or any

external Video system.

S-Video OUT

Connects to the TV with S-Video cable

1 1

S/PDIF OUT Optical & Coaxial

Connects to a digital audio component with

optical cable.

Ethernet(Optional)

Connects to the Ethernet with Ethernet cable

HDMI

Connects to the TV with HDMI cable

SCART for VCR

Connects to the VCR(AUX) with SCART

cables.

SCART for TV

Connects to the TV with SCART cables.

Chapter 2>> Controls and Functions

6English

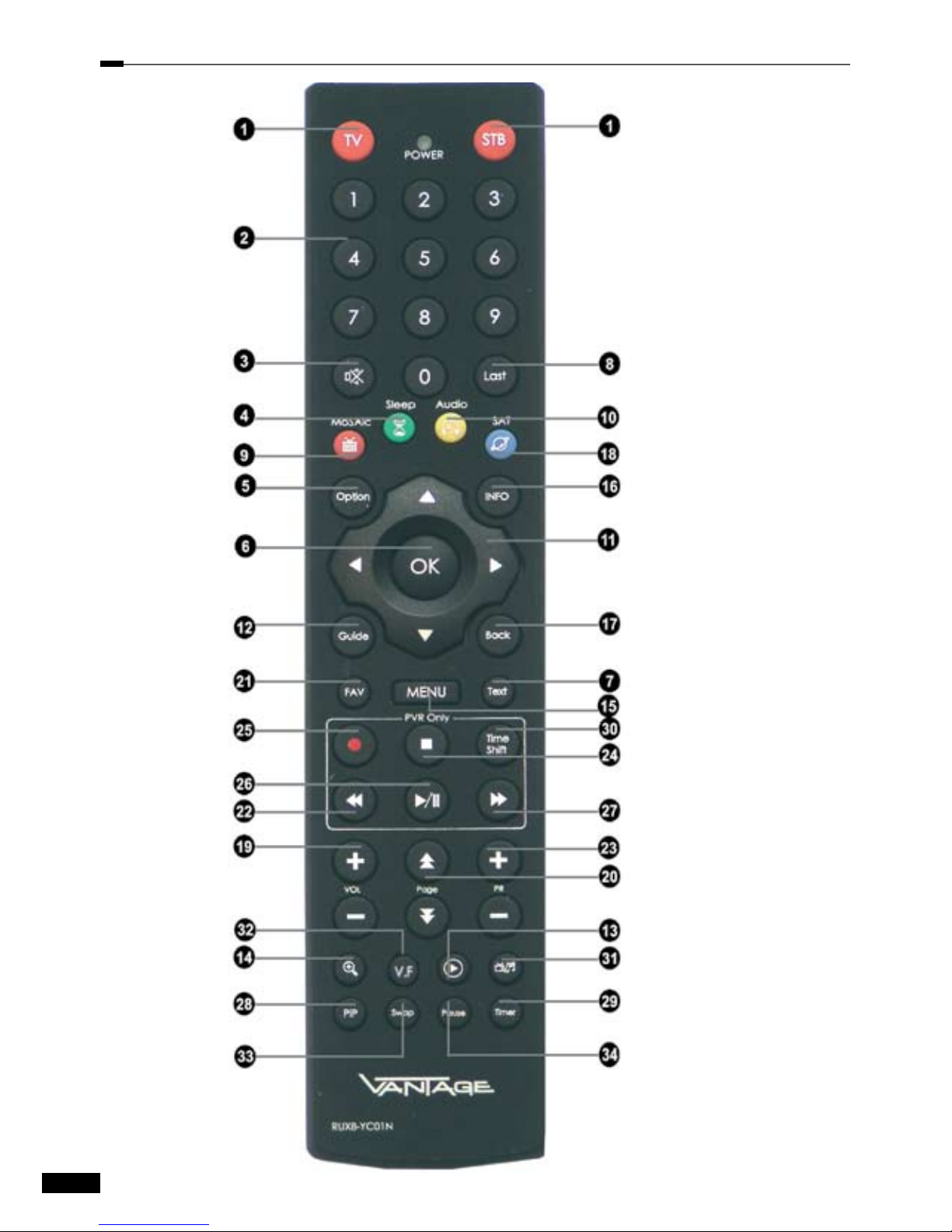

Remote Control Unit

Power Button for TV and STB

Switch TV or STB On or OFF.

Nummeric (0~9) Buttons

To access channels directely via channel

number.

Mute ( ) Button

Mute the sound.

Sleep ( ) Button

Starts sleeptimer function.

Option Button

To access multifeed channels

OK Button

To access channel list or conrm/ select in

menu mode.

Text Button

Starts teletext service.

Last Button

Shows a list of last viewed channels

MoSAic ( ) Button

Opens Multi picture mode

Audio ( ) Taste

Zeigt die Audio Informationen an.

1 1

Arrow (◄/►)Buttons

Control Volume and in menu mode move

cursor left or right.

Arrow (▲/▼)Buttons

Changes channels up or down and move cusor

up or down in menu mode.

Guide Button

Opens EPG mode.

Media Button

Opens your lelist.

Zoom ( ) Button

To zoom in the picture, press twice for higher

zoom

Menu Button

Opens main menu .

Move back to the latest menu levelor close

menus..

Info Button

To show channel infomations on the Screen.

Back Button

Back to last menu level. Dont forget to store!!.

SAT ( ) Button

Shows a list of available satellites.

VOl +/- Buttons

Controls the Volume.

Page (+/-)

Button

Jumps page wise up or down in TV or Radio

list.

FAV Button

To select one of your Fav lists. Press multiple

times to go thru all your Fav lists and back to

main list.

REW<< Button

Rewind in playback mode up to 8 x speed.

PR +/- Button

Channel change up or down.

Stop Button

stopps recordings or playbacks.

Record Button

Instant record

Play/

Pause

Button

Shows your lelist, pause playbacks and start

playbacks

Chapter 2>> Controls and Functions

Engllish

FWD>> Button

fast foward up to 16 x speed in playback.

PiP Button ( Picture in Picture )

Starts PiP Feature.

Timer Button

Opens Reservation Menu.

Timeshift Button

Starts Timeshift Function.

Mode ( ) Button

Switch between TV and Radio mode.

Video Format Button

Opens a menu to change TV Aspect Ratio

Swap Button

Switch from PiP to full screen.

Pause Button

Pause and paylback again in playback

mode.

Remote Control Unit

Chapter 2>> Controls and Functions

8English

Chapter 2>> Controls and Functions

Engllish

Additional function

1. Learning Method

• If there is no further action within 30 seconds in LEARN MODE, the remote control turns to

normal operation mode switching LED off.

• TV Power key doesn’t have Default key data.

The Learning Method

• Only the key of “TV Power”has Learning function.

• Toggle Learning (Continuous 2 codes should be learned in TV Power key)

• 1st Learned data is produced upon 1st press and then 2nd Learned data will be produced

upon next pressing on the TV Power key.

If you press [TV Power + OK] KEYs at the same time for 1.5 seconds, the remote goes into

leaning mode. => Then LED ON will be “ON’ for 30 seconds. If there is no further action, it

will automatically turn back to normal mode after 30 seconds switching LED off.

Press TV Power key one more time. LED blinks one time and then LED will be “ON”.

Press 1st SOURCE KEY (Power key of the original key)

If it learns correctly, --- LED will be “ON”after blinking Two Times.

- If it does not learn correctly, --- LED will be “ON” after blinking 5 Times

- If there is no input Signal for 30 seconds, the remote will stay in learning mode after

blinking 5 times.

- If no further input signal for another 30 seconds, the remote will return to normal operation

mode. LED will be OFF.

- If you want to teach it again, then you need to press TV Power key. --- LED will stay

“ON”after blinking one time.

Now you learned one code from your original TV power key. Please press TV Power key

one more time. --- LED will stay ON after blinking one time.

=> If the rst TV Power code is learned correctly (after LED Blinking two times), 2nd code

can be taught.

Please press 2nd SOURCE KEY(Any numeric key from the original remote control. For

example Number 1)

If it learns correctly, --- LED will be “ON” after blinking Two Times.

If it does not learn correctly, --- LED will be “ON” after blinking 5 Times

=> If there is no input Signal for 30 seconds, the remote will stay in learning mode after

blinking 5 times.

If no further input signal for another 30 seconds, the remote will return to normal operation

mode. LED will be OFF.

=> If you want to teach it again, then you need to press TV Power key. --- LED will stay

“ON” after blinking one time.

If you press [TV Power + OK] Keys at the same time, it turns back to normal operation

mode after LED blinking 3 times.

2. Low Battery Warning Function

It is the fuction to check if the battery has LOW VOLTAGE

If you press [STB Power] KEY at the level that IC’s OPERATING VOLTAGE is as low as

“2.2V ~ 2.3V”, power code will be produced blinking LED 3 times.

At that LOW VOLTAGE level, you can not go into LEARNING MODE.

Remote Control Unit

Chapter 3 >> Connections

10 English

onnections

Location of your receiver

• Install your receiver in horizontal position

• Do not put any heavy stuff such as a TV on your receiver

• Do not install your receiver in the places as follows: Vibrating place, direct sunrays, Humid

place, too high or low temperature, and no ventilated place.

Connecting your receiver with dish system

After installing your antenna system, connect the coaxial cable from the LNB of your antenna to

“DISH INPUT” terminal marked at the rear panel of your receiver. All cable connectors should

be nger-tightened; do not use any kind of wrench while tightening connectors. The cable

should be 75 ohm impedance coaxial twisted at the end with an “F” type connector.

Table des matières

Autres manuels Vantage Hearth Récepteur

Vantage Hearth

Vantage Hearth HD 7100C Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
