Vanner TS Series Manuel utilisateur
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -1-
TS Series
400 Watt
Pure Sine Wave Inverter
Models
TS12-400 TS24-400
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -2-
Table of Contents
1.
SAFETY INST UCTIONS 4
1-1.
General Safety Precautions 4
1-2.
Other Safety Notes 5
2.
FUNCTIONAL CHA ACTE ISTICS INT ODUCTION 6
2-1. System 6
2-2. Block Diagram 6
2-3. Electrical Specification 7
2-3-1. TS12-400, TS24-400 Specification ................................................
2-3-2. Voltage & temperature performance .............................................. 8
2-4. Mechanical Drawings 9
3.
INSTALLATION AND MAINTENANCE 10
3-1. AC Output Side (Front Panel) Introduction 10
3-1-1. Main Switch ................................................................................. 10
3-1-2. LED Indicator ............................................................................... 10
3-1-3. Function Switch ........................................................................... 11
3-2. DC Input Side ( ear Panel) Introduction 12
3-2-1. Chassis Ground ........................................................................... 12
3-2-2. Remote Control Green Terminal .................................................. 13
3-2-3. DC Input Cables .......................................................................... 13
3-3. Maintenance 14
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -3-
4.
OPE ATION 15
4-1. Connecting the DC cable 15
4-2. Connecting the input power 15
4-3. Connecting the loads 15
4-4. Switch ON Inverter 15
4-5. Protection Mechanism 16
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -4-
1. Safety Instructions
1-1. General Safety Precautions
Warning! Before using the Inverter, read the safety
instructions.
Do not expose the inverter to rain, snow, spray or dust. To reduce the
risk of fire hazard, do not cover or obstruct the ventilation openings
and do not install the inverter in a zero-clearance compartment.
To avoid the risk of fire and electric shock, make sure that the
existing wiring is in good electrical condition, and the wire size is not
undersized.
This equipment contains components which can produce arcs or
sparks. To prevent fire or explosion do not install in compartment
containing batteries or flammable materials or in location which
require ignition protected equipment. This includes any space
containing gasoline-powered machinery, fuel tanks, or joints, fittings,
or other connection between components of the fuel system.
Depending on the user scenario, the AC output of the inverter may
require user installed breaker or fuse. In AC output hardwire
application, AC socket will not been provided. The inverter
incorporates standard AC short circuit protection.
An over current protection at the time of installation shall be provided
by others for the AC output circuit.
Additional breakers suitable for 20 A branch circuit protection shall
be provided for the GFCI receptacles.
The following precautions should be taken when working on the
inverter:
Step 1 Remove watches, rings, or other metal objects
Step 2 Use tools with insulated handles
Step 3 Wear rubber gloves and boots
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -5-
1-2. Other Safety Notes
Upon receipt, examine the carton box for damage. If you have
found any damage on the carton box please notify Vanner.
Do not operate near water or in excessive humidity.
Do not open or disassemble the inverter, and warranty may be
voided.
The DC side connections should be firm and tight.
Grounding: Reliable grounding should be maintained.
Do not drop a metal tool on the battery. The resulting spark or
short-circuit on the battery or on the other electrical part may
cause an explosion.
Install the inverter in a well-ventilated area. Do not block the front
air vents, or the rear air exhausts of the unit.
Wiring: Adequate input power must be supplied to the inverter for
proper use; correct wiring sizes must be ensured.
Mount the inverter such that the fan axis is horizontal.
Do not operate the inverter close to combustible gas or open fire.
Do not operate appliances that may feed power back into the
inverter.
Temperature: The inverter should be operated in an ambient
temperature range of -25° to 40° otherwise the output efficiency
may be affected. Air flow to the inverter must not be blocked.
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -6-
2. Functional Characteristics Introduction
2-1. System
The unit is a highly reliable DC-AC inverter system, designed with
advanced power electronic and microprocessor technology offering
the following features:
Pure sine wave output waveform O/P voltage THD < 5 %
Intelligent software for power management
Loading and temperature controlled cooling fan
Dry contact terminal
Advanced Protection Features
Input over/under voltage protection
Internal over temperature protection
Input reverse polarity protection (Fuse)
Output overload protection
Output short circuit protection
2-2. Block Diagram
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual - -
2-3. Electrical Specification
2-3-1. TS12-400, TS24-400 Specification
Electrical
Specification
Model No.
Item
TS12
-
4
00
TS24
-
4
00
Input
Characteristics
Voltage 12VDC 24VDC
Input Over-Voltage
Protection
1
16.0 ± 0.3VDC 32 ± 0.5VDC
Input Under-Voltage
Protection 10.5 ± 0.3VDC
21 ± 0.5VDC
Voltage Range 10.5~16.0VDC 21~32VDC
No Load Current < 1A @12VDC < 0.5A @24VDC
Power Saving Mode < 0.2A @12VDC < 0.1A @24VDC
Output
Characteristics
Continuous Output Power 400 W (± 3%)
Surge Power (3Sec) < 600 W
Frequency 50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage 100 / 110 / 115 / 120 VAC (± 5%)
(Dip Switch Selectable)
Efficiency (Typ.). 88% 89%
Short-Circuit Protection 1 Sec Shutdown
Output Waveform Pure Sine Wave (THD < 5%@ Normal Load) ²
Signal and Control LED Indicator Red / Orange / Green LED
Remote Control Terminal 2-port Green terminal (for inverter ON / OFF)
Protection
Input Protection Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output Protection Short-Circuit, Overload
Others Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-25℃)
Environment
Operating Temp. -20°C ~40°C
3
Storage Temp. -30°C~ 0°C
Storage Temp. & Humidity 10 ~95% RH
Safety & EMC Safety Standards Certified UL 458
EMC standards Certified FCC class B
Dimension(WxHxD) .02 X 2.99 X 8.20 inch
Weight 3. 0 Ib
Cooling Temperature & Load Controlled cooling Fan
Table 1. TS12-400/TS24-400 Specification.
Note：
：：
：
1 Voltage range：Please refer to Figure 1
2 Normal load Condition：Vin =12.5V/25V, Vo=100/110/115/120 VAC 80% Full load (PF=1.0)
3 Operating temperature：Please refer to Figure 2
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -8-
2-3-2. Temperature performance
Figure 1. TS 400W
Output power vs. temperature
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -9-
2-4. Mechanical Drawings
Figure 2. TS series rawing (Top View)
Figure 3. TS series rawing (AC output/Front View)
2.99
1.30
6.39
4.57
8.20
Ø 0.276
7.02
VANNER
Incorporated
Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -10-
3. Installation and Maintenance
3-1. AC Output Side (Front Panel) Introduction
Figure 4. TS 400W AC output panel view
Model
TS Series
AC output socket
LED Indicator
ON / OFF / Remote Main switch
Function switch
Table 2. TS Series AC output si e intro uction
3-1-1. Main Switch
The 3-stage switch is for turning on, turning off and remote mode.
3-1-2. LED Indicator
Inverter status to display fault condition.
3-1-2-1. LED signal
Status
LED Signal Description
Normal or
Power ON
LED lights in solid green
Over load
LED fast blink with two long
beeps
Over / Under temp.
(Heat sink temp. over 80℃ or
under -20℃)
LED slow blink
Over current / Over
load
(AC output short-circuit and
over load)
LED lights in solid red with one
short beeps
Over voltage
(Input DC voltage over spec.)
LED fast blink
B
C
D
A
Autres manuels pour TS Series
1
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Vanner Onduleur
Vanner
Vanner VLT Series Manuel utilisateur
Vanner
Vanner VLT12-600 Manuel utilisateur
Vanner
Vanner 20-500 Series Manuel utilisateur
Vanner
Vanner VLT12-300 Manuel utilisateur
Vanner
Vanner LifeSine LSC12-1100 Manuel utilisateur
Vanner
Vanner ITC12-2100 Manuel utilisateur
Vanner
Vanner TS Series Manuel utilisateur
Vanner
Vanner Bravo 1800 Manuel utilisateur
Vanner
Vanner VLT12-600 Manuel utilisateur
Vanner
Vanner LSC12-2000 Manuel utilisateur
Vanner
Vanner Bravo 1800 Manuel utilisateur
Vanner
Vanner IQ Series Manuel utilisateur
Vanner
Vanner 20-1000UL Manuel utilisateur
Vanner
Vanner IQ12-2600 Manuel utilisateur
Vanner
Vanner VTS12-1500 Manuel utilisateur
Vanner
Vanner 20-1000TUL Manuel utilisateur
Vanner
Vanner BRAVO 1050 Manuel utilisateur
Vanner
Vanner IT12-1400 Manuel utilisateur
Vanner

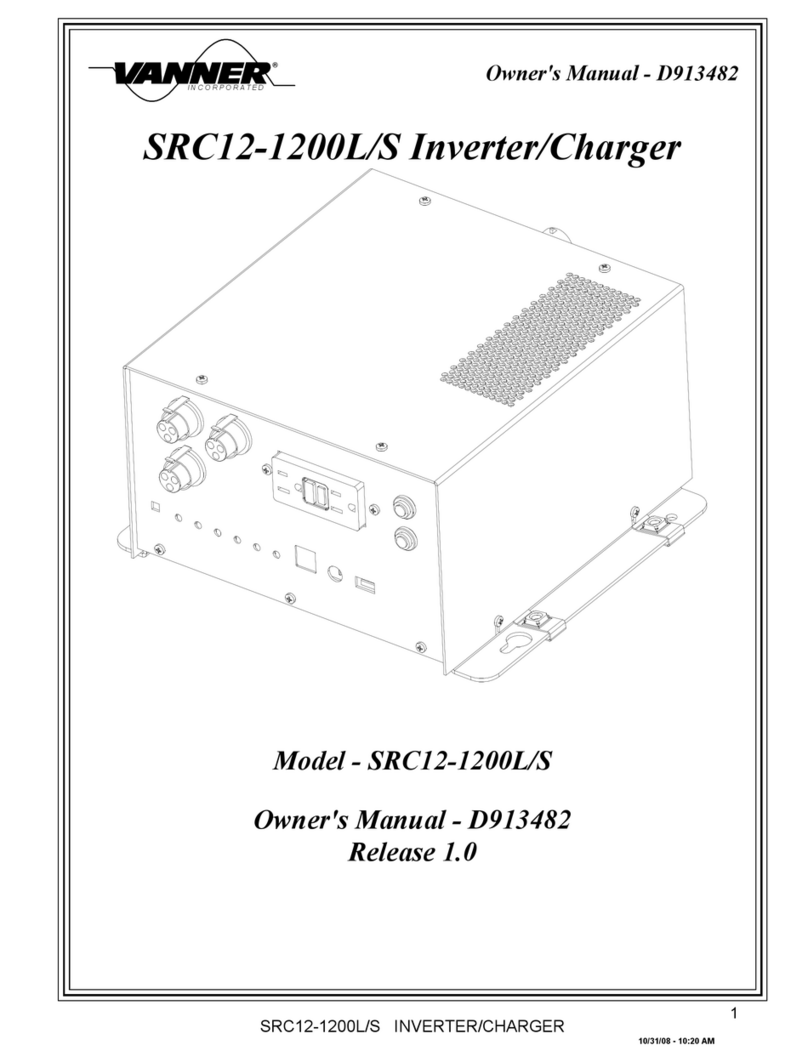

Vanner SRC12-1200L Manuel utilisateur
