TWEETY‐25

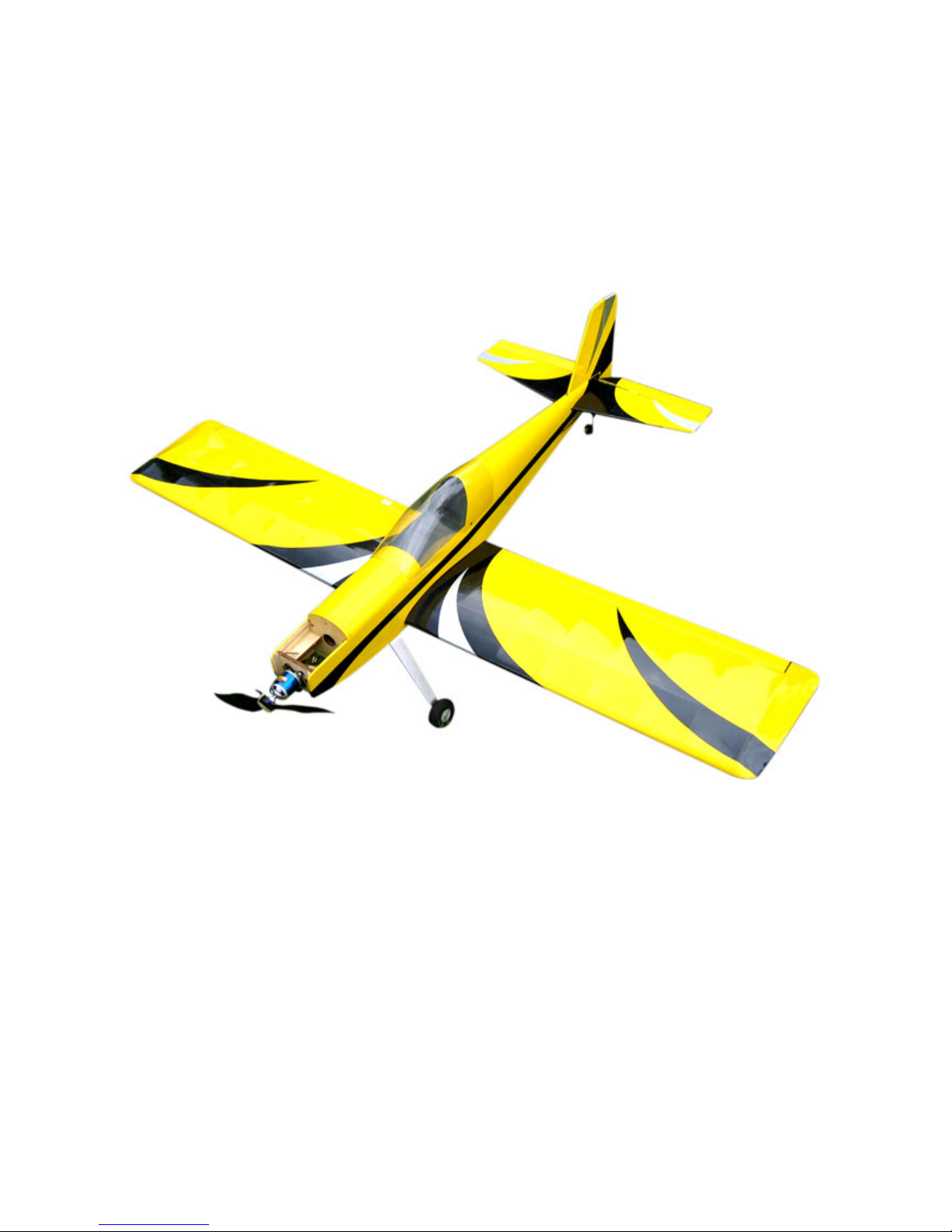

Almost‐Ready‐to‐FlyNitro/ElectricAerobat

INSTRUCTIONMANUAL



SPECIFICATIONS

WINGSPAN:45.7”(1160mm)

LENGTH:38.6”(980mm)

WINGAREA:370sqin(24sqdm)

FLYINGWEIGHT:Approx.3.3lbs(1500g)

SUGGESTEDPOWERSYSTEM:GForceG15(3542)

BrushlessElectricMotoror.15‐25NitroMotor

SUGGESTEDRADIOSYSTEM:4‐CH,4‐5StandardServos

FEATURES

Light‐weightlaser‐cutplyandbalsaconstruction.

Detachablefuselagehatchforeasyaccessofbattery

andelectronics.

Convenientlypoweredbyeitheranelectricoranitro

motor.

Pre‐coveredinhighvisibilitytrimscheme.

WARNING

ThisradiocontrolledmodelisNOTatoyandNOTintendedforpersonunder16yearsold.Keepthiskitoutofreachofyoungerchildren,asit

containspartsthatcouldbedangerous.Aradiocontrolledmodeliscapableofcausingseriousbodilyinjuryandpropertydamage.Itistheowner's

responsibilitytoassembletheaircraftproperly.TestflyyourmodelinthepresenceofanexperiencedRCmodeler.Yourmodelmustalwaysbe

operatedandflownusinggreatcareandcommonsense,aswellasinaccordancewiththesafetycodeoftheAMAorMAAC.Wesuggestyou

purchaseproperinsurancepriortoflyingthismodel.TheFCCrequiresthatyouuseonlyradiofrequenciesspecifiedforR/Cmodelaircraft.Donotat

anytimeflythismodelwhileundertheinfluenceofdrugsoralcohol.

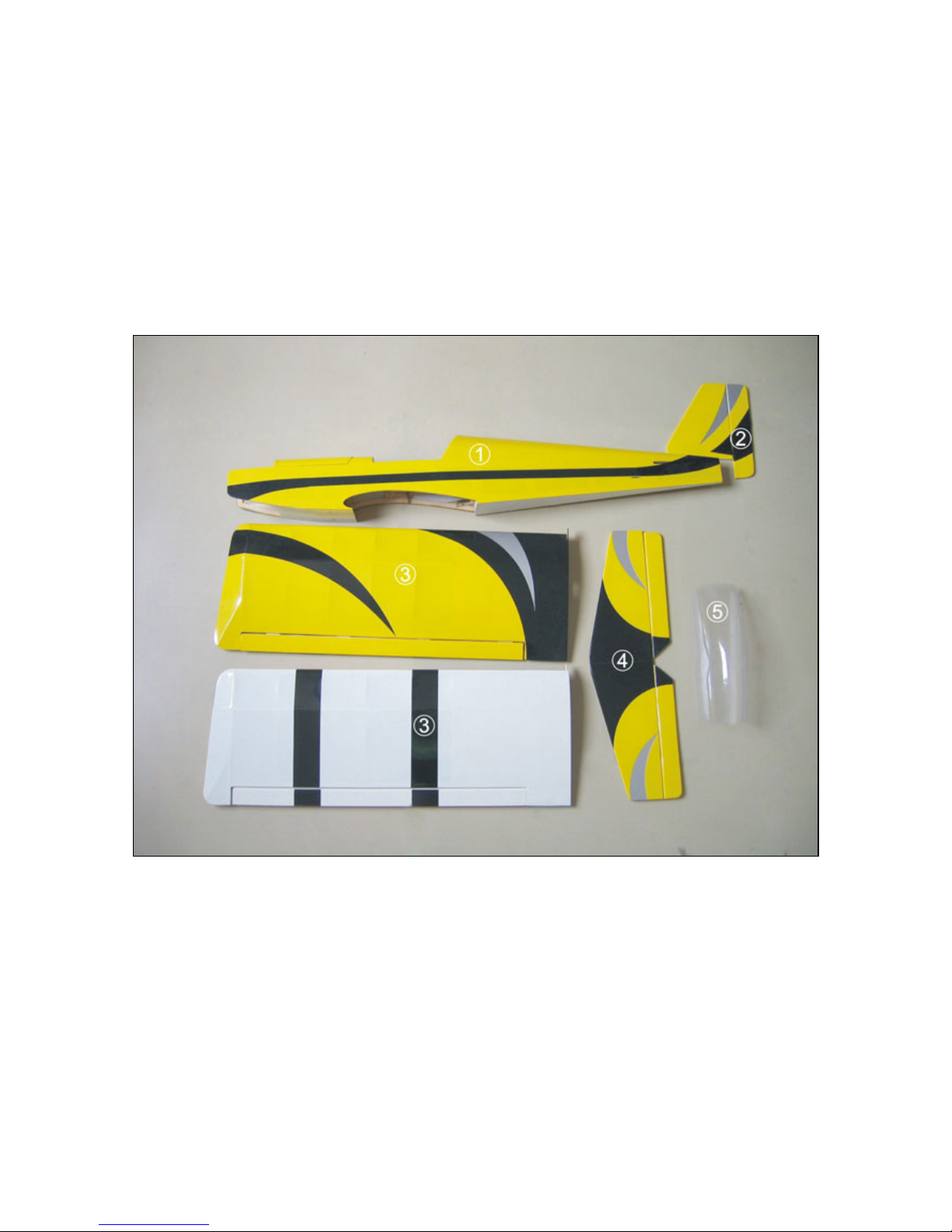

PartsoftheAirplane



1.Fuselage

2.Finandrudder

3.Wing

4.Horizontalstabilizerandelevator

5.Canopy



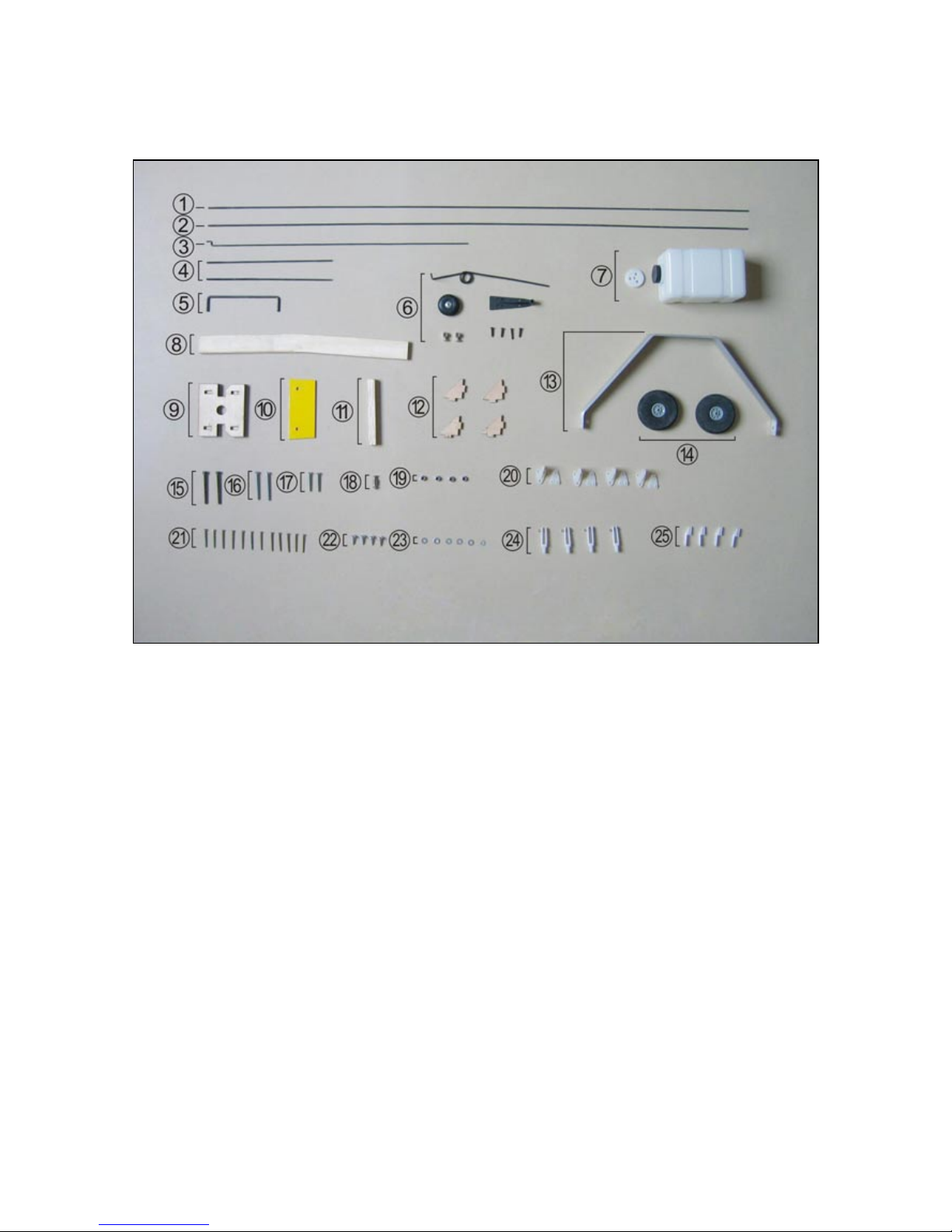

IncludedHardware



Pleasenotethefollowingabbreviationsusedinthismanualaboutfasteners:

1. CMmeanssocketheadscrews,e.g.CM4means4mmsocketheadscrews

2. PWAmeansself‐tappingscrews,e.g.PWA2/PWA3means2or3mmself‐tappingscrews

3. PMmeansroundheadmachinescrews,e.g.PM4‐4mmroundheadmachinescrews

4. Ф1.8X600mmmeans1.8mmdiameterand600mmlengthpushrod

Qty

1.Rudderpushrod[Ф1.8X600mm]2

2.Elevatorpushrod[Ф1.8X600mm]2

3.Throttlepushrod[Ф1.5X300mm]1

4.Aileronpushrod[Ф1.8X150mm]2

5.Elevatorjoinerwire[Ф2X84mm]1

6.Tailwheelassembly1

7.Fueltank1

8.Wingjoinerstrip1

9.Electricmotormountingplate1

10.Wingjoinerplate1

11.Fueltankmountingbraces1

12.Electricmotormountingblock4

13.Mainwheels2

14.Landinggear1

15.Socketheadscrewsforuseasmainwheel

shaft[CM3X35mm]

2



Qty

16.Roundheadmachinescrews(securing

wingstoFuselage)[PM3X30mm]

2

17.Roundheadmachinescrewsforsecuring

landinggear[PM3X20mm]

2

18.PushrodEZ‐connectorforthrottleservo

[Ф2.1mm]

1

19.Self‐lockNutsforsecuringwheelshaft

[Ф3mm]

4

20.Controlhorn4

21.Roundheadmachinescrewsforcontrol

horns[PM2X20mm]

12

22.Self‐tappingscrewsforsecuringCanopy

[PWA3X10mm]

4

23.M3Washer6

24.Clevises4

25.EZlinkforpushrodZ‐Bend4



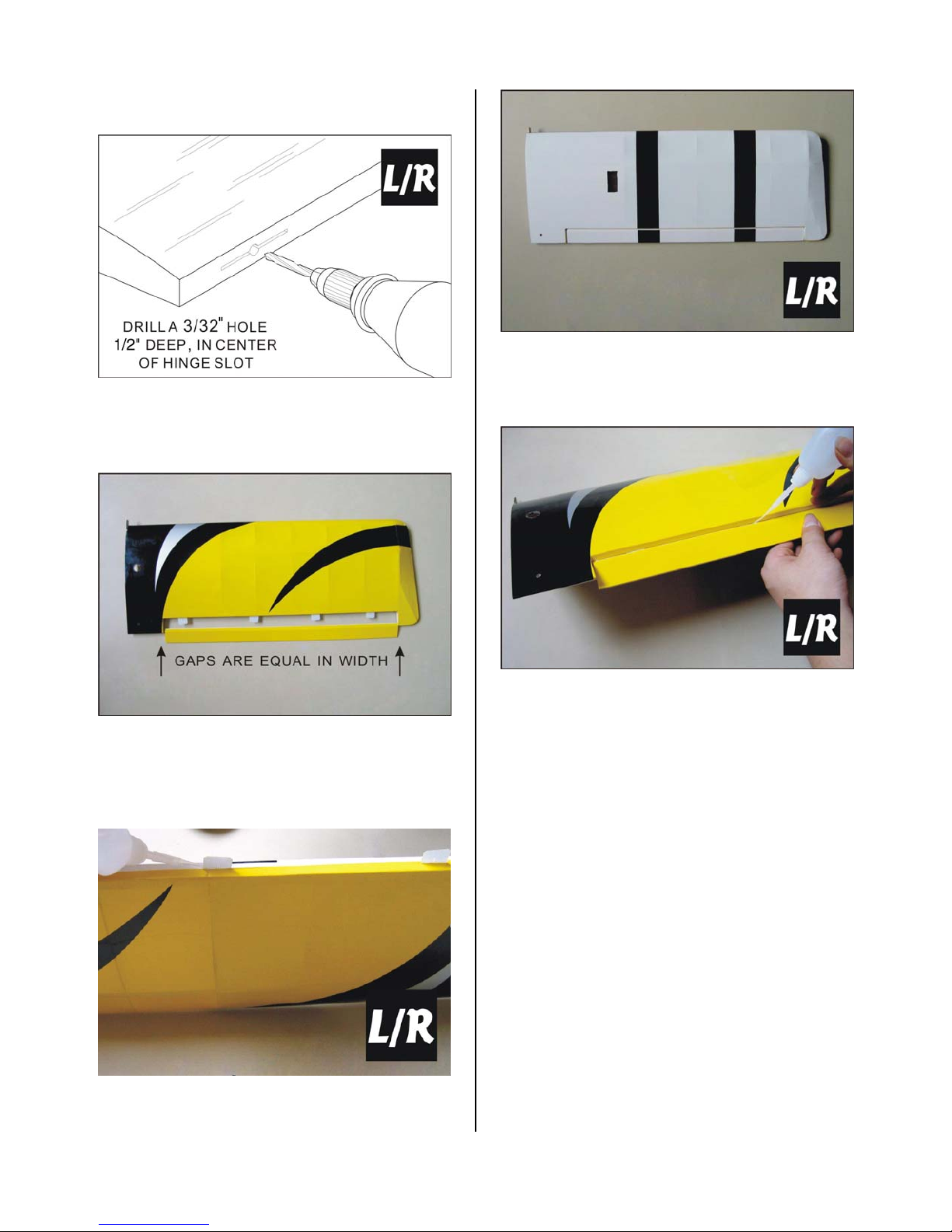

InstalltheAilerons



Step1:Drilla1/1 6 ‐inchholeintothecenterofeachhinge

slotintheaileronandwingpanel.Trimthecoveringaway

fromeachhingeslottoensurethatthehingeswillbe

properlygluedinplace.



Step2:TestfitaCAhingeintoeachofthehingeslots.If

necessary,enlargetheslotswithahobbyknife.When

satisfiedwiththefit,placethehingesintotheslots.Pusha

pinthroughthemiddleofeachhingetokeepthem

centered.



Step3:Jointheailerontothewingpanelandremovethe

pinsfromthehinges.Centertheailerononthewing.



Step4:Adjusttheaileronsothereisasmallgapbetween

theLEoftheaileronandthewing.Thegapshouldbe

about1/6 4 ‐inchorjustwideenoughtoslipapieceof

paperthrough.



Step5:ApplysixdropsofthinCAtothetopandbottomof

eachhinge.Donotuseacceleratorinthehingingprocess.

TheCAmustbeallowedtosoakintothehingenaturally.

AftertheCAhascured,flexthesurfacesseveraltimesto

breakinthehinges.Pullonbothsurfacestomakesurethe

hingesaresecure.



Repeatsteps1‐5fortheotherwingpanel.

InstalltheAileronServos&Pushrods



Beforeinstallation,confirmthattheservosyouwillbe

usingwillproperlyfitintheservoopening.Make

adjustmentsasnecessaryforyourservos.Thepre‐cut

servoopeningsonthisairplanewillfitmoststandardsized

servos.



Step1:Installingtheservosinthewingwillrequirethe

useofaservoextensionwireforeachaileronservo.One

Y‐harnessconnectorisalsorequiredandisusedtoallow

theaileronservostoplugintooneslotinyourreceiver.

Youmayalsohaveacomputerradiothatallowsyouto

plugtheservosintoseparateslotsandthenmixthem

togetherwiththeradiotransmitter.Ifyouchoosetomix

themtogetherwiththeradioratherthanaY‐harness,

refertothemanualforyourparticularmodelradiosystem.



Step2:Attachtheservoextensiontotheaileronservoand

secureitwithheatshrinktubing.Thetubingcanbe

shrunkaroundtheconnectorwithaheatgunormicro

torch.Ifyouraileronservohastabsmoldedintothecase

formountingtheservoonitsside,theymustbecutoffin

orderfortheservotofitintotheservobayinthewing

panel.Followtheinstructionsincludedwiththeservofor

cuttingthetabs.Installtheeyeletsandgrommetsincluded

withtheservo.



CUT OFF

UNUSED ARM

ENLARGE TO

2mm



Step3:Securelytiethestringfrominsidetheopeningfor

theaileronservototheendoftheservoextension.Pull

theservowireandextensionthroughthewing.



Step4:Temporarilypositiontheaileronservointothe

servobay.Installandremoveaservomountingscrewinto

eachofthefourholes.ApplyadropofthinCAintothe

holestohardenthewood.Afterthegluehashardened,

installtheservointotheopening.Cutthreearmsfroma

four‐armedservoarm(armsmayneedtobepurchased

separately).Centertheservowithyourradiosystemand

installaservoarmparalleltotheaileronhingelineas

shown.



Aileron Pushrod

17 mmФ1.8X 0 Nylon Clevis

8mm

The c levis needs to be

secured onto the

pushrod for about 8mm

Step5:Placeoneofthenyloncontrolhornontheaileron,

positioningitasshowninthesketchandaligningitwith

theservoarmusingastraightedgeasaguide.Markthe

locationforthescrewholes.Drillaholethroughthe

aileronatthemarksyoumade.Installandremovethe

screwintoeachoftheholes.Hardentheholeswithadrop

ofthinCA.Afterthegluehashardenedcompletely,secure

thecontrolhornwithtwoscrews.



Fa slin k

Servo Arm

Aile ron Pushrod

17 mmФ1.8X 0

6mm

Ben d t he e nd of the wire in t o a right

angle. Depending on the length of

the wire needed, excess wire can be removed.

Step6:Locatethepushrodwirewiththreadsononeend.

Screwanylonclevisontotherod.Itisrecommendedyou

useaclevisretainer(notincluded)tohelpkeeptheclevis

inplace.Slideasiliconeclevisretainerontothebaseof

theclevis.Connecttheclevistothesecondholeonthe

controlhorn.

Step7:Usetapeorasmallclamptoholdtheaileroninthe

neutralposition.Withtheservoarmstillparalleltothe

hingeline,makeamarkonthepushrodwhereitcrosses

theouterholeintheservoarm.Removethepushrodand

clevisfromthecontrolhornandmakea90degreebendat

yourmark.Cutofftheexcesspushrodwire6mmbeyond

thebend.Enlargetheouterholeintheservoarmusinga

2mmdrillbit.Connectthepushrodtotheservoarmusing

anylonFast‐Link.



Finishthewingpanels



Step1:Withoutusinganyglue,testfitthewinghalves

withthewingjoiner.Makesurethehalvesfittogether

well.Ifthereisaproblemwiththefit,lookfor

obstructionssuchasgluebumpsorwoodsliversinsidethe

wingswherethejoinersfit.Makeanyadjustments

necessarytogetagoodfit.



Step2:Mixagenerousamountof30‐minuteepoxy.Pour

theepoxyintothejoineropeningonthewing.Makesure

theepoxyisdistributedallthewayaroundinsidethe

wings.Useanepoxybrushtocoattherootribsofboth

wingsandonehalfofthejoinerallthewayaround.Insert

theepoxy‐coatedhalfofthejoiner.Wipeawayexcess

epoxyasitisforcedout.



Step3:Coattheprotrudingendofthejoineralltheway

aroundwithepoxy.Jointheotherwing,pressthetwo

halvestogether,allowingexcessepoxytodripoutasyou

go.Whenthewingscometogether,wipeawayexcess

epoxythatissqueezedout,thenuseaC‐clampand

severalstripsofmaskingtapeonboththetopandbottom

ofthewingtotightlyholdthetwohalvestogether.If

epoxycontinuestoworkoutofthewingunderthetape,

removeonestripatatimeandwipeofftheepoxy,then

replacewithanotherstripoftape.Donotdisturbthewing

untiltheepoxyhashardened.



Step4:Locateandremovethecoveringfromthewing

boltholesnearthetrailingedgeofthewing.



Step5:Alignthewingboltplateovertheholesonthe

undersideofthewing.Withthewingboltplatecentered

overtheholes,useasharpiepentotracearoundtheplate

ontothewing.



Step6:Trimthecoveringjustinsideyourlines.Wipe

awaythelineswithalcoholandgluethewingboltplateto

thewing.

Continuethewingboltholesthroughthewingboltplate

witha1/8 " [3.2mm]drillbit.Awoodbackerpiecewhile

drillingwillhelpensureclean‐edgedholesinthewingbolt

plate.



Step7:Whenyouarefinishedinstallingelectronicsinside

thefuselage,youcaninstallthewingontothefuselage

usingtwomachinescrewsandtwoflatwashers.

InstalltheStabilizer



Step1:Locatethehorizontalstabilizerslotunderthe

coveringonthetailsectionofthefuselagebylightly

pressingwithyourfinger.Theslotislocatedonbothsides

ofthefuselage.Carefullyremovethecovering.Makesure

youdonotcutintothewood.



Step2:Locatetheslotfortheverticalfinonthetopof

thefuselageandremovethecovering.Makesureyoudo

notcutintothewood.



Step3:Insertthestabilizerintothestabilizerslotsoitis

centeredinthefuselage(dimensionAshouldbeequal).

Placethewingontothefuselageandsecureitinplace

withthewinghold‐downbolts.Viewtheplanefromthe

rearandatadistanceofafewfeet.Thestabilizershould

beparalleltothewing(dimensionBshouldbeequal).If

not,sandthestabilizermountingbaseslightlytoachieve

theproperpositionofthestabilizer.



Step4:Attachapieceofstringtomeasurethedistance

“A”ofeachstabilizerhalves,and“B”thedifference

betweenthewingtipandthetopofstabilizer.Both

distancesshouldbeequal.



Step5:Withthestabilizerproperlyaligned,useafelt‐tip

pentotracealinearoundthetailoftheairplaneonthe

topandbottomofthehorizontalstabilizer.



Step6:Removethestabilizeranddrawtwoadditional

lines,topandbottom,1.6mminsidethelinesdrawnin

thepreviousstep.Usingaknife,carefullycutthroughthe

coveringalongtheinsidelinesandremovethecovering

fromthecenter.Donotcutthewoodunderthecovering!

Ifthecoveringisnotremovedfromthestabilizer,a

properbondforyouradhesivewillnotbeachieved.



Step7:Mix30‐minuteepoxyandspreadsomeinsidethe

horizontalstabilizermountonthefuselage.Spreadmore

epoxyontothetopandbottomofthestabilizerwherethe

coveringwasremoved.Insertthestabilizerintothe

fuselagefromtherearandadjustthealignmentusingthe

guidelinesthatweredrawnontothestabilizer.Wipeoff

anyepoxythatsqueezesoutusingapapertowel

dampenedwithrubbingalcohol.Recheckthealignment

frequentlywhiletheepoxycures.



InstalltheVerticalFin



Step1:Testfittheverticalfinintheslotinthetopofthe

fuselage.Sandtheedgesoftheslotifnecessarytoobtain

asnugfit.Drawalinearoundtheverticalfinwhereit

meetsthefuselage.Cutthecovering1/16”[1.6mm]

insidethelinesyoudrewontheverticalfinandthetopof

thefuselage.Removethecovering.



Step2:Mixsome30‐minuteepoxyandapplyittothetop

ofthehorizontalstabilizerthroughtheslotandonthe

sidesoftheslot.Applymoreepoxytotheverticalfin

wherethecoveringwasremoved.Inserttheverticalfin

intothefuselageandadjustthealignment.Checkfora90

degreeanglebetweentheverticalfinandhorizontal

stabilizerwhenviewedfromtherear.Usemaskingtapeto

holdtheverticalfininthisposition.Recheckthe

alignmentfrequentlywhiletheepoxycures.



InstalltheElevator



Step1:Findthepre‐cuthingesfromtheincluded

accessories.Testfitthehingesintheslotsintheelevator

halvesandstabilizer.Ifthehingesdonotslideintothe

slotseasily,workyourknifebladebackandforthinthe

slotafewtimestoprovidemoreclearance



OF HINGE SLOT

DEEP IN CENTER

DRILL A HOLE

3/32



Step2:Drilla3/32”[2.4mm]hole,1/2”[12.7mm]deepin

thecenterofthehingeslots.Reinsertyourknifebladeto

cleanouttheslotafteryoudrilltheholes.



Step3:Insertfourhingesintotheslotsinthestabilizer.

Presstheelevatorsontothehingesuntilthegapbetween

theelevatorsandstabilizerisabout1/32”[.8mm].Flex

theelevatorsalittleinonedirection,butdonotallow

themtopullawayfromthestabilizer.Applysixdropsof

thinCAontoeachhinge.Turnthefuselageoverandapply

sixmoredropsofthinCAtotheothersideofeachhinge.

DONOTuseacceleratorwhilehinging,astheCAmust

wickintothehingetoproperlyattachthehinges.Usea

papertoweltoabsorbanyexcessCA.AftertheCAcures,

Table des matières

Autres manuels Value Hobby Jouet

Value Hobby

Value Hobby 48in EPP MXS ARF Manuel utilisateur

Value Hobby

Value Hobby 58in AeroMaster-46 Manuel utilisateur

Value Hobby

Value Hobby Neptune Seaplane25 Manuel utilisateur

Value Hobby

Value Hobby 96in Super Decathlon Manuel utilisateur

Value Hobby

Value Hobby Sbach-342 F3P EPP Manuel utilisateur

Value Hobby

Value Hobby Sabre-X Manuel utilisateur

Value Hobby

Value Hobby Aviator-Pro 60 ARF Manuel utilisateur

Value Hobby

Value Hobby Sbach-342 EPP 3D Profile Manuel utilisateur

Value Hobby

Value Hobby 3D 50 Series YAK 55 Manuel utilisateur

Value Hobby

Value Hobby Apollo DLG Manuel utilisateur

Value Hobby

Value Hobby Easy Stik 15 EPP ARF Manuel utilisateur

Value Hobby

Value Hobby Elite Models Manuel utilisateur

Value Hobby

Value Hobby Sabre-44 3D Profile Manuel utilisateur

Value Hobby

Value Hobby P-51DMustang Manuel utilisateur

Value Hobby

Value Hobby Yak-54 Manuel utilisateur

Value Hobby

Value Hobby Elite Model Aviator 75 ARF Manuel utilisateur

Value Hobby

Value Hobby AeroMaster-46 Manuel utilisateur

Value Hobby

Value Hobby Easy Stick-25 ARF Manuel utilisateur

Value Hobby

Value Hobby Stylus Sport 60 Manuel utilisateur

Value Hobby

Value Hobby Easy Stick-40 Kit Manuel utilisateur

Value Hobby

Value Hobby screamer 40 Manuel utilisateur

Value Hobby

Value Hobby Aviator Trainer25 ARF Manuel utilisateur

Value Hobby

Value Hobby Piper J3 Cub 40 Manuel utilisateur

Value Hobby

Value Hobby Aviator Trainer40 ARF Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
