Valor STONEFIRE SF10BL Manuel utilisateur

4000829/05 1

SF10BL/12BR

STONEFIRE INNER FRAME KIT

INSTALLATION INSTRUCTIONS

CSA approved for use only with

Valor Model 530 Heater and a StoneFire mantel

1. GENERAL

The ‘Kit’ consists of a set of black sheet metal panels used to extend the perimeter size of the engine to

accommodate StoneFire mantels, with the addition of an inner cast iron removable frame.

Kit contents

FOR ENGINE CONFIGURATIONS AND VENTING,

REFER TO MAIN INSTALLATION BOOKLET SUPPLIED WITH ENGINE

FOR MANTEL INSTALLATION,

REFER TO INSTALLATION BOOKLET SUPPLIED WITH MANTEL KIT

Kit content

Note: This kit must be installed or serviced by a qualified installer, service agency or the gas supplier. These

instructions are to be used in con

unction with the main installation instructions for the above listed model.

WARNING: If the information in these instructions is not followed exactly, a fire or explosion may

result causing property damage, personal injury or loss of life.

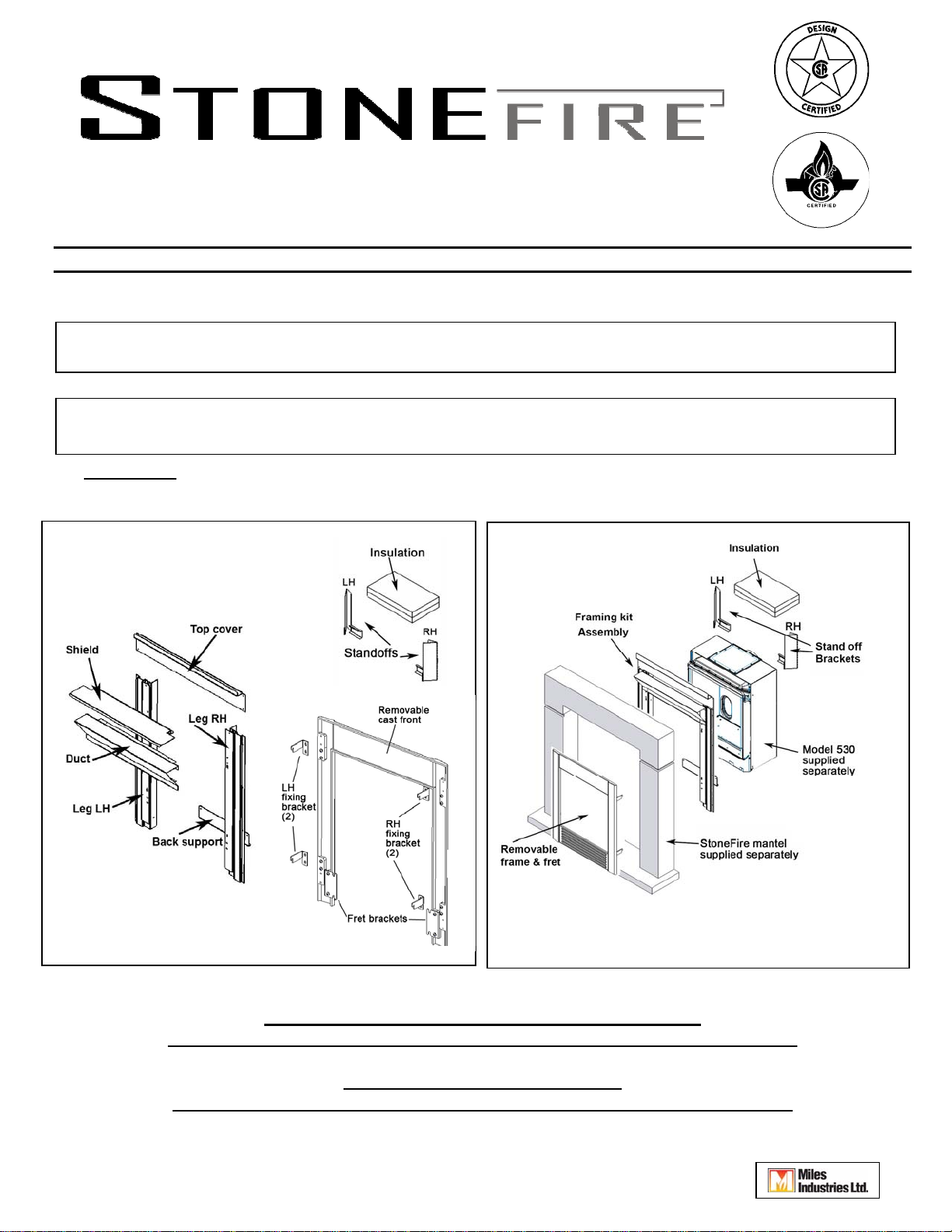

Complete assembly: Mantel, fireplace, frame kit

4000829/05 2

This kit is designed to use with the StoneFire mantels.

SMTR StoneFire Traditional Mantel

SMCL StoneFire Classic Mantel

SMCO StoneFire Contemporary Mantel

4000829/05 3

Note:

These instructions are in addition to installation instructions supplied with Valor 530

firebox unit.

Any framing construction must be clear of standoffs (fig 1-2).

•A non-combustible hearth is not

necessary in front of this appliance.

•The 530 fireplace is approved to install

directly on wood sub-flooring.

•Any framing construction must be

clear of standoffs (fig 1-2).

Fig 1, Framing.

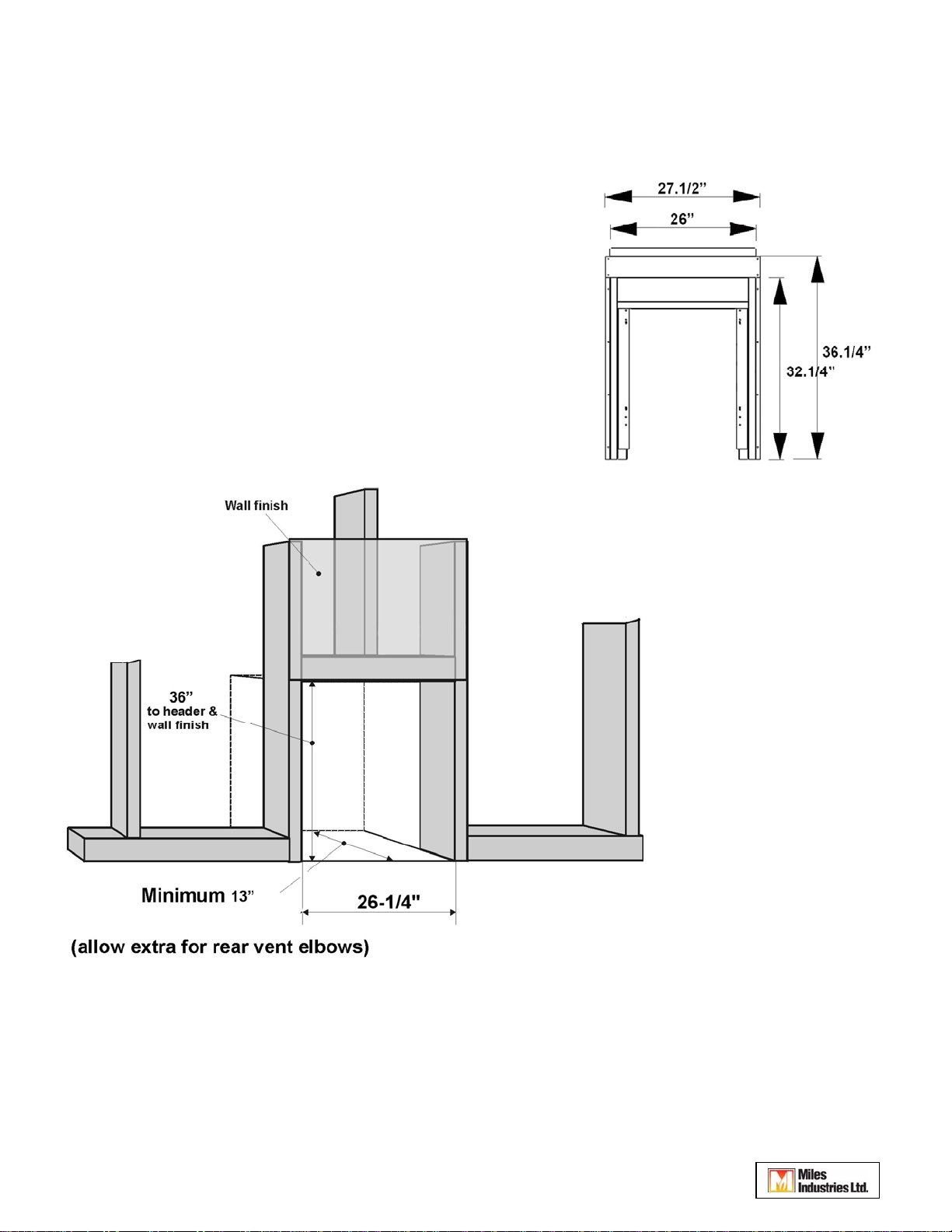

Sheet metal frame dimensions

4000829/05 4

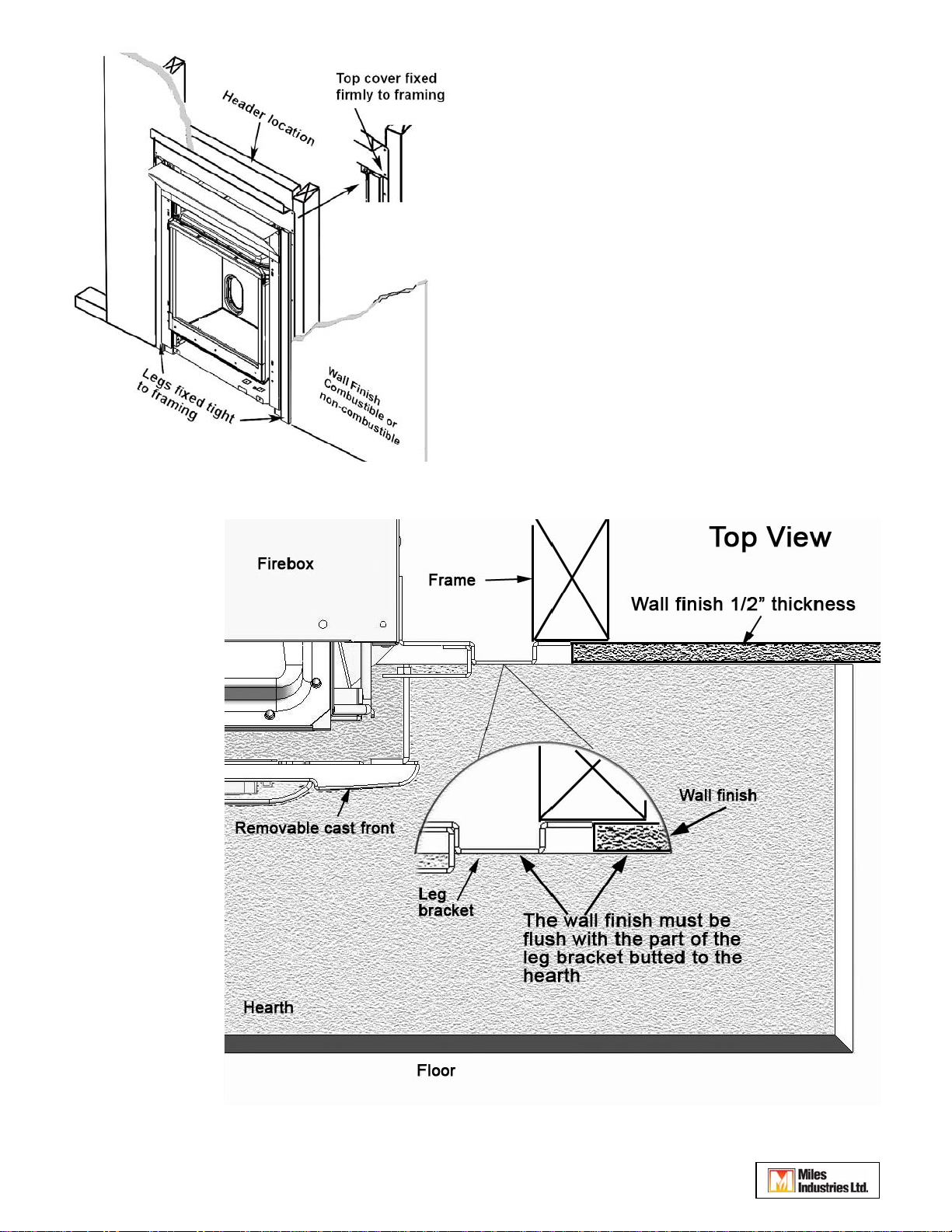

Fig 2, Framing

Fig 2a, Top View Framing Details

4000829/05 5

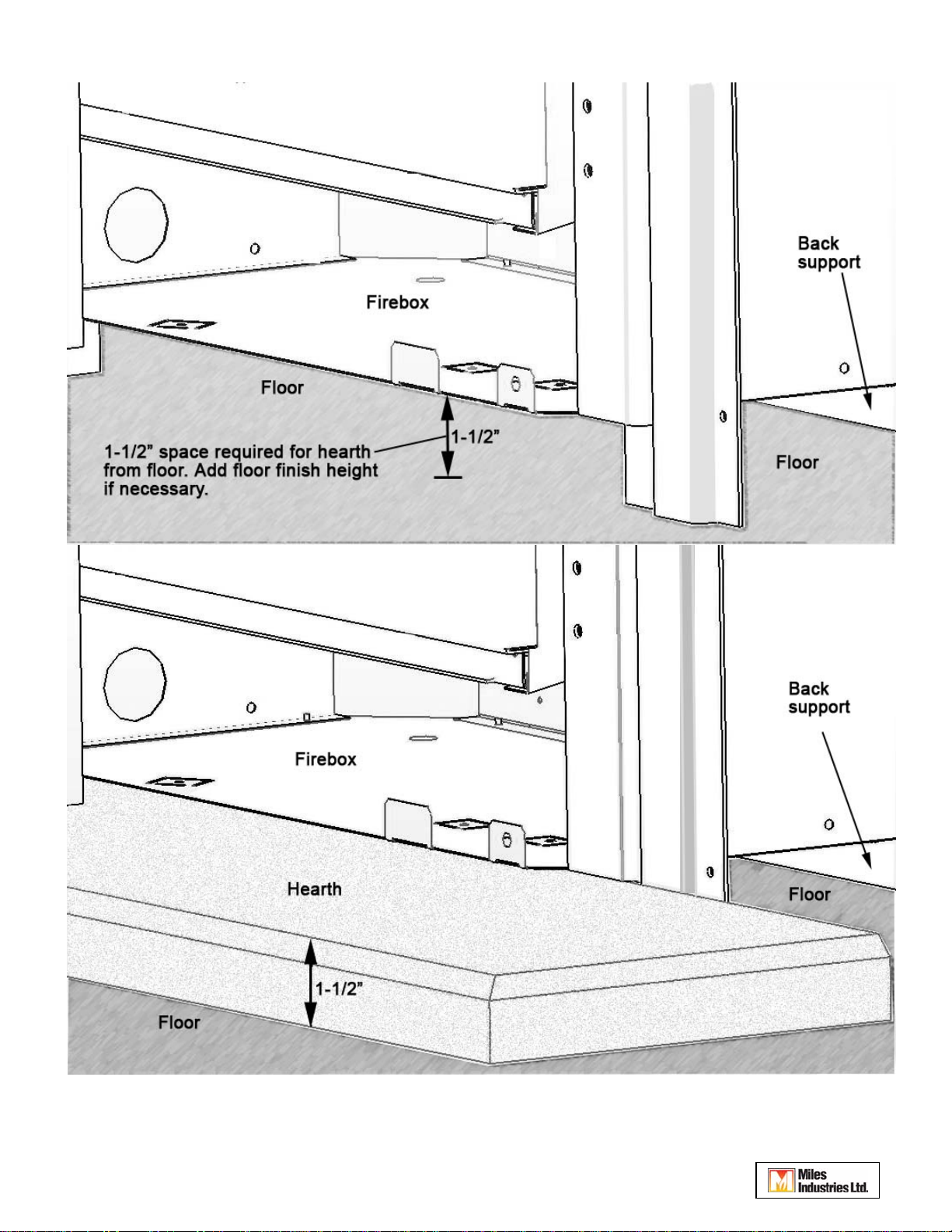

HEARTH INSTALLATION

4000829/05 6

2. FRAMING KIT ASSEMBLY

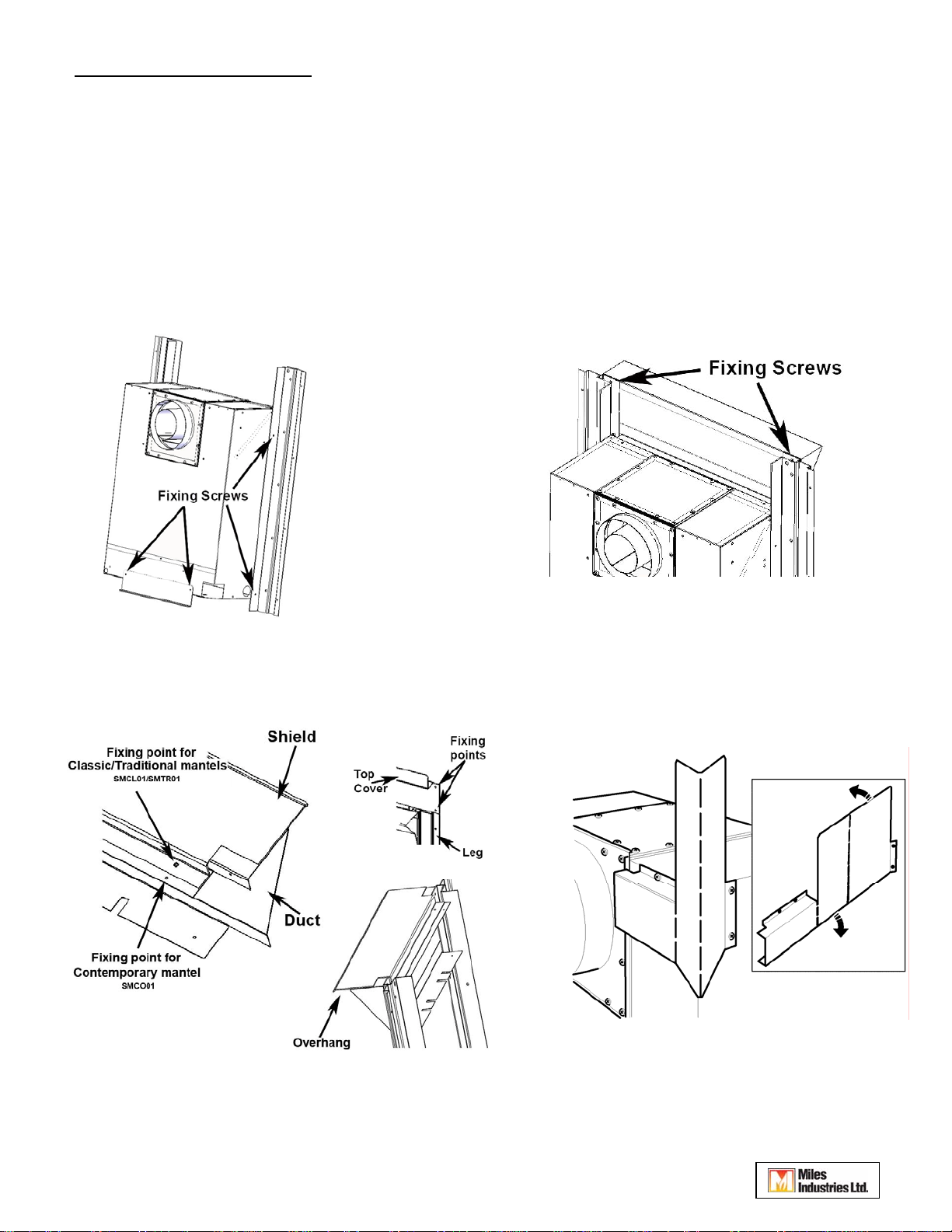

•Locate legs brackets to sides of engine and secure with 4 #8 screws; locate and secure rear support (fig 3).

•Secure duct to leg framing using 2 screw holes located through rear of leg (fig 4).

•Position shield on top of duct and secure with 2 #8 screws. (fig 5).

•Note: Shield can be placed in two positions dependant on which StoneFire mantel is being installed (fig 5).

•Locate and secure stand-offs to rear corners of engine (fig 5a).

•Place engine into cavity and secure to framing (fig 1-2).

•Position top cover onto legs and secure to framing (fig 5).

•After installation of mantel, locate and secure removable frame assembly (fig 6).

Fig 3, Legs & Back Support fixing points

Fig 4, Duct fixing points

Fig 5, Shield and top cover setting

Fig 5a, Fixing Stand-offs to rear of engine

4000829/05 7

3. FRAMING KIT ASSEMBLY

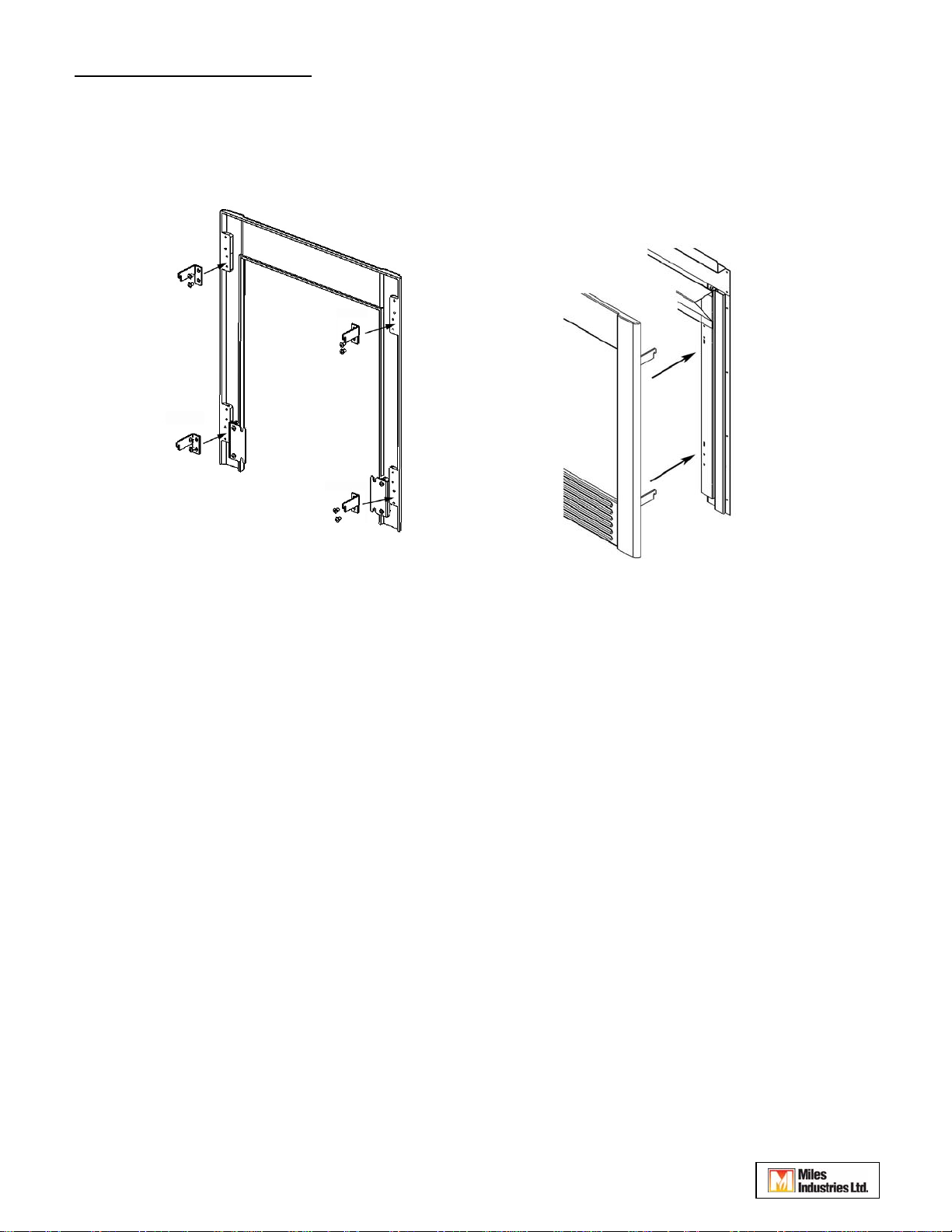

•After installation of mantel, locate and secure two of each RH and LH fixing brackets to rear face of removable

frame using screws provided. Note the left and right as seen from rear face of casting (fig 6).

•Hook the removable frame to leg brackets assembly (fig 7).

Fig 7, Frame mount

Fig 6, Fixing brackets to frame

assembly

4000829/05 8

Fig 10, Hinge location for Contemporary stone

mantel (1 spacer)

Fig 8, Alhambra Door Kit Components

4. OPTIONAL DOOR KIT ASSEMBLY

4.1 SFDKAL Door kit Alhambra style

•Unhook removable cast frame if previously fitted.

•Because the StoneFire mantels vary in depth, cast

spacers are used to locate brackets accordingly.

•Traditional and Classic mantels: When installing a

Traditional or Classic mantels, hinges do not require a

spacer (fig 9).

•Contemporary mantel: When installing the

Contemporary mantel, use one spacer per hinge bracket

when securing to the removable cast frame (fig 10).

•Locate doors to hinges (fig 11).

Fig 9, Hinge location for Traditional and Classic

stone mantels (no spacer)

Fig 11, Door location to

hinges

Classic

Traditional

Contemporary

4000829/05 9

Fig 12 Mesh screen door components

Fig 13, Hinge location for

Traditional and Classic stone

mantels (1 spacer)

4.2 SFDKMS Door kit Mesh screen style

•Unhook removable cast frame if previously fitted.

•Because the StoneFire mantels vary in depth, cast spacers are used to

locate brackets accordingly.

•Traditional and Classic mantels: When installing a Traditional or a

Classic mantel with a Mesh screen door—

ouse one spacer for each hinge bracket when securing to removable

cast frame (fig 13);

ono spacer required with the magnetic bracket when securing to the

removable cast frame (fig 14).

•Contemporary mantel: When installing a Contemporary mantel

with a Mesh screen door—

ouse two spacers for each hinge bracket when securing to

removable cast frame (fig 15);

ouse one spacer with the magnetic bracket when securing to the

removable cast frame (fig 16).

•Locate door to hinges (fig 17).

Fig 16, Magnetic bracket location for

Contem

orar

stone mantel

(

1 s

acer

)

Fig 17 Door location

to hinges

Classic

Traditional

Contemporary

Fig 15, Hinge location for

Contemporary stone

mantels

(

2 s

acers

)

Fig 14, Magnetic bracket location for

Traditional and Classic stone mantels (no spacer)

4000829/05 10

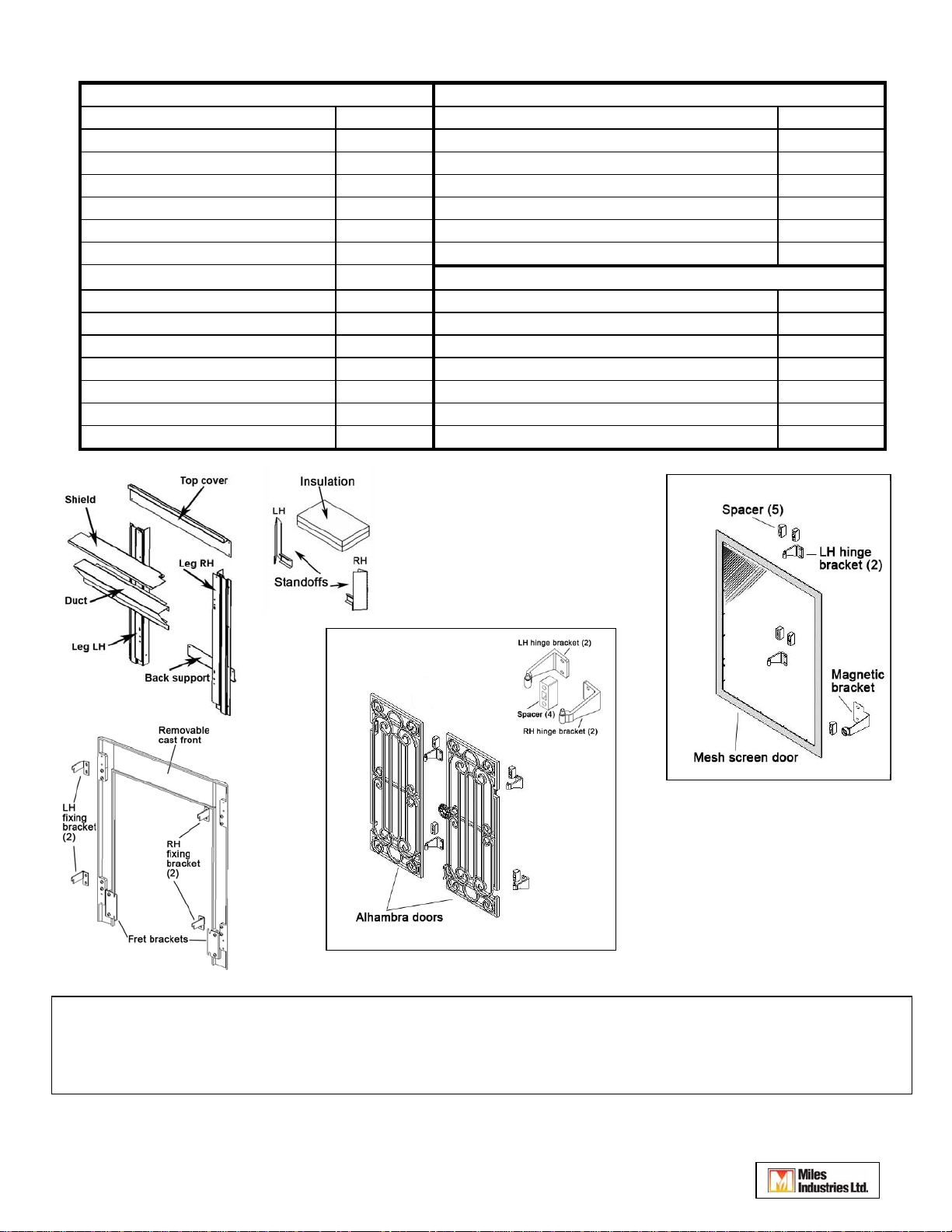

REPAIR PARTS LIST

SF10BL/12BR - INNER FRAME KIT SFDKAL - ALHAMBRA DOOR KIT

Removable Frame 4000815 LH Alhambra door 4000837CP

LH Fixing Bracket (2) 4000822 RH Alhambra door 4000838CP

RH Fixing Bracket (2) 4000821 Alhambra door LH hinge bracket (2) 4000835CP

LH Standoff Bracket 569039 Alhambra door RH hinge bracket (2) 4000836CP

RH Standoff Bracket 569029 Cast Hinge Spacer (4) 4000854

Insulation Pad(s) 569049 M5 x 10 Pan Head Phillips Screw (8) 540029

Back Support 4000825 M5 x 30 Pan Head Phillips Screw (8) 4000847

LH Leg 4000818 SFDKMS - MESH SCREEN DOOR KIT

RH Leg 4000819 Mesh screen door assy 4000850

Shield 4000830

Mesh door LH hinge bracket (2) 4000835VI

Duct Panel 4000817 Magnet bracket assy 4001002

Top Cover 4000816 Cast Hinge Spacer (5) 4000854

Instruction Leaflet 4000829 M5 x 10 Pan Head Phillips Screw (6) 540029

Fret Bracket (2) 4000811 M5 x 25 Hex Head Screw (6) 4000882

M5 x 50 Hex Head Screw (4) 4000242

Designed and Manufactured by

Miles Industries Ltd.

829 West Third Street, North Vancouver B.C, CANADA. V7P 3K7

Ph. (604) 984-3496 Fax (604) 984-0246

www.milesfireplaces.com
