Valor Fires 752 Instructions d'utilisation

5122667/01

Model752

INSET LIVE FUEL EFFECT GAS FIRE

Fitted with a

Broadway,

ValorLandscape 2Gasor

Vermontfascia

(GC No. 32-032-74)

We trust that this guide gives

sufficient details to enable this

appliance to be installed, operated

and maintained satisfactorily.

However, if further information is

required, our

Valor Fires Technical Helpline will

be pleased to help.

Telephone 08706 061 065 (National

call rates apply in the United

Kingdom).

In the Republic of Ireland

Telephone 0044 8706 061 065.

INSTALLER: Please leave this guide with the owner

INSTALLER AND OWNER GUIDE

(including photocopying), stored in any medium by electronic means (including in any

retrieval system or database) or transmitted, in any form or by any means, whether

electronic, mechanical, recording or otherwise, without the prior written permission of

the copyright owner.

Applications for the copyright owner's permission to reproduce any part of this

publication should be made, giving details of the proposed use, to the following

address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business

Park, Stanier Way, Derby, DE21 6BF.

Warning: Any person who does any unauthorised act in relation to a copyright work

may be liable to criminal prosecution and civil claims for damages.

Valor Fires, Erdington, Birmingham B24 9QP

www.firesandstoves.co.uk

Because our policy is one of constant development and improvement, details may vary slightly from

those given in this publication

Page 2

INSTALLER GUIDE

THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).

WHEN CONVERTED USING CONVERSION KIT NO. 0595221

THIS APPLIANCE

IS FOR USE WITH PROPANE GAS (G31).

THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED

KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.

Valor Fires fires are CE Approved and designed to meet the appropriate British

Standards and Safety Marks.

Quality and Excellence.

All Valor Fires fires are manufactured to the highest standards of quality and

excellence and are manufactured under a BS EN ISO 9001 quality system accepted

by the British Standards Institute.

The Highest Standards

Valor Fires is a member of SBGI which works to ensure high standards of safety,

quality and performance.

Careful Installation

Valor Fires is a CORGI registered company. All our gas fires must be

installed by a competent CORGI Registered Installer in accordance

with our Installer Guide and should not be fitted directly on to a

carpet or floor of combustible material.

Page 3

INSTALLER GUIDE

Page 4

INSTALLER GUIDE

INSTALLERGUIDE

FOR OWNER GUIDE SEE PAGES 34 TO 47

CONTENTS

Section Heading Page

INSTALLER GUIDE 4 - 33

OWNER GUIDE

34 - 47

1. SAFETY 6

2. APPLIANCE DATA 6

3. GENERAL INSTALLATION REQUIREMENTS 8

4. PACK CONTENTS 15

5. FIREPLACE CHECK 17

6. IGNITION CHECK 18

7. GAS SUPPLY CONNECTION 18

8. PREPARING APPLIANCE FOR INSTALLATION 19

9. FIREBOX INSTALLATION 21

10. BURNER INSTALLATION 23

11. FITTING THE CERAMIC FUEL EFFECT 25

12. FIRE FRONT CASTING INSTALLATION 26

13. FULL OPERATING CHECKS 26

14. SPILLAGE & FLAME SUPERVISION CHECKS 27

15. FINAL REVIEW 28

16. SERVICING & PARTS REPLACEMENT 29

16.1 Checking the aeration setting of the burner. 30

16.2 To remove the complete burner unit. 30

16.3 To remove the pilot unit. 31

16.4 To remove the gas valve. 31

16.5 To replace the burner. 32

16.6 To remove the main burner injector. 32

16.7 To remove the appliance from the fireplace. 32

Page 5

INSTALLER GUIDE

1. SAFETY

Installer

Before continuing any further with the installation of this appliance please read the

following guide to manual handling

!The lifting weight of this appliance is as below (kg): -

Model Heat Engine Firefront

Combined Weight

Broadway 7.45 6.35 13.8

Valor Landscape 2 Gas 7.45 6.35 13.8

Vermont 7.45 6.26 13.71

One person should be sufficient to lift the fire. If for any reason this weight is

considered too heavy then obtain assistance.

When lifting always keep your back straight. Bend your legs and not your back.

!Avoid twisting at the waist. It is better to reposition your feet.

Avoid upper body/top heavy bending. Do not lean forward or sideways whilst

handling the fire.

Always grip with the palm of the hand. Do not use the tips of fingers for support.

!Always keep the fire as close to the body as possible. This will minimise the

cantilever action.

!Use gloves to provide additional grip.

!Always use assistance if required.

2. APPLIANCE DATA

This product uses fuel effect pieces and burner compartment rear wall

containing Refractory Ceramic Fibres (RCF), which are man-made vitreous

silicate fibres. Excessive exposure to these materials may cause irritation to

eyes, skin and respiratory tract. Consequently, it is important to take care when

handling these articles to ensure that the release of dust is kept to a minimum.

To ensure that the release of fibres from these RCF articles is kept to a

minimum, during installation and servicing we recommend that you use a HEPA

filtered vacuum to remove any dust and soot accumulated in and around the

fire before and after working on the fire. When replacing these articles we

recommend that the replaced items are not broken up, but are sealed within a

heavy duty polythene bag, clearly labelled as RCF waste. RCF waste is classed

as a stable, non-reactive hazardous waste and may be disposed at a landfill

licensed to accept such waste. Protective clothing is not required when

handling these articles, but we recommend you follow the normal hygiene rules

of not smoking, eating or drinking in the work area and always wash your

hands before eating or drinking.

Page 6

INSTALLER GUIDE

This appliance does not contain any component manufactured from asbestos

or asbestos related products.

* When converted using Kit 0595221

The appliance data label is located on a plate at the base of the fire. This can be

seen by removing the lower trim.

The efficiency of this appliance has been measured as specified in BS 7977 - 1 and

the result is as below :

Model

Efficiency % (Gross)

752. 51

752 when converted to LPG. 52

The gross calorific value of the fuel has been used for this efficiency calculation. The

test data from which it has been calculated has been certified by Advantica

Certification services (0087). The efficiency value may be used in the UK

Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.

The conversion of net efficiency to gross was achieved by multiplying the net

efficiency by the following conversion factor from Table E3 of SAP 2005, rounding

down to the nearest whole number.

Page 7

INSTALLER GUIDE

Gas Natural (G20) Propane (G31) *

Inlet Pressure 20mbar 37mbar

Input - Max. (Gross) 6.0kW (20,500Btu/h) 6.1kW (20,800Btu/h)

Input - Min. (Gross) 1.7kW (5,800Btu/h) 3.2kW (10,918Btu/h)

Inlet Test Pressure (Cold) 20.0 ± 1.0mbar (8.0 ± 0.4in

w.g.)

37.0 ± 1.0 mbar (14.85 ±

0.4in w.g.)

Gas Connection 8mm pipe 8mm pipe

Burner Injector Cat 82 - 069 Stereomatic Size 128

Pilot & Atmosphere Sensing

Device Copreci Ref. O.D.S

21500/166

Copreci Ref. O.D.S

21500/166 Fitted with RBM

180 - 02 injector

Ignition Piezo Electric. Integral with

Gas Tap

Piezo Electric. Integral with

Gas Tap

Aeration See section 16.1 Non-adjustable

Gas Conversion factor from net to gross efficiency

Natural Gas 0.901

LPG 0.921

3. GENERAL INSTALLATION REQUIREMENTS

3.1 The installation must be in accordance with this guide.

For the user’s protection, in the United Kingdom it is the law that all gas appliances

are installed by competent persons in accordance with the current edition of the Gas

Safety (Installation and Use) Regulations. Failure to install the appliance correctly

could lead to prosecution. CORGI requires its members to work to recognised

standards.

In the United Kingdom the installation must also be in accordance with:

All the relevant parts of local regulations.

All relevant codes of practice.

The relevant parts of the current editions of the following British Standards:-

BS 715

BS 1251

BS EN 1858 which replaces BS 1289 Part 1

BS EN 1806 which replaces BS 1289 Part 2

BS EN 1856 Part 1 which replaces BS 4543 Part 2

BS 5440 Part 1

BS 5440 Part 2

BS 5871 Part 1

BS 6461 Part 1

BS 6891

In England and Wales, the current edition of the Building Regulations issued by the

Department of the Environment and the Welsh Office

In Scotland, the current edition of the Building Standards (Scotland) Regulations

issued by the Scottish Executive.

In Northern Ireland, the current edition of the Building regulations (Northern Ireland)

issued by the Department of the Environment for Northern Ireland.

In the republic of Ireland the installation must be carried out by a competent person

and installed in accordance with:

a) The current edition of IS 813 “Domestic gas installations”

b) All relevant national and local rules in force.

c) The current building regulations

Where no specific instructions are given, reference should be made to the relevant

British Standard Code of Practice.

3.2 In the United Kingdom, as supplied, this appliance can be installed in the

following situations: -

3.2.1 A masonry chimney with a minimum diameter of 175mm (7”) free from any

obstruction, and with any damper or restrictor plate in the chimney removed or

secured, and having a minimum effective flue height of 3m (10ft). A masonry chimney

having a correctly installed flue liner to BS715 and with a minimum flue diameter of

Page 8

INSTALLER GUIDE

125mm is also acceptable. Chair brick removal may not be required providing at

least 50mm clearance is available from the flue outlet to any fireplace component.

3.2.1.1 ‘Hole-in-the-wall’ Installations

It is recommended that a hearth should be installed as in section 3.9 (See figure

1).

If no hearth is fitted, or a reduced depth hearth is fitted, the fire must be installed

so that the distance from the base of the fireplace opening in the wall to the finished

floor level is at least 72

mm. Where there is no floor covering or carpet and the floor is

of a type that is likely to be covered in such a way then the distance from the base of

the fireplace opening in the wall to the finished floor level should be increased to at

least 147mm.

To protect from the risk of burns and ignition of clothing a tactile separator shall be

used. The hearth detailed in section 3.9 meets the requirements for a tactile

separator. If this is not used then a 625mm long fender, kerb, horizontal bar, or other

barrier, being fixed not less than 50mm above floor level and positioned 300mm in

front of the fixing plane of the fire will meet the requirement.

Page 9

INSTALLER GUIDE

Figure 1. Hearth and fireplace opening dimensions

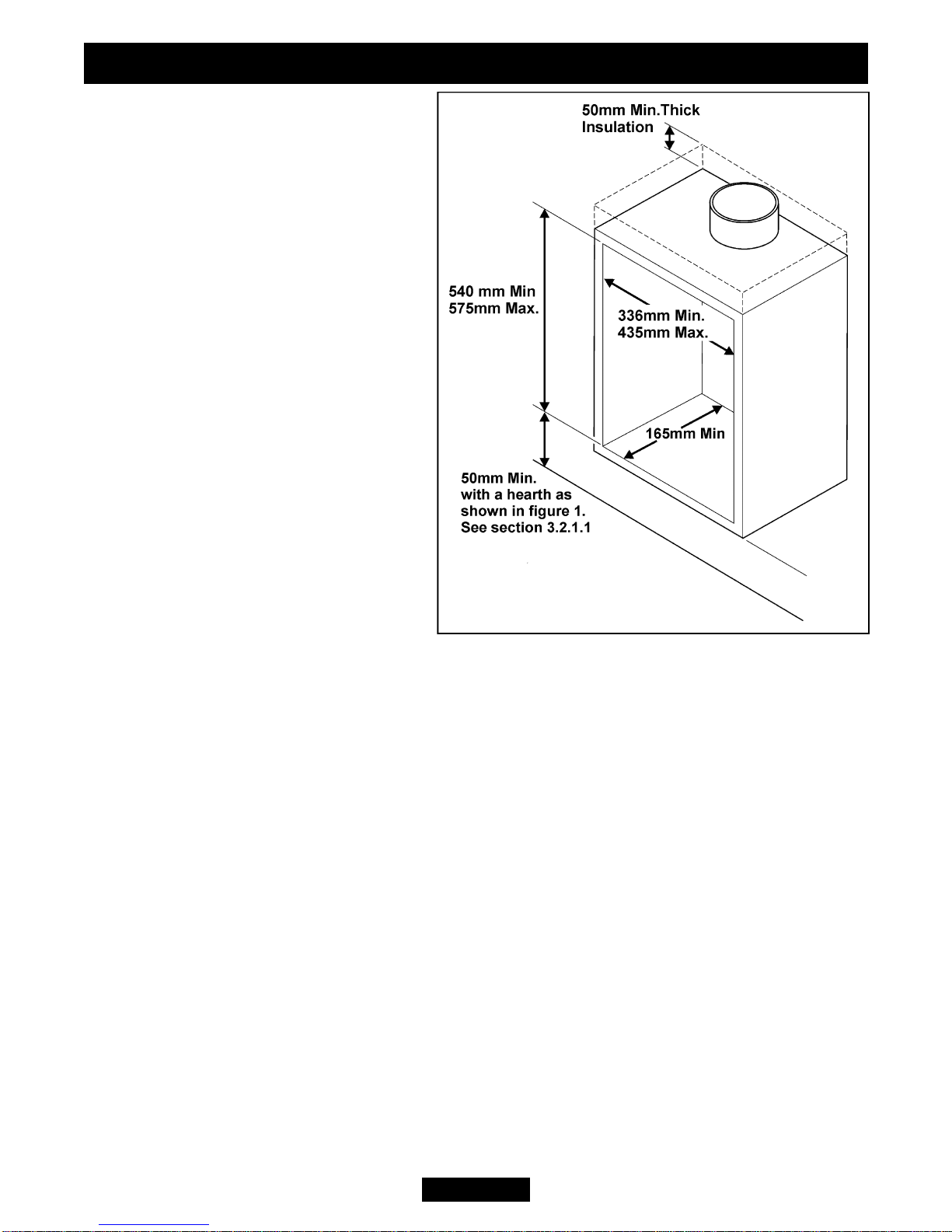

3.2.2 To a fireplace incorporating a

metal flue box conforming to BS 715

and BS EN 1856 Part 1 with a

minimum internal depth of 165mm.

Incombustible mineral wool insulation

of not less than 50mm thickness must

be applied to the top surface of the

hotbox (See figure 2) and it must

stand on a non-combustible base.

3.2.3 (See figure 3). To a fireplace

that has a precast concrete or clay

flue block system conforming to

BS1289 or BS EN 1806. The

appliance is suitable for installations

conforming to older versions of

BS1289 as well as the current edition.

The flue blocks must have a minimum

width not less than 63mm and a

cross-sectional area not less than

13,000mm2.Older editions of BS1289

required a cross-sectional area of

13,000mm2. The current revision of

the standard requires 16,500mm2

. This appliance is suitable in both cases. The total

depth of the opening measured from the finished front of the fireplace (Including

plaster, surround etc.) must be as below:

sIf the width at the rear of the precast flue starter blocks is 300mm or greater the

depth of the opening is to be not less than 138mm. Under these conditions the

eyebolts will need to be located as close to the sides of the starter blocks as possible.

If the width at the rear of the precast flue starter blocks is less than 300mm then

an additional 16mm of depth will be required to accommodate the eye bolts.

Therefore if the starter blocks are less than 300mm wide the minimum depth of the

opening will be not less than 154mm.

The current version of BS1289 recommends that there should be an air space or

insulation between the flue blocks and the plaster because heat transfer may cause

cracking on directly plastered flues. However, generally this appliance is suitable for

installations under all circumstances unless there is a history of cracking problems.

Remember that faults such as cracking may be caused by poorly built and restrictive

flues, e.g. mortar extrusions, too many bends, flue heights below three metres,

restrictive terminations, etc.

Page 10

INSTALLER GUIDE

Figure 2. Metal flue box

Autres manuels pour 752

Table des matières

Autres manuels Valor Fires Cheminée intérieure

Valor Fires

Valor Fires 954 Instructions d'utilisation

Valor Fires

Valor Fires 961 Homeflame Dream Mode d’emploi

Valor Fires

Valor Fires 762 Instructions d'utilisation

Valor Fires

Valor Fires 347 Brava 4 Oxysafe Mode d’emploi

Valor Fires

Valor Fires 844 Instructions d'utilisation

Valor Fires

Valor Fires 963 Instructions d'utilisation

Valor Fires

Valor Fires Artura 958 Instructions d'utilisation

Valor Fires

Valor Fires 942 Instructions d'utilisation

Valor Fires

Valor Fires 341 black beauty slimline Mode d’emploi

Valor Fires

Valor Fires 348 Brava Mode d’emploi

Valor Fires

Valor Fires 347 Mode d’emploi

Valor Fires

Valor Fires 349 Mode d’emploi

Valor Fires

Valor Fires Artura 958 Mode d’emploi

Valor Fires

Valor Fires 964 Instructions d'utilisation

Valor Fires

Valor Fires 762 Instructions d'utilisation

Valor Fires

Valor Fires 940 Instructions d'utilisation

Valor Fires

Valor Fires 339 Heartbeat Oxysafe 2 Instructions d'utilisation

Valor Fires

Valor Fires 541 Chic Instructions d'utilisation

Valor Fires

Valor Fires Artura 958 Mode d’emploi

Valor Fires

Valor Fires 824 Blenheim Longlite Instructions d'utilisation

Valor Fires

Valor Fires 541 Instructions d'utilisation

Valor Fires

Valor Fires 473 Black Beauty Unigas II Mode d’emploi

Valor Fires

Valor Fires 761 Mode d’emploi

Valor Fires

Valor Fires 953 Instructions d'utilisation

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
